Select a web server topology diagram and roadmap

(dist)(iseries)
Select a web server topology diagram and roadmap

Install the Web Server Plug-ins to allow the application server to communicate with the web server.

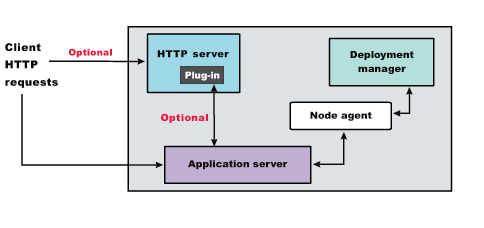

The primary production configuration for a web server is an application server on one machine and a web server on a separate machine. This configuration is referred to as a remote configuration. Contrast the remote configuration to the local configuration, where the application server and the web server are on the same machine.
(dist)

About this task

The Web Server Plug-ins Configuration Tool has three main tasks:

Configures the web server configuration file on the web server machine to point to the binary plug-in module and to the XML configuration file for the binary module.

Installs a temporary XML configuration file for the binary module (plugin-cfg.xml) on the web server machine in remote scenarios.

Creates the configuration for a web server definition on the application server machine. The Web Server Plug-ins Configuration Tool processes the creation of the web server definition differently depending on the scenario:
Web server plug-in installation for standalone application server environments

Recommended remote standalone application server installation:
Creates a configuration script that you run on the application server machine. Install the web server and configure its plug-in on a different machine than the application server. This configuration is recommended for a production environment.

Local standalone application server installation:
Configures the default profile on a local application server machine and creates the Web server definition for it directly. Install the web server and configure its plug-in on the same machine with the application server. This configuration is for development and test environments.

Web server plug-in installation for distributed environments (cells)

Recommended remote distributed installation:
Creates a configuration script that you run on the application server machine. Install the web server and configure its plug-in on a different machine than the deployment manager or managed node. This configuration is recommended for a production environment.

Local distributed installation:
Creates a configuration script that you run when the deployment manager is running. Install the web server and configure its plug-in on the same machine with the deployment manager or a managed node. This configuration is for development and test environments.

(dist) Tip: Alternatively to using the Web Server Plug-ins Configuration Tool, we can use the pct command-line tool with a response file to configure a web server. Read Configure a web server plug-in using the pct tool for more information.
Set up a remote web server installation for a standalone node.

The remote web server configuration is recommended for production environments.
The remote installation installs the web server plug-in on the web server machine when the application server is on a separate machine, such as shown in the following graphic:

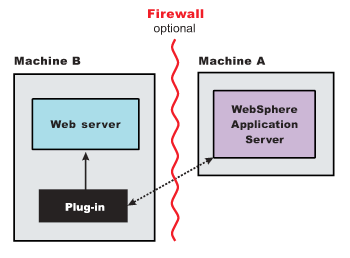

(dist) Remote installation scenario

Step Machine Task
1 A Install Installation Manager.
2 A Use Installation Manager to install the WAS product.
3 A Create a standalone application server profile.
4 B Install Installation Manager.
5 B Use Installation Manager to install the following:

Web Server Plug-ins for WebSphere Application Server

(dist) WebSphere Customization Toolbox

6 B Use Installation Manager to install IBM HTTP Server, or install another supported web server.
7 B Open the WebSphere Customization Toolbox, and launch the Web Server Plug-ins Configuration Tool to configure the web server plug-in.
The script for creating and configuring the web server is created under the plugins_root/bin directory.
8 B Copy the configureweb_server_name script to paste on Machine A.
If one machine is running under an operating system such as AIX or Linux and the other machine is running under Windows, copy the script from the plugins_root/bin/crossPlatformScripts directory.
9 A Paste the configureweb_server_name script from Machine B to the app_server_root/bin directory on Machine A.
10 A Start the application server.
11 A Run the script from a command line.
12 A Verify that the application server is running. Open the console and save the changed configuration.
13 A Create a secure connection between the web server plug-in and the internal HTTP transport in the application server.
Avoid trouble: This step is required for the web server to function properly.gotcha For detailed instructions on creating the secure connection, read the article on configuring the web server plug-in for Secure Sockets Layer.
14 B Start the web server.
15 B Run the Snoop servlet.
Access the following URL in the browser:
http://host_of_machine_B:http_transport_port/Snoop

To verify with our own application, regenerate and propagate the plugin-cfg.xml file after installing the application.

(iseries)
Step Machine Task
1 A Install the WAS product.
2 A Create an application server profile.
3 B If we plan to run IBM HTTP Server on IBM i, it is already installed as product 5761-DG1 or 5770-DG1. We can also use a Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions.
For either scenario, install the Web Server Plug-ins component of the WAS product.
4
B
Run the manageprofiles Qshell command to create an http profile.
For example, run this command from Qshell:
app_server_root/bin/manageprofiles
  -create
  -profileName myHttpProfile
  -templatePath http
The myHttpProfile variable is the name of the profile.
5
B
Configure the IBM HTTP Server with the http profile myHttpProfile.
If the web server's name is MyWebServer., an IBM i qshell script called configureIHS_MyWebServer is created in the myHttpProfile_profile_root/config/IHS_myWebServer directory on Machine B. For the default WebSphere Application Server install, themyHttpProfile_profile_root of the profile myHttpProfile is /QIBM/UserData/WebSphere/AppServer/V61/Base/profiles/myHttpProfile.
In the remainder of this example, webServerName refers to IHS_myWebServer. If we choose to configure a DOMINO web server as listed below, then webServerName refers to DOMSRV01.
The following steps apply to DOMINO web servers only:
Run the configureOs400WebServerDefinition script on the http profile myHttpProfile. For example:
configureOs400WebServerDefinition -profileName myHttpProfile
  -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.port 80
Use the WRKDOMSVR command to update the notes.ini file of the Domino server, insert the following directive: WebSphereInit=myHttpProfile_profile_root/config/DOMSRV01/plugin-cfg.xml

From the Lotus Notes client connected to the Domino server, click the internet protocols tab and then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM

Save the changes
6 A Copy the configurewebServerName script from Machine B to Machine A. The script is found in the myHttpProfile_profile_root/config/webServerName directory described above
7 A Place the file you copied from the previous step into the profile_root/bin directory on Machine A, where profile_root is the directory where the application server profile is located.
8
A
Start the application server and then run the script that you copied in the previous step.
For example, run these commands from Qshell:
app_server_root/bin/startServer
  -profileName myProfile
 cd profile_root/bin
 ./configurewebServerName [wasAdminUserId] [wasAdminPassword]
wasAdminUserId and wasAdminPassword are optional and only needed when the application server of myProfile is running in secure mode.
9 A If we use IBM HTTP Server on IBM i, verify that the application server is running. Open the console (ISC) and do the following:

Expand Servers > Server Types > Web servers.

Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management

Enter the user ID and password used to authenticate to Machine B. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the iSeries Information Center.

Save the configuration.

10 A Configure a virtual host alias for the web server machine (B) and web server port of MyWebServer.
11 A Stop and restart the application server.
12 A In the console (ISC) do the following:

Select webServerName and click Generate Plug-in to generate the plugin-cfg.xml file.

Select webServerName and click Propagate Plug-in to propagate the plugin-cfg.xml file to Machine B.

13 B If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) and do the following:

Expand Servers > Server Types > Web servers.

Select the web server, in this case it is IHS_MyWebServer, then click Start.
If we use Domino HTTP Server on IBM i, start the web server from a CL command line:

Run the Work with Domino Servers (WRKDOMSVR) command.

Specify option 1 next to the Domino server.

Press Enter.

14 B Run the Snoop servlet. Access the following URL in the browser:
http://host_of_machine_B:http_transport_port/Snoop

If we get an error, retrace the steps. Add a virtual host to Machine A before restarting the application server on Machine A.
Regeneration of the plugin-cfg.xml file
The web server plug-in configuration service regenerates the plugin-cfg.xml file automatically.
(iseries) However, if the service is disabled or to force regeneration, use the console or the GenPluginCfg script. In the console, perform these steps:

Expand Servers > Server Types > Web servers .

Select the web server for which to regenerate the plugin-cfg.xml file.

Click Generate Plugin.

(dist) During configuration, the temporary plugin-cfg.xml file is installed on Machine B in the plugins_root/config/web_server_name directory. To use the actual plugin-cfg.xml file from the application server, propagate the plugin-cfg.xml file as described in the next section.
Propagation of the plugin-cfg.xml file
(iseries) The plugin-cfg.xml file can be propagated manually. Manual propagation of the plugin-cfg.xml file is required for DOMINO web servers. Copy the plugin-cfg.xml file from the application server machine to the myHttpProfile_profile_root/config/IHS_MyWebServer directory on the web server Machine B. The plugin-cfg.xml file is generated in the directory named profile_root/config/cells/cell_name/nodes/host_of_machine_B-node/servers/IHS_myWebServer on the application server Machine A.
(dist) The web server plug-in configuration service propagates the plugin-cfg.xml file automatically for IBM HTTP Server Version 6.0 or later. For all other web servers, propagate the plug-in configuration file manually. Copy the plugin-cfg.xml file from the profile_root/ config/cells/cell_name/nodes/web_server_name_node/servers/web_server_name directory on Machine A. Paste the file into the plugins_root/config/web_server_name directory on Machine B.
Set up a local web server configuration for a standalone node.

The local web server configuration is recommended for a development or test environment.
A local installation includes the web server plug-in, the web server, and the Application Server on the same machine:

(dist) Local installation scenario

Step Machine Task
1 A Install Installation Manager.
2 A Use Installation Manager to install the following:

WebSphere Application Server product

Web Server Plug-ins for WebSphere Application Server

WebSphere Customization Toolbox

3 A Use Installation Manager to install IBM HTTP Server, or install another supported web server.
4 A Create a standalone application server profile.
5 A Open the WebSphere Customization Toolbox, and launch the Web Server Plug-ins Configuration Tool to configure the web server plug-in and create the web server definition.
The web server definition is automatically created and configured during the configuration of the plug-in.
6 A Start the application server.
7 A Verify that the application server is running. Open the console and save the changed configuration.
8 A Create a secure connection between the web server plug-in and the internal HTTP transport in the application server.
Avoid trouble: This step is required for the web server to function properly.gotcha For detailed instructions on creating the secure connection, read the article on configuring the web server plug-in for Secure Sockets Layer.
9 A Start the web server.
10 A Run the Snoop servlet.
Access the following URL in the browser:
http://host_of_machine_A:http_transport_port/Snoop

To verify with our own application, regenerate and propagate the plugin-cfg.xml file after installing the application.

(iseries)
Step Machine Task
1 A Install the WAS product.
2 A Create an application server profile.
3 A IBM HTTP Server on IBM i is already installed as product 5761-DG1 or 5770-DG1. Alternatively, we can also run Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions.
4
A
Configure the IBM HTTP Server with the WAS profile.
The following steps apply to DOMINO web servers only. For these steps, assume the web server's name is MyWebServer.
Run the configureOs400WebServerDefinition script on the application server profile. For example:

configureOs400WebServerDefinition -profileName myAppServerProfile -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.port 80

Configure a virtual host alias for the web server machine and web server port of DOMSRV01.
Use the WRKDOMSVR command to update the notes.ini file of the Domino server, insert the following directive:
WebSphereInit=profile_root/config/cells/cell_name/nodes/node/
   servers/DOMSRV01/plugin-cfg.xml
From the Lotus Notes client connected to the Domino server, click the Internet protocols tab, then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM

Save the changes
5 A Stop and restart the application server.
6 A If we use IBM HTTP Server on IBM i, open the console (ISC) do the following:

Expand Servers > Server Types > Web servers.

Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management.

Enter the user ID and password used to authenticate to Machine A. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the IBM i Information Center.

Save the changes.

7 A In the console (ISC) do the following:

Expand Servers > Server Types > Web servers.

If we use IBM HTTP Server on IBM i, Select IHS_MyWebServer and click Generate Plug-in to generate the plugin-cfg.xml file.

If we use Domino HTTP Server on IBM i, Select DOMSRV01 and click Generate Plug-in to generate the plugin-cfg.xml file.

8 A If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) and do the following:

Expand Servers > Server Types > Web servers.

Select the web server, in this case it is IHS_MyWebServer, then click Start.
If we use Domino HTTP Server on IBM i, start the web server from a CL command line:

Run the Work with Domino Servers (WRKDOMSVR) command.

Specify option 1 next to the Domino server.

Press Enter.

9 A Run the Snoop servlet. Access the following URL in the browser:
http://host_of_machine_A:http_transport_port/Snoop

If we get an error, retrace the steps. Add a virtual host to Machine A before restarting the application server on Machine A.
Regeneration of the plugin-cfg.xml file
The web server plug-in configuration service regenerates the plugin-cfg.xml file automatically.
(iseries) However, if the service is disabled or to force regeneration, use the console or the GenPluginCfg script. In the console, perform these steps:

Expand Servers > Server Types > Web servers.

Select the web server for which to regenerate the plugin-cfg.xml file.

Click Generate Plug-in.

(dist) The plugin-cfg.xml file is generated in the profile_root/config/cells/cell_name/nodes/web_server_name_node/servers/web_server_name directory. The generation occurs when the web server definition is created.
Propagation of the plugin-cfg.xml file
The local file does not require propagation.
Set up a remote web server installation in a cell.Set up a remote web server configuration for a managed node.

The remote web server configuration is recommended for production environments.
The remote distributed installation installs the web server plug-in on the web server machine when the application server is on a separate machine, such as shown in the following graphic:

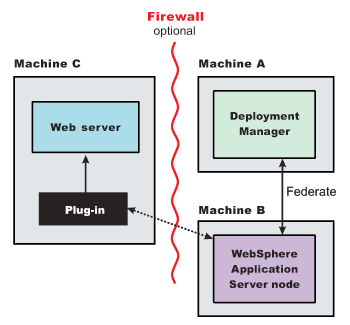

(dist) Remote distributed installation scenario

Step Machine Task
1 A Install IBM Installation Manager.
2 A Use Installation Manager to install the WAS product.
3 A Create a dmgr profile.
4 A Verify that the deployment manager is running to allow node synchronization of changed configuration files.
5 B Install Installation Manager.
6 B Use Installation Manager to install the WAS product.
7 B Create a standalone application server.
8 B Add the node into the deployment manager cell in order to start the node agent process. Start the node agent on an existing managed node. The deployment manager and the node agent must be running to allow node synchronization of changed configuration files.
9 C Install Installation Manager.
10 C Use Installation Manager to install the following:

Web Server Plug-ins for WebSphere Application Server

WebSphere Customization Toolbox

11 C Use Installation Manager to install IBM HTTP Server, or install another supported web server.
12 C Open the WebSphere Customization Toolbox, and launch the Web Server Plug-ins Configuration Tool to configure the web server plug-in.
The script for creating and configuring the web server is created under the plugins_root/bin directory.
13 C Copy the configureweb_server_name script to paste on Machine A.
If one machine is running under an operating system such as AIX or Linux and the other machine is running under Windows, copy the script from the plugins_root/bin/crossPlatformScripts directory.
14 A Paste the configureweb_server_name script from Machine C to the app_server_root/bin directory on Machine A.
15 A Start the node agent and the deployment manager if they are not already running, then run the script from a command line.
If we have enabled security or changed the default JMX connector type, edit the script and include the appropriate parameters on wsadmin.
16 A and B Use the console of the deployment manager on Machine A to start the application server on Machine B. Wait for synchronization to occur and save the new configuration.
17 A Create a secure connection between the web server plug-in and the internal HTTP transport in the application server.
Avoid trouble: This step is required for the web server to function properly.gotcha For detailed instructions on creating the secure connection, read the article on configuring the web server plug-in for Secure Sockets Layer.
18 C Start the web server.
19 C Run the Snoop servlet.
Access the following URL in the browser:
http://host_of_machine_C:http_transport_port/Snoop

To verify with our own application, regenerate and propagate the plugin-cfg.xml file after installing the application.

(iseries)
Step Machine Task
1 A Install WebSphere Application Server Network Deployment.
2 A Create a dmgr profile or use the one created during installation.
3 A Start the deployment manager. From Qshell, run this command:

app_server_root/bin/startManager -profileName name_of_dmgr_profile

4 B Install WebSphere Application Server Network Deployment.
5 B Create an application server profile or use the one created during installation.
6
B
Federate the node. From Qshell, run this command:
app_server_root/bin/addNode
   dmgrHost
   SOAP_port
   -profileName appProfile
   -includeapps
Variable descriptions:

The dmgrHost variable is the host name of the machine where the dmgr profile exists.

The SOAP_port variable is the SOAP port of the dmgr profile. The default SOAP port is 8879. To determine which port the dmgr profile uses, run the following command:

app_server_root/bin/dspwasinst -profileName name_of_dmgrProfile

The appProfile variable is the name of the application server profile to federate.

Map the application modules to servers after this step.
7 C IBM HTTP Server on IBM i is already installed as product 5761-DG1 or 5770-DG1. Alternatively, we can also run Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions.
For either scenario, install the Web Server Plug-ins component of the WAS product.
8 C Run the manageprofiles Qshell command to create an http profile.
The myHttpProfile variable is the name of the profile.
9
C
Configure the IBM HTTP Server with the http profile myHttpProfile.
Assuming the Web server's name is MyWebServer. an IBM i qshell script called configureIHS_MyWebServer will be created in the myHttpProfile_profile_root/config/IHS_MyWebServer directory on Machine C. For the default WebSphere Application Server install, the myHttpProfile_profile_root of the profile myHttpProfile is /QIBM/UserData/WebSphere/AppServer/V61/Base/profiles/myHttpProfile.
In the remainder of this example, webServerName refers to IHS_myWebServer. If we choose to configure a DOMINO web server as listed below, then webServerName refers to DOMSRV01.
The following steps apply to DOMINO web servers only:
Run the configureOs400WebServerDefinition script on the http profile myHttpProfile. For example:
configureOs400WebServerDefinition -profileName myHttpProfile
   -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.port 80
Use the WRKDOMSVR command to update the notes.ini file of the Domino server, insert the following directive: WebSphereInit=myHttpProfile_profile_root/config/DOMSRV01/plugin-cfg.xml

From the Lotus Notes client connected to the Domino server, click the Internet protocols tab, then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM

Save the changes.
10 C Copy the configurewebserverName script to Machine A. The script is found in the myHttpProfile_profile_root/config/webServerName directory described above.
11 A Place the file you copied from the previous step into the profile_root/bin directory on Machine A, where profile_root is the directory where the dmgr profile is located.
12
A/B
Start the node agent and the deployment manager if they are not already running, then run the script that you copied in the previous step. For example, run these commands from Qshell:
Machine A:
app_server_root/bin/startManager
-profileName name_of_dmgr_profile
 cd profile_root/bin
./configurewebServerName [wasAdminUserId] [wasAdminPassword]
wasAdminUserId and wasAdminPassword are optional and only needed when the deployment manager of name_of_dmgr_profile is running in secure mode.
Machine B:
app_server_root/bin/startNode
-profileName appProfile
13 A Use the console of the deployment manager on Machine A to start the application server on Machine B. Wait for synchronization to occur and save the new configuration.
14 A If we use IBM HTTP Server on IBM i, verify that the deployment manager is running. Open the console (ISC) and do the following:

Expand Servers > Server Types > Web servers.

Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management. .

Enter the user ID and password used to authenticate to Machine C. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the IBM i information center.

Save the configuration.

15 A Configure a virtual host alias for the web server machine (C) and web server port of MyWebServer.
16 A In the console (ISC) do the following:

Select webServerName and click Generate Plug-in to generate the plugin-cfg.xml file.

Select webServerName and click Propagate Plug-in to propagate the plugin-cfg.xml file to Machine C.

17 A Stop and restart the federated application server.
18 A/C If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) on Machine A and do the following:

Expand Servers > Server Types > Web servers.

Select the web server, in this case it is IHS_MyWebServer, then click Start.

If we use Domino HTTP Server on IBM i, start the web server, on Machine C, from a CL command line:

Run the Work with Domino Servers (WRKDOMSVR) command.

Specify option 1 next to the Domino server.

Press Enter.

19 C Run the Snoop servlet. Access the following URL in the browser:
http://host_of_machine_C:http_transport_port/Snoop

If we get an error, retrace the steps.
Regeneration of the plugin-cfg.xml file
The web server plug-in configuration service regenerates the plugin-cfg.xml file automatically.
(iseries) However, if the service is disabled or to force regeneration, use the console or the GenPluginCfg script. In the console, perform these steps:

Expand Servers > Server Types > Web servers.

Select the web server for which to regenerate the plugin-cfg.xml file.

Click Generate Plug-in.

(dist) During configuration, the temporary plugin-cfg.xml file is installed on Machine B in the plugins_root/config/web_server_name directory.
Propagation of the plugin-cfg.xml file
(iseries) The plugin-cfg.xml file can be propagated manually. Manual propagation of the plugin-cfg.xml file is required for DOMINO web servers. Copy the plugin-cfg.xml file from the application server machine to the myHttpProfile_profile_root/config/IHS_MyWebServer directory on the web server Machine C. The plugin-cfg.xml file is generated in the directory named profile_root/config/cells/cell_name/nodes/node/servers/IHS_myWebServer on the application server Machine B.
(dist) The web server plug-in configuration service propagates the plugin-cfg.xml file automatically for IBM HTTP Server Version 6.0 or later. For all other web servers, propagate the plug-in configuration file, by manually copying the plugin-cfg.xml file from the profile_root/config/cells/cell_name/nodes/node/servers/web_server_name directory on Machine A to the plugins_root/config/web_server_name directory on Machine C.

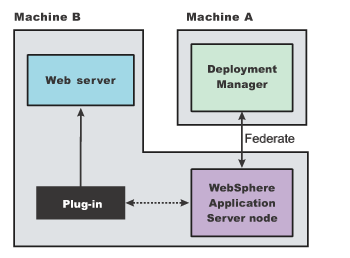

Set up a local distributed web server configuration.Set up a local web server configuration for a managed node.

The local web server configuration is recommended for a development or test environment.
A local distributed installation includes the web server plug-in, the Web server, and the managed application server on the same machine:

Local distributed installation scenario
(dist)

Step Machine Task
1 A Install IBM Installation Manager.
2 A Use Installation Manager to install the WAS product.
3 A Create a dmgr profile.
4 A Verify that the deployment manager is running to allow node synchronization of changed configuration files.
5 B Install Installation Manager.
6 B Use Installation Manager to install the following:

WebSphere Application Server product

Web Server Plug-ins for WebSphere Application Server

WebSphere Customization Toolbox

7 B Use Installation Manager to install IBM HTTP Server, or install another supported web server.
8 B Create a standalone application server.
9 B Add the node into the deployment manager cell in order to start the node agent process. Start the node agent on an existing managed node. The deployment manager and the node agent must be running to allow node synchronization of changed configuration files.
10 B Open the WebSphere Customization Toolbox, and launch the Web Server Plug-ins Configuration Tool to configure the web server plug-in and create the web server definition.
The script for creating and configuring the web server is created in the plugins_root/bin directory.
11 B Copy the configureweb_server_name script to paste on Machine A.
12 A Paste the configureweb_server_name script from Machine B to the app_server_root/bin directory on Machine A.
13 A After verifying that the deployment manager and the node agent are running on Machine A, run the configureweb_server_name script from a command line in the plugins_root/bin directory.
If we have enabled security or changed the default JMX connector type, edit the script and include the appropriate parameters.
14 A and B Use the console of the deployment manager on Machine A to start the application server on Machine B. Wait for synchronization to occur and save the new configuration.
15 A Create a secure connection between the web server plug-in and the internal HTTP transport in the application server.
Avoid trouble: This step is required for the web server to function properly.gotcha For detailed instructions on creating the secure connection, read the article on configuring the web server plug-in for Secure Sockets Layer.
16 B Start the web server.
17 B Run the Snoop servlet.
Access the following URL in the browser:
http://host_of_machine_B:http_transport_port/Snoop

(iseries)
Step Machine Task
1 A Install WebSphere Application Server Network Deployment.
2 A Create a dmgr profile or use the one created during installation.
3
A
Start the deployment manager. From Qshell, run this command:
app_server_root/bin/startManager
   -profileName name_of_dmgr_profile
Alternatively, issue the following commands:
cd profile_root/bin
 startManager
4 B Install WebSphere Application Server Network Deployment.
5 B Create an application server profile or use the one created during the installation. Assume the profile name is appProfile.
6
B
Federate the node. From Qshell, run the following commands:
app_server_root/bin/addNode
   dmgrHost     SOAP_port     -profileName appProfile
   -includeapps
Variable descriptions:
The dmgrHost variable is the host name of the machine where the dmgr profile exists.
The SOAP_port variable is the SOAP port of the dmgr profile. The default SOAP port is 8879. To determine which port the dmgr profile uses, run the following command:
app_server_root/bin/dspwasinst
   -profileName name_of_dmgrProfile
The appProfile variable is the name of the application server profile to federate.
Map the application modules to servers after this step.
7 B IBM HTTP Server on IBM i is already installed as product 5761-DG1 or 5770-DG1. Alternatively, we can also run Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions.
8 B Configure the IBM HTTP Server with the application server profile appProfile.
In the remainder of this example, webServerName refers to IHS_MyWebServer. If we choose to configure a DOMINO web server as listed below, then webServerName refers to DOMSRV01.
Also in this example, assume the web server's name is MyWebServer.
9 A/B (Domino only) The following steps apply to the DOMINO web server on Machine B:

Run the configureOs400WebServerDefinition script on the dmgr profile. For example:

configureOs400WebServerDefinition -profileName name_of_dmgr_profile -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.node name_of_federated_node -webserver.port 80.

In this case, name_of_federated_node is name_of_machine_B_appProfile.

Use the console (ISC) on Machine A, configure a virtual host alias for the web server machine and web server port of DOMSRV01.

On Machine B, Use the WRKDOMSVR command to update the notes.ini file of the Domino server. Insert the following directive: WebSphereInit=appProfile_root/config/cells/cell_name/nodes/node/servers/DOMSRV01/plugin-cfg.xml. appProfile is the application server profile name on Machine B.

On Machine B, from the Lotus Notes client connected to the Domino server, click the Internet protocols tab, then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM

Save the changes.

10 A Use the console of the deployment manager on Machine A to start the application server on Machine B.
11 A If we use IBM HTTP Server on IBM i, update the user ID and password of the web server configuration. This step enables the deployment manager to perform remote operations on the web server:

Open the console for the dmgr profile on Machine A.

Expand Servers > Server Types > Web servers

Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management

Enter the user ID and password used to authenticate to Machine B. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the IBM i information center

Save the configuration.

12 A In the console (ISC), configure a virtual host alias for the web server machine (B) and web server port of MyWebServer.
13 A In the console (ISC) do the following:

Select webServerName and click Generate Plug-in to generate the plugin-cfg.xml file.

Select webServerName and click Propagate Plug-in to propagate the plugin-cfg.xml file.

14 A In the console (ISC), stop and restart the federated application server.
15 A/B
If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) on Machine A and do the following:

Expand Servers > Server Types > Web servers

2. Select the web server, in this case it is IHS_MyWebServer, then click Start.

If we use Domino HTTP Server on IBM i, start the web server, on Machine B, from a CL command line:

Run the Work with Domino Servers (WRKDOMSVR) command. .

Specify option 1 next to the Domino server.

Press Enter. .

16 B Run the Snoop servlet. Access the following URL in the browser:
http://host_of_machine_B:http_transport_port/Snoop

If we get an error, retrace the steps.
Regeneration of the plugin-cfg.xml file
The web server plug-in configuration service regenerates the plugin-cfg.xml file automatically.
(iseries) However, if the service is disabled or to force regeneration, use the console or the GenPluginCfg script. In the console, perform these steps:

Expand Servers > Server Types > Web servers.

Select the web server for which to regenerate the plugin-cfg.xml file.

Click Generate Plug-in.

(dist) During configuration, the temporary plugin-cfg.xml file is installed on Machine B in the plugins_root/config/web_server_name directory.
The plugin-cfg.xml file is generated at the location profile_root/config/cells/cell_name/nodes/node/servers/webServerName directory, when the web server definition is created.
Regenerate the plugin-cfg.xml file in the web server definition in the application server whenever the configuration changes. The web server has immediate access to the file whenever it is regenerated.
(dist) When the web server plug-in configuration service (an administration service) is enabled on Machine A, the plugin-cfg.xml file is automatically generated for all web servers.
Propagation of the plugin-cfg.xml file
Node synchronization is used to propagate the plugin-cfg.xml file from Machine A to Machine B.
(dist) When the web server plug-in configuration service (an administration service) is enabled on Machine A, the plugin-cfg.xml file is automatically propagated for all web servers.
(dist) Alternate configuration
(dist) This procedure describes installing the plug-ins on two machines. However, we can perform this procedure on a single machine as shown in the following graphic. A local distributed installation also includes the web server plug-in, the web server, the application server, and the deployment manager on the same machine:
What to do next

If we use a nonstandard web server port (that is, a port other than the default port of 80) you must also perform the following procedure:

Use the console, add the nonstandard port to any required virtual host in WebSphere Application Server, including the default_host if applications are mapped to it.

Regenerate the plug-in.

Propagate the plug-in.

Restart the application server.

Restart the web server.

(dist) See (dist)(iseries) Web server configuration for more information about the files involved in configuring a web server.
(dist) See (dist)(iseries) Plug-ins configuration for information about the logic behind the processing scenarios for the Web Server Plug-ins Configuration Tool.
(dist) See Edit web server configuration files for information about how the Web Server Plug-ins Configuration Tool configures supported web servers.
(dist) See Configure web server plug-ins for information about other installation scenarios for installing Web Server Plug-ins.
(iseries) See Configure web server plug-ins for information about other installation scenarios for installing Web Server Plug-ins.

Related concepts

Web server plug-ins

Related tasks

Configure a web server plug-in using the pct tool
Configure web server plug-ins
Configure the web server plug-in for Secure Sockets Layer

Web server plug-in properties

Step	Machine	Task
1	A	Install Installation Manager.
2	A	Use Installation Manager to install the WAS product.
3	A	Create a standalone application server profile.
4	B	Install Installation Manager.
5	B	Use Installation Manager to install the following: Web Server Plug-ins for WebSphere Application Server (dist) WebSphere Customization Toolbox
6	B	Use Installation Manager to install IBM HTTP Server, or install another supported web server.
7	B	Open the WebSphere Customization Toolbox, and launch the Web Server Plug-ins Configuration Tool to configure the web server plug-in. The script for creating and configuring the web server is created under the plugins_root/bin directory.
8	B	Copy the configureweb_server_name script to paste on Machine A. If one machine is running under an operating system such as AIX or Linux and the other machine is running under Windows, copy the script from the plugins_root/bin/crossPlatformScripts directory.
9	A	Paste the configureweb_server_name script from Machine B to the app_server_root/bin directory on Machine A.
10	A	Start the application server.
11	A	Run the script from a command line.
12	A	Verify that the application server is running. Open the console and save the changed configuration.
13	A	Create a secure connection between the web server plug-in and the internal HTTP transport in the application server. Avoid trouble: This step is required for the web server to function properly.gotcha For detailed instructions on creating the secure connection, read the article on configuring the web server plug-in for Secure Sockets Layer.
14	B	Start the web server.
15	B	Run the Snoop servlet. Access the following URL in the browser: http://host_of_machine_B:http_transport_port/Snoop To verify with our own application, regenerate and propagate the plugin-cfg.xml file after installing the application.

Step	Machine	Task
1	A	Install the WAS product.
2	A	Create an application server profile.
3	B	If we plan to run IBM HTTP Server on IBM i, it is already installed as product 5761-DG1 or 5770-DG1. We can also use a Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions. For either scenario, install the Web Server Plug-ins component of the WAS product.
4	B	Run the manageprofiles Qshell command to create an http profile. For example, run this command from Qshell: app_server_root/bin/manageprofiles -create -profileName myHttpProfile -templatePath http The myHttpProfile variable is the name of the profile.
5	B	Configure the IBM HTTP Server with the http profile myHttpProfile. If the web server's name is MyWebServer., an IBM i qshell script called configureIHS_MyWebServer is created in the myHttpProfile_profile_root/config/IHS_myWebServer directory on Machine B. For the default WebSphere Application Server install, themyHttpProfile_profile_root of the profile myHttpProfile is /QIBM/UserData/WebSphere/AppServer/V61/Base/profiles/myHttpProfile. In the remainder of this example, webServerName refers to IHS_myWebServer. If we choose to configure a DOMINO web server as listed below, then webServerName refers to DOMSRV01. The following steps apply to DOMINO web servers only: Run the configureOs400WebServerDefinition script on the http profile myHttpProfile. For example: configureOs400WebServerDefinition -profileName myHttpProfile -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.port 80 Use the WRKDOMSVR command to update the notes.ini file of the Domino server, insert the following directive: WebSphereInit=myHttpProfile_profile_root/config/DOMSRV01/plugin-cfg.xml From the Lotus Notes client connected to the Domino server, click the internet protocols tab and then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM Save the changes
6	A	Copy the configurewebServerName script from Machine B to Machine A. The script is found in the myHttpProfile_profile_root/config/webServerName directory described above
7	A	Place the file you copied from the previous step into the profile_root/bin directory on Machine A, where profile_root is the directory where the application server profile is located.
8	A	Start the application server and then run the script that you copied in the previous step. For example, run these commands from Qshell: app_server_root/bin/startServer -profileName myProfile cd profile_root/bin ./configurewebServerName [wasAdminUserId] [wasAdminPassword] wasAdminUserId and wasAdminPassword are optional and only needed when the application server of myProfile is running in secure mode.
9	A	If we use IBM HTTP Server on IBM i, verify that the application server is running. Open the console (ISC) and do the following: Expand Servers > Server Types > Web servers. Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management Enter the user ID and password used to authenticate to Machine B. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the iSeries Information Center. Save the configuration.
10	A	Configure a virtual host alias for the web server machine (B) and web server port of MyWebServer.
11	A	Stop and restart the application server.
12	A	In the console (ISC) do the following: Select webServerName and click Generate Plug-in to generate the plugin-cfg.xml file. Select webServerName and click Propagate Plug-in to propagate the plugin-cfg.xml file to Machine B.
13	B	If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) and do the following: Expand Servers > Server Types > Web servers. Select the web server, in this case it is IHS_MyWebServer, then click Start. If we use Domino HTTP Server on IBM i, start the web server from a CL command line: Run the Work with Domino Servers (WRKDOMSVR) command. Specify option 1 next to the Domino server. Press Enter.
14	B	Run the Snoop servlet. Access the following URL in the browser: http://host_of_machine_B:http_transport_port/Snoop If we get an error, retrace the steps. Add a virtual host to Machine A before restarting the application server on Machine A.

Step	Machine	Task
1	A	Install the WAS product.
2	A	Create an application server profile.
3	A	IBM HTTP Server on IBM i is already installed as product 5761-DG1 or 5770-DG1. Alternatively, we can also run Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions.
4	A	Configure the IBM HTTP Server with the WAS profile. The following steps apply to DOMINO web servers only. For these steps, assume the web server's name is MyWebServer. Run the configureOs400WebServerDefinition script on the application server profile. For example: configureOs400WebServerDefinition -profileName myAppServerProfile -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.port 80 Configure a virtual host alias for the web server machine and web server port of DOMSRV01. Use the WRKDOMSVR command to update the notes.ini file of the Domino server, insert the following directive: WebSphereInit=profile_root/config/cells/cell_name/nodes/node/ servers/DOMSRV01/plugin-cfg.xml From the Lotus Notes client connected to the Domino server, click the Internet protocols tab, then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM Save the changes
5	A	Stop and restart the application server.
6	A	If we use IBM HTTP Server on IBM i, open the console (ISC) do the following: Expand Servers > Server Types > Web servers. Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management. Enter the user ID and password used to authenticate to Machine A. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the IBM i Information Center. Save the changes.
7	A	In the console (ISC) do the following: Expand Servers > Server Types > Web servers. If we use IBM HTTP Server on IBM i, Select IHS_MyWebServer and click Generate Plug-in to generate the plugin-cfg.xml file. If we use Domino HTTP Server on IBM i, Select DOMSRV01 and click Generate Plug-in to generate the plugin-cfg.xml file.
8	A	If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) and do the following: Expand Servers > Server Types > Web servers. Select the web server, in this case it is IHS_MyWebServer, then click Start. If we use Domino HTTP Server on IBM i, start the web server from a CL command line: Run the Work with Domino Servers (WRKDOMSVR) command. Specify option 1 next to the Domino server. Press Enter.
9	A	Run the Snoop servlet. Access the following URL in the browser: http://host_of_machine_A:http_transport_port/Snoop If we get an error, retrace the steps. Add a virtual host to Machine A before restarting the application server on Machine A.

Step	Machine	Task
1	A	Install IBM Installation Manager.
2	A	Use Installation Manager to install the WAS product.
3	A	Create a dmgr profile.
4	A	Verify that the deployment manager is running to allow node synchronization of changed configuration files.
5	B	Install Installation Manager.
6	B	Use Installation Manager to install the WAS product.
7	B	Create a standalone application server.
8	B	Add the node into the deployment manager cell in order to start the node agent process. Start the node agent on an existing managed node. The deployment manager and the node agent must be running to allow node synchronization of changed configuration files.
9	C	Install Installation Manager.
10	C	Use Installation Manager to install the following: Web Server Plug-ins for WebSphere Application Server WebSphere Customization Toolbox
11	C	Use Installation Manager to install IBM HTTP Server, or install another supported web server.
12	C	Open the WebSphere Customization Toolbox, and launch the Web Server Plug-ins Configuration Tool to configure the web server plug-in. The script for creating and configuring the web server is created under the plugins_root/bin directory.
13	C	Copy the configureweb_server_name script to paste on Machine A. If one machine is running under an operating system such as AIX or Linux and the other machine is running under Windows, copy the script from the plugins_root/bin/crossPlatformScripts directory.
14	A	Paste the configureweb_server_name script from Machine C to the app_server_root/bin directory on Machine A.
15	A	Start the node agent and the deployment manager if they are not already running, then run the script from a command line. If we have enabled security or changed the default JMX connector type, edit the script and include the appropriate parameters on wsadmin.
16	A and B	Use the console of the deployment manager on Machine A to start the application server on Machine B. Wait for synchronization to occur and save the new configuration.
17	A	Create a secure connection between the web server plug-in and the internal HTTP transport in the application server. Avoid trouble: This step is required for the web server to function properly.gotcha For detailed instructions on creating the secure connection, read the article on configuring the web server plug-in for Secure Sockets Layer.
18	C	Start the web server.
19	C	Run the Snoop servlet. Access the following URL in the browser: http://host_of_machine_C:http_transport_port/Snoop To verify with our own application, regenerate and propagate the plugin-cfg.xml file after installing the application.

Step	Machine	Task
1	A	Install WebSphere Application Server Network Deployment.
2	A	Create a dmgr profile or use the one created during installation.
3	A	Start the deployment manager. From Qshell, run this command: app_server_root/bin/startManager -profileName name_of_dmgr_profile
4	B	Install WebSphere Application Server Network Deployment.
5	B	Create an application server profile or use the one created during installation.
6	B	Federate the node. From Qshell, run this command: app_server_root/bin/addNode dmgrHost SOAP_port -profileName appProfile -includeapps Variable descriptions: The dmgrHost variable is the host name of the machine where the dmgr profile exists. The SOAP_port variable is the SOAP port of the dmgr profile. The default SOAP port is 8879. To determine which port the dmgr profile uses, run the following command: app_server_root/bin/dspwasinst -profileName name_of_dmgrProfile The appProfile variable is the name of the application server profile to federate. Map the application modules to servers after this step.
7	C	IBM HTTP Server on IBM i is already installed as product 5761-DG1 or 5770-DG1. Alternatively, we can also run Domino Web Server on IBM i. Refer to the Domino documentation for installation instructions. For either scenario, install the Web Server Plug-ins component of the WAS product.
8	C	Run the manageprofiles Qshell command to create an http profile. The myHttpProfile variable is the name of the profile.
9	C	Configure the IBM HTTP Server with the http profile myHttpProfile. Assuming the Web server's name is MyWebServer. an IBM i qshell script called configureIHS_MyWebServer will be created in the myHttpProfile_profile_root/config/IHS_MyWebServer directory on Machine C. For the default WebSphere Application Server install, the myHttpProfile_profile_root of the profile myHttpProfile is /QIBM/UserData/WebSphere/AppServer/V61/Base/profiles/myHttpProfile. In the remainder of this example, webServerName refers to IHS_myWebServer. If we choose to configure a DOMINO web server as listed below, then webServerName refers to DOMSRV01. The following steps apply to DOMINO web servers only: Run the configureOs400WebServerDefinition script on the http profile myHttpProfile. For example: configureOs400WebServerDefinition -profileName myHttpProfile -webserver.name DOMSRV01 -webserver.type DOMINO -webserver.port 80 Use the WRKDOMSVR command to update the notes.ini file of the Domino server, insert the following directive: WebSphereInit=myHttpProfile_profile_root/config/DOMSRV01/plugin-cfg.xml From the Lotus Notes client connected to the Domino server, click the Internet protocols tab, then click the HTTP tab. Under DSAPI filter names add the following: /QSYS.LIB/ product_lib.LIB/LIBDOMINO.SRVPGM Save the changes.
10	C	Copy the configurewebserverName script to Machine A. The script is found in the myHttpProfile_profile_root/config/webServerName directory described above.
11	A	Place the file you copied from the previous step into the profile_root/bin directory on Machine A, where profile_root is the directory where the dmgr profile is located.
12	A/B	Start the node agent and the deployment manager if they are not already running, then run the script that you copied in the previous step. For example, run these commands from Qshell: Machine A: app_server_root/bin/startManager -profileName name_of_dmgr_profile cd profile_root/bin ./configurewebServerName [wasAdminUserId] [wasAdminPassword] wasAdminUserId and wasAdminPassword are optional and only needed when the deployment manager of name_of_dmgr_profile is running in secure mode. Machine B: app_server_root/bin/startNode -profileName appProfile
13	A	Use the console of the deployment manager on Machine A to start the application server on Machine B. Wait for synchronization to occur and save the new configuration.
14	A	If we use IBM HTTP Server on IBM i, verify that the deployment manager is running. Open the console (ISC) and do the following: Expand Servers > Server Types > Web servers. Select the web server, in this case it is IHS_MyWebServer, then click Remote web server management. . Enter the user ID and password used to authenticate to Machine C. The authorities required by this profile are the same as that required to access the HTTP administration GUI. For details, see User profiles and required authorities for HTTP Server in the IBM i information center. Save the configuration.
15	A	Configure a virtual host alias for the web server machine (C) and web server port of MyWebServer.
16	A	In the console (ISC) do the following: Select webServerName and click Generate Plug-in to generate the plugin-cfg.xml file. Select webServerName and click Propagate Plug-in to propagate the plugin-cfg.xml file to Machine C.
17	A	Stop and restart the federated application server.
18	A/C	If we use IBM HTTP Server on IBM i, start the web server. Open the console (ISC) on Machine A and do the following: Expand Servers > Server Types > Web servers. Select the web server, in this case it is IHS_MyWebServer, then click Start. If we use Domino HTTP Server on IBM i, start the web server, on Machine C, from a CL command line: Run the Work with Domino Servers (WRKDOMSVR) command. Specify option 1 next to the Domino server. Press Enter.
19	C	Run the Snoop servlet. Access the following URL in the browser: http://host_of_machine_C:http_transport_port/Snoop If we get an error, retrace the steps.
