Java EE 5 project types
Rational Application Developer complies with the Java EE 5 specifications for the development of enterprise applications.
Module packaging into files, as described in , Java Enterprise Edition 5, is only applied by Rational Application Developer when a Java EE project is exported or deployed.
While working within Rational Application Developer, only the projects present in the workspace are edited. The relationships between the enterprise application projects, and the modules they contain, are managed by Rational Application Developer, and are applied on export or deployment to produce a properly packaged EAR file.

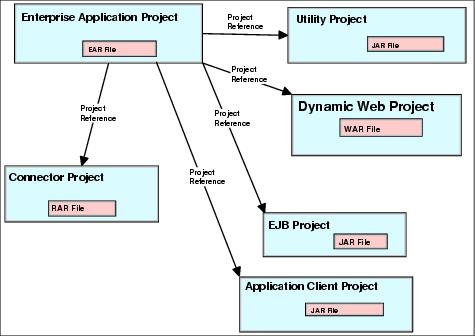

The arrangement between projects and their associated outputs is shown in Figure | -11. Note that this diagram relates to Figure | -2, where the relationships between various Java EE modules are reflected in the Application Developer project references.
Figure 5-11 Java EE projects in Application Developer
|
