Container-Managed Persistence Service: Basic Features

WebLogic Server's container is responsible for providing a uniform interface between the EJB and the WebLogic Server instance. The container creates new instances of the EJBs, manages these bean resources, and provides persistent services such as, transactions, security, concurrency, and naming at runtime.

WebLogic Server's container-managed persistence (CMP) model handles persistence of CMP entity beans automatically at runtime by synchronizing the EJB's instance fields with the data in the database.

Supported Databases

WebLogic Server supports container-managed persistence for the following databases:

EJB Persistence Services

WebLogic Server provides persistence services for entity beans. An entity EJB can save its state in any transactional or non-transactional persistent storage ("bean-managed persistence"), or the container can save the EJB's non-transient instance variables automatically ("container-managed persistence"). WebLogic Server allows both choices and a mixture of the two.

If an EJB uses container-managed persistence, you specify the type of persistence services that the EJB uses in the weblogic-ejb-jar.xml deployment file. A high-level definition for automatic persistence services is stored in the persistence-use element. The persistence-use element defines which service the EJB uses at deployment time.

Note: Configure container-managed persistence beans with a connection pool with maximum connections greater than 1. WebLogic Server's container-managed persistence service sometimes needs to get two connections simultaneously.

Using WebLogic Server RDBMS Persistence

If you use WebLogic Server's tool to create this file, it is named weblogic-cmp-rdbms-jar.xml. If you create the file from scratch, you can save it to a different filename. However, ensure that the persistence-use element in weblogic-ejb-jar.xml refer to the correct file.

Using Primary Keys

The primary key is an object that uniquely identifies an entity bean within its home. The container must be able to manipulate the primary key of an entity bean. Each entity bean class may define a different class for its primary key, but multiple entity beans can use the same primary key class. The primary key is specified in the deployment descriptor for the entity bean. You can specify a primary key class for an entity bean with container-managed persistence by mapping the primary key to either a single field or to multiple fields in the entity bean class.

Every entity object has a unique identity within its home. If two entity objects have the same home and the same primary key, they are considered identical. A client can invoke the getPrimaryKey() method on the reference to an entity object's remote interface to determine the entity object's identity within its home. The object identify associated with the a reference does not change during the lifetime of the reference. Therefore, the getPrimaryKey() method always returns the same value when called on the same entity object reference. A client that knows the primary key of an entity object can obtain a reference to the entity object by invoking the findByPrimaryKey(key) method on the bean's home interface.

Primary Key Mapped to a Single CMP Field

In the entity bean class, you can have a primary key that maps to a single CMP field. One uses the primkey-field element, a deployment descriptor in the ejb-jar.xml file, to specify the container-managed field that is the primary key. The prim-key-class element must be the primary key field's class.

Primary Key Class That Wraps Single or Multiple CMP Fields

You can have a primary key class that maps to single or multiple fields. The primary key class must be public, and have a public constructor with no parameters. One uses the prim-key-class element, a deployment descriptor in the ejb-jar.xml file to specify the name of the entity bean's primary key class. You can only specify the the class name in this deployment descriptor element. All fields in the primary key class must be declared public. The fields in the class must have the same name as the primary key fields in the ejb-jar.xml file.

Anonymous Primary Key Class

If your entity EJB uses an anonymous primary key class, subclass the EJB and add a cmp-field of type java.lang.Integer to the subclass. Enable automatic primary key generation for the field so that the container fills in field values automatically, and map the field to a database column in the weblogic-cmp-rdbms-jar.xml deployment descriptor.

Finally, update the ejb-jar.xml file to specify the EJB subclass, rather than the original EJB class, and deploy the bean to WebLogic Server.

If you use the original EJB (instead of the subclass) with an anonymous primary key class, WebLogic Server displays the following error message during deployment:

Hints for Using Primary Keys

Mapping to a Database Column

WebLogic Server supports mapping a database column to a cmp-field and a cmr-field concurrently. The cmp-field is read-only in this case. If the cmp-field is a primary key field, specify that the value for the field be set when the create() method is invoked by using the setXXX method for the cmp-field.

Container-Managed Persistence Relationships

The entity bean relies on container-managed persistence to generate the methods that perform persistent data access for the entity bean instances. The generated methods transfer data between entity bean instances and the underlying resource manager. Persistence is handled by the container at runtime. The advantage of using container-managed persistence is that the entity bean can be logically independent of the data source in which the entity is stored. The container manages the mapping between the logical and physical relationships at runtime and manages their referential integrity.

Persistent fields and relationships make up the entity bean's abstract persistence schema. The deployment descriptors indicate that the entity bean uses container-managed persistence, and these descriptors are used as input to the container for data access.

Entity beans can have relationships with other beans. These relationships can be either bidirectional or unidirectional. For example, you can have bidirectional or unidirectional relationships for each of the three types of relationship mappings identified below, such as unidirectional one-to-one relationships or bidirectional one-to-one relationships.

You specify relationships in the ejb-jar.xml file and weblogic-cmp-rdbms-jar.xml. You specify container-managed field mappings in the weblogic-cmp-rdbms-jar.xml file.

WebLogic Server supports three types of relationship mappings that are managed by WebLogic container-managed persistence (CMP):

One-to-One Relationships

A WebLogic Server one-to-one relationship involves the physical mapping from a foreign key in one bean to the primary key in another bean.

The following example shows a one-to one relationship mapped between an employee bean and another employee bean, the employee's manager.Figure 5-1 Sample mapping of a one-to-one relationship

In Figure 5-1, there is a foreign-key-column, called manager-id in the table. This is the field to which the bean on the employee side of the relationship is mapped. Also, there is a foreign-key-column that refers to the primary key column (key-column) called id, in the table to which the bean on the manager side of the relationship is mapped.

If either of the beans in the relationship is mapped to multiple tables, then the table for that bean that contains the foreign key or primary key must also be specified in the relationship-role-map element.

One-to-Many Relationships

A WebLogic Server one-to-many relationship involves the physical mapping from a foreign key in one bean to the primary key of another. However, in a one-to-many relationship, the foreign key is always contained in the role that occupies the "many" side of the relationship. In a one-to-many relationship, the foreign key is always associated with the bean that is on the many side of the relationship. This means that the specification of the relationship-role-name in the following sample is redundant, but it is included for uniformity.

The following example shows a one-to many relationship mapped between an employees bean and a departments bean.Figure 5-2 Sample mapping of a one-to-many relationship

In Figure 5-2, there is a foreign key column, called dept-id in the table. This is the field to which the bean on the employees side of the relationship is mapped. Also, there is a foreign-key-column that refers to the primary key column (key-column) called id, in the table to which the bean on the departments side of the relationship is mapped.

Many-to-Many Relationships

A WebLogic Server many-to-many relationship involves the physical mapping of a join table. Each row in the join table contains two foreign keys that maps to the primary keys of the entities involved in the relationship.

The following example shows a many-to many relationship mapped between a bean called friends and a bean called employees.Figure 5-3 Sample mapping of a many-to-many relationship

In Figure 5-3, the FRIENDS join table has two columns, called first-friend-id and second-friend-id, Each column contains a foreign key that designates a particular employee who is a friend of another employee. The primary key column (key-column) of the employee table is called id. For this example, assume that the employee bean is mapped to a single table. If the employee bean is mapped to multiple tables, then the table containing the primary key column (key-column) must be specified in the relationship-role-map.

Unidirectional Relationships

Unidirectional relationships only navigate in one direction. For example, if entity A and entity B are in a one-to-one, unidirectional relationship and the direction is from entity A to entity B, than entity A is aware of entity B, but entity B is unaware of entity A. This type of relationship is implemented when you specify a cmr-field deployment descriptor element for the entity bean from which navigation can take place and no related cmr-field element is specified for the target entity bean.

You set the value of the cmr-field element in the weblogic-cmp-rdbms-jar.xml file.

Bidirectional Relationships

Bidirectional relationships navigate in both directions. These types of container-managed relationships can exist only between beans whose abstract persistence schemas are defined in the same EJB-jar file and therefore managed by the same container. For example, if entity A and entity B are in a one-to-one bidirectional relationship, both are aware of each other.

Removing Beans in Relationships

When a bean with a relationship to another bean is removed, the container automatically removes the relationship.

Local Interfaces

WebLogic Server provides support for local interfaces for session and entity beans. Local interfaces allow enterprise javabeans to work together within the same EJB container using different semantics and execution contexts. The EJBs are usually co-located within the same EJB container and execute within the same Java Virtual Machine (JVM). This way, they do not use the network to communicate and avoid the over-head of a Java Remote Method Invocation-Internet Inter-ORB Protocol (RMI-IIOP) connection.

EJB relationships with container-managed persistence are now based on the EJB's local interface. Any EJB that participates in a relationship must have a local interface. Local interface objects are lightweight persistent objects. They allow you to do more fine grade coding than do remote objects. Local interfaces also use pass-by-reference. The getter is in the local interface.

In earlier versions of WebLogic Server, you can base relationships on remote interfaces. However, CMP relationships that use remote interfaces should probably not be used in new code.

In earlier versions of WebLogic Server, ejbSelect methods were used to return remote interfaces. Now you can specify a result-type-mapping element in the ejb-jar.xml file that indicates whether the result returned by the query will be mapped to a local or remote object.

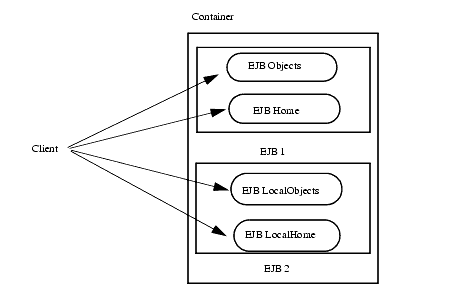

Using the Local Client

A local client of a session bean or entity bean can be another EJB, such as a session bean, entity bean, or message-driven bean. A local client can be a servlet as long as it is included as part of the same EAR file and as long as the EAR file is not remote. Clients of a local bean must be part of an EAR or a standalone JAR.

A local client accesses a session or entity bean through the bean's local interface and local home interfaces. The container provides classes that implement the bean's local and local home interfaces. The objects that implement these interfaces are local Java objects. The following diagram shows the container with a local client and local interfaces.Figure 5-4 Local client and local interfaces

WebLogic Server provides support for both local and uni-directional remote relationships between EJBs. If the EJBs are on the same server and are part of the same JAR file, they can have local relationships. If the EJBs are not on the same server, the relationships must be remote. For a relationship between local beans, multiple column mappings are specified if the key implementing the relation is a compound key. For a remote bean, only a single column-map is specified, since the primary key of the remote bean is opaque. No column-maps are specified if the role just specifies a group-name. No group-name is specified if the relationship is remote.

Changes to the Container for Local Interfaces

Changes made to the structure of the container to accommodate local interfaces include the following additions:

Using EJB QL for EJB 2.0

EJB Query Language (QL) is a portable query language that defines finder methods for 2.0 entity EJBs with container-managed persistence. Use this SQL-like language to select one or more entity EJB objects or fields in your query. Because of the declaration of CMP fields in a deployment descriptor, you can create queries in the deployment descriptor for any finder method other than findByPrimaryKey(). findByPrimaryKey is automatically handled by the container. The search space for an EJB QL query consists of the EJB's schema as defined in ejb-jar.xml (the bean's collection of container-managed fields and their associated database columns).

EJB QL Requirement for EJB 2.0 Beans

The deployment descriptors must define each finder query for EJB 2.0 entity beans by using an EJB QL query string. You cannot use WebLogic Query Language (WLQL) with EJB 2.0 entity beans. WLQL is intended for use with EJB 1.1 container-managed persistence.

Migrating from WLQL to EJB QL

If you have used previous versions of WebLogic Server, your container-managed entity EJBs may use WLQL for finder methods. This section provides a quick reference to common WLQL operations. Use this table to map the WLQL syntax to EJB QL syntax.

Sample WLQL Syntax Equivalent EJB QL Syntax
(= operand1 operand2) WHERE operand1 = operand2
(< operand1 operand2) WHERE operand1 < operand2
(> operand1 operand2) WHERE operand1 > operand2
(<= operand1 operand2) WHERE operand1 <= operand2
(>= operand1 operand2) WHERE operand1 >= operand2
(! operand) WHERE NOT operand
(& expression1 expression2) WHERE expression1 AND expression2
(| expression1 expression2) WHERE expression1 OR expression2
(like text_string%) WHERE operand LIKE `text_string%'
(isNull operand) WHERE operand IS NULL
(isNotNull operand) WHERE operand IS NOT NULL

Sample WLQL Syntax	Equivalent EJB QL Syntax
(= operand1 operand2)	WHERE operand1 = operand2
(< operand1 operand2)	WHERE operand1 < operand2
(> operand1 operand2)	WHERE operand1 > operand2
(<= operand1 operand2)	WHERE operand1 <= operand2
(>= operand1 operand2)	WHERE operand1 >= operand2
(! operand)	WHERE NOT operand
(& expression1 expression2)	WHERE expression1 AND expression2
(\| expression1 expression2)	WHERE expression1 OR expression2
(like text_string%)	WHERE operand LIKE `text_string%'
(isNull operand)	WHERE operand IS NULL
(isNotNull operand)	WHERE operand IS NOT NULL

Using the EJB 2.0 WebLogic QL Extension for EJB QL

WebLogic Server has an SQL-like language, called WebLogic QL, that extends the standard EJB QL. This language works with the finder expressions and is used to query EJB objects from the RDBMS. You define the query in the weblogic-cmp-rdbms-jar.xml deployment descriptor using the weblogic-ql element.

There must be a query element in the ejb-jar.file that corresponds to the weblogic-ql element in the weblogic-cmp-rdbms-jar.xml file. However, the value of the weblogic-cmp-rdbms-jar.xml query element overrides the value of the ejb-jar.xml query element.

Using ORDERBY

The EJB WebLogic QL extension ORDERBY is a keyword that works with the Finder method to specify the CMP field selection sequence for your selections. Figure 5-5 WebLogic QL ORDERBY extension showing order by id.


ORDERBY


 SELECT OBJECT(A) from A for Account.Bean


  ORDERBY A.id

You can specify an ORDERBY with ascending [ASC] or descending [DESC] order for multiple fields as follows:. Figure 5-6 WebLogic QL ORDERBY extension showing order by id. with ASC and DESC


ORDERBY <field> [ASC|DESC], <field> [ASC|DESC]


 SELECT OBJECT(A) from A for Account.Bean, OBJECT(B) from B for Account.Bean


  ORDERBY A.id ASC; B.salary DESC

Note: ORDERBY defers all sorting to the DBMS. Thus, the order of the retrieved result depends on the particular DBMS installation on top of which the bean is running

Using SubQueries

WebLogic Server supports the use of the following features with subqueries in EJB QL:

Subquery return type
- Single cmp-fields
- Aggregate functions
- Beans with simple primary keys
Subqueries as comparison operands
Correlated subqueries
Uncorrelated subqueries
DISTINCT clauses with subqueries

The relationship between WebLogic QL and subqueries is similar to the relationship between SQL queries and subqueries. Use WebLogic QL subqueries in the WHERE clause of an outer WebLogic QL query. With a few exceptions, the syntax for a subquery is the same as a WebLogic QL query.

To specify WebLogic QL, see Using the EJB 2.0 WebLogic QL Extension for EJB QL. Use those instructions with a SELECT statement that specifies a subquery as shown the following sample.

The following query selects all above average students as determined by the provided grade number:


SELECT OBJECT(s) FROM studentBean AS s WHERE s.grade > (SELECT AVG(s2.grade) FROM StudentBean AS s2)

Note that in the above query the subquery, (SELECT AVG(s2.grade) FROM StudentBean AS s2), has the same syntax as an EJB QL query.

You can create nested subqueries.The depth is limited by the underlying database's nesting capabilities.

In a WebLogic QL query, the identifiers declared in the FROM clauses of the main query and all of its subqueries must be unique. This means that a subquery may not re-declare a previously declared identifier for local use within that subquery.

For example, the following example is not legal because employee bean is being declared as emp in both the query and the subquery:


SELECT OBJECT(emp)



 FROM EmployeeBean As emp


WHERE emp.salary=(SELECT MAX(emp.salary) FROM


 EmployeeBean AS emp WHERE employee.state=MA)

Instead, this query should be written as follows:


SELECT OBJECT(emp)



 FROM EmployeeBean As emp


WHERE emp.salary=(SELECT MAX(emp2.salary) FROM


 EmployeeBean AS emp2 WHERE emp2.state=MA)

The above examples correctly declares the subquery's employee bean to have a different identifier from the main query's employee bean.

Subquery Return Types

The return type of a WebLogic QL subquery can be one of a number of different types, such as:

Single cmp-field Type Subqueries

WebLogic Server supports a return type consisting of a cmp-field. The results returned by the subquery may consists of a single value or collection of values. An example of a subquery that returns value(s) of the type cmp-field is as follows:


SELECT emp.salary FROM EmployeeBean AS emp WHERE emp.dept = `finance'

This subquery selects all of the salaries of employees in the finance department.

Aggregate Functions

WebLogic Server supports a return type consisting of an aggregate of a cmp-field. As an aggregate always consist of a single value, the value returned by the aggregate is always a single value. An example of a subquery that return a value of the type aggregate (MAX) of a cmp-field is as follows:


SELECT MAX(emp.salary) FROM EmployeeBean AS emp WHERE emp.state=MA

This subquery selects the single highest employee salary in Massachusetts.

Beans with Simple Primary Key

WebLogic Server supports a return type consisting of a cmp-bean with a simple primary key.

The following example illustrates a subquery that returns the value(s) of the type bean with a simple primary key :


SELECT OBJECT(emp) FROM EMployeeBean As emp WHERE emp.department.budget>1,000,000

This subquery provides a list of all employee in departments with budgets greater than $1,000,000.

Note: Beans with compound primary keys are NOT supported. Attempts to designate the return type of a subquery to a bean with a compound primary key will fail when you compile the query.

Subqueries as Comparison Operands

Use subqueries as the operands of comparison operators and arithmetic operators. WebLogic QL supports subqueries as the operands of:

these comparison operators: [NOT]IN, [NOT]EXISTS

and

these arithmetic operators: <, >, <=, >=, =, <> with ANY and ALL

[NOT]IN

The [NOT]IN comparison operator tests whether the left-had operand is or is not a member of the subquery operand on the right-hand side.

An example of a subquery which is the right-hand operand of the NOT IN operator is as follows:


SELECT OBJECT(item)



 FROM ItemBean AS item


WHERE item.itemId NOT IN


 (SELECT oItem2.item.itemID


   FROM OrderBean AS orders2, IN(orders2.orderItems)oIttem2

The subquery selects all items from all orders.

The main query's NOT IN operator selects all the items that are not in the set returned by the subquery. So the end result is that the main query selects all unordered items.

[NOT]EXISTS

The [NOT]EXISTS comparison operator tests whether the set returned by the subquery operand is or is not empty.

An example of a subquery which is the operand of the NOT EXISTS operand is as follows:


SELECT (cust) FROM CustomerBean AS cust



 WHERE NOT EXISTS


(SELECT order.cust_num FROM OrderBean AS order


 WHERE cust.num=order_num)


This is an example of a query with a correlated subquery.



SELECT (cust) FROM CustomerBean AS cust



 WHERE cust.num NOT IN


(SELECT order.cust_um FROM OrderBean AS order


 WHERE cust.num=order_num)



Arithmetic Operators


Use arithmetic operators for comparison when the right-hand subquery operand returns a single value. If the right hand subquery instead returns multiple values, then the qualifiers ANY or ALL must precede the subquery.


An example of a subquery which uses the `=' operator  is as follows:



SELECT OBJECT (order)



 FROM OrderBean AS order, IN(order.orderItems)oItem


WHERE oItem.quantityOrdered =


 (SELECT MAX (subOItem.quantityOrdered)


  FROM Order ItemBean AS subOItem


   WHERE subOItem,item itemID = ?1)



AND oItem.item.itemId = ?1



For a given itemId, the subquery returns the maximum quantity ordered of that item. Note that this aggregate returned by the subquery is a single value as required by the `=' operator.


For the same given itemId, the main query's `=' comparison operator  checks which order's OrderItem.quantityOrdered equals the maximum quantity returned by the subquery. The end result is that the query returns the OrderBean that contains the maximum quantity of a given item that has been ordered.


Use arithmetic operators in conjunction with ANY or ALL, when the right-hand subquery operand may return multiple values.


An example of a subquery which uses ANY and ALL is as follows:



SELECT OBJECT (order)



 FROM OrderBean AS order, IN(order.orderItems)oItem


WHERE oItem.quantityOrdered > ALL


 (SELECT subOItem.quantityOrdered


  FROM OrderBean AS suborder IN (subOrder.orderItems)subOItem


   WHERE subOrder,orderId = ?1)



For a given orderId, the subquery returns the set of orderItem.quantityOrdered of each item ordered for that orderId. The main query's `>' ALL operator  looks for all orders whose orderItem.quantityOrdered exceeds all values in the set returned by the subquery. The end result is that the main query returns all orders in which all orderItem.quantityOrdered exceeds every orderItem.quantityOrdered of the input order.


Note that since the subquery can return multi-valued results that they `>'ALL operator  is used rather then the `>' operator.

Correlated and UnCorrelated Subqueries


WebLogic Server supports both correlated and Uncorrelated subqueries.


UnCorrelated Subqueries


Uncorrelated subqueries may be evaluated independently of the outer query. An example of an uncorrelated subquery is as follows:



SELECT OBJECT(emp) FROM EmployeeBean AS emp



 WHERE emp.salary>



 (SELECT AVG(emp2.salary) FROM EmployeeBean AS emp2)



This example of a uncorrelated subquery selects the employees whose salaries are above average. This examples uses the `>' arithmetic operator.


Correlated


Correlated subqueries are subqueries in which values from the outer query are involved in the evaluation of the subquery. An example of a correlated subquery is as follows:



SELECT OBJECT (mainOrder) FROM OrderBean AS mainOrder



 WHERE 10>


(SELECT COUNT (DISTINCT subOrder.ship_date)



 FROM OrderBean AS subOrder



 WHERE subOrder.ship_date>mainOrder.ship_date



 AND mainOrder.ship_date IS NOT NULL



This example of a correlated subquery selects the last 10 shipped orders. This example uses the NOT IN operator.


Note:  Keep in mind that correlated subqueries can involve more processing overhead the uncorrelated subqueries.

DISTINCT Clause with Subqueries


Use the DISTINCT clause in a subquery to enable an SQL SELECT DISTINCT in the subquery's generated SQL. Using a DISTINCT clause in a subquery is different from using one in a main query because the EJB container  enforces the DISTINCT clause in a main query; whereas the DISTINCT clause in the subquery is enforced by the generated SQL SELECT DISTINCT. The following is an example of a DISTINCT clause in a subquery:



SELECT OBJECT (mainOrder) FROM OrderBean AS mainOrder



 WHERE 10>


(SELECT COUNT (DISTINCT subOrder.ship_date)



 FROM OrderBean AS subOrder



 WHERE subOrder.ship_date>mainOrder.ship_date



 AND mainOrder.ship_date IS NOT NULL




Using Aggregate Functions


WebLogic Server supports aggregate functions with WebLogic QL. You only use these functions as SELECT clause targets, not as other parts of a query, such as a WHERE clause. The aggregate functions behave like SQL functions. They are evaluated over the range of the beans returned by the WHERE conditions of the query


To specify WebLogic QL, see Using the EJB 2.0 WebLogic QL Extension for EJB QL.  Use those instructions with a SELECT statement that specifies an aggregate function as shown in the samples shown in the following table.


A list of the supported functions and sample statements follow:






    Aggregate



Function
     Description
     Sample Statement



       MIN(x)


       Returns the minimum value of this field.


       SELECT MIN(t.price) FROM TireBean AS t WHERE t.size=?1



 This statement selects the lowest price for a tire of a given input size.




       MAX(x)


       Returns the maximum value of this field.


       SELECT MAX(s.customer_count) FROM SalesRepBean AS s WHERE s.city='Los Angeles'



 This statement selects the maximum number of customers served by any single sales representative in Los Angeles.




       AVG( [DISTINCT] x)


       Returns the average value of this field


       SELECT AVG(b.price) FROM BookBean AS b WHERE b.category='computer_science'



 This statement selects the Average Price of a book in the Computer Science category.




       SUM( [DISTINCT] x)


       Returns the sum of this field.


       SELECT SUM(s.customer_count) FROM SalesRepBean AS s WHERE s.city='Los Angeles'



 This statement retrieves the total number of customers served by sales representatives in Los Angeles.




       COUNT( [DISTINCT] x)


       Returns the number of occurrences of a field.


       SELECT COUNT(s.deal.amount) FROM SalesRepBean AS s, IN(deal)s WHERE s.deal.status='closed' AND s.deal.amount>=1000000



 This statement retrieves the number of closed deals for at lease 1 million dollars.









You can return aggregate functions in ResultSets as described below.



Using Queries that Return ResultSets


WebLogic Server supports ejbSelect() queries that return the results of multi-column queries in the form of a java.sql.ResultSet. To support this feature, WebLogic Server now allows you to use the SELECT clause to specify a comma delimited list of target fields as shown in the following query:



SELECT emmp.name, emp.zip FROM EmployeeBean AS emp



This query returns a java.sqlResultSet with rows whose columns are the values Employee's Name and Employee's Zip.


To specify WebLogic QL, see Using the EJB 2.0 WebLogic QL Extension for EJB QL.  Use those instructions with a query specifying a ResultSet as shown in the above query to specify WebLogic QL, see Using the EJB 2.0 WebLogic QL Extension for EJB QL.  Use those instructions with a SELECT statement that specifies an aggregate query like the samples shown in the following table.


.


ResultSets created in EJB QL can only return cmp-field values or aggregates of cmp-field values, they cannot return beans.


In addition, you can create powerful queries, as described in the following example, when you combine cmp-fields and aggregate functions.


The following rows (beans) show the salaries of employees in different locations:Table 5-1   CMP fields showing salaries of employees in California






    Name
     Location
     Salary



       Matt


       CA


       110,000




       Rob


       CA


       100,000









CMP fields showing salaries of employees in Arizona






    Name
     Location
     Salary



       Dan


       AZ


       120,000




       Dave


       AZ


       80,000









CMP fields showing salaries of employees in Texas






    Name
     Location
     Salary



       Curly


       TX


       70,000




       Larry


       TX


       180,000




       Moe


       TX


       80,00









Note:  Each row represents a bean.


The following SELECT statement shows a query that uses ResultSets and the aggregate function (AVG) along with a GROUP BY statement and an ORDER BY statement using a descending sort to retrieve results from a multi-column query.



SELECT e.location, AVG(e.salary)



 FROM Finder EmployeeBean AS e


GROUP BY e.location


 ORDER BY 2 DESC



The query shows the average salary in of employees at each location in descending order. The number, 2 means that the ORDERBY  sort is on the second item in the SELECT statement. The GROUP BY clause specifies the AVERAGE salary of employees with a matching e.location attribute.


The ResultSet, in descending order is as follows:






    Location
     Average



       TX


       110,000




       AZ


       100,000




       CA


       105,000









Note:  You can only use integers as ORDERBY  arguments in queries that return ResultSets. WebLogic Server does not support the use of integers as ORDERBY arguments in any Finder or ejbselect() that returns beans.




Known Issue with Implied Cross Products


When an EJB QL query contains an implied cross product - as opposed to an explicit one - the EJB-QL query can return an empty result.


Consider this example query:



SELECT OBJECT(e) FROM EmployeeBean AS e WHERE e.name LIKE 'Joe' OR e.acct.balance < 100



This query references AccountEJB, but AccountEJB is not listed in the FROM clause. The result of this query is identical to that of query with AccountEJB explicitly listed in the FROM clause.




EJB QL Error-Reporting Enhancements


Compiler error messages in EJB QL provide a visual aid to identify which part of the query is in error and allow the reporting of more than one error per compilation.



Visual Indicator of Error in Query


When an error is reported, EJB QL indicates the location of the problem within these symbols: =>> <<=. These symbols are highlighted in red in the following sample compiler error report.



ERROR: Error from appc : Error while reading 'META-INF/FinderEmployeeBeanRDBMS.xml'. The error was:




Query:




EJB Name: FinderEmployeeEJB




Method Name: findThreeLowestSalaryEmployees




Parameter Types: (java.lang.String)




Input EJB Query: SELECT OBJECT(e) FROM FinderEmployeeBean e WHERE f.badField = '2' O




R (e.testId = ?1) ORDERBY  e.salary




SELECT OBJECT(e ) FROM FinderEmployeeBean e



WHERE =>> f.badField <<= = '2' OR ( e.testId = ?1 ) ORDERBY  e.salary




Invalid Identifier in EJB QL expression:




Problem, the path expression/Identifier 'f.badField' starts with an identifier: 'f'. The identifier 'f', which can be either a range variable identifier or a collection member identifier, is required to be declared in the FROM clause of its query or in the FROM clause of a parent query.




'f' is not defined in the FROM clause of either its query or in any parent query.




Action, rewrite the query paying attention to the usage of 'f.badField'.




Multiple Errors Reported after a Single Compilation


If a query contains multiple errors, EJB QL is now capable of reporting more than one of these after a single compilation. Previously, the compiler could only report one error per compilation. Reporting of subsequent errors required recompilation.


Note:  The compiler is not guaranteed to report all errors after a single compilation.








Using Dynamic Queries


Dynamic queries allow you to construct and execute EJB-QL queries programmatically in your application code. Queries are expressions that allow you to request information of EJB objects from the RDBMS. Using dynamic queries  provides the following benefits:



The ability to create and execute new queries without having to update and deploy an EJB.

The ability to reduce the size of the EJB's deployment descriptor  file. This is because finder queries can be dynamically created instead of statically defined in the deployment descriptors.





Enabling Dynamic Queries


To enable dynamic queries :



Specify the enable-dynamic-queries  element in the EJB's weblogic-ejb-jar.xml deployment descriptor  file as follows:




   <enable-dynamic-queries>True</enable-dynamic-queries>


Set standard method permissions to control access to dynamic queries  by specifying the method-permission element in the ejb-jar.xml deployment descriptor  file.




   Setting method-permission for the createQuery() method of the weblogic.ejb.QueryHome interface controls access to the weblogic.ejb.Query object necessary to executes the dynamic queries.

   If you specify method-permission for the createQuery() method, the method-permission settings apply to the execute and find methods of the Query class.





Executing Dynamic Queries


The following code sample demonstrates how to execute a dynamic query.



InitialContext ic=new InitialContext();



FooHome fh=(FooHome)ic.lookup("fooHome");



QueryHome qh=(QueryHome)fh;



Sring ejbql="SELECT OBJECT(e)FROM EmployeeBean e WHERE e.name='rob'"



Query query=qh.createQuery();



query.setMaxElements(10)



Collection results=query.find(ejbql);












BLOB and CLOB DBMS Column Support for the Oracle DBMS


WebLogic Server supports Oracle Binary Large Object  (BLOB) and Character Large Object (CLOB) DBMS columns with EJB CMP.  BLOBs  and CLOBs  are data types used for efficient storage and retrieval of large objects. CLOBs are string or char objects; BLOBs are binary or serializable objects such as pictures that translate into large byte arrays.


BLOBs and CLOBs  map a string variable, a value of OracleBlob or OracleClob, to a BLOB or CLOB column. WebLogic Server maps CLOBs only to the data type java.lang.string. At this time, no support is available for mapping char arrays to a CLOB column.


To enable BLOB/CLOB support:



 In the bean class, declare the variable.

Edit the XML by declaring the dbms-column-type deployment descriptor  in the weblogic-cmp-rdbms-jar.xml file.

Create the BLOB or CLOB in the Oracle database.


Using BLOB or CLOB may slow performance because of the size of the BLOB or CLOB object.




Specifying a BLOB Using the Deployment Descriptor


The following XML code shows how to specify a BLOB object using the dbms-column  element in weblogic-cmp-rdbms-jar-xml file.Figure 5-7    Specifying a BLOB object



<field-map>



 <cmp-field>photo</cmp-field>



 <dbms-column>PICTURE</dbms-column>



 <dbms_column-type>OracleBlob</dbms-column-type>




</field-map>





Specifying a CLOB Using the Deployment Descriptors


The following XML code shows how to specify a CLOB object using the dbms-column  element in the weblogic-cmp-rdbms-jar-xml file.Figure 5-8    Specifying a CLOB object



<field-map>



 <cmp-field>description</cmp-field>



 <dbms-column>product_description</dbms-column>



 <dbms_column-type>OracleClob</dbms-column-type>




</field-map>









Cascade Delete


Use the cascade delete  mechanism to remove entity  bean objects. When cascade delete is specified for a particular relationship, the lifetime of one entity object depends on another. You can specify cascade delete for one-to-one and one-to-many relationships; many-to-many relationships are not supported. The cascade delete () method uses the delete features in WebLogic Server, and the database cascade delete() method instructs WebLogic Server to use the underlying database's built-in support for cascade delete.


To enable this feature,  recompile the bean code for the changes to the deployment descriptors  to take effect.


Use one of the following two methods to enable cascade delete.




Cascade Delete Method


With the cascade delete () method you use WebLogic Server to remove objects. If an entity  is deleted and the cascade delete element is specified for a related entity bean, then the removal is cascaded and any related entity bean objects are also removed.


To specify cascade delete,  use the cascade-delete  element in the ejb-jar.xml deployment descriptor  elements. This is the default method. Make no changes to your database settings, and WebLogic Server will cache the entity  objects for removal when the cascade delete  is triggered.


Specify cascade delete  using the cascade-delete  element in the ejb-jar.xml file as follows:Figure 5-9    Specifying a cascade delete



<ejb-relation>



 <ejb-relation-name>Customer-Account</ejb-relation-name>



 <ejb-relationship-role>


<ejb-relationship-role-name>Account-Has-Customer


</ejb-relationship-role-name>


<multiplicity>one</multiplicity>


<cascade-delete/>



 </ejb-relationship-role>



</ejb-relation>



Note:  This cascade delete () method can only be specified for a ejb-relationship-role element contained in an ejb-relation element if the other ejb-relationship-role element in the same ejb-relation element specifies a multiplicity attribute with a value of one.




Database Cascade Delete Method


The database cascade delete () method allows an application to take advantage of a database's built-in cascade delete  support, and possibly improve performance. If the db-cascade-delete element is not already specified in the weblogic-cmp-rdbms-jar.xml file, do not enable any of the database's cascade delete functionality, because this will produce incorrect results in the database.


The db-cascade-delete  element in the weblogic-cmp-rdbms-jar.xml file specifies that a cascade delete  operation will use the built-in cascade delete facilities of the underlying DBMS. By default, this feature is turned off and the EJB container  removes the beans involved in a cascade delete by issuing an individual SQL DELETE  statement for each bean.


If db-cascade-delete  element is specified in the weblogic-cmp-rdbms-jar.xml, the cascade-delete element must be specified in the ejb-jar.xml.


When db-cascade-delete  is enabled, additional database table setup is required. For example, the following setup for the Oracle database  table will cascade delete  all of the employees if the dept is deleted in the database.Figure 5-10    Oracle table setup for cascade delete



  CREATE  TABLE dept




    (deptno   NUMBER(2) CONSTRAINT pk_dept PRIMARY KEY,




     dname    VARCHAR2(9) );




  CREATE  TABLE emp




    (empno    NUMBER(4) PRIMARY KEY,




     ename    VARCHAR2(10),




     deptno   NUMBER(2)   CONSTRAINT fk_deptno




              REFERENCES dept(deptno)




              ON DELETE  CASCADE );









Flushing the CMP Cache


Updates made by a transaction  must be reflected in the results of queries, finders, and ejbSelects issued during the transactions.  Because this requirement can slow performance, include-updates element in weblogic-cmp-rdbms-jar.xml enables you to specify that the cache be flushed before the query for the bean is executed.


If this option is turned off, the results of the current transactions  are not reflected in the query. If this option is turned on - the default behavior, the container flushes all changes for cached transactions written to the database before executing the new query. This way, the changes show up in the results.


In releases prior to WebLogic Server 8.1, the default for include-updates  was False. For purposes of J2EE compliance, the default has been changed to True in WebLogic Server 8.1.


The following code sample specifies that transaction  results be reflected in the query, by setting include-updates  to True.Figure 5-11    Specifying that results of transactions  be reflected in the query



<weblogic-query>



 <query-method>



 <method-name>findBigAccounts</method_name>



 <method-params>


<method-param>double</method-param>



 </method-params>



 </query-method>



 <weblogic-ql>WHERE BALANCE>10000 ORDERBY  NAME</weblogic-ql>



 <include-updates>True</include-updates>



</weblogic-query>



Whether you use this feature depends on whether performance is more important than current and consistent data. Setting include-updates  to False, provides the best performance; setting it to True provides more current and consistent data.











EJB Concurrency Strategy


The concurrency strategy  specifies how the EJB container  should manage concurrent access to an entity  bean. Although the Database option is the default concurrency strategy for WebLogic Server, you may want to specify other options for your entity bean depending on the type of concurrency access the bean requires. WebLogic Server provides the following concurrency strategy options:








    Option
     Description



       Exclusive


       Places an exclusive lock on cached entity  EJB instances when the bean is associated with a transaction.  Other requests for the EJB instance are block until the transaction  completes. This option was the default locking behavior for WebLogic Server versions 3.1 through 5.1




       Database


       Defers locking requests for an entity  EJB to the underlying datastore. WebLogic Server allocates a separate entity bean instance and allows locking and caching to be handled by the database. This is the default option.




       Optimistic


       Holds no locks in the EJB container  or database during a transaction.  The EJB container verifies that none the data updated by the transaction  has changed before committing the transaction. If any updated data changed, the EJB container rolls back the transaction.




       ReadOnly


       Used only for read-only entity  beans. Activates a new instance for each transaction  so that requests proceed in parallel. WebLogic Server calls ejbLoad() for ReadOnly beans are based on the read-timeout-seconds  parameter.











Concurrency Strategy for Read-Write EJBs


You can use the Exclusive, Database, and Optimistic concurrency strategies for read-write EJBs.  WebLogic Server loads EJB data into the cache at the beginning of each transaction,  or as described in Using cache-between-transactions  to Limit Calls to ejbLoad().  WebLogic Server calls ejbStore() at the successful commit of a transaction.




Specifying the Concurrency Strategy


You specify the locking mechanism  that the EJB uses by setting the concurrency-strategy  deployment parameter in weblogic-ejb-jar.xml. You set concurrency-strategy  at the individual EJB level, so that you can mix locking mechanisms within the EJB container.


The following excerpt from weblogic-ejb-jar.xml  shows how to set the concurrency strategy  for an EJB. In the following sample XML, the code specifies the default locking mechanism, Database. Figure 5-12    Sample XML specifying the concurrency strategy



<entity-descriptor>




 <entity-cache>




 ...




 <concurrency-strategy>Database</concurrency-strategy>




 </entity-cache>




 ...




</entity-descriptor>



If you do not specify a concurrency-strategy,  WebLogic Server performs database locking for entity  EJB instances.


A description of each concurrency strategy  is covered in the following sections.




 Exclusive Concurrency  Strategy


The Exclusive concurrency strategy  provides reliable access to EJB data, and avoids unnecessary calls to ejbLoad() to refresh the EJB instance's persistent fields. However, exclusive locking does not provide the best model for concurrent access to the EJB's data. Once a client has locked an EJB instance, other clients are blocked from the EJB's data even if they intend only to read the persistent fields.


The EJB container  in WebLogic Server can use exclusive locking mechanism for entity  EJB instances. As clients enlist an EJB or EJB method in a transaction,  WebLogic Server places an exclusive lock on the EJB instance for the duration of the transaction.  Other clients requesting the same EJB or method are blocked until the current transaction  completes.



 Preventing Deadlocks for Transactions that Use Exclusive Concurrency


In situations of high throughput, transactions  that use an exclusive concurrency strategy  can encounter deadlocks if a transaction  that performs a cascade delete  needs access to the same bean as a transaction that does not perform a cascade delete.


You can prevent such deadlocks using the lock-order  element of weblogic-cmp-rdbms-jar.xml  deployment descriptor  file.


Note:  This feature is only relevant if one of the transactions  involved performs a cascade delete.


Consider the following scenario:


There are two transactions,  T1 and T2, both of which employ an exclusive concurrency strategy.  T1 also specifies cascade delete,  but T2 does not.


There are two entity  beans, B1 and B2.

Deadlock Scenario without lock-order  Set



T1 locks B2 and is waiting to lock B1.

T2 locks B1 first and is waiting to lock B2.


The transactions are deadlocked.

Deadlock Avoided by Setting lock-order


If the lock-order  is specified for the beans, the scenario changes. Beans are locked according to their lock-order value.


Suppose that B1 has lock-order  set to 1 and B2 has lock-order set to 2:



T1 locks B1 first and then locks B2.

T2 similarly locks B1 first and then locks B2.


The transactions do not deadlock.

Read More about Cascade Delete and the lock-order  Element.







Database Concurrency  Strategy


The Database concurrency strategy  is the default option for WebLogic Server and the recommended mechanism for EJB 1.1 and EJB 2.0 beans. It improves concurrent access for entity  EJBs.  The WebLogic Server container defers locking services to the underlying database. Unlike exclusive locking, the underlying data store can provide finer granularity for locking EJB data, and deadlock detection.


With the database locking mechanism, the EJB container  continues to cache instances of entity  EJB classes. However, the container does not cache the intermediate state of the EJB instance between transactions.  Instead, WebLogic Server calls ejbLoad() for each instance at the beginning of a transaction  to obtain the latest EJB data. The request to commit data is subsequently passed along to the database. The database, therefore, handles all lock management and deadlock detection for the EJB's data.


Deferring locks to the underlying database improves throughput for concurrent access to entity  EJB data, while also providing deadlock detection. However, using database locking requires more detailed knowledge of the underlying datastore's lock policies, which can reduce the EJB's portability among different systems.


When using a Database concurrency strategy  instead of an Optimistic with the caching-between-transactions element set to True, the compiler issues a warning indicating that cache-between-transactions should be disabled. If this condition exists, WebLogic Server automatically disables caching-between-transactions.




Optimistic Concurrency Strategy


The Optimistic concurrency strategy  does not hold any locks in the EJB container  or the database while the transaction  is in process. When you specify this option, The EJB container makes sure that the data being updated by a transaction has not changed. It performs a "smart update" by checking the fields before it commits the transaction.


Note:  The EJB container  does not check Blob/Clob fields for optimistic concurrency. The workaround is to use version or timestamp checking.


To verify that you want the data checked for validity, enable optimistic checking by setting the verify-columns  deployment descriptor  element in the weblogic-cmp-rdbms-jar.xml file. The verify-columns element specifies that the columns in a table be checked for validity when you use the optimistic concurrency strategy.



Set the verify-columns  element as follows to check the data:



Specify Read to check all columns in the table that have been read during the transaction.

Specify Modified to check only the columns that have been updated by the current transaction.

Specify Version to check that a version column exists in the table and that this column is used to implement optimistic concurrency.




   A version column must be created with an initial value of 0, and must increment by 1 whenever the row is modified.


Specify Timestamp to check that a timestamp column exists in the table and that this column is used to implement optimistic concurrency.




   The EJB container  manages the version and timestamp columns and ensures that these columns are kept up to date.



Specify the version and timestamp columns using the optimistic-column deployment descriptor  element in the weblogic-cmp-rdbms-jar.xml file. Mapping this column to a cmp field is optional.




   Timestamp-based optimistic concurrency requires a 1 second granularity for the database column.

   If the EJB is mapped to multiple tables, optimistic checking is only performed on the tables that are updated during the transaction.



Note:  By default, caching between transactions  is not enabled for this feature. You must explicitly enable it.




ReadOnly Concurrency Strategy


WebLogic Server provides support for concurrent access to read-only entity  beans. This caching strategy activates an instance of a read-only entity bean  for each transaction  so that requests may be processed in parallel.


Previously, read-only entity  beans used the exclusive locking concurrency strategy.  This strategy places an exclusive lock on cached entity bean instances when the bean is associated with a transaction.  Other requests for the entity bean instance are block until the transaction  completes.


To avoid reading from the database, WebLogic Server copies the state for an EJB 2.0 CMP bean from the existing instance in the cache. For this release, the default concurrency strategy  for read-only entity  beans is the ReadOnly option.


You can specify read-only entity  bean caching  at the application-level or the component-level.


To enable read-only entity  bean caching :



Specify the ReadOnly option in the concurrency-strategy  deployment descriptor  element for either a JAR file or an EAR file.


Specify the concurrency-strategy  element for application-level caches (EARS) in the weblogic-application. xml file.

Specify the concurrency-strategy  element for component-level caches (JARS) in the weblogic-ejb-jar.xml  file.





Read-Only Entity Beans


WebLogic Server continues to support read-only entity  beans with the read-timeout element set in the deployment descriptor.  If the ReadOnly option is selected in the concurrency strategy element and the read-timeout-seconds element is set in the weblogic-ejb-jar.xml file, when a read-only bean is invoked, WebLogic Server checks whether the cached data is older than the read-timeout setting. If it is, the bean's ejbLoad is called. Otherwise, the cached data is used. So, previous versions of read-only entity beans will work in this version of WebLogic Server.



Restrictions for ReadOnly Concurrency Strategy


Entity EJBs  using the read-only concurrency strategy  must observe the following restrictions:



They cannot require updates to the EJB data, because WebLogic Server never calls ejbStore() for read-only entity  EJBs.

The EJB's method calls must be idempotent.



Because the bean's underlying data may be updated by an external source, calls to ejbLoad() are governed by the deployment parameter, read-timeout-seconds.

Aggregate Function	Description	Sample Statement
MIN(x)	Returns the minimum value of this field.	SELECT MIN(t.price) FROM TireBean AS t WHERE t.size=?1 This statement selects the lowest price for a tire of a given input size.
MAX(x)	Returns the maximum value of this field.	SELECT MAX(s.customer_count) FROM SalesRepBean AS s WHERE s.city='Los Angeles' This statement selects the maximum number of customers served by any single sales representative in Los Angeles.
AVG( [DISTINCT] x)	Returns the average value of this field	SELECT AVG(b.price) FROM BookBean AS b WHERE b.category='computer_science' This statement selects the Average Price of a book in the Computer Science category.
SUM( [DISTINCT] x)	Returns the sum of this field.	SELECT SUM(s.customer_count) FROM SalesRepBean AS s WHERE s.city='Los Angeles' This statement retrieves the total number of customers served by sales representatives in Los Angeles.
COUNT( [DISTINCT] x)	Returns the number of occurrences of a field.	SELECT COUNT(s.deal.amount) FROM SalesRepBean AS s, IN(deal)s WHERE s.deal.status='closed' AND s.deal.amount>=1000000 This statement retrieves the number of closed deals for at lease 1 million dollars.

Option	Description
Exclusive	Places an exclusive lock on cached entity EJB instances when the bean is associated with a transaction. Other requests for the EJB instance are block until the transaction completes. This option was the default locking behavior for WebLogic Server versions 3.1 through 5.1
Database	Defers locking requests for an entity EJB to the underlying datastore. WebLogic Server allocates a separate entity bean instance and allows locking and caching to be handled by the database. This is the default option.
Optimistic	Holds no locks in the EJB container or database during a transaction. The EJB container verifies that none the data updated by the transaction has changed before committing the transaction. If any updated data changed, the EJB container rolls back the transaction.
ReadOnly	Used only for read-only entity beans. Activates a new instance for each transaction so that requests proceed in parallel. WebLogic Server calls ejbLoad() for ReadOnly beans are based on the read-timeout-seconds parameter.
