Add an Invite Call pattern
You can add an Invite Call pattern to a SIP test.To create an Invite Call pattern:
- In the Test Navigator, browse to the test and double-click it.
- Click Add > SIP Test Pattern. The pattern configuration wizard opens, listing the available types of SIP patterns.
- Select the Invite Call pattern type and click Next. The Invite Call Configuration window opens.
- Complete the fields as follows:
- URI
- Required: Type the URI of the Invite request.
- To URI
- Type the URI to be written into the URI field
of the
To header. If not specified, the value from the Invite request URI is used.
- To display name
- Optional: Type the display name to be written into the display
name field of the
To header.
- From URI
- Required: Type the URI to be written into the URI field of the From header.
- From display name
- Optional: Type the display name to be written into the display name field of the From header.
Example
The following figure shows an example of an Invite Call configuration window:

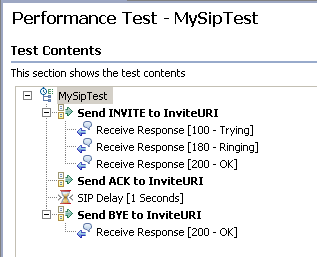

The following figure shows the resulting test:
