Activity:
|
Workflow Details:
|
Classes are the workhorses of the design effort-they actually perform the real work of the system. Other design elements, such as subsystems, packages, and collaborations, describe how classes are grouped or how they interoperate.
Active classes are design classes that coordinate and drive the behavior of the passive classes-an active class is a class whose instances are active objects, owning their own thread of control.
Use design patterns and mechanisms as suited to the class or capability being designed, and in accordance with project design guidelines.
Incorporating a pattern and/or mechanism is effectively performing many of the subsequent steps in this activity (adding new classes, operations, attributes, and relationships), but in accordance with the rules defined by the pattern or mechanism.
Note that patterns and mechanisms are typically incorporated as the design evolves, and not just as the first step in this activity. They are also frequently applied across a set of classes, rather than only to a single class.
Create one or several initial design classes for the analysis class given as input to this activity and assign trace dependencies. The design classes created in this step will be refined, adjusted, split, or merged in subsequent steps when assigned various design properties-such as operations, methods, and a state machine-that describe how the analysis class is designed.
Depending on the type of the analysis class (boundary, entity, or control) being designed, there are specific strategies you can use to create initial design classes.
Boundary classes either represent interfaces to users or to other systems.
Typically, boundary classes that represent interfaces to other systems are modeled as subsystems, because they often have complex internal behavior. If the interface behavior is simple (perhaps acting as only a pass-through to an existing API to the external system), you might choose to represent the interface with one or more design classes. If you choose this route, use a single design class per protocol, interface, or API and note special requirements about standards you used in the special requirements of the class.
Boundary classes that represent interfaces to users generally follow the rule of one boundary class for each window, or one for each form, in the user interface. Consequently the responsibilities of the boundary classes can be on a fairly high-level, and need to be refined and detailed in this step. Additional models or prototypes of the user interface can be another source of input to be considered in this step.
The design of boundary classes depends on the user interface (UI) development tools available to the project. Using current technology, it's common that the UI is visually constructed directly in the development tool. This automatically creates UI classes that need to be related to the design of control and entity classes. If the UI development environment automatically creates the supporting classes it needs to implement the UI, there is no need to consider them in design. You design only what the development environment does not create for you.
During analysis, entity classes represent manipulated units of information. They are often passive and persistent, and might be identified and associated with the analysis mechanism for persistence. The details of designing a database-based persistence mechanism are covered in Activity: Database Design. Performance considerations could force some refactoring of persistent classes, causing changes to the Design Model that are discussed jointly between the Role: Database Designer and the Role: Designer.
A broader discussion of design issues for persistent classes is presented later under the heading Identify Persistent Classes.
A control object is responsible for managing the flow of a use case and, therefore, coordinates most of its actions; control objects encapsulate logic that is not particularly related to user interface issues (boundary objects) or to data engineering issues (entity objects). This logic is sometimes called application logic or business logic.
Take the following issues into consideration when control classes are designed:
- the use-case coordinating behavior becomes imbedded in the UI, making it more difficult to change the system
- the same UI cannot be used in different use-case realizations without difficulty
- the UI becomes burdened with additional functionality, degrading its performance
- the entity objects might become burdened with use-case specific behavior, reducing their generality
To avoid these problems, control classes are introduced to provide behavior related to coordinating flows-of-events.
In the latter two cases, if the control class represents a separate thread of control, it might be more appropriate to use an active class to model the thread of control.
Classes that need to store their state on a permanent medium are referred to as persistent. The need to store their state might be for permanent recording of class information, for backup in case of system failure, or for exchange of information. A persistent class might have both persistent and transient instances; labeling a class persistent means merely that some instances of the class might need to be persistent.
Incorporate design mechanisms corresponding to persistency mechanisms found during analysis. For example, depending on what is required by the class, the analysis mechanism for persistency might be realized by one of these design mechanisms:
Persistent objects might not be derived from entity classes only; persistent objects could also be needed to handle nonfunctional requirements in general. Examples are persistent objects needed to maintain information relevant to process control or to maintain state information between transactions.
Identifying persistent classes serves to notify the Role: Database Designer that the class requires special attention to its physical storage characteristics. It also notifies the Role: Software Architect that the class needs to be persistent and the Role: Designer responsible for the persistence mechanism that instances of the class need to be made persistent.
Due to the need for a coordinated persistence strategy, the Role: Database Designer is responsible for mapping persistent classes into the database, using a persistence framework. If the project is developing a persistence framework, the framework developer will also be responsible for understanding the persistence requirements of design classes. To provide these people with the information they need, it's sufficient at this point to indicate that the class is persistent or, more precisely, that the instances of the class are persistent.
For each class, determine the class visibility within the package in which it resides. A public class can be referenced outside of the containing package. A private class (or one whose visibility is implementation) might only be referenced by classes within the same package.
To identify operations on design classes:
Operations are required to support the messages that appear on sequence diagrams because scripts-temporary message specifications that have not yet been assigned to operations-describe the behavior the class is expected to perform. Figure 1 illustrates an example of a sequence diagram.
Figure 1: Messages Form the Basis for Identifying Operations
Use-case realizations cannot provide enough information to identify all operations. To find the remaining operations, consider the following:
Do not define operations that merely get and set the values of public attributes (see Define Attributes and Define Associations). Usually these are generated by code-generation facilities and do not need to be defined explicitly.
Use naming conventions for the implementation language when you're naming operations, return types, and parameters and their types.
For each operation, you should define the following:
Once you've defined the operations, complete the sequence diagrams with information about what operations are invoked for each message.
Refer to the section titled Class Operations in Guidelines: Design Class for more information.
For each operation, identify the export visibility of the operation from these choices:
Choose the most restricted visibility possible that can still accomplish the objectives of the operation. To do this, look at the sequence diagrams and, for each message, determine whether the message is coming from a class outside of the receiver's package (requires public visibility), from inside of the package (requires implementation visibility), from a subclass (requires protected visibility), or from the class itself or a friend (requires private visibility).
For the most part, operations are instance operations; that is, they are performed on instances of the class. In some cases, however, an operation applies to all instances of the class and, therefore, is a class-scope operation. The class operation receiver is actually an instance of a metaclass-the description of the class itself-rather than any specific instance of the class. Examples of class operations include messages that create (instantiate) new instances, which return allInstances of a class, and so on.
The operation string is underlined to denote a class-scope operation.
A method specifies the implementation of an operation. In many cases where the behavior required by the operation is sufficiently defined by the operation name, description, and parameters, methods are implemented directly in the programming language. Where the implementation of an operation requires the use of a specific algorithm or more information than is presented in the operation's description, a separate method description is required. The method describes how the operation works, not just what it does.
If described, the method should discuss how:
The requirements will vary from case to case, however, the method specifications for a class should always state:
More specific requirements might concern:
Sequence diagrams are an important source for this. From these it's clear what operations will be used in other objects when an operation is performed. A specification of what operations will be used in other objects is necessary for the full implementation of an operation. The production of a complete method specification, therefore, requires that you identify the operations for the objects involved and inspect the corresponding sequence diagrams.
For some operations, the behavior of the operation depends upon the state the receiver object is in. A state machine is a tool that describes the states an object can assume and the events that cause the object to move from one state to another (see Guidelines: Statechart Diagram). State machines are most useful for describing active classes.
An example of a simple state machine is shown in Figure 2.

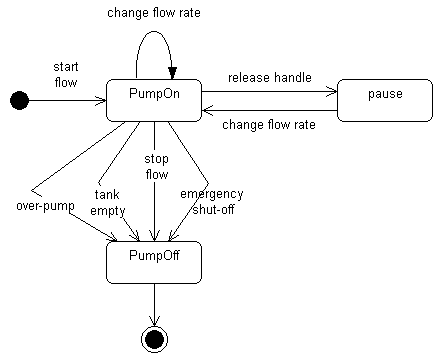

Figure 2: A Simple Statechart Diagram for a Fuel Dispenser
Each state transition event can be associated with an operation. Depending on the object's state, the operation might have a different behavior and the transition events describe how this occurs.
The method description for the associated operation should be updated with the state-specific information, indicating for each relevant state what the operation should do. States are often represented using attributes; the statechart diagrams serve as input into the attribute identification step.
For more information, see Guidelines: Statechart Diagram.
During the definition of methods and the identification of states, attributes needed by the class to carry out its operations are identified. Attributes provide information storage for the class instance and are often used to represent the state of the class instance. Any information the class itself maintains is done through its attributes. For each attribute, define:
Check to make sure all attributes are needed. Attributes should be justified-it's easy for attributes to be added early in the process and survive long after they're no longer needed due to shortsightedness. Extra attributes, multiplied by thousands or millions of instances, can have a detrimental effect on the performance and storage requirements of a system.
Refer to the section titled Attributes in Guidelines: Design Class for more information on attributes.
For each case where the communication between objects is required, ask these questions:
Note that links modeled this way are transient links, existing only for a limited duration in the specific context of the collaboration-in that sense, they are instances of the association role in the collaboration. However, the relationship in a class model (that is, independent of context) should be a dependency, as previously stated. As [RUM98] states, in the definition of transient link: "It is possible to model all such links as associations, but then the conditions on the associations must be stated very broadly, and they lose much of their precision in constraining combinations of objects." In this situation, the modeling of a dependency is less important than the modeling of the relationship in the collaboration, because the dependency does not describe the relationship completely; only that it exists.
Associations provide the mechanism for objects to communicate with one another. They provide objects with a conduit along which messages can flow. They also document the dependencies between classes, highlighting that changes in one class could be felt among many other classes.
Examine the method descriptions for each operation to understand how instances of the class communicate and collaborate with other objects. To send a message to another object, an object must have a reference to the receiver of the message. A communication diagram (an alternative representation of a sequence diagram) will show object communication in terms of links, as illustrated in Figure 3.

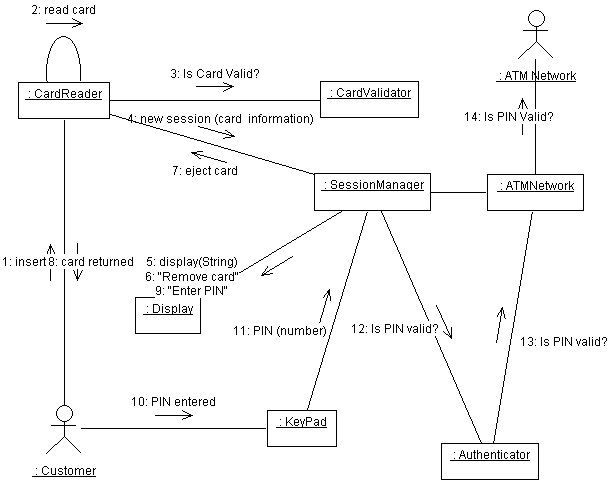

Figure 3: An Example of a Communication Diagram
The remaining messages use either association or aggregation to specify the relationship between instances of two classes that communicate. See Guidelines: Association and Guidelines: Aggregation for information on choosing the appropriate representation. For both of these associations, set the link visibility to field in communication diagrams. Other tasks include:
Associations and aggregations are best defined in a class diagram that depicts the associated classes. The class diagram should be owned by the package that contains the associated classes. Figure 4 illustrates an example of a class diagram, depicting associations and aggregations.
Figure 4: Example of a Class Diagram showing Associations, Aggregations, and Generalizations between Classes
Subscribe-associations between analysis classes are used to identify event dependencies between classes. In the Design Model handle these event dependencies explicitly, either by using available event-handler frameworks or by designing and building your own event-handler framework. In some programming languages-such as Visual Basic-this is straightforward; you declare, raise, and handle the corresponding events. In other languages, you might have to use some additional library of reusable functions to handle subscriptions and events. If the functionality can't be purchased, it will need to be designed and built. See also Guidelines: Subscribe-Association.
Some classes may represent complex abstractions and have a complex structure. While modeling a class, the designer may want to represent its internal participating elements and their relationships, to make sure that the implementer will accordingly implement the collaborations happening inside that class.
In UML 2.0, classes are defined as structured classes, with the capability to have a internal structure and ports. Then, classes may be decomposed into collections of connected parts that may be further decomposed in turn. A class may be encapsulated by forcing communications from outside to pass through ports obeying declared interfaces.
When you find a complex class with complex structure, create a composite structure diagram for that class. Model the parts that will perform the roles for that class behavior. Stablish how parts are 'wired' together by using connectors. Make use of ports with declared interfaces if you want to allow different clients of that class access specific portions of behavior offered by that class. Also make use of ports to fully isolate the internal parts of that class from its environment.
For more information on this topic and examples on composite structure diagram, see Concepts: Structured Class.
Classes might be organized into a generalization hierarchy to reflect common behavior and common structure. A common superclass can be defined, from which subclasses can inherit both behavior and structure. Generalization is a notational convenience that allows you to define common structure and behavior in one place, and to reuse it where you find repeated behavior and structure. Refer to Guidelines: Generalization for more information on generalization relationships.
When you find a generalization, create a common superclass to contain the common attributes, associations, aggregations, and operations. Remove the common behavior from the classes that will become subclasses of the common superclass. Define a generalization relationship from the subclass to the superclass.
The purpose of this step is to prevent concurrency conflicts caused when two or more use cases could potentially access instances of the design class simultaneously, in possibly inconsistent ways.
One of the difficulties with proceeding use-case-by-use-case through the design process is that two or more use cases could attempt to invoke operations simultaneously on design objects in potentially conflicting ways. In these cases, concurrency conflicts must be identified and resolved explicitly.
If synchronous messaging is used, executing an operation will block subsequent calls to the objects until the operation completes. Synchronous messaging implies a first-come, first-served ordering to message processing. This might resolve the concurrency conflict, especially in cases where all messages have the same priority or where every message runs within the same execution thread. In cases where an object might be accessed by different threads of execution (represented by active classes), explicit mechanisms must be used to prevent or resolve the concurrency conflict.
It might be possible for different operations on the same object to be invoked simultaneously by different threads of execution without a concurrency conflict; both the name and address of a customer could be modified concurrently without conflict. It's only when two different threads of execution attempt to modify the same property of the object that a conflict occurs.
For each object that might be accessed concurrently by different threads of execution, identify the code sections that must be protected from simultaneous access. Early in the Elaboration phase, identification of specific code segments will be impossible; operations that must be protected will suffice. Next, select or design appropriate access control mechanisms to prevent conflicting simultaneous access. Examples of these mechanisms include message queuing to serialize access, use of semaphores or tokens to allow access only to one thread at a time, or other variants of locking mechanisms. The choice of mechanism tends to be highly implementation-dependent, and typically varies with the programming language and operating environment.
The Design Classes are refined to handle general, nonfunctional requirements. Important input to this step include the nonfunctional requirements on an analysis class that might already be stated in its special requirements and responsibilities. Such requirements are often specified in terms of what architectural (analysis) mechanisms are needed to realize the class; in this step, the class is then refined to incorporate the design mechanisms corresponding to these analysis mechanisms.
The available design mechanisms are identified and characterized by the software architect. For each design mechanism needed, qualify as many characteristics as possible, giving ranges where appropriate. Refer to Activity: Identify Design Mechanisms, Concepts: Analysis Mechanisms, and Concepts: Design and Implementation Mechanisms for more information on design mechanisms.
There can be several general design guidelines and mechanisms that need to be taken into consideration when classes are designed, such as how to:
Check the design model at this stage to verify that your work is headed in the right direction. There is no need to review the model in detail, but you should consider the following checkpoints:
