layoutAssignment input file

Use a layoutAssignment input file to assign layouts to pages and search terms.

For a sample that demonstrates how to use this input file, see Sample: Loading Commerce Composer pages.

We can extract layout assignment data with the Data Extract utility to create a layoutAssignment.csv file that we can load with the Data Load utility. For example, to copy or move Commerce Composer pages between stores or instances, such as for creating one or more test environments. The sample configuration files provided for you to use with the Data Extract utility, extract layout assignment data from the following database tables:

• EMSPOT

• DMACTIVITY

• DMELEMENT

• DMELEMENTNVP

• PLLOCATION

For more information about extracting Commerce Composer data, see:

• Extracting Commerce Composer data with the Data Extract utility

• Sample: Extracting Commerce Composer pages

Definitions

LayoutUniqueID

(Integer) The internal reference number for the layout that we are assigning to a page, for example, 50001. Either this field or the LayoutName field (see next column) is required.Maps to:

• PAGELAYOUT.PAGELAYOUT_ID

• PLLOCATION.PAGELAYOUT_ID

LayoutName

(String) The external reference name for the layout that we are assigning to a page, for example, SampleHomePageLayout. Either this field or the LayoutUniqueID field (see previous column) is required.

• PAGELAYOUT.NAME

PageGroup

(String) The page group that the page belongs to. For example, if we are assigning a layout to the Tableware category page, the PageGroup value is Category. Valid PageGroup values for the Aurora starter store are:

• Content

• Category

• Product

• Bundle

• Kit

• DynamicKit

• Search (use this value if we are assigning the layout to a search term)

Maps to: PAGELAYOUT.PAGELAYOUTTYPE_ID

PageAdminName

(String) The identifier of the content page to which we want to assign the layout. Fill this column only if the PageGroup column is set to Content; otherwise leave this column empty. The PageAdminName is defined in the Page input file that was used to load the content page.

Maps to: PLPAGE.ADMINNAME

Identifier

(String) The identifier of the category, product, bundle, kit, dynamic kit, or search term to which we want to assign the layout. If we are assigning this layout to a content page, leave this column empty.

If the PageGroup value is...	The Identifier value is...
Category	The IDENTIFIER value that is defined in the CATGROUP table for the category, for example, Tableware. In the Catalogs tool, this is the Code value for the category.
Product Bundle Kit DynamicKit	The PARTNUMBER value that is defined in the CATENTRY table for the product, bundle, kit, or dynamic kit, for example, AuroraWMDRS-1. In the Catalogs tool, this is the Code value for the product, bundle, kit, or dynamic kit.
Search	The exact search term that shoppers must search for in order for this layout to be used as the search results page. Example values are: notebook notebooks laptop laptops laptop computer Include each search term or phrase in a separate row in this input file.

PropagateToSubLevels

(Boolean) Use only when assigning layouts to category pages. Indicates whether to assign the layout only to the category page, or to the category page and its subcategory pages. Valid values:

TRUE

Assign the layout to the category page and its subcategory pages. Subcategory pages include all levels in the hierarchy under the current category, not just the immediate subcategories.

FALSE

Assign the layout only to the category page.

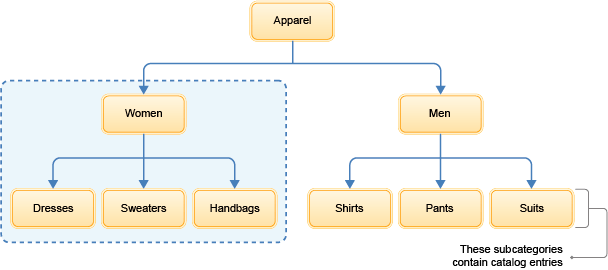

For example, we can assign a layout to the Women category page and its subcategory pages:



If so, include the following values in this input file:

Identifier	PropagateToSubLevels
Women	TRUE

Conversely, to assign the layout only to the Woman category page, include the following values in this input file:

Identifier	PropagateToSubLevels
Women	FALSE

ApplyToSubPageType

(Boolean) Use only when assigning layouts to all product, bundle, kit, or dynamic kit pages in a specific category. Valid values:

Product

Assign the layout to all product pages in the specified category.

Bundle

Assign the layout to all bundle pages in the specified category.

Kit

Assign the layout to all kit pages in the specified category.

DynamicKit

Assign the layout to all dynamic kit pages in the specified category.

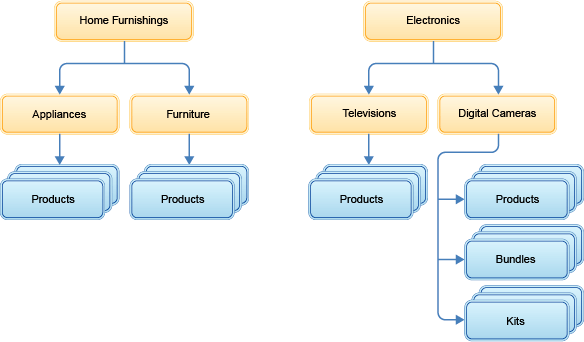

For example, we can assign a layout to all the product pages in the Appliances category:



If so, include the following values in this input file:

Identifier	ApplyToSubPageType
Appliances	Product

Delete

(String) A flag indicating whether to delete the layout assignment. Specify 1 to delete the row.
