Widgets for Commerce Composer

A widget is a frame that displays a specific type of store content, such as ads, product recommendations, or navigational links. To create a layout, you add widgets to slots in a layout template, and then set the properties and content for each widget.

WebSphere Commerce provides the Commerce Composer widget library, which offers over two dozen widgets for creating store pages rich with features to enhance the shopping experience. Your company can customize the widgets to suit the store design. We can also use widgets from other sources, if the widgets are developed to be compatible with the Commerce Composer tool.

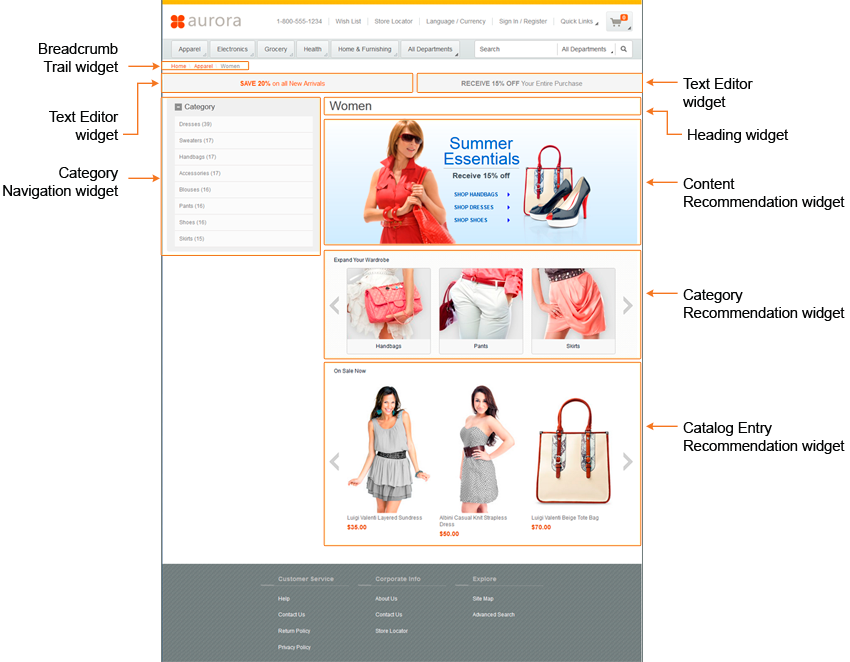

The following layout for a sample store page contains a selection of widgets from the Commerce Composer widget library. Some widgets have user-defined content, such as the Text Editor widgets and the Content Recommendation widget. Other widgets automatically retrieve and display content that applies to the page, such as the Heading widget and Category Navigation widget.

Widget properties

Many widgets have properties that we can set as we are creating your layout in the Commerce Composer tool. By setting the properties, we can customize visual aspects of the widget to suit the layout. We can also configure how shoppers can interact with the widget. The following are examples of widget properties:

• Orientation (vertical or horizontal)

• Maximum display capacity for vertical orientation

• Initial view (grid or list)

• Inclusion of a Subscribe link

The configurable properties differ from one widget to the next, and some widgets have no properties.

Widget content

The content of a widget is defined and retrieved in various ways:

1. Some widgets require you to define their content, either:

   • Directly in the widget.

   • By running a web activity in the widget.

2. Some widgets automatically retrieve and display content. For example:

   • The Category Navigation widget automatically retrieves a list of subcategories for the category that a shopper is viewing. You do not need to define the list of subcategories in the widget.

   • The Heading widget automatically retrieves the name of the catalog entry or category that a shopper is viewing. You do not need to specify the name in the widget.

3. Some widgets retrieve content from external applications, such as Facebook or the IBM Digital Marketing Optimization solution. In these cases, the store must be integrated with the external application so that the widget can retrieve the content.

Page-dependent widgets

Certain widgets can be used only in layouts for specific page types. These widgets depend on information in the page context to retrieve content. An example is the Full Image widget, which can be used only in layouts for catalog entry pages. When a shopper views a catalog entry page, the Full Image widget automatically retrieves the correct image for the catalog entry from the catalog data. If you use the Full Image widget in a layout for some other page type, such as a content or category page, the widget will not be rendered on the page. For other page-dependent widgets used for the wrong page type, the result might be an empty widget or an error.

In the Commerce Composer widget library, page-dependent widgets fall into three groups. A single widget can belong to more than one group.

1. Category page-dependent widgets

These widgets automatically retrieve content that applies to the category that the shopper is viewing.

2. Search results page-dependent widgets

These widgets automatically retrieve content that applies to the search term that a shopper entered on the site.

3. Catalog entry page-dependent widgets

These widgets automatically retrieve content that applies to the catalog entry (product, SKU, bundle, or kit) that the shopper is viewing.

The Commerce Composer widget library also includes widgets that are not page-dependent, such as the Content Recommendation widget and the Breadcrumb Trail widget. These widgets can be used in layouts for any page type, including content pages.

To find out which widgets are page-dependent, see the table in Commerce Composer widget library.

IT developers can create layout templates that restrict slots to accept only certain types of widgets or a specific widget. Examples are the tab Title slots included in several sample templates, such as the Catalog entry page template. A restriction is set to accept only the Text Editor widget in the tab Title slots. Slot restrictions can prevent you from using a widget in a page that either does not work or is contrary to the page design. However, if your layout templates do not have slot restrictions, it is up to you to understand which widgets are page-dependent. Tip: When we are creating layouts in the Commerce Composer tool, we can filter widgets by page type in the Add Widgets to Slots window. For example, if we are creating a layout for a category page, select Category page widgets. As a result, the window lists all widgets that we can use in layouts for category pages. These widgets include:

• The category page-dependent widgets

• All widgets that are not page-dependent

IT developers might add widget filters that are different from the filters that are shown in the previous screen capture.

Responsive widgets

The widgets included with the Commerce Composer widget library follow a responsive web design (RWD) pattern. A responsive widget does not have a fixed width. When you place a responsive widget in a slot in a template, the widget width automatically adjusts to accommodate the content within the slot. Most responsive widgets do not have a fixed height either, although there are a few exceptions, such as the Heading widget. We can use responsive widgets in responsive layout templates, and also in desktop and mobile layout templates with fixed widths.

If your company creates custom widgets, or uses widgets from a third-party vendor, the widgets are not required to be responsive.

• Creating page-specific e-Marketing Spots for the E-Marketing Spot widget
  If you add an E-Marketing Spot widget to a layout and choose page-specific e-Marketing Spots, each page to which the layout is assigned has its own generated e-Marketing Spot. For each page, we must use the Marketing tool to create the e-Marketing Spot and populate it with default content, or web activities, or both.

• Creating a web activity from within a Commerce Composer widget
  In certain Commerce Composer widgets, we can create a web activity directly from the widget properties view. By running a web activity in the widget, we can take advantage of web activity capabilities for managing the widget content. These capabilities include personalization, scheduling, and prioritization.

• Web activity actions supported in Commerce Composer widgets
  Certain widgets in the Commerce Composer widget library support web activities. When you build a web activity to run in one of these widgets, we must choose a web activity action that is supported by the widget.
