Configure LDAP attributes in federated repository

To add, modify, or delete the configuration of supported, unsupported, and external LDAP attributes in a federated repositories configuration...

1. From the console, click...

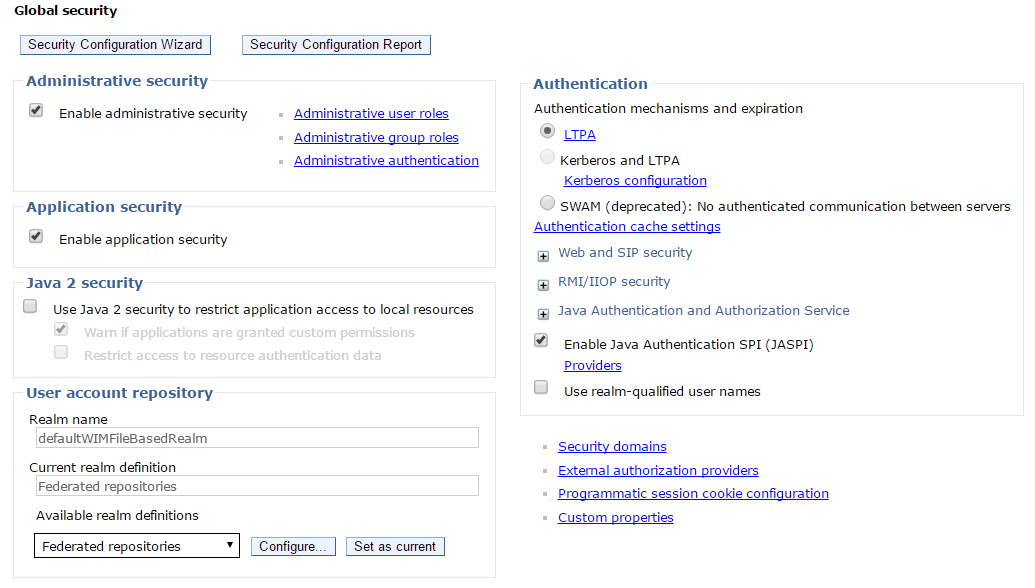

   Security | Global security



   Select...

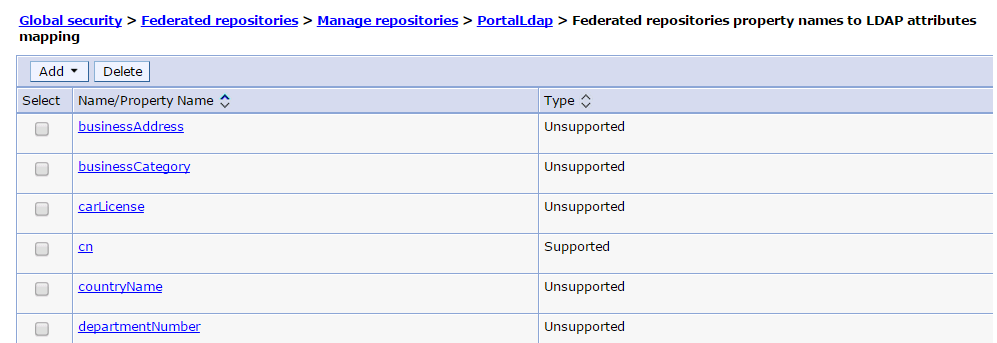

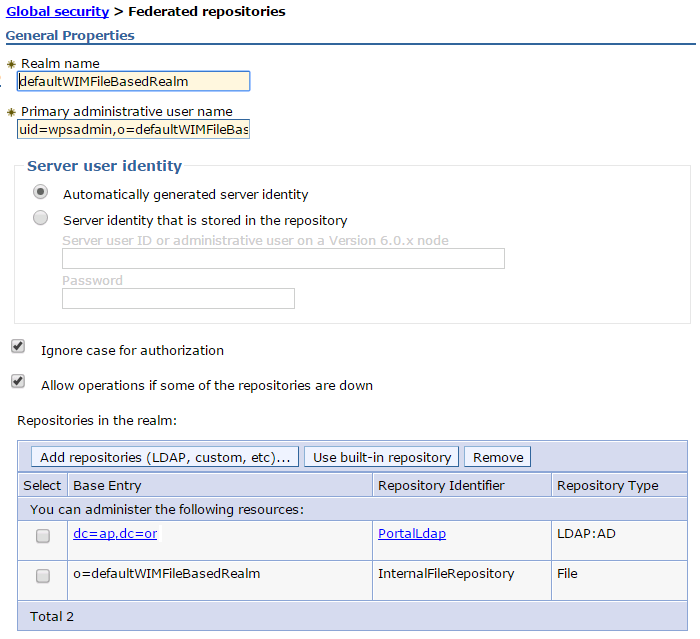

   User account repository | Available realm definitions | Federated repositories | Configure | repository_id | Federated repositories property names to LDAP attributes mapping



   To configure for a specific domain in a multiple security domain environment, click

   Security domains | domain_name | Security Attributes | User Realm | Customize for this domain | Realm type | Federated repositories | Configure | Related items | Manage repositories | repository_id | Additional properties | LDAP attributes

2. To add a new LDAP attribute configuration, click Add

   Select one of the following options:

   • Select Supported to add a supported LDAP attribute configuration.

     On the panel that appears, enter the following details:

     Name	LDAP attribute used in the repository LDAP adapter.
     Property name	Name of the corresponding federated repository property.
     Syntax	Syntax of the LDAP attribute. The default value is string. For example, the syntax of the unicodePwd LDAP attribute is octetString.
     Entity types	Entity type that applies the attribute mapping.
     Default value	Default value of the LDAP attribute.
     Default attribute	Default attribute of the LDAP attribute.

   • Select Unsupported to add a configuration for a federated repository property that the LDAP repository does not support. On the panel that appears, enter the following details:

     Property name	Name of the federated repository property.
     Entity types	One or more entity types. Use the semicolon (;) as the delimiter to specify multiple entity types.

   • Select External to add a configuration for an LDAP attribute used as an external ID in the specified LDAP repository. On the panel that appears, enter the following details:

     Name	Name of the external ID attribute of the LDAP repository.
     Syntax	Syntax of the LDAP attribute. The default value is string. For example, the syntax of the unicodePwd LDAP attribute is octetString.
     Entity types	Specifies one or more entity types. Use the semicolon (;) as the delimiter to specify multiple entity types.
     Generate value	Whether or not the federated repository should generate the value of the LDAP attribute.

3. To modify an existing configuration, click the Name/Property Name link and modify the details in the panel that appears.

4. To delete an existing configuration, select the checkbox for the Name/Property Name and click Delete.

5. Click OK and Save to the master configuration.

6. Restart the application server.

Results

After completing these steps, LDAP attributes are configured in the federated repositories configuration.

Subtopics

• Lightweight Directory Access Protocol entity types collection
  Use this page to list LDAP entity types that are supported by the member repositories or to select an LDAP entity type to view or change its configuration properties.

• Lightweight Directory Access Protocol entity types settings
  Use this page to configure LDAP entity types that are supported by the member repositories.

• LDAP attributes collection
  Use this page to add, modify, or delete the configuration of supported, unsupported, and external LDAP attributes in a federated repositories configuration.
