Completing the Web Diagram and Struts configuration file

The diagram and Struts configuration file should be complete. However, you can optionally replace the Web Diagram (WebDiagram.gph) and Struts configuration file (struts-config.xml):

Replace the struts-config.xml file from the config folder into the project folder WebContent/WEB-INF.

Replace the WebDiagram.gph file from the diagram folder into the project root directory. When you open the Web Diagram, the action forms might not be visible in the actions. Double-click in the small space at the bottom to display the action form (Figure | 5-17).

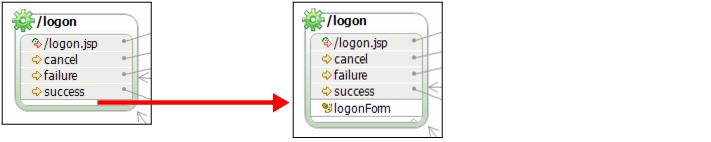

Figure 15-17 Web Diagram action with and without the action form
