Indexing with staging propagation

When indexing with staging propagation, business users apply changes to a staging area, which is later propagated into the production environment by IT administrators. An index repeater is used to capture the most recent deployed index content, while also serving as a backup.

In an event of applying an emergency change, the repeater can be used for reindexing instead of directly against the search subordinates that are in production. This can avoid any potential downtime due to corruption during reindexing. That is, the search subordinates that are in production are always treated as subordinate servers, with the reindexing always against the repeater. After the reindexing successfully completes, the delta changes are replicated into the subordinate nodes in the search subordinates that are in production. This index replication seems seamless to administrators, since after the replication completes in the production system, the new version of the search index automatically becomes live.


Search index flow with staging propagation and the workspace index

The following diagram depicts the use of a search index in the production environment and how catalog changes are populated into the system with the workspace index:


Timeline of events

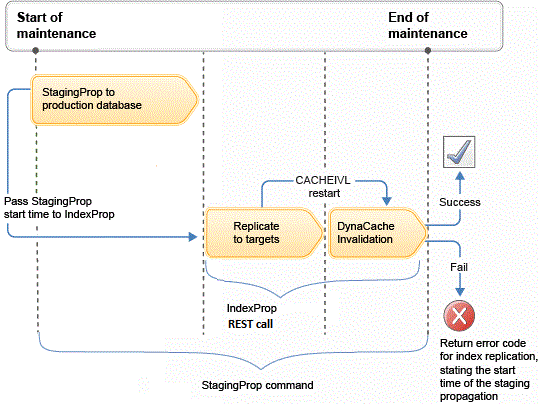

The following diagram illustrates the timing of events we must consider when indexing with staging propagation:

Where:

  1. A start time is passed as a parameter to the indexprop REST API at the time the command is issued by an IT Administrator. For more information about this API, see Propagating the search index.

  2. This start time defines the period where cache invalidation starts. Typically, the start of the staging propagation operation.

  3. The indexprop REST API can be used to monitor the progress of the index replication on all the search subordinate servers in production.

  4. After all of the index replications are completed successfully, the indexprop REST API is called to issue a cache invalidation instruction by inserting an entry of type restart into the CACHEIVL table, using the provided start time parameter as the time to start performing cache invalidation.

In this flow, the following high-level steps are involved:

  1. Catalog changes are made in WebSphere Commerce with the Management Center or Data Load utility in a staging environment. Business users test and preview all the changes in this preproduction environment before the changes are published into the production environments. In this scenario, there is a dedicated search index for the staging environment and the delta update procedure for synchronizing the catalog changes is the same as in a non-staging environment.

  2. The workspace search index is used for business users to preview changes that are made in the Management Center, for example, uploading CSV files or other catalog changes.

  3. When business users are satisfied with their changes, the data is released and published into production by using staging propagation (stagingprop). The utility is used by IT administrators to coordinate the following tasks when publishing into production:

      stagingprop
      Used for managed data such as catalog and configuration.

    Static assets such as static HTML or PDF documents can either be deployed directly onto the web server, or inside of the application server. Separating publishing tasks from the catalog data provides IT administrators the ability to manually deploy other nonmanaged asset files to their wanted network location. For example, when we deploy site content for the internal site.

  4. The indexprop REST API is used to propagate the WebSphere Commerce Search index:

    • The indexprop RESTful call is used by IT administrators to initiate the search index replication from the staging environment to the repeater, and perform cache invalidation for WebSphere Commerce Search in production. See Propagating the WebSphere Commerce Search index with the repeater.

    For more information on how to update the replication configuration file (replication.csv), download and extract the following archive that contains sample CSV files sdsearch_replication_samples.zip.

    Note: When running the UpdateSearchIndex scheduler job:

    • The UpdateSearchIndex scheduler job does not call the indexprop API by default. Therefore, the replication.csv does not need to be copied to a location outside the Solr home directory.

    • The replication.csv file should be copied to a location outside the Solr home directory. This avoids replication automatically taking place every time the UpdateSearchIndex scheduler job is run. For example, copy the replication.csv to the WC_installdir/instances/instance_name/search directory. Then, pass the -solrHome value when calling the indexprop REST API.

  5. The search index repeater is used as both a master and a subordinate for search replication.

    It is used as a subordinate when replicating with the staging search index, where the staging search index is the master and the repeater is the subordinate acting as a backup of the search index for production. After the first replication is completed from staging, the repeater communicates the changes to its subordinate nodes that are in production.

    The repeater then becomes the master, where all nodes from the search subordinates are configured to poll changes from the repeater on a regular preconfigured fixed-time interval. This time interval is defined in the solrconfig.xml file under replication.

    Replicating between the repeater and all search subordinates in production can be automated, as the indexed data in the repeater always matches the indexed data in production. The search index repeater must be a subordinate to the staging search server and master to the production search server.

    Important: The repeater must reside in Production, as it relies on the production database to perform emergency updates.

  6. The following considerations must be noted when both catalog data and asset files are published to production:

    • The next time replication occurs between the production search index and the repeater.

    • The approximate amount of time that the index replication might take to complete.

  7. Cache invalidation for the storefront must be performed before the updated changes are visible in production.

    • An automated cache invalidation can be performed using the indexprop RESTful call.

      When using the indexprop restart time option to perform reinvalidation, after all of the index replications have completed successfully, the indexprop utility issues a cache invalidation instruction by inserting an entry of type restart into the CACHEIVL table, using the provided start time parameter as the time to start performing cache invalidation. This allows the DynaCacheInvalidation scheduler command to perform the same invalidation again, starting at the given start time parameter. This prevents early invalidation, resulting in recaching out-of-date content before the latest index changes become available. These invalidation entries in the CACHEIVL table might be dependency IDs used for JSP fragment cache invalidation or data object cache invalidation.
