Packaging
WAS is a family of similar products designed to deliver the right combination of economy and application serving power for your business demands. The contents of the product packages are similar, but each package has unique elements. Use this topic to familiarize yourself with the various products so that you can determine the offering that best fits your needs.
The WebSphere software platform for e-business starts with a foundation that is formed from Web application serving and integration. IBM WAS software provides the core software to deploy, integrate, and manage your e-business applications.
WAS software supports custom-built applications that are either based on integrated WebSphere software platform products or on other third-party products. Such applications can range from dynamic Web presentations to sophisticated transaction processing systems.
IBM WAS for z/OS is a full-function version of the ND product. WAS for z/OS can support e-business on any scale.
The management interface for all WAS product offerings includes a scripting interface and the console, which is a Web application.
The scripting interface and the console of the deployment manager are enhanced for managing all of the Application Server nodes in a distributed network cell. From the single point of control of the deployment manager, you can define servers, Web server processes, and clusters. You can start and stop servers and cluster members and deploy applications anywhere in the cell.
Product offerings
IBM WAS products provide a next-generation appserver on an industry-standard foundation. Each product addresses a distinct set of scenarios and needs. WAS includes the following product offerings:
WAS - Express
WAS is an affordable solution for creating, running and managing Web sites. The Express product provides a full J2EE appserver. The runtime environment addresses standards-based programming for Web and component-based programming, as well as Web services.
The administration model for this offering is a single-server environment without clustering and without centralized administration of multiple server instances.
The development environment offering is the Application Server Toolkit and a trial version of Rational Application Developer. These products have an integrated development environment (IDE) with a graphical interface for developing code artifacts, assembling the code artifacts into various archives (modules) and configuring related J2EE deployment descriptors. They are built using Eclipse V3.2.1 technology.
WAS
This product offering addresses the basic programming and runtime needs of desktop developers and single-server production scenarios. The runtime environment addresses standards-based programming for Web and component-based programming, as well as Web services.
The administration model is a single-server environment without clustering and without centralized administration of multiple server instances.
The development environment offering is the Application Server Toolkit and a trial version of a Rational Tool product.
WAS ND
This product offering addresses WAS processes that run in multiple-server production scenarios. Use the ND product to create:
- Cells
The cell profile is an ease-of-use enhancement that provides a deployment manager profile that contains a federated appserver on the same machine or partition.
- Deployment managers
The deployment manager provides centralized administration of managed Application Server nodes and custom nodes as a single cell. The deployment manager provides basic clustering and caching support, including failover support and workload balancing. Use the Edge components in the ND package to further extend the environment with sophisticated caching, load balancing, and enhanced security functions.
- Application servers
The appserver profile in the ND product can run in a deployment manager cell as a managed node or on its own as a standalone appserver.
- Custom
A custom profile has an empty node that add to a deployment manager cell to customize and use. Use the console of the deployment manager to create servers and clusters on the custom managed node. Consider the custom node as a production-ready shell, ready for customization to contain your production-level servers and applications.
See Planning to install ND for examples of common topologies that you can create with the ND product.
WAS for z/OS
This product offering addresses WAS processes that run in multiple-server production scenarios in a UNIX space in z/OS regions. Use WAS for z/OS to create:- Deployment managers
The deployment manager provides centralized administration of federated appserver nodes and managed nodes as a single cell. The deployment manager provides basic clustering and caching support, including failover support and workload balancing.
- Application servers
The appserver profile in WAS for z/OS can run in a deployment manager cell as a federated node or on its own as a standalone appserver.
- Custom
A custom or managed node is an empty node until you add it to the deployment manager cell for customization. Use the console of the deployment manager to create servers and clusters on the managed node. Consider the managed node as a production-ready shell, ready for customization to contain your production-level servers and applications.
Installation and operating model
In V6.x, the core product binary data is separate from the data that you create as you define and customize your WAS runtime environment. You can have multiple sets of customized runtime environments. Each environment is known as a profile.
Application server environments that are created during product installation
| Product | Default environments | Application server processes created during installation |
|---|---|---|
| WAS and WAS - Express | One standalone appserver profile and the Profile Management tool for creating other appserver profiles on the same machine. | server1 |
| ND | One cell that contains a deployment manager profile and a federated appserver profile and the Profile Management tool for creating other profiles. |
|
Launchpad console
The launchpad is the focal point for installing from the product compact disc or DVD media, with important guidance for creating typical topology scenarios. Diagrams help you identify the types of systems that you can create. The launchpad is in the root directory of the product disc.
The launchpad works on installable components in the primary packet of discs. Select and launch any of the components on the product disc or view their HTML documentation on the disc. Use the launchpad command if the program does not start automatically when you insert the product disc:
-
launchpad.[bat|sh]
If you cannot start the launchpad, see the appropriate locale-specific readme file in the root directory on the disc. You can also launch the installation programs directly, using the information in the following table:
Launch command Document Name of installable component WAS/install WAS/readme/readme_en.html
WAS/docs/InstallGuide_en.htmlThe Getting Started guide contains these HTML files.
The name of the component varies per product offering:
- WAS – Express
- WAS
- WAS ND
IHS/install IHS/readme/readme_en.html
IHS/docs/InstallGuide_en.htmlThe IBM HTTP Server tolerates a non-root installation, but you cannot install the Global Services Kit 7 (GSKit 7) that is required for HTTPS security. You can install IBM HTTP Server as a non-root user, then log on as root to install the GSKit program from the directory on the product disc.
IBM HTTP Server plugin/install plugin/readme/readme_en.html
plugin/docs/InstallGuide_en.htmlWeb server plug-ins for WAS AppClient/install AppClient/readme/readme_en.html
AppClient/docs/InstallGuide_en.htmlApplication Client for WAS Available on 32-bit operating system platforms only.
InstallationFactory/compressed file Decompress the file onto your system to install the Installation Factory.
InstallationFactory/readme/readme_en.html
InstallationFactory/docs/InstallGuide_en.htmlIBM Installation Factory for WAS UpdateInstaller/install UpdateInstaller/readme/readme_en.html
UpdateInstaller/docs/InstallGuide_en.htmlIBM Update Installer for WebSphere Software ISA/install ISA/readme/readme_en.html
ISA/docs/InstallGuide_en.htmlIBM Support Assistant
For DVD media, if you do not use the launchpad, an additional directory prefix is required before the product directory that reflects the operating system and architecture of the installation. For example, the following installation path applies when you use CD-ROM media to install the Microsoft Windows version of the product on the 32-bit architecture:
install_root/WAS/install.exe
However, the following installation path applies when you use DVD media to install the Microsoft Windows version of the product on the 32-bit architecture:
install_root/win_ia32/WAS/install.exe
Other directories on the product and supplements discs contain components that are automatically installed during one or more of the installation procedures for the installable components.
Package descriptions
Each product package contains several Compact Discs, or CDs. You can also order Digital Versatile Discs, or DVDs, which can hold more information. The DVD product package contains fewer discs by placing the content of multiple CDs into subdirectories on a single DVD. The subdirectory names assigned to each platform are listed in the tables below.
WAS discs are always in the primary disc packet.

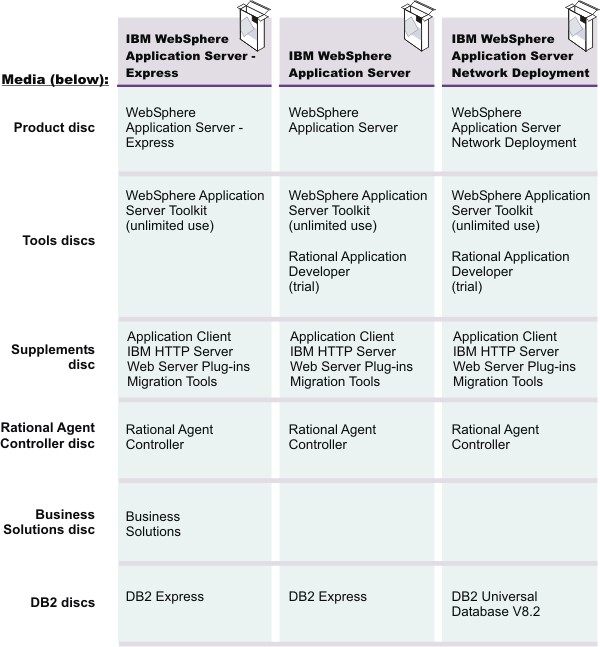

Each product package and its installable components are described in detail in Packaging information for IBM WAS ND. Figure 1. Installation images in WAS packages
Packaging information for IBM WAS ND
The ND package contains the following sets of discs:
WAS disc for the WAS Network Deployment product is in the primary package.
Discs in the primary ND packet The primary ND packet contains the discs in the following table:
| Disc label | Versions of the disc | Comments |
|---|---|---|
| WAS (32-bit) | CDs are available for the following 32-bit platforms: (Platform specific DVDs are also available. Each DVD contains the product and supplements disc content for 32-bit and 64-bit architectures.)
|
Each 32-bit platform-specific image contains the following installable components:
Use the launchpad application in the root directory to install and view information about any of the installable components in the primary packet. |
|
WAS (64-bit) |
CDs are available for the following 64-bit platforms: (Platform specific DVDs are also available. Each DVD contains the product and supplements disc content for 32-bit and 64-bit architectures.)
|
Each 64-bit platform-specific image contains the following installable components:
Use the launchpad application in the root directory to install and view information about any of the installable components in the primary packet. |
|
WAS Supplements (32-bit) |
CDs are available for the following 32-bit platforms: (Platform specific DVDs are also available. Each DVD contains the product and supplements disc content for 32-bit and 64-bit architectures.)
| Each platform-specific image contains the following installable components:
In the CD package, the Application Server Toolkit is on separate CDs in the primary packet. The Application Server Toolkit is also available on a separate DVD. Install the Update Installer into the root directory of the product that you intend to update. For example, install the Update Installer into the app_server_root to use it to install maintenance for the WAS product. Use the migration tools from the disc image, or copy the tools to your system. The IBM Support Assistant has its own installation program. The fonts mentioned below are on available on their own CD. They are also available on the Linux DVDs Use your Linux system utilities to install the World Type fonts or the Devanagari fonts. Use your operating system utilities to install the Devanagari fonts on other operating systems. The fonts support Hindi, Sanskrit and some other languages. The launchpad application in the root directory of the disc lets you install and view information about the components on the disc. |
|
WAS Supplements (64-bit) |
Several 64-bit platform-specific CDs are available, or one DVD with platform-specific directories:
| |
| WAS Application Server Toolkit | Two different 32-bit platform versions of this CD are available, or one DVD with platform specific directories:
| The Application Server Toolkit is an Eclipse-based tool for deploying and debugging applications on WAS. Application Server Toolkit contains a subset of the function provided in the Rational Application Developer tool that is included with WAS. The difference is that the license for the Application Server Toolkit is an unlimited use license whereas the Rational Application Developer is a trial license for a single user. |
![[Windows]](../../windows.gif)
In addition, the Windows platform CD has the
Data Direct
Discs in the supplemental packet The supplemental ND packet contains the discs in the following table:
| Disc label | Versions of the disc | Comments |
|---|---|---|
| WAS ND Edge Components | Eight different platform versions of this CD are available:
| ND addresses the needs of highly available, high-volume environments with the Edge components. The Edge components include sophisticated load balancing, caching, and centralized security capabilities. |
| Rational Application Developer Trial for WAS | Eight 32-bit platform CDs are available for two operating system platforms:
| Rational Application Developer is the next generation of the award-winning IBM WebSphere Studio Application Developer. Rational Application Developer is a comprehensive integrated development environment for visually designing, constructing, testing, and deploying Web services, portals, and J2EE applications. Rational Application Developer accelerates J2EE development with a complete set of high-productivity tools, templates, and wizards. See the Application Server Toolkit in the primary package for an integrated development environment that includes an unlimited use license. |
| Rational Agent Controller | One CD that provides support for each of the following 32-bit operating system platforms:
| The Rational Agent Controller provides a technology for problem determination. The Rational Agent Controller is an enhancement to the Agent Controller from the Autonomic Computing Toolkit, which IBM donated in large part to the Hyades Project. Install the Rational Agent Controller on one of the supported machine environments. Another machine (perhaps an administrator workstation) can use the Log and Trace Analyzer to establish communication with the agent on the remote machine. The Analyzer can request a specific log file from the Rational Agent Controller. The agent uses the appropriate log file parser to normalize the native log to a Common Base Event format and transfers the log file to the Log and Trace Analyzer. Create log file parsers for the Rational Agent Controller with the Common Base Event model builder, which is included in the Autonomic Computing Toolkit. |
| DB2 Universal Database Enterprise Server Edition V8.2 (32-bit) for WAS ND | Nine different platform versions of this CD are available for these operating systems:
| DB2 Universal Database V8.2 has numerous innovative enhancements. Improved integration with WAS ND, key development tools, and platforms help make programmers more efficient than ever. A broad array of autonomic or self-managing capabilities can free more administrator time to focus on driving business value. The ease of use in DB2 V8.2 and the self-managing characteristics might even eliminate the need for dedicated administrators in smaller implementations. |
| DB2 Universal Database Enterprise Server Edition V8.2 (64-bit) for WAS ND | Nine different platform versions of this CD are available for these operating systems:
| |
| IBM Tivoli Directory Server for WAS | Seven different platform versions of this CD are available:
| The See IBM Tivoli Directory Server product is a powerful LDAP infrastructure. Tivoli Directory Server provides a foundation for deploying comprehensive identity management applications and advanced software architectures. |
| IBM Tivoli Access Manager for WAS | Six different platform versions of this CD are available:
| IBM Tivoli Access Manager for e-business integrates with e-business applications right out of the box, to deliver a secure, unified, and personalized e-business experience. By providing authentication and authorization APIs and integration, Tivoli Access Manager for e-business helps you secure access to business-critical applications and data that might be spread across the extended enterprise. See IBM Tivoli Access Manager for e-business for more information. |
