Data Browser

The Data Browser provides an in depth look at a target system. Currently there are only the LDAP and JDBC connectors that provide extra details for a connector. The data browser is opened by right clicking a Connector in either the library or in an AssemblyLine.

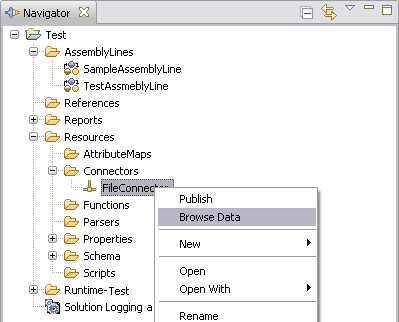

In the navigator we can right click and choose Browse Data to open a new editor window where we can browse data within the current connection setup by the connector. Data Browser

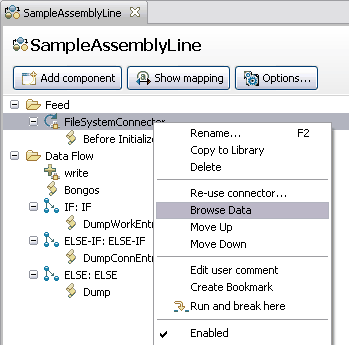

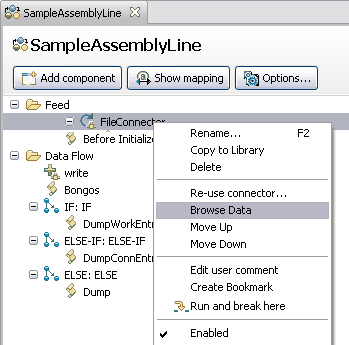

In the AssemblyLine we can do the same and have a new window opened for the data browser: Data Browser

• Generic Data Browser
  This is the data browser used for those connectors that the Configuration Editor has no explicit knowledge of. It provides a simple way to browse a result set from the data source.
• Stream Data Browser
  The stream based data browser is used when a connector uses a parser. The stream based data browser will first initialize the connector and try to obtain the input stream and show the first 20K of input data in the details tab.
• JDBC Data Browser
  The JDBC data browser shows all tables and views in the left hand side. The details tab shows information for the selected item in that list.
• LDAP Data Browser
  The LDAP data browser shows the schema and context prefixes (search bases) that the LDAP server provides.
