JDBC Data Browser

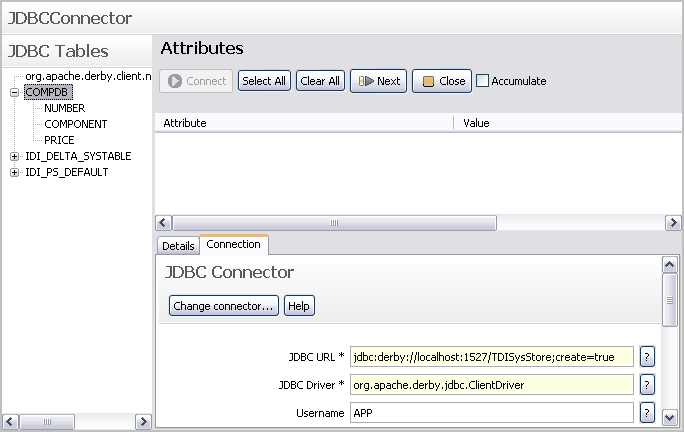

The JDBC data browser shows all tables and views in the
left hand side. The details tab shows information for the selected
item in that list.
The Details tab shows the system information
obtained from the JDBC connection object. The tree view to the left
also shows all tables and views with their columns as child entries.
When you select a table or view the details tab will be populated
with the syntax for the entire table. For example, if you select the
“IDI_PS_DEFAULT” table, you should see something like this:
When you select a column in a table or view you will see the details
for that column only.
We can also right-click a table name and use the Use
as table function to update the Table Name parameter
of the JDBC connector configuration.
The
button in the toolbar of the JDBC
Tables header does a rediscovery of the connection. You
only need to use this if the initial discovery failed, or if you have
changed the JDBC URL in the connection tab.
