Distributed queuing components

The components of distributed queuing are message channels, message channel agents, transmission queues, channel initiators and listeners, and channel-exit programs. The definition of each end of a message channel can be one of several types.

Message channels are the channels that carry messages from one queue manager to another. Do not confuse message channels with MQI channels. There are two types of MQI channel, server-connection (SVRCONN) and client-connection (CLNTCONN) . For more information, see Channels.

The definition of each end of a message channel can be one of the following types:

  • Sender (SDR)
  • Receiver (RCVR)
  • Server (SVR)
  • Requester (RQSTR)
  • Cluster sender (CLUSSDR)
  • Cluster receiver (CLUSRCVR)
A message channel is defined using one of these types defined at one end, and a compatible type at the other end. Possible combinations are:

  • Sender-receiver
  • Requester-server
  • Requester-sender (callback)
  • Server-receiver
  • Cluster sender-cluster receiver

Detailed instructions for creating a sender-receiver channel are included in Defining the channels. For examples of the parameters needed to set up sender-receiver channels, see Example configuration information applicable to your platform. For the parameters needed to define a channel of any type, see DEFINE CHANNEL.


Sender-receiver channels

A sender in one system starts the channel so that it can send messages to the other system. The sender requests the receiver at the other end of the channel to start. The sender sends messages from its transmission queue to the receiver. The receiver puts the messages on the destination queue. Figure 1 illustrates this.

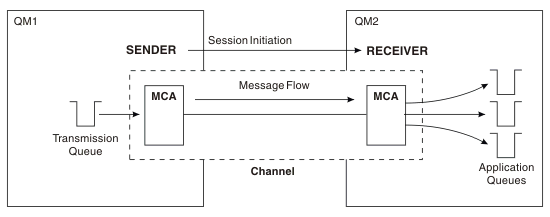

Figure 1. A sender-receiver channel


Requester-server channels

A requester in one system starts the channel so that it can receive messages from the other system. The requester requests the server at the other end of the channel to start. The server sends messages to the requester from the transmission queue defined in its channel definition.

A server channel can also initiate the communication and send messages to a requester. This applies only to fully qualified servers, that is server channels that have the connection name of the partner specified in the channel definition. A fully qualified server can either be started by a requester, or can initiate a communication with a requester.
Figure 2. A requester-server channel


Requester-sender channels

The requester starts the channel and the sender terminates the call. The sender then restarts the communication according to information in its channel definition (known as callback ). It sends messages from the transmission queue to the requester.

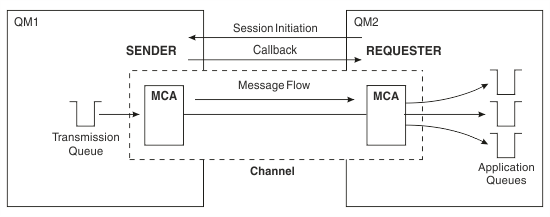

Figure 3. A requester-sender channel


Server-receiver channels

This is like sender-receiver but applies only to fully qualified servers, that is server channels that have the connection name of the partner specified in the channel definition. Channel startup must be initiated at the server end of the link. The illustration of this is like the illustration in Figure 1.


Cluster-sender channels

In a cluster, each queue manager has a cluster-sender channel on which it can send cluster information to one of the full repository queue managers. Queue managers can also send messages to other queue managers on cluster-sender channels.

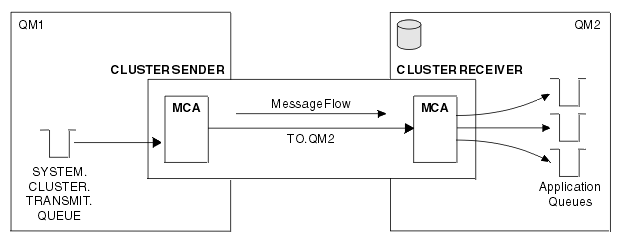

Figure 4. A cluster-sender channel


Cluster-receiver channels

In a cluster, each queue manager has a cluster-receiver channel on which it can receive messages and information about the cluster. The illustration of this is like the illustration in Figure 4.
