Limitations for adapter imports and exports
The limitations or restrictions when using the external service or external data wizards or the imports and exports they produce are listed here.
The following sections have limitations:
- General limitations
- Connections
- Languages
- JMS bindings
- WebSphere Business Integration adapters
- WOLA Resource Adapter
- WebSphere runtime environment variables
- Bidirectional support
- Generated interfaces
General limitations
- Programmatically accessing the data binding is not supported.
- IMS™ multisegment messages are not supported.
- Only one instance of a resource adapter that uses native libraries can be used in each session.
During each IBM Integration Designer session, the tools can use only one instance of the resource adapter that uses native libraries.
For example, if you import a resource adapter that uses native libraries into two connector projects, A and B, then you will have created two instances of this resource adapter in the workspace. If you try to run the external service wizard and select the resource adapter from connector project A, everything will function as usual. However, if you then try to run the external service wizard again, this time choosing connector project B, you will receive an error message similar to the following, where the name of the resource adapter and library name would differ for your situation, when you attempt to connect to the Enterprise Information System (EIS):
The resource adapter named 'JDBC EMD Adapter' returned the following error: 'Failure in connection to EIS java.lang.UnsatisfiedLinkError: db2jdbc (Library is already loaded in another ClassLoader)'
This error occurs because of a Java™ Virtual Machine (JVM) limitation. Each JVM allows only one class loader to load a native library at a time. Each connector project has its own class loader to load the classes that the connector provides. Therefore, only the first connector project can load the native library until that library is released.
To use the second resource adapter instance, you need to exit IBM Integration Designer, and then restart it.
- Importing a C struct with an anonymous struct declaration requires a modification.
When you import a data structure to create a business object, note that the C importer does not correctly handle anonymous structure declarations, such as in the following code:
typedef struct { char loanId[20]; double loanAmount; char date[20]; struct { char taxPayerId[10]; char firstname[20]; char lastname[20]; char email[50]; } Customer[1];} LoanInfo;To enable the code to import correctly, modify the declaration to put the anonymous structure declaration outside the main structure declaration as a named structure.
The following declaration is equivalent to the previous code but will import correctly:
typedef struct { char taxPayerId[10]; char firstname[20]; char lastname[20]; char email[50];} Taxpayer; typedef struct { char loanId[20]; double loanAmount; char date[20]; Taxpayer Customer[1];} LoanInfo;
Connections
For CICS and IMS, you can statically set values on the connectionSpec and interactionSpec properties. You cannot dynamically (programmatically) set or get their values.
Languages
C, COBOL and PL/IFor a C union, PL/I union, COBOL REDEFINE, or a sparsely populated commarea, all of the data is converted on a best effort basis. A commarea is used to pass data between transactions, however, the commarea is not necessarily filled in a transaction leading to a sparsely populated commarea which may contain old or unusable data.
If any errors are encountered while trying to convert the data from the C, COBOL, or PL/I program, they are ignored, and data conversion continues until finished. It is up to the application program to examine the returned data to ensure that it is valid.
For example, for a union or REDEFINE, an attempt will be made to convert all views of the data, so results may exist for views which are not valid. Your application program must determine which views are valid.
JMS bindings
- If you select text for how the data will be serialized between the business object and the JMS message, your wrapped data objects must be a complex type; they cannot be a simple type.
- In the JMS destination properties, if you specify nothing in the queue name or topic space field, a default value will be created.
If you specify a queue name or a topic space, this value will remain even if you then clear the field. The only way to change the value is to specify a different value.
WebSphere Business Integration adapters
The WSDL file generated when working with a WebSphere Business Integration adapter cannot be used in a web service call because the WSDL file contains import statements that do not have valid schemaLocations, which is required by WebSphere web services.
WOLA Resource Adapter
The WebSphere Optimized Local Adapter (WOLA), a type of resource adapter, supports a limited form of working with CICS channel records while exchanging data with CICS transaction systems. It allows you to work with a single container, where you would need to specify the container name in your ManagedConnectionFactory.

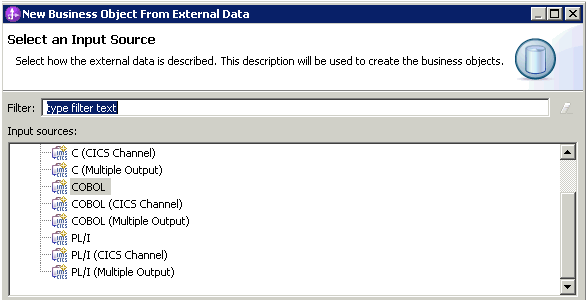

For example, as shown below, you can create a business object from COBOL. WOLA does not support business object creation using the COBOL (CICS Channel) option.
The RAR file used while generating the WOLA import and external service is not supported when embedded in the application. For installing it on the server, follow the steps in the topic Enabling the server environment to use optimized local adapters. The minimum version of the RAR file used should be version 2 from WebSphere Application Server for z/OS 8.0.0.3.
WebSphere runtime environment variables
WebSphere runtime environment variables are useful in situations where you have multiple modules using the same adapter. By using a variable such as FTP_SERVER_DIR when creating your import or export, you would only need to add extensions like FTP_SERVER_DIR/customer and FTP_SERVER_DIR/invoice at deployment or post-deployment time to identify the directories your service wants to use on the FTP server. You can enter these variable names when using the external service wizard to create a service and they will be passed on to the runtime.
Bidirectional support
Only ASCII characters are supported for Java Naming and Directory Interface (JNDI) names at run time.
Generated interfaces
An interface generated by the external service wizard cannot be shared in a library, as the interface requires other files not contained in a library.
