Common patterns of usage for error handling
When a service component is called synchronously or asynchronously unexpected runtime errors can occur. In SCA, error handling is put in place to make sure that a message is not lost. This topic provides information on how messages are handled by the SCA runtime when an error occurs. You will find information for both synchronous and asynchronous invocation styles.
Synchronous invocation
A transaction is a unit of activity, within which multiple updates to resources can be made dependent such that all or none of the updates are made permanent. Transaction qualifiers can be used to control transactional behavior of service invocations.
In this section, we have assumed that all components are set to run in a global transaction.
When a service component is called synchronously, and performs a synchronous invocation, both the service requester and the service provider run in the same thread of execution. The calling component within WebSphere ESB is blocked until a response is received from the provider.

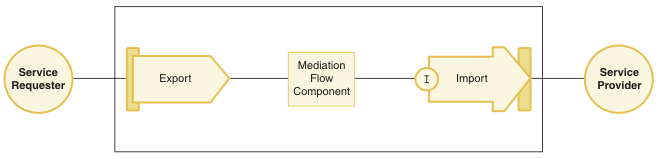

Figure 1. Synchronous invocation error handling
As shown in Figure 1 there are no queues in a synchronous flow. If an unhandled error occurs at any point in the flow, any active transactions will rollback and an unmodeled fault is returned to the service requester.
Asynchronous invocation
When a service component is called asynchronously, the service requester and the service provider run in different threads of execution. The SCA runtime returns control to the requester immediately.

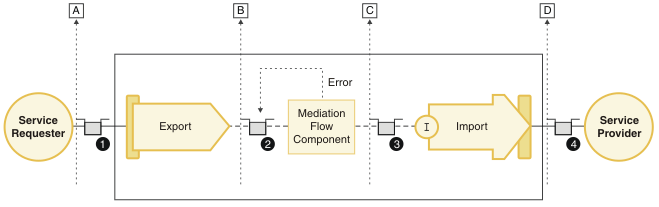

Figure 2. Asynchronous invocation error handling
Figure 2.shows how errors can be handled within an asynchronous flow. The flow has been split into transaction boundaries (A, B, C, D), each new boundary is marked by a new queue (1, 2, 3, 4). If an error occurs within a transaction boundary, the message is rolled back to the queue at the start of the transaction.
For example, if an error occurs within the mediation flow component, the message is rolled back to queue number 2, because it is within the transaction boundary B.

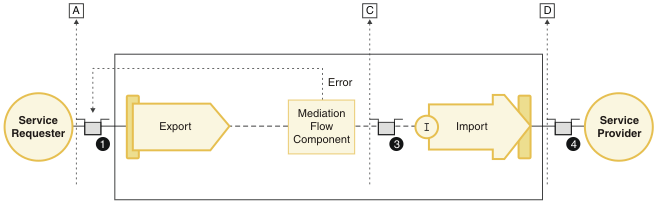

Figure 3. Asynchronous invocation error handling without queue 2
By default, to improve performance, when the first asynchronous invocation is made, queue 2 is omitted from the flow. As shown in Figure 3, one thread of execution will start from queue 1. If an exception occurs at the mediation flow component, the message will be sent back to queue 1, because it is within transaction boundary A. The message is redelivered to the export and the previously omitted queue 2 is reintroduced as shown in Figure 4. Any subsequent retries, will include queue 2. This performance optimization occurs automatically. Specifically JMS, MQ and asynchronous SCA bindings all have this optimized behavior.

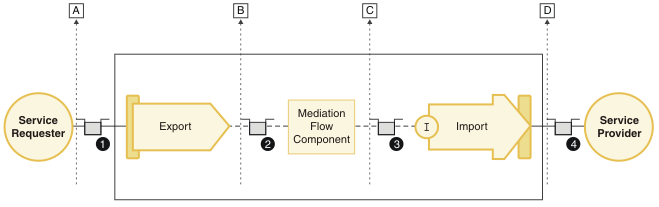

Figure 4. Asynchronous invocation error handling
As a default, when a message is rolled back to an internal module destination, SCA retry logic indicates that the message will be redelivered up to five times. If the message fails again, it will be automatically forwarded to the defined exception destination. This can be viewed via the Service Integration Bus Explorer in the Administrative Console. If the Failed Event Manager is enabled, messages on the exception destination are removed and stored in a database as failed events. Each module has its own internal exception queue. Binding retries can be configured at the binding, or on the messaging provider. Binding retries occur at least once, so that the Failed Event Manager can be aware of any fault.
The Failed Event Manager is a web-based client for working with and resubmitting the failed invocations. It is an integration application and is available in the Administrative console. It displays the number of failed events and provides a number of search capabilities. Messages that exceed their retry count are automatically retrieved by the Failed Event Manager. Asynchronous export and import bindings can be configured to send failed messages to the Failed Event Manager before they exceed their retry count.
Mixed invocation styles
When a service requester calls a service provider, the invocation can be made either synchronously or asynchronously. There are situations where the service requester makes a synchronous call, but the service provider must be called asynchronously by the mediation flow component. In this occasion, queues 1 and 2, and boundaries A and B will not exist, and the flow will look similar to Figure 5. In this situation, if an error occurs before boundary C, it will be sent back to the service requester.

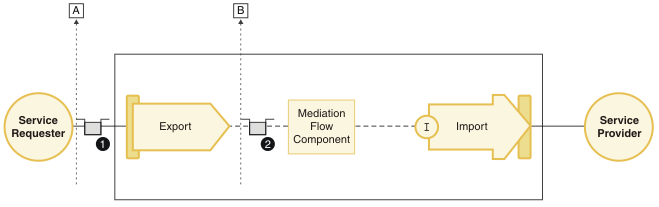

Figure 5. Synchronous and asynchronous invocation error handling
If the service requester performs an asynchronous invocation, and the service provider is a synchronous service, the mediation flow component will call the import synchronously. In this situation, queues 3 and 4, and boundaries C and D will not exist within Figure 6. In this situation, if an error occurs after boundary B, it will be sent back to the service provider.

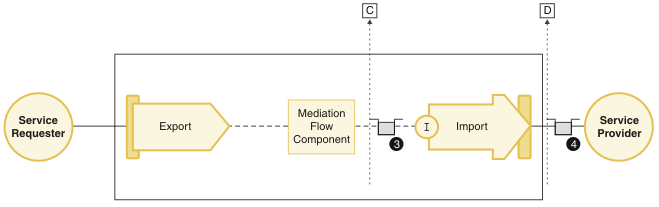

Figure 6. Asynchronous and synchronous invocation error handling
