Examine the Advanced HR Open New Position sample process

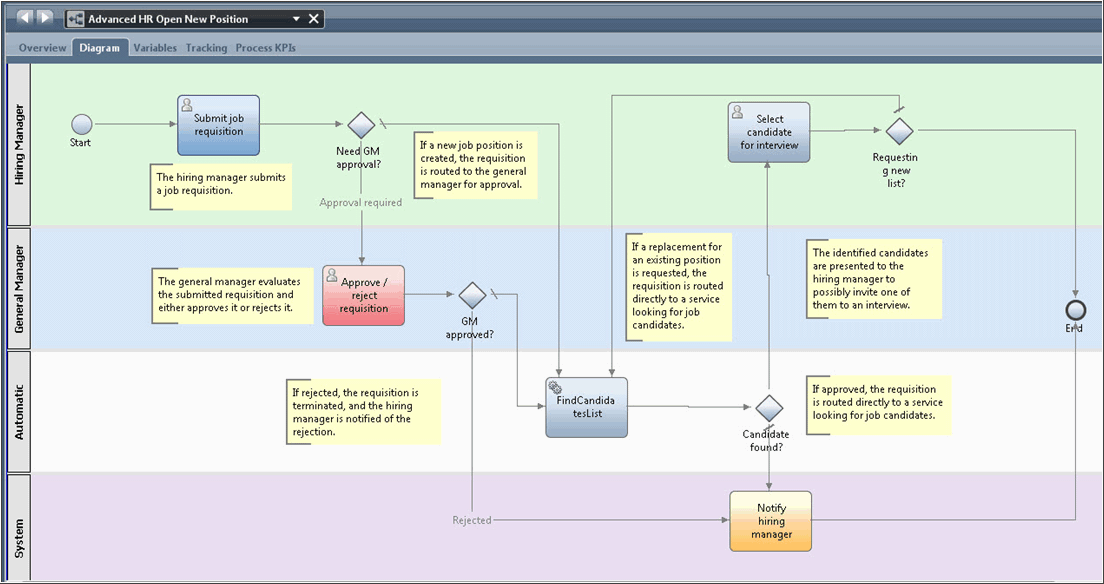

After you have opened the Advanced HR Open New Position sample process, take some time to examine it.
If you examine the process, you will note the following details:
- The process begins on the left side of the diagram with the Start event and terminates at one of the End events on the right side of the process model.
- The first task Submit job requisition comes with a number of user interfaces that prompt the hiring manager for specific information about the job requisition.
- If general manager approval is required, the next task in the process is Approve/reject requisition.
- If the general manager approves the job requisition, or if the job requisition does not require the general manager's approval, the next step is Find Candidates. This step is an automatic step that tries to find suitable job candidates from a number of (simulated) HR backend systems or from a (simulated) external agency.
- If no candidates are found, or if the general manager rejects the job requisition, the next step, Notify hiring manager, informs the job requester that the general manager does not accept the job requisition, or that no candidate was found.
- If at least one candidate was found, the candidate, or a list of candidates is presented to the hiring manager in the task Select candidate for interview. The hiring manager can now decide to invite one of the candidates to an interview, can ask for a new list of candidates in the Requesting new list task (in which case the task Find Candidates is run once again), or can simply end the process, accepting that there is no suitable candidate available at this time.
