Troubleshooting Service Component Architecture processing and call chains

Cross-Component Trace identifies whether a Service Component Architecture (SCA) operation completed successfully. It allows you to identify systemout.log or trace.log data that is associated with IBM BPM and WebSphere Enterprise Service Bus modules and components. The log records associated with the WebSphere Enterprise Service Bus applications hold information about errors or events that occurred during processing and can be used for problem determination using IBM Integration Designer.

Events that can be captured include:

• Errors that occur during processing because of corrupted data
• Errors when resources are not available, or are failing

• Interpretation of code paths

You can access the Cross-Component Trace page from the administrative console by clicking Troubleshooting > Cross-Component Trace.

Handling and deleting collected data

Consider the following with regard to handling and deleting data collected by Cross-Component Trace:

• SCA call chain information is added to the systemout.log and trace.log files and is purged as those files are purged.

• Data snapshots capture the input and output data of call chains.

  The input and output data is captured as files in the logs\XCT directory. To display this data, IBM Integration Designer needs access to the systemout.log files and the logs\XCT directory.

  If IBM Integration Designer is not available on the server, copying the logs directory and placing it on a machine (so that it can be accessed by IBM Integration Designer) preserves the file structure so that IBM Integration Designer can make use of the log files and the data snapshot files.

  IBM Integration Designer can use the data snapshot files where they are (without moving them) if it can access the files in the logs directory. If you need to move files, it is safest to move the entire logs directory. By moving the entire logs directory, you get the XCT, first failure data capture (FFDC) files, and the systemout.log and trace.log files.

  Data snapshot files are written to server-specific subdirectories using the following directory structure:

  logs\
       server
       ffdc
       xct\
           server-specific_dir\
                              2009-0-25-11
                              2009-0-26-12
                              2009-0-26-14

  Where server-specific_dir name is derived from the name of the server.

  For example, server1 is the default server name for a stand-alone installation.

• Data snapshot files in logs\XCT\server are referenced from the systemout.log and trace.log files that were created at the same time by the server. When the old systemout.log and trace.log files are deleted, the associated Cross-Component Trace data snapshot files in logs\XCT\server can also be deleted.

  You can use the timestamps in the systemout.log and trace.log files to identify and determine what data snapshot files to delete. It is safe to delete all the data snapshot files for a server that are older than the oldest date in the systemout.log and trace.log files. Preferably, you should use the Delete data snapshot files function from the administrative console when data snapshot files are no longer needed. For detailed information on the ways that you can delete data snapshot files, see "Deleting data snapshot files".

• Do not save or add files to the logs\XCT directory.

  Do not copy or create new directories into the logs\XCT directory.

  IBM BPM manages the content of the logs\XCT directory and deletes items that are no longer needed. IBM BPM might consider unrecognized files or directories as unnecessary and delete them. If you want to save a copy of the data snapshot files, copy the data to another directory outside of the logs\XCT directory.

Cross-Component Trace settings and call chain processing

The information in this section describes the effect that Cross-Component Trace configuration settings have on call-chain processing. It also includes a description of various Cross-Component Trace configurations and explains the call chain events that result from the configurations.

The following list includes general rules on call chain processing and Cross-Component Trace configuration decisions:

• If Cross-Component Trace is turned off for a server, then no Cross-Component Trace records are written to that server's logs.
• Cross-Component Trace configuration settings for a particular server, affect that server only.

  For example, if Server A has Trace all = Yes and Server B has Trace all = No, Cross-Component call chains are in the logs for Server A only. Similarly, this rule applies to setting the data snapshot feature. If Enable data snapshot = Yes on Server A and Enable data snapshot = No on Server B, then only Server A will have data snapshot files in its logs directory.

• Application-specific Cross-Component Trace data flows between servers that have the Enable Cross-Component Trace = Yes.

  For example, if both Server A and Server B have Enable Cross-Component Trace = Yes and Server A has enabled Cross-Component Trace for a specific SCA module, the calls made from the Cross-Component Trace-enabled module on Server A (to applications or services on Server B), will result in Server A having call chains for all of activity related to the Cross-Component Trace-enabled module. Server B would also have call chains, but only for those calls that came from the Cross-Component Trace-enabled module on Server A. The logs of the two servers can be combined to reveal the entire call chain activity.

• To create a Cross-Component Trace for long-running BPEL process instances, you must select Enable Cross-Component Trace and Trace all, or enable Cross-Component Trace for the SCA module before the BPEL process instance is created.

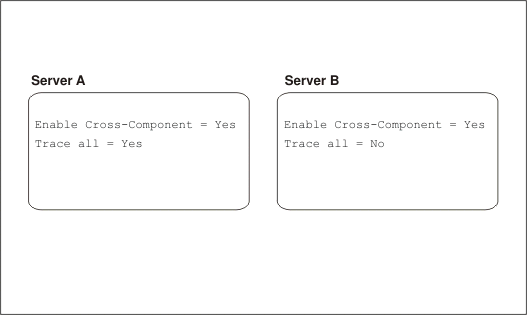

The following illustration is of two servers (Server A and Server B), both with Cross-Component Trace enabled. Server A has the Trace all value set to "Yes", while Server B has Trace all set to "No".

Figure 1. A remote messaging and remote support topology

For the Cross-Component Trace configuration scenario illustrated in Figure 1, call chain events would result on Server A, but not on Server B.

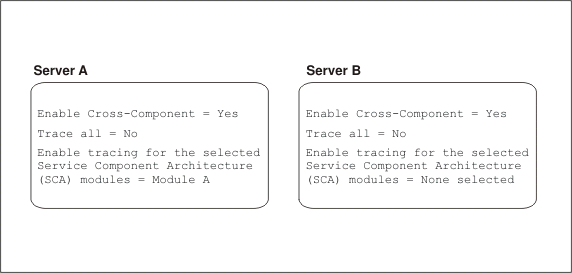

The following illustration is of two servers (Server A and Server B), both with Cross-Component Trace enabled. Server A has the Trace all value set to No and it includes Module A as a module on which to enable Cross-Component Trace. Server B has Trace all set to No and has no SCA modules selected for Cross-Component Trace.

Figure 2. A remote messaging and remote support topology

For the Cross-Component Trace configuration scenario illustrated in Figure 2, call chain events would result on Server A. Trace activity for all Module A operations are written to the log on Server A. Any calls made from Module A to applications or services on Server B, results in call chains. The call chains on Server B would only pertain to those calls that came from Module A (because that module is configured for Cross-Component Trace).
