Configure your firewalls
IBM Tivoli Monitoring has a firewall gateway component that allows you to traverse even the most complex firewalls.

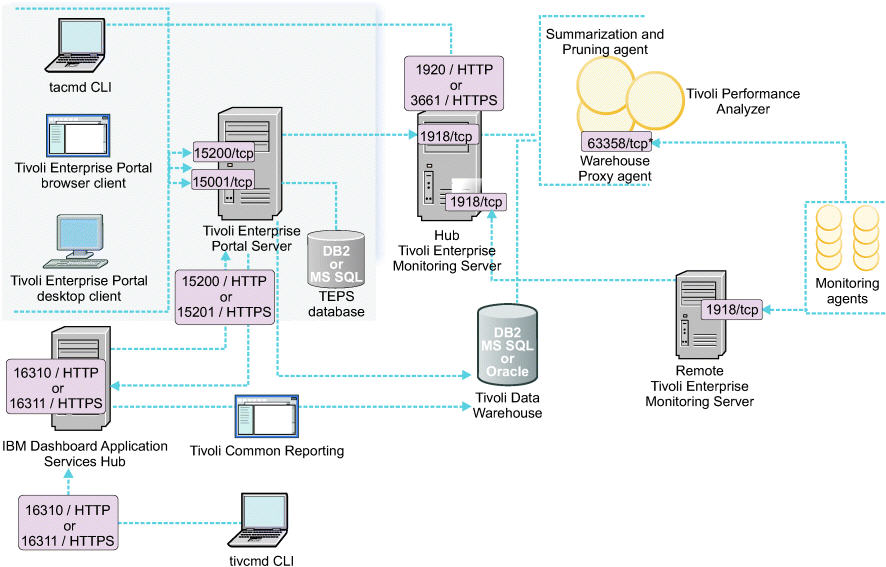

Typical environment using IP.PIPE.
If you are using IP.SPIPE, the diagram would look similar, but port 3660 would be used instead of 1918. The same skip counts apply as described in Control port number assignments, but the initial port number is 3660.
