Skins

Overview

Skins represent the border rendering around components, such as row containers, column containers, or portlets. The skin is loaded in the portal page by the <portal-core:pageRender/> tag. Skins are installed independently from themes. However, a skin can be associated with a theme.

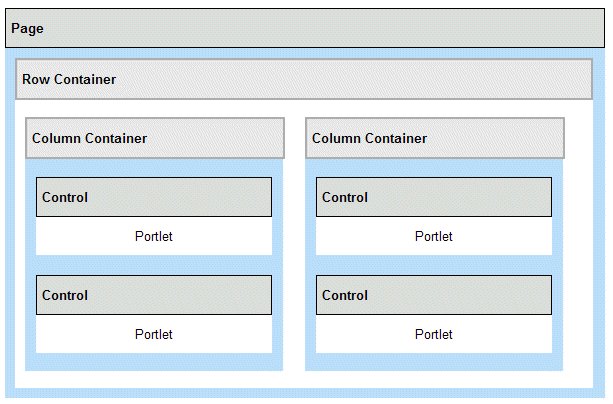

Skins define more than the look and feel of portlets; they define the look and feel of components. These components include the containers and controls. This hierarchical structure is depicted in the following diagram. Figure 1. Underlying layout of the Home screen

The components of the skin are called in the following order.

1. The <portal-core:pageRender/> tag in the Home screen, Home.jsp, displays the components for the selected node. The components are implemented as row containers, column containers, and controls depending upon the portal layout that is defined in the topic Portal page customization.

   Controls are displayed using Control.jsp. The figure in the Underlying layout of the home screen topic depicts one row container that has two column containers, each containing two portlets.

2. The row and column containers display their nested components using either Java code or the <portal-skin:layoutNodeLoop/> and <portal-skin:layoutNodeRender/> elements.

3. Each portlet is rendered by the <portal-skin:portletRender/> tag within the Control.jsp. file. The control also builds the border and title bar around the portlet output.

   Some of the icons in the portlet title bar have an impact on performance.

Provided skins

The IBM, Noskin, ThinSkin, and IFRAME skins are provided by WebSphere Portal for rendering portlets.

Page Builder - Standard and Page Builder - Thin are two new skins that can be assigned to the Tab Menu - Page Builder theme. These skins are located in profile_root/installedApps/node_name/Enhanced_Theme.ear/wp.theme.enhancedtheme.war/skins/html Usage notes for the provided skins

• The Page Builder - Standard and Page Builder - Thin skins must be used with the Tab Menu - Page Builder theme only. It is not recommended that these skins be assigned to themes other than the Tab Menu - Page Builder theme.

• The IFRAME skin cannot be set as the Portal default skin. It is also not recommended that you assign the IFRAME skin to the Portal theme. The IFRAME skin is only to be assigned to portlets that have been specifically designed for the skin.

• If the Portal theme directory is either deleted or renamed, the portal resource loader uses the themes/html/Default.jsp.

  In this case, you should also use the fallback skin. To do this, rename the skins directory. For example, the skins\html\IBM directory should be renamed skins\html\IBM1. If you have a broken theme, you can rename the theme and skin directories which are causing the problem to get to a working minimal theme.

More about the IFRAME skin

The IFRAME (inline frame) skin renders portlet content in an HTML IFRAME on the page. IFRAMES are treated as separate browser windows and are used for the inclusion of external objects including other HTML documents.

The IFRAME skin is especially useful for portlets that are slow to render, allowing the rest of the portal page to render without waiting on the content from the portlet within the IFRAME.

The width of this skin is set to 100% and height is set to 250 pixels.

To change this setting...

1. Edit...

   ../skins/html/IFrame/Control.jsp

2. Locate the markup for the IFRAME:

   <iframe src='<%wpsURL.write(out);%>'
           SCROLLING="auto"
           FRAMEBORDER="0"
           Width="100%"
           height="250">


3. Change the width and height attributes of this tag.

4. Save and close the file.

Automatic portlet maximization

In earlier versions of WebSphere Portal, the state of a portlet was automatically set to maximize when the portlet mode was changed from view mode to another mode.

For example, when switching to edit mode, the portlet would be changed to maximized state until the user changed back to view mode. This automatic maximize behavior has been removed by default, but can be implemented at the following levels.

• Portal level

  To configure all portlets to automatically maximize when the mode is changed, set the portlet.automaximize configuration service parameter to true.

• Skin level

  This behavior can be implemented in portlet skins, using the <portal-navigation:urlGeneration/> tag, so that the administrator can control which portlets are automatically maximized.

  For example, you could create a skin called Highlight and a skin called Highlight_Max, with the only difference between the two is that Highlight_Max is used to automatically change the portlet state when the portlet enters another mode other than View.

• Portlet level

  To configure specific portlets to automatically maximize, the portlet developer can com.ibm.portal.automaximize initialization parameter to true.

Automatic maximization can create problems for standard portlets, which are not developed to be maximized when going into edit or configure mode, and therefore do not provide the correct window state information when creating Done or Cancel buttons. Also, in IBM portlets, automatic maximization can lead to undesired effects in conjunction with return URIs created by the <portletAPI:createReturnURI> and <portal-skin:portletBack> tags or the createReturnURI() method. Portlet modes and window states are orthogonal, such that combinations of portlet modes and windows states may occur that were not present before the user click Back to return to view mode.
