Data model
Each request from a client to the server must contain all the necessary information to allow the server to understand the query.

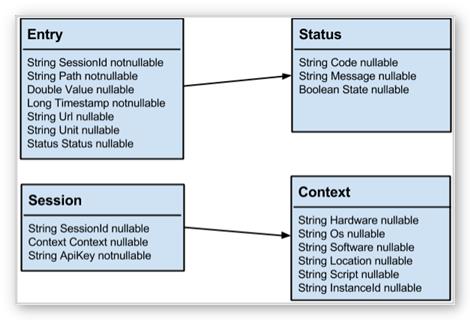

The Controller receives Entry objects defined by a Status and associated to a Session containing Context information. The data model can be defined as following:
The following examples illustrate a typical request and response for creating session and entries:
- To create a session without API Key
Request
POST http://localhost:7400/DataExchange/v1/Service.svc/Session HTTP/1.1Content-Type: application/jsonHost: localhost:7400Content-Length: 186{"d": {"Context": {"Hardware": "iphone","Os": "myOs","Software": "mySoftware","Location": "myLocation","Script": "myScript","InstanceId": "1"}}}
Response
HTTP/1.1 201 CreatedContent-Type: application/atom+xml;charset=utf-8;type=entryDataServiceVersion: 2.0Date: Fri, 10 Oct 2014 14:38:31 GMTLocation: http://localhost:7400/DataExchange/v1/Service.svc/Session('')Content-Length: 450{"d":{"__metadata":{"id":"http://localhost:7400/DataExchange/v1/Service.svc/Session('')","uri":"http://localhost:7400/DataExchange/v1/Service.svc/Session('')","type":"com.neotys.rest.dataexchange.model.Session"},"SessionId":"a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Context":{"__metadata":{"type":"com.neotys.rest.dataexchange.model.Context"},"Hardware":"iphone","Os":"myOs","Software":"mySoftware","Location":"myLocation","Script":"myScript","InstanceId":"1"},"ApiKey":""}}
The "SessionId" is provided in the server response. It has to be extracted to be used in further Entry creation.
If an identification is required on the Controller side, the -APIKey parameter must be included in the command. For more information about the identification, see REST APIs.
- To create a session with an API Key
Request
POST http://localhost:7400/DataExchange/v1/Service.svc/Session HTTP/1.1Content-Type: application/jsonHost: localhost:7400Content-Length: 206{"d": {"Context": {"Hardware": "myHardware","Os": "myOs","Software": "mySoftware","Location": "myLocation","Script": "myScript","InstanceId": "1"},"ApiKey": "myApiKey"}}
Response
HTTP/1.1 201 CreatedContent-Type: application/atom+xml;charset=utf-8;type=entryDataServiceVersion: 2.0Date: Fri, 10 Oct 2014 14:40:48 GMTLocation: http://localhost:7400/DataExchange/v1/Service.svc/Session('myApiKey')Content-Length: 474Server: Jetty(9.1.2.v20140210){"d":{"__metadata":{"id":"http://localhost:7400/DataExchange/v1/Service.svc/Session('myApiKey')","uri":"http://localhost:7400/DataExchange/v1/Service.svc/Session('myApiKey')","type":"com.neotys.rest.dataexchange.model.Session"},"SessionId":"a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Context":{"__metadata":{"type":"com.neotys.rest.dataexchange.model.Context"},"Hardware":"iphone","Os":"myOs","Software":"mySoftware","Location":"myLocation","Script":"myScript","InstanceId":"1"},"ApiKey":"myApiKey"}}The "SessionId" is provided in the server response. It has to be extracted to be used in further Entry creation.
- To send an Entry
Request
POST http://localhost:7400/DataExchange/v1/Service.svc/Entry HTTP/1.1Content-Type: application/jsonHost: localhost:7400Content-Length: 286{"d": {"SessionId": "a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Path": "metric|node1","Value": "70.0","Timestamp": "1412953615000","Url": "url1","Unit": "unit1","Status": {"Code": "code1","Message": "message1","State": "FAIL"}}}
Response
HTTP/1.1 201 CreatedContent-Type: application/atom+xml;charset=utf-8;type=entryDataServiceVersion: 2.0Date: Fri, 10 Oct 2014 14:40:49 GMTLocation: http://localhost:7400/DataExchange/v1/Service.svc/Entry('ca5788a8-437c-47e1-ba5c-2bd5ee30b247')Content-Length: 529Server: Jetty(9.1.2.v20140210){"d":{"__metadata":{"id":"http://localhost:7400/DataExchange/v1/Service.svc/Entry('a2f30f8e-943a-4957-98f6-6c406bc1b4c0')","uri":"http://localhost:7400/DataExchange/v1/Service.svc/Entry('a2f30f8e-943a-4957-98f6-6c406bc1b4c0')","type":"com.neotys.rest.dataexchange.model.Entry"},"SessionId":"a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Path":"metric|node1","Value":"70.0","Timestamp":"1412953615000","Url":"url1","Unit":"unit1","Status":{"__metadata":{"type":"com.neotys.rest.dataexchange.model.Status"},"Code":"code1","Message":"message1","State":"FAIL"}}}
- To send several Entries
Request
POST http://localhost:7400/DataExchange/v1/Service.svc/Entries HTTP/1.1Content-Type: application/jsonHost: localhost:7400Content-Length: 589{"d": {"results": [{"SessionId": "a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Path": "metric|node1","Value": "70.0","Timestamp": "1412953616000","Url": "url1","Unit": "unit1","Status": {"Code": "code1","Message": "message1","State": "FAIL"}},{"SessionId": "a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Path": "metric|node2","Value": "70.0","Timestamp": "1412953616000","Url": "url1","Unit": "unit1","Status": {"Code": "code1","Message": "message1","State": "FAIL"}}]}}
Response
HTTP/1.1 201 CreatedContent-Type: application/atom+xml;charset=utf-8;type=entryDataServiceVersion: 2.0Date: Fri, 10 Oct 2014 14:52:00 GMTContent-Length: 1075Server: Jetty(9.1.2.v20140210){"d":{"results":[{"__metadata":{"id":"http://localhost:7400/DataExchange/v1/Service.svc/Entries('a2f30f8e-943a-4957-98f6-6c406bc1b4c0')","uri":"http://localhost:7400/DataExchange/v1/Service.svc/Entries('a2f30f8e-943a-4957-98f6-6c406bc1b4c0')","type":"com.neotys.rest.dataexchange.model.Entry"},"SessionId":"a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Path":"metric|node1","Value":"70.0","Timestamp":"1412953616000","Url":"url1","Unit":"unit1","Status":{"__metadata":{"type":"com.neotys.rest.dataexchange.model.Status"},"Code":"code1","Message":"message1","State":"FAIL"}},{"__metadata":{"id":"http://localhost:7400/DataExchange/v1/Service.svc/Entries('a2f30f8e-943a-4957-98f6-6c406bc1b4c0')","uri":"http://localhost:7400/DataExchange/v1/Service.svc/Entries('a2f30f8e-943a-4957-98f6-6c406bc1b4c0')","type":"com.neotys.rest.dataexchange.model.Entry"},"SessionId":"a2f30f8e-943a-4957-98f6-6c406bc1b4c0","Path":"metric|node2","Value":"70.0","Timestamp":"1412953616000","Url":"url1","Unit":"unit1","Status":{"__metadata":{"type":"com.neotys.rest.dataexchange.model.Status"},"Code":"code1","Message":"message1","State":"FAIL"}}]}}Fields details
No maximum length is enforced on any string.
Session:
- SessionId is a unique identification string send by the server in the response.
- ApiKey is a string defined by the user.
- Context: Contains the Context class objects.
Context:
- Hardware (optional): Hardware details (iPhone, Windows Phone, etc.)
- Os (optional): OS details (iOS 7.0, Android 4.2, etc.)
- Software (optional): Software details.
- Location (optional): Location information.
- Script (optional): Script information.
- InstanceId (optional) identifies the instance.
Entry:
- SessionId is a unique identification string send by the server in the session creation response.
- Value: Entry value.
- Url: Uniform Resource Identifier.
- Timestamp is an absolute time used to synchronize the entry with NeoLoad data.
- Path is a string representing the list of nodes that contains the statistics.
- State (optional) is an enumeration with only 2 values: PASS / FAIL.
- Note about time synchronization: To make sure the entries sent to the Controller have the appropriate timestamps, the clocks of the NeoLoad Controller, EuE platform, and all devices used must be synchronized.
- Warning: If a user sends an entry containing a path with a forbidden character, then the character will be escaped on the server side (which consists in replacing any forbidden characters with ‘_’) and no warning message will be logged.
Forbidden characters are: '£', '?', '$', '\"', '[', ']', '<', '>', '|', '*', '¤', '?', '§', ‘'µ', '#', '`', '@', '^', '²', '°', '¨'
