Set up the Quick Start Tutorial

The following sections describe the steps required to access the Quick Start Tutorial process application in the Process Center Console and to open the process in the Designer.

Before you begin

Before performing any of the following tasks:

• You must have access to the Process Center repository to use the Quick Start Tutorial.

  See Manage access to the Process Center repository in the Authoring Environment User Guide or online help for more information.

• Start Lombardi Authoring Environment and open the Process Center Console as explained in Start Lombardi Authoring Environment in the Authoring Environment User Guide or online help.

• Some of the activities in the HR Open New Position process have not been implemented, in case you want to experiment with the implementations.

• Because the views and functionality available in the Designer in Lombardi Authoring Environment are determined by the settings in File > Preferences > Lombardi > Capabilities , some of the images in the following instructions might not match the views that you see in the Designer.

Verify that the tutorial has been imported

The Quick Start Tutorial process application should have been imported during installation. You should see the process application when viewing the Process Apps tab in the Process Center Console, . If you see the Quick Start Tutorial process application, go to Opening the tutorial process.

If you do not see the Quick Start Tutorial process application, you can import it.

To import, you must have access to the Process Center repository.

See Manage access to the Process Center repository in the Authoring Environment User Guide or online help for more information about the users who have access to the Process Center repository.

1. Select the Import Process App option.
2. In the Import Process App dialog, select [Lombardi_home]\imports\quick-start-tutorial.twx.
3. Click Import.

Manage access to the tutorial

To enable users to access the Quick Start Tutorial, an administrator should grant read access to the process application

1. Select the Process Apps tab.

2. Select the Quick Start Tutorial process application to open its configuration settings.

3. Select the Manage option.

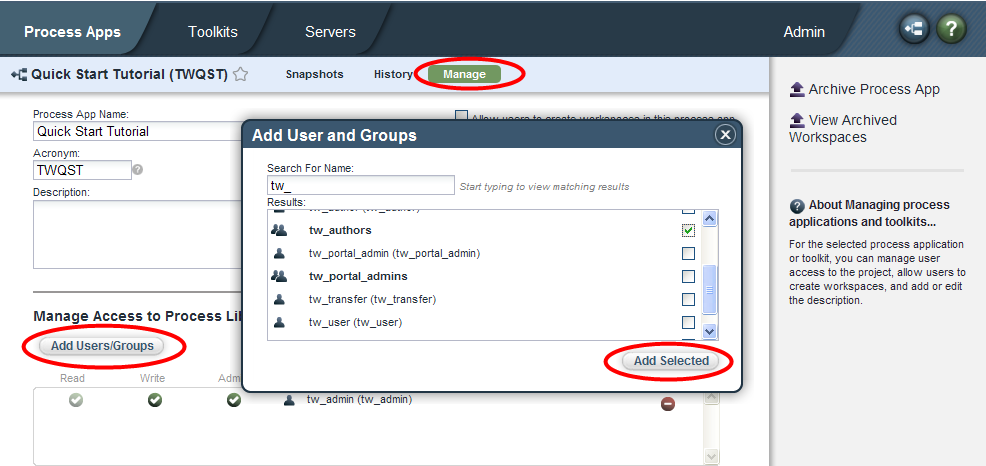

4. Under Manage Access to Process Library, click the Add Users/Groups button.

5. In the Add Users and Groups dialog, enter the name of the user or group that you want to add in the Search for Name field. You can enter part of the name and Lombardi displays all accounts that match as shown in the following example.

6. Click the check box next to the users and groups that you want to add and then click the Add Selected button as shown in the following example.

   The Read option is selected by default for each user or group that you add. Read access to the Quick Start Tutorial is recommended so that all users in your Lombardi configuration can access and run the sample process. If users are allowed to edit the process, services, or other implementations, the tutorial may not function properly. If users want to experiment with the implementations included in the tutorial, you can copy the library items to a new process application and grant the appropriate access to those users.




Opening the tutorial process

To open the Quick Start Tutorial process:

1. Select the Process Apps tab.

2. Click the Open in Designer option next to the Quick Start Tutorial process application:




3. In the Designer library, click Processes to view a list of available process definitions.

4. From the list, double-click the HR Open New Position process definition. The process opens in the Designer view.



+
