Overview

The Java Certification Path API consists of classes and interfaces for handling certification paths (also known as "certificate chains"). A certification path is an ordered list of certificates. If a certification path meets certain validation rules, it may be used to securely establish the mapping of a public key to a subject.

This API defines interfaces and abstract classes for creating, building, and validating certification paths.  Implementations may be plugged in using a provider-based interface. The API is based on the Cryptographic Service Provider architecture, described in the Java Cryptography Architecture Document.

The API also includes algorithm-specific classes for building and validating X.509 certification paths according to the PKIX standards. The PKIX standards are developed by the IETF PKIX working group.

This API is being reviewed using the Java Community ProcessSM program as Java Specification Request (JSR) 000055. The API is included in the Java 2 SDK, Standard Edition (J2SDK), v 1.4. Please refer to the JSR 055 Home Page for more information on the JSR and the latest status.

Acknowledgments

The author would like to thank the individuals who contributed to the Certification Path API and provided useful comments and technical advice. Special thanks to the members of the Sun Microsystems Laboratories team who designed and developed the Certification Path API which provided the basis of the work for the Java Community Process. This team includes Anne Anderson, Yassir Elley, Geoff Goodell, Steve Hanna, Sean Mullan, Radia Perlman, and Seth Proctor.

The expert group helped improve and refine the API using the Java Community Process and includes the following members:

Maxine Erlund, Steve Hanna, Phil Rosenzweig and Bob Sproull of Sun Microsystems provided leadership and vision. The members of the Java Security, Networking and Naming Group of Sun Microsystems contributed invaluable comments and support, especially Sharon Liu, Jeff Nisewanger, Gary Ellison, and Andreas Sterbenz. Helpful comments and advice were received from many in the technical community, especially Mary Dageforde, Edward Dobner, Tom Gindin, Jan Luehe, David Kuehr-McLaren, Parag Salvi, Alexei Semidetnov, and Yanni Zhang.

Who Should Read This Document

This document is intended for two classes of experienced developers:

  1. those who want to design secure applications that build or validate certification paths.

  2. those who want to write a service provider implementation for building or validating certification paths.

Introduction

Users of public key applications and systems must be confident that a subject's public key is genuine, i.e., that the associated private key is owned by the subject. Public key certificates are used to establish this trust. A public key (or identity) certificate is a binding of a public key to an identity, which is digitally signed by the private key of another entity, often called a Certification Authority (CA). We shall use the term CA to refer to an entity that signs a certificate for the remainder of this section.

If the user does not have a trusted copy of the public key of the CA that signed the subject's public key certificate, then another public key certificate vouching for the signing CA is required. This logic can be applied recursively, until a chain of certificates (or a certification path) is discovered from a trust anchor or a most-trusted CA to the target subject (commonly referred to as the end-entity). The most-trusted CA is usually specified by a certificate issued to a CA that the user directly trusts. In general, a certification path is an ordered list of certificates, usually comprised of the end-entity's public key certificate and zero or more additional certificates. A certification path typically has one or more encodings, allowing it to be safely transmitted across networks and to different operating system architectures.

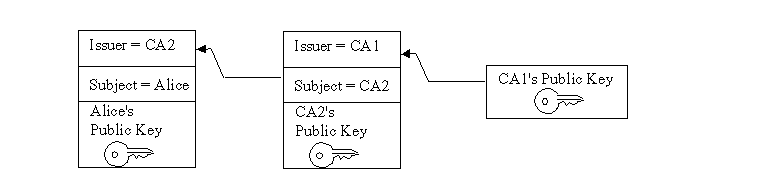

Figure 1 illustrates a certification path from a most-trusted CA's public key (CA 1) to the target subject (Alice). The certification path establishes trust in Alice's public key through an intermediate CA named CA2.

A certification path must be validated before it can be relied on to establish trust in a subject's public key. Validation can consist of various checks on the certificates contained in the certification path, such as verifying the signatures and checking that each certificate has not been revoked. The PKIX standards define an algorithm for validating certification paths consisting of X.509 certificates.

Often a user may not have a certification path from a most-trusted CA to the subject. Providing services to build or discover certification paths is an important feature of public key enabled systems. RFC 2587 defines an LDAP (Lightweight Directory Access Protocol) schema definition which facilitates the discovery of X.509 certification paths using the LDAP directory service protocol.

Building and validating certification paths is an important part of many standard security protocols such as SSL/TLS, S/MIME, and IPSEC.  The Java Certification Path API provides a set of classes and interfaces for developers who need to integrate this functionality into their applications. This API benefits two types of developers: those who need to write service provider implementations for a specific certification path building or validation algorithm; and those who need to access standard algorithms for creating, building, and validating certification paths in an implementation-independent manner.

Core Classes and Interfaces

The core classes of the Java Certification Path API consist of interfaces and classes that support certification path functionality in an algorithm- and implementation -independent manner. The API also includes a set of algorithm-specific classes for the PKIX standards that are discussed in the section titled PKIX Classes. The API builds on and extends the existing Java 2 SDK, Standard Edition (J2SDK) java.security.cert package for handling certificates. The core classes can be broken up into 4 class categories: Basic, Validation, Building, and Storage:

The following sections describe the most commonly used methods of each class and interface. Usage examples for some of the classes are interspersed throughout the guide. The complete reference documentation for the relevant Certification Path API classes can be found in:

Most of the classes and interfaces in the CertPath API are not thread-safe. However, there are some exceptions which will be noted in this guide and the API specification. Multiple threads that need to access a single non-thread-safe object concurrently should synchronize amongst themselves and provide the necessary locking. Multiple threads each manipulating separate objects need not synchronize.

Basic Certification Path Classes

The basic certification path classes provide fundamental functionality for encoding and representing certification paths. The key basic class in the Java Certification Path API is CertPath, which encapsulates the universal aspects shared by all types of certification paths. An application uses an instance of the CertificateFactory class to create a CertPath object.

The CertPath Class

The CertPath class is an abstract class for certification paths. It defines the functionality shared by all certification path objects. Various certification path types can be implemented by subclassing the CertPath class, even though they may have different contents and ordering schemes. All CertPath objects are serializable, immutable and thread-safe and share the following characteristics:

All CertPath objects are also Serializable. CertPath objects are resolved into an alternate CertPathRep object during serialization. This allows a CertPath object to be serialized into an equivalent representation regardless of its underlying implementation.

CertPath objects are generated from an encoded byte array or list of Certificates using a CertificateFactory. Alternatively, a CertPathBuilder may be used to try to find a CertPath from a most-trusted CA to a particular subject. Once a CertPath object has been created, it may be validated by passing it to the validate method of CertPathValidator. Each of these concepts are explained in more detail in subsequent sections.

The CertificateFactory Class

The CertificateFactory class is an engine class that defines the functionality of a certificate factory. In releases prior to J2SDK, v 1.4 it was used to generate Certificate and CRL objects. It has been enhanced in J2SDK, v 1.4 to also be used to generate certification path (CertPath) objects. A CertificateFactory should not be confused with a CertPathBuilder. A CertPathBuilder (discussed later) is used to discover or find a certification path when one does not exist. In contrast, a CertificateFactory is used when a certification path has already been discovered and the caller needs to instantiate a CertPath object from its contents which exist in a different form such as an encoded byte array or an array of Certificates.

Creating a CertificateFactory Object

See the CertificateFactory section in the Java Cryptography Architecture for details on creating a CertificateFactory object.

Generating CertPath Objects

A CertificateFactory instance generates CertPath objects from a List of Certificate objects or from an InputStream that contains the encoded form of a CertPath. Just like a CertPath, each CertificateFactory supports a default encoding format for certification paths (ex: PKCS#7). To generate a CertPath object and initialize it with the data read from an input stream (in the default encoding format), use the generateCertPath method:

    public final CertPath generateCertPath(InputStream inStream)

or from a particular encoding format:

    public final CertPath generateCertPath(InputStream inStream,
               String encoding)

To find out what encoding formats are supported, use the getCertPathEncodings method (the default encoding is returned first):

    public final Iterator getCertPathEncodings()

To generate a certification path object from a List of Certificate objects, use the following method:

    public final CertPath generateCertPath List(certificates)

A CertificateFactory always returns CertPath objects that consist of Certificates that are of the same type as the factory. For example, a CertificateFactory of type X.509 returns CertPath objects consisting of certificates that are an instance of java.security.cert.X509Certificate.

The following code sample illustrates generating a certification path from a PKCS#7 encoded certificate reply stored in a file:

    // open an input stream to the file
    FileInputStream fis = new FileInputStream(filename);
    // instantiate a CertificateFactory for X.509
    CertificateFactory cf = CertificateFactory.getInstance("X.509");
    // extract the certification path from
    // the PKCS7 SignedData structure
    CertPath cp = cf.generateCertPath(fis, "PKCS7");
    // print each certificate in the path
    List certs = cp.getCertificates();
    Iterator i = certs.iterator();
    while (i.hasNext()) {
    X509Certificate cert = (X509Certificate) i.next();
    System.out.println(cert);
    }
Here's another code sample that fetches a certificate chain from a KeyStore and converts it to a CertPath using a CertificateFactory:
    // instantiate a KeyStore with type JKS
    KeyStore ks = KeyStore.getInstance("JKS");
    // load the contents of the KeyStore
    ks.load(new FileInputStream("./keystore"),
    "password".toCharArray());
    // fetch certificate chain stored with alias "sean"
    Certificate[] certArray = ks.getCertificateChain("sean");
    // convert chain to a List
    List certList = Arrays.asList(certArray);
    // instantiate a CertificateFactory for X.509
    CertificateFactory cf = CertificateFactory.getInstance("X.509");
    // extract the certification path from
    // the List of Certificates
    CertPath cp = cf.generateCertPath(certList);

Note that there is an existing method in CertificateFactory named generateCertificates that parses a sequence of Certificates. For encodings consisting of multiple certificates, use generateCertificates when you want to parse a collection of possibly unrelated certificates. Otherwise, use generateCertPath when you want to generate a CertPath and subsequently validate it with a CertPathValidator (discussed later).

The CertPathParameters Interface

The CertPathParameters interface is a transparent representation of the set of parameters used with a particular certification path builder or validation algorithm. Its main purpose is to group (and provide type safety for) all certification path parameter specifications. The CertPathParameters interface extends the Cloneable interface and defines a clone() method that does not throw an exception. All concrete implementations of this interface should implement and override the Object.clone() method, if necessary. This allows applications to clone any CertPathParameters object.

Objects implementing the CertPathParameters interface are passed as arguments to methods of the CertPathValidator and CertPathBuilder classes. Typically, a concrete implementation of the CertPathParameters interface will hold a set of input parameters specific to a particular certification path build or validation algorithm. For example, the PKIXParameters class is an implementation of the CertPathParameters interface that holds a set of input parameters for the PKIX certification path validation algorithm. One such parameter is the set of most-trusted CAs that the caller trusts for anchoring the validation process. This parameter among others is discussed in more detail in the section discussing the PKIXParameters class.

Certification Path Validation Classes

The Java Certification Path API includes classes and interfaces for validating certification paths. An application uses an instance of the CertPathValidator class to validate a CertPath object. If successful, the result of the validation algorithm is returned in an object implementing the CertPathValidatorResult interface.

The CertPathValidator Class

The CertPathValidator class is an engine class used to validate a certification path.

Creating a CertPathValidator Object

As with all engine classes, the way to get a CertPathValidator object for a particular validation algorithm is to call one of the getInstance static factory methods on the CertPathValidator class:

    public static CertPathValidator getInstance(String algorithm)
    public static CertPathValidator getInstance(String algorithm,
                String provider)
    public static CertPathValidator getInstance(String algorithm,
                Provider provider)
The algorithm parameter is the name of a certification path validation algorithm (for example, "PKIX"). Standard CertPathValidator algorithm names are listed in Appendix A.

Validating a Certification Path

Once a CertPathValidator object is created, paths can be validated by calling the validate method, passing it the certification path to be validated and a set of algorithm-specific parameters:

    public final CertPathValidatorResult
    validate(CertPath certPath, CertPathParameters params)
    throws CertPathValidatorException,
   InvalidAlgorithmParameterException

If the validation algorithm is successful, the result is returned in an object implementing the CertPathValidatorResult interface. Otherwise, a CertPathValidatorException is thrown. The CertPathValidatorException contains methods that return the CertPath, and if relevant, the index of the certificate that caused the algorithm to fail and the root exception or cause of the failure.

Note that the CertPath and CertPathParameters passed to the validate method must be of a type that is supported by the validation algorithm. Otherwise, an InvalidAlgorithmParameterException is thrown. For example, a CertPathValidator instance that implements the PKIX algorithm validates CertPath objects of type X.509 and CertPathParameters that are an instance of PKIXParameters.

The CertPathValidatorResult Interface

The CertPathValidatorResult interface is a transparent representation of the successful result or output of a certification path validation algorithm. Its main purpose is to group (and provide type safety for) all validation results. Like the CertPathParameters interface, CertPathValidatorResult extends Cloneable and defines a clone() method that does not throw an exception. This allows applications to clone any CertPathValidatorResult object.

Objects implementing the CertPathValidatorResult interface are returned by the validate method of CertPathValidator (only when successful; otherwise a CertPathValidatorException is thrown with a description of the failure). Typically, a concrete implementation of the CertPathValidatorResult interface will hold a set of output parameters specific to a particular certification path validation algorithm. For example, the PKIXCertPathValidatorResult class is an implementation of the CertPathValidatorResult interface which contains methods to get the output parameters of the PKIX certification path validation algorithm. One such parameter is the valid policy tree. This parameter among others is discussed in more detail in the section discussing the PKIXCertPathValidatorResult class.

Here's a simplified code sample that illustrates how to create a CertPathValidator and use it to validate a certification path. The sample assumes that the CertPath and CertPathParameters objects which are passed to the validate method have been previously created; a more complete example will be illustrated in the section describing the PKIX classes.

    // create CertPathValidator that implements the "PKIX" algorithm
    CertPathValidator cpv = null;
    try {
    cpv = CertPathValidator.getInstance("PKIX");
    } catch (NoSuchAlgorithmException nsae) {
    System.err.println(nsae);
    System.exit(1);
    }
    // validate certification path ("cp") with specified parameters ("params")
    try {
    CertPathValidatorResult cpvResult = cpv.validate(cp, params);
    } catch (InvalidAlgorithmParameterException iape) {
    System.err.println("validation failed: " + iape);
    System.exit(1);
    } catch (CertPathValidatorException cpve) {
    System.err.println("validation failed: " + cpve);
    System.err.println("index of certificate that caused exception: "
    + cpve.getIndex());
    System.exit(1);
    }

Certification Path Building Classes

The Java Certification Path API includes classes for building (or discovering) certification paths. An application uses an instance of the CertPathBuilder class to build a CertPath object. If successful, the result of the build is returned in an object implementing the CertPathBuilderResult interface.

The CertPathBuilder Class

The CertPathBuilder class is an engine class used to build a certification path.

Creating a CertPathBuilder Object

As with all engine classes, the way to get a CertPathBuilder object for a particular build algorithm is to call one of the getInstance static factory method on the CertPathBuilder class:

    public static CertPathBuilder getInstance(String algorithm)
    public static CertPathBuilder getInstance(String algorithm,
              String provider)
    public static CertPathBuilder getInstance(String algorithm,
                  Provider provider)
The algorithm parameter is the name of a certification path builder algorithm (for example, "PKIX"). Standard CertPathBuilder algorithm names are listed in Appendix A.

Building a Certification Path

Once a CertPathBuilder object is created, paths can be constructed by calling the build method, passing it an algorithm-specific parameter specification:

    public final CertPathBuilderResult build(CertPathParameters params)
    throws CertPathBuilderException,
   InvalidAlgorithmParameterException

If the build algorithm is successful, the result is returned in an object implementing the CertPathBuilderResult interface. Otherwise, a CertPathBuilderException is thrown containing information about the failure; for example, the underlying exception (if any) and an error message.

Note that the CertPathParameters passed to the build method must be of a type that is supported by the build algorithm. Otherwise, an InvalidAlgorithmParameterException is thrown.

The CertPathBuilderResult Interface

The CertPathBuilderResult interface is a transparent representation of the result or output of a certification path builder algorithm. This interface contains a method to return the certification path that has been successfully built:

    public CertPath getCertPath()

The purpose of the CertPathBuilderResult interface is to group (and provide type safety for) all build results. Like the CertPathValidatorResult interface, CertPathBuilderResult extends Cloneable and defines a clone() method that does not throw an exception. This allows applications to clone any CertPathBuilderResult object.

Objects implementing the CertPathBuilderResult interface are returned by the build method of CertPathBuilder.

Here's a simplified code sample that illustrates how to create a CertPathBuilder and use it to build a certification path. The sample assumes that the CertPathParameters object which is passed to the build method has been previously created; a more complete example will be illustrated in the section describing the PKIX classes.

    // create CertPathBuilder that implements the "PKIX" algorithm
    CertPathBuilder cpb = null;
    try {
    cpb = CertPathBuilder.getInstance("PKIX");
    } catch (NoSuchAlgorithmException nsae) {
    System.err.println(nsae);
    System.exit(1);
    }
    // build certification path using specified parameters ("params")
    try {
    CertPathBuilderResult cpbResult = cpb.build(params);
    CertPath cp = cpbResult.getCertPath();
    System.out.println("build passed, path contents: " + cp);
    } catch (InvalidAlgorithmParameterException iape) {
    System.err.println("build failed: " + iape);
    System.exit(1);
    } catch (CertPathBuilderException cpbe) {
    System.err.println("build failed: " + cpbe);
    System.exit(1);
    }

Certificate/CRL Storage Classes

The Java Certification Path API also includes the CertStore class for retrieving certificates and CRLs from a repository. This is useful because it allows a caller to specify the repository a CertPathValidator or CertPathBuilder implementation should use to find certificates and CRLs (see the addCertStores method of PKIXParameters for an example).

A CertPathValidator implementation may use the CertStore object that the caller specifies as a callback mechanism to fetch CRLs for performing revocation checks. Similarly, a CertPathBuilder may use the CertStore as a callback mechanism to fetch certitificates and, if performing revocation checks, CRLs.

The CertStore Class

The CertStore class is an engine class used to provide the functionality of a certificate and certificate revocation list (CRL) repository. It can be used by CertPathBuilder and CertPathValidator implementations to find certificates and CRLs or as a general purpose certificate and CRL retrieval mechanism.

Unlike the java.security.KeyStore class, which provides access to a cache of private keys and trusted certificates, a CertStore is designed to provide access to a potentially vast repository of untrusted certificates and CRLs. For example, an LDAP implementation of CertStore provides access to certificates and CRLs stored in one or more directories using the LDAP protocol.

All public methods of CertStore objects are thread-safe. That is, multiple threads may concurrently invoke these methods on a single CertStore object (or more than one) with no ill effects. This allows a CertPathBuilder to search for a CRL while simultaneously searching for further certificates, for instance.

Creating a CertStore Object

As with all engine classes, the way to get a CertStore object for a particular repository type is to call one of the getInstance static factory methods on the CertStore class:

    public static CertStore getInstance(String type,
    CertStoreParameters params)
    public static CertStore getInstance(String type,
    CertStoreParameters params, String provider)
    public static CertStore getInstance(String type,
    CertStoreParameters params, Provider provider)
The type parameter is the name of a certificate repository type (for example, "LDAP"). Standard CertStore types are listed in Appendix A.

The initialization parameters (params) are specific to the repository type. For example, the initialization parameters for a server-based repository may include the hostname and the port of the server. An InvalidAlgorithmParameterException is thrown if the parameters are invalid for this CertStore type. The getCertStoreParameters method returns the CertStoreParameters that were used to initialize a CertStore:

    public final CertStoreParameters getCertStoreParameters()

Retrieving Certificates

Once you have created a CertStore object, you can retrieve certificates from the repository using the getCertificates method. This method takes a CertSelector (discussed in more detail later) object as an argument, which specifies a set of selection criteria for determining which certificates should be returned:

    public final Collection getCertificates(CertSelector selector)
    throws CertStoreException

This method returns a Collection of java.security.cert.Certificate objects that satisfy the selection criteria. An empty Collection is returned if there are no matches. A CertStoreException is usually thrown if an unexpected error condition is encountered, such as a communications failure with a remote repository.

For some CertStore implementations, it may not be feasible to search the entire repository for certificates or CRLs that match the specified selection criteria. In these instances, the CertStore implementation may use information that is specified in the selectors to locate certificates and CRLs. For instance, an LDAP CertStore may not search all entries in the directory. Instead, it may just search entries that are likely to contain the certificates it is looking for. If the CertSelector provided does not provide enough information for the LDAP CertStore to determine which entries it should look in, the LDAP CertStore may throw a CertStoreException.

Retrieving CRLs

You can also retrieve CRLs from the repository using the getCRLs method. This method takes a CRLSelector (discussed in more detail later) object as an argument, which specifies a set of selection criteria for determining which CRLs should be returned:

    public final Collection getCRLs(CRLSelector selector)
    throws CertStoreException

This method returns a Collection of java.security.cert.CRL objects that satisfy the selection criteria. An empty Collection is returned if there are no matches.

The CertStoreParameters Interface

The CertStoreParameters interface is a transparent representation of the set of parameters used with a particular CertStore. Its main purpose is to group (and provide type safety for) all certificate storage parameter specifications. The CertStoreParameters interface extends the Cloneable interface and defines a clone method that does not throw an exception. Implementations of this interface should implement and override the Object.clone() method, if necessary. This allows applications to clone any CertStoreParameters object.

Objects implementing the CertStoreParameters interface are passed as arguments to the getInstance method of the CertStore class. Two classes implementing the CertStoreParameters interface are defined in this API: the LDAPCertStoreParameters and the CollectionCertStoreParameters classes.

The LDAPCertStoreParameters Class

The LDAPCertStoreParameters class is an implementation of the CertStoreParameters interface and holds a set of minimal initialization parameters (host and port number of the directory server) for retrieving certificates and CRLs from a CertStore of type LDAP.

Please refer to the LDAPCertStoreParameters API documentation for more detailed information on this class.

The CollectionCertStoreParameters Class

The CollectionCertStoreParameters class is an implementation of the CertStoreParameters interface and holds a set of initialization parameters for retrieving certificates and CRLs from a CertStore of type Collection.

Please refer to the CollectionCertStoreParameters API documentation for more detailed information on this class.

The CertSelector and CRLSelector Interfaces

The CertSelector and CRLSelector interfaces are a specification of the set of criteria for selecting certificates and CRLs from a collection or large group of certificates and CRLs. The interfaces group and provide type safety for all selector specifications. Each selector interface extends Cloneable and defines a clone() method that does not throw an exception. This allows applications to clone any CertSelector or CRLSelector object.

The CertSelector and CRLSelector interfaces each define a method named match. The match method takes a Certificate or CRL object as an argument and returns true if the object satisfies the selection criteria. Otherwise, it returns false. The match method for the CertSelector interface is defined as follows:

    public boolean match(Certificate cert)

...and for the CRLSelector interface:

    public boolean match(CRL crl)

Typically, objects implementing these interfaces are passed as parameters to the getCertificates and getCRLs methods of the CertStore class. These methods return a Collection of Certificates or CRLs from the CertStore repository that match the specified selection criteria. CertSelectors may also be used to specify the validation constraints on a target or end-entity certificate in a certification path (see for example, the java.security.cert.CertSelector)">PKIXParameters.setTargetCertConstraints method.

The X509CertSelector Class

The X509CertSelector class is an implementation of the CertSelector interface that defines a set of criteria for selecting X.509 certificates. An X509Certificate object must match all of the specified criteria to be selected by the match method. The selection criteria are designed to be used by a CertPathBuilder implementation to discover potential certificates as it builds an X.509 certification path.

For example, the setSubject method of X509CertSelector allows a PKIX CertPathBuilder to filter out X509Certificates that do not match the issuer name of the preceding X509Certificate in a partially completed chain. By setting this and other criteria in an X509CertSelector object, a CertPathBuilder is able to discard irrelevant certificates and more easily find an X.509 certification path that meets the requirements specified in the CertPathParameters object.

Please refer to http://www.ietf.org/rfc/rfc2459.txt for definitions of the X.509 certificate extensions mentioned in this section.

Creating an X509CertSelector Object

An X509CertSelector object is created by calling the default constructor:

    public X509CertSelector()

No criteria are initially set (any X509Certificate will match).

Setting Selection Criteria

The selection criteria allow a caller to match on different components of an X.509 certificate. A few of the methods for setting selection criteria are described here. Please refer to the X509CertSelector API documentation for details on the other methods.

The setIssuer methods set the issuer criterion:

    public void setIssuer(String issuerDN)
    public void setIssuer(byte[] issuerDN)

The specified distinguished name (in RFC 2253 String or ASN.1 DER encoded form) must match the issuer distinguished name in the certificate. If null, any issuer distinguished name will do.

Similarly, the setSubject methods set the subject criterion:

    public void setSubject(String subjectDN)
    public void setSubject(byte[] subjectDN)

The specified distinguished name (in RFC 2253 String or ASN.1 DER encoded form) must match the subject distinguished name in the certificate. If null, any subject distinguished name will do.

The setSerialNumber method sets the serialNumber criterion:

    public void setSerialNumber(BigInteger serial)

The specified serial number must match the certificate serial number in the certificate. If null, any certificate serial number will do.

The setAuthorityKeyIdentifier method sets the authorityKeyIdentifier criterion:

    public void setAuthorityKeyIdentifier(byte[] authorityKeyID)

The certificate must contain an Authority Key Identifier extension matching the specified value. If null, no check will be done on the authorityKeyIdentifier criterion.

The setCertificateValid method sets the certificateValid criterion:

    public void setCertificateValid Date(certValid)

The specified date must fall within the certificate validity period for the certificate. If null, any date is valid.

The setKeyUsage method sets the keyUsage criterion:

    public void setKeyUsage(boolean[] keyUsage)

The certificate's Key Usage Extension must allow the specified key usage values (those which are set to true). If null, no keyUsage check will be done.

Getting Selection Criteria

The current values for each of the selection criteria can be retrieved using an appropriate get method. Please refer to the X509CertSelector API documentation for further details on these methods.

Example

Here is an example of retrieving X.509 certificates from an LDAP CertStore with the X509CertSelector class.

First, we create the LDAPCertStoreParameters object that we will use to initialize the CertStore object with the hostname and port of the LDAP server:

    LDAPCertStoreParameters lcsp = new
    LDAPCertStoreParameters("ldap.sun.com", 389);

Next, create the CertStore object, and pass it the LDAPCertStoreParameters object, as in the following statement:

    CertStore cs = CertStore.getInstance("LDAP", lcsp);

This call creates a CertStore object that retrieves certificates and CRLs from an LDAP repository using the schema defined in RFC 2587.

The following block of code establishes an X509CertSelector to retrieve all unexpired (as of the current date and time) end-entity certificates issued to a particular subject with 1) a key usage that allows digital signatures, and 2) a subject alternative name with a specific email address:

    X509CertSelector xcs = new X509CertSelector();
    // select only unexpired certificates
    xcs.setCertificateValid(new Date());
    // select only certificates issued to
    // 'CN=alice, O=xyz, C=us'
    xcs.setSubject("CN=alice, O=xyz, C=us");
    // select only end-entity certificates
    xcs.setBasicConstraints(-2);
    // select only certificates with a digitalSignature
    // keyUsage bit set (set the first entry in the
    // boolean array to true)
    boolean[] keyUsage = {true};
    xcs.setKeyUsage(keyUsage);
    // select only certificates with a subjectAltName of
    // 'alice@xyz.com' (1 is the integer value of
    // an RFC822Name)
    xcs.addSubjectAlternativeName(1, "alice@xyz.com");

Then we pass the selector to the getCertificates method of our CertStore object that we previously created:

    Collection certs = cs.getCertificates(xcs);

A PKIX CertPathBuilder may use similar code to help discover and sort through potential certificates by discarding those that do not meet validation constraints or other criteria.

The X509CRLSelector Class

The X509CRLSelector class is an implementation of the CRLSelector interface that defines a set of criteria for selecting X.509 CRLs. An X509CRL object must match all of the specified criteria to be selected by the match method. The selection criteria are designed to be useful to a CertPathValidator or CertPathBuilder implementation that must retrieve CRLs from a repository to check the revocation status of certificates in an X.509 certification path.

For example, the setDateAndTime method of X509CRLSelector allows a PKIX CertPathValidator to filter out X509CRLs that have been issued after or expire before the time indicated. By setting this and other criteria in an X509CRLSelector object, it allows the CertPathValidator to discard irrelevant CRLs and more easily check if a certificate has been revoked.

Please refer to http://www.ietf.org/rfc/rfc2459.txt for definitions of the X.509 CRL fields and extensions mentioned in this section.

Creating an X509CRLSelector Object

An X509CRLSelector object is created by calling the default constructor:

    public X509CRLSelector()

No criteria are initially set (any X509CRL will match).

Setting Selection Criteria

The selection criteria allow a caller to match on different components of an X.509 CRL. Most of the methods for setting selection criteria are described here. Please refer to the X509CRLSelector API documentation for details on the remaining methods.

The setIssuerNames method sets the issuerNames criterion:

    public void setIssuerNames Collection(names)

The issuer distinguished name in the CRL must match at least one of the specified distinguished names. Each entry of the names argument is either a String or a byte array (representing the name, in RFC 2253 or ASN.1 DER encoded form, respectively). If null, any issuer distinguished name will do.

The setMinCRLNumber and setMaxCRLNumber methods set the minCRLNumber and maxCRLNumber criterion:

    public void setMinCRLNumber(BigInteger minCRL)
    public void setMaxCRLNumber(BigInteger maxCRL)

The CRL must have a CRL Number extension whose value is greater than or equal to the specified value if the setMinCRLNumber method is called, and less than or equal to the specified value if the setMaxCRLNumber method is called. If the value passed to one of these methods is null, the corresponding check is not done.

The setDateAndTime method sets the dateAndTime criterion:

    public void setDateAndTime Date(dateAndTime)

The specified date must be equal to or later than the value of the thisUpdate component of the CRL and earlier than the value of the nextUpdate component. If null, no dateAndTime check will be done.

The setCertificateChecking method sets the certificate whose revocation status is being checked:

    public void setCertificateChecking(X509Certificate cert)

This is not a criterion. Rather, it is optional information that may help a CertStore find CRLs that would be relevant when checking revocation for the specified certificate. If null is specified, then no such optional information is provided. An application should always call this method when checking revocation for a particular certificate, as it may provide the CertStore with more information for finding the correct CRLs and filtering out irrelevant ones.

Getting Selection Criteria

The current values for each of the selection criteria can be retrieved using an appropriate get method. Please refer to the X509CRLSelector API documentation for further details on these methods.

Example

Creating an X509CRLSelector to retrieve CRLs from an LDAP repository is similar to the X509CertSelector example. Suppose we want to retrieve all current (as of the current date and time) CRLs issued by a specific CA and with a minimum CRL number. First, we create an X509CRLSelector object and call the appropriate methods to set the selection criteria:

    X509CRLSelector xcrls = new X509CRLSelector();
    // select CRLs satisfying current date and time
    xcrls.setDateAndTime(new Date());
    // select CRLs issued by 'O=xyz, C=us'
    xcrls.addIssuerName("O=xyz, C=us");
    // select only CRLs with a CRL number at least '2'
    xcrls.setMinCRLNumber(new BigInteger("2"));

Then we pass the selector to the getCRLs method of our CertStore object (created in the X509CertSelector example):

    Collection crls = cs.getCRLs(xcrls);

PKIX Classes

The Java Certification Path API also includes a set of algorithm-specific classes modelled for use with the PKIX certification path validation algorithm defined in RFC 3280: Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile.

The TrustAnchor Class

This class represents a "most-trusted CA", which is used as a trust anchor for validating X.509 certification paths. A most-trusted CA includes the public key of the CA, the CA's name, and any constraints upon the set of paths which may be validated using this key. These parameters can be specified in the form of a trusted X509Certificate or as individual parameters.

All TrustAnchor objects are immutable and thread-safe. That is, multiple threads may concurrently invoke the methods defined in this class on a single TrustAnchor object (or more than one) with no ill effects. Requiring TrustAnchor objects to be immutable and thread-safe allows them to be passed around to various pieces of code without worrying about coordinating access.

Note that although this class is described as a PKIX class it may be used with other X.509 certification path validation algorithms.

Creating a TrustAnchor Object

To instantiate a TrustAnchor object, a caller must specify "the most-trusted CA" as a trusted X509Certificate or public key and distinguished name pair. The caller may also optionally specify name constraints that are applied to the trust anchor by the validation algorithm during initialization. Note that support for name constraints on trust anchors is not required by the PKIX algorithm, therefore a PKIX CertPathValidator or CertPathBuilder may choose not to support this parameter and instead throw an exception. Use one of the following constructors to create a TrustAnchor object:

    public TrustAnchor(X509Certificate trustedCert,
    byte[] nameConstraints)
    public TrustAnchor(String caName, PublicKey pubKey,
    byte[] nameConstraints)

The nameConstraints parameter is specifed as a byte array containing the ASN.1 DER encoding of a NameConstraints extension. An IllegalArgumentException is thrown if the name constraints cannot be decoded (are not formatted correctly).

Getting Parameter Values

Each of the parameters can be retrieved using a corresponding get method:

    public final X509Certificate getTrustedCert()
    public final String getCAName()
    public final PublicKey getCAPublicKey()
    public final byte[] getNameConstraints()
Note that the getTrustedCert method returns null if the trust anchor was specified as a public key and name pair. Likewise, the getCAName and getCAPublicKey methods return null if the trust anchor was specified as an X509Certificate.

The PKIXParameters Class

This class (which implements the CertPathParameters interface) specifies the set of input parameters defined by the PKIX certification path validation algorithm. It also includes a few additional useful parameters.

An X.509 CertPath object and a PKIXParameters object are passed as arguments to the validate method of a CertPathValidator instance implementing the PKIX algorithm. The CertPathValidator uses the parameters to initialize the PKIX certification path validation algorithm.

Creating a PKIXParameters Object

To instantiate a PKIXParameters object, a caller must specify "the most-trusted CA(s)" as defined by the PKIX validation algorithm. The most-trusted CAs can be specified using one of two constructors:

    public PKIXParameters Set(trustAnchors)
    throws InvalidAlgorithmParameterException
    public PKIXParameters(KeyStore keystore)
    throws KeyStoreException, InvalidAlgorithmParameterException

The first constructor allows the caller to specify the most-trusted CAs as a Set of TrustAnchor objects. Alternatively, a caller can use the second constructor and specify a KeyStore instance containing trusted certificate entries, each of which will be considered as a most-trusted CA.

Setting Parameter Values

Once a PKIXParameters object has been created, a caller can set (or replace the current value of) various parameters. A few of the methods for setting parameters are described here. Please refer to the PKIXParameters API documentation for details on the other methods.

The setInitialPolicies method sets the initial policy identifiers, as specified by the PKIX validation algorithm. The elements of the Set are object identifiers (OIDs) represented as a String. If the initialPolicies parameter is null or not set, any policy is acceptable:

    public void setInitialPolicies Set(initialPolicies)

The setDate method sets the time for which the validity of the path should be determined. If the date parameter is not set or is null, the current date is used:

    public void setDate Date(date)

The setPolicyMappingInhibited method sets the value of the policy mapping inhibited flag. The default value for the flag, if not specified, is false:

    public void setPolicyMappingInhibited(boolean val)

The setExplicitPolicyRequired method sets the value of the explicit policy required flag. The default value for the flag, if not specified, is false:

    public void setExplicitPolicyRequired(boolean val)

The setAnyPolicyInhibited method sets the value of the any policy inhibited flag. The default value for the flag, if not specified, is false:

    public void setAnyPolicyInhibited(boolean val)

The setTargetCertConstraints method allows the caller to set constraints on the target or end-entity certificate. For example, the caller can specify that the target certificate must contain a specific subject name. The constraints are specified as a CertSelector object. If the selector parameter is null or not set, no constraints are defined on the target certificate:

    public void setTargetCertConstraints(CertSelector selector)

The setCertStores method allows a caller to specify a List of CertStore objects that will be used by a PKIX implementation of CertPathValidator to find CRLs for path validation. This provides an extensible mechanism for specifying where to locate CRLs. The setCertStores method takes a List of CertStore objects as a parameter. The first CertStores in the list may be preferred to those that appear later.

    public void setCertStores List(stores)

The setCertPathCheckers method allows a caller to extend the PKIX validation algorithm by creating implementation-specific certification path checkers. For example, this mechanism can be used to process private certificate extensions. The setCertPathCheckers method takes a list of PKIXCertPathChecker (discussed later) objects as a parameter:

    public void setCertPathCheckers List(checkers)

The setRevocationEnabled method allows a caller to disable revocation checking. Revocation checking is enabled by default, since it is a required check of the PKIX validation algorithm. However, PKIX does not define how revocation should be checked. An implementation may use CRLs or OCSP, for example. This method allows the caller to disable the implementation's default revocation checking mechanism if it is not appropriate. A different revocation checking mechanism can then be specified by calling the setCertPathCheckers method, and passing it a PKIXCertPathChecker that implements the alternate mechanism.

    public void setRevocationEnabled(boolean val)

The setPolicyQualifiersRejected method allows a caller to enable or disable policy qualifier processing. When a PKIXParameters object is created, this flag is set to true. This setting reflects the most common (and simplest) strategy for processing policy qualifiers. Applications that want to use a more sophisticated policy must set this flag to false.

    public void setPolicyQualifiersRejected(boolean qualifiersRejected)

Getting Parameter Values

The current values for each of the parameters can be retrieved using an appropriate get method. Please refer to the PKIXParameters API documentation for further details on these methods.

The PKIXCertPathValidatorResult Class

This class (which implements the CertPathValidatorResult interface) represents the result of the PKIX certification path validation algorithm.  It holds the valid policy tree and subject public key resulting from the validation algorithm, and includes methods (getPolicyTree() and getPublicKey()) for returning them. Instances of PKIXCertPathValidatorResult are returned by the validate method of CertPathValidator objects implementing the PKIX algorithm.

Please refer to the PKIXCertPathValidatorResult API documentation for more detailed information on this class.

The PolicyNode Interface and PolicyQualifierInfo Class

The PKIX validation algorithm defines several outputs related to certificate policy processing. Most applications will not need to use these outputs, but all providers that implement the PKIX validation or building algorithm must support them.

The PolicyNode interface represents a node of a valid policy tree resulting from a successful execution of the PKIX certification path validation. An application can obtain the root of a valid policy tree using the getPolicyTree method of PKIXCertPathValidatorResult. Policy Trees are discussed in more detail in the PKIX Certificate and CRL Profile.

The getPolicyQualifiers method of PolicyNode returns a Set of PolicyQualifierInfo objects, each of which represents a policy qualifier contained in the Certificate Policies extension of the relevant certificate that this policy applies to.

Most applications will not need to examine the valid policy tree and policy qualifiers. They can achieve their policy processing goals by setting the policy-related parameters in PKIXParameters. However, the valid policy tree is available for more sophisticated applications, especially those that process policy qualifiers.

Please refer to the PolicyNode and PolicyQualifierInfo API documentation for more detailed information on these classes.

Example of Validating a Certification Path using the PKIX algorithm

This is an example of validating a certification path with the PKIX validation algorithm. The example ignores most of the exception handling and assumes that the certification path and public key of the trust anchor have already been created.

First, create the CertPathValidator, as in the following line:

    CertPathValidator cpv = CertPathValidator.getInstance("PKIX");

The next step is to create a TrustAnchor object. This will be used as an anchor for validating the certification path. In this example, the most-trusted CA is specified as a public key and name (name constraints are not applied and are specified as null):

    TrustAnchor anchor = new TrustAnchor("O=xyz,C=us", pubkey, null);

The next step is to create a PKIXParameters object. This will be used to populate the parameters used by the PKIX algorithm. In this example, we pass to the constructor a Set containing a single element - the TrustAnchor we created in the previous step:

    PKIXParameters params = new PKIXParameters(Collections.singleton(anchor));

Next, we populate the parameters object with constraints or other parameters used by the validation algorithm. In this example, we enable the explicitPolicyRequired flag and specify a set of initial policy OIDs (the contents of the set are not shown):

    // set other PKIX parameters here
    params.setExplicitPolicyRequired(true);
    params.setInitialPolicies(policyIds);

The final step is to validate the certification path using the input parameter set we have created:

    try {
    PKIXCertPathValidatorResult result =
    (PKIXCertPathValidatorResult) cpv.validate(certPath, params);
    PolicyNode policyTree = result.getPolicyTree();
    PublicKey subjectPublicKey = result.getPublicKey();
    } catch (CertPathValidatorException cpve) {
    System.out.println("Validation failure, cert["
    + cpve.getIndex() + "] :" + cpve.getMessage());
    }

If the validation algorithm is successful, the policy tree and subject public key resulting from the validation algorithm are obtained using the getPolicyTree and getPublicKey methods of PKIXCertPathValidatorResult.

Otherwise, a CertPathValidatorException is thrown and the caller can catch the exception and print some details about the failure, such as the error message and the index of the certificate that caused the failure.

The PKIXBuilderParameters Class

This class (which extends the PKIXParameters class) specifies the set of parameters to be used with CertPathBuilders that build certification paths validated against the PKIX certification path validation algorithm.

A PKIXBuilderParameters object is passed as an argument to the build method of a CertPathBuilder instance implementing the PKIX algorithm. All PKIX CertPathBuilders must return certification paths which have been validated according to the PKIX certification path validation algorithm.

Please note that the mechanism that a PKIX CertPathBuilder uses to validate a constructed path is an implementation detail. For example, an implementation might attempt to first build a path with minimal validation and then fully validate it using an instance of a PKIX CertPathValidator, whereas a more efficient implementation may validate more of the path as it is building it, and backtrack to previous stages if it encounters validation failures or dead-ends.

Creating a PKIXBuilderParameters Object

Creating a PKIXBuilderParameters object is similar to creating a PKIXParameters object. However, a caller must specify constraints on the target or end-entity certificate when creating a PKIXBuilderParameters object. These constraints should provide the CertPathBuilder with enough information to find the target certificate. The constraints are specified as a CertSelector object. Use one of the following constructors to create a PKIXBuilderParameters object:

    public PKIXBuilderParameters Set(trustAnchors,
    CertSelector targetConstraints)
    throws InvalidAlgorithmParameterException
    public PKIXBuilderParameters(KeyStore keystore,
    CertSelector targetConstraints)
    throws KeyStoreException, InvalidAlgorithmParameterException

Getting/Setting Parameter Values

The PKIXBuilderParameters class inherits all of the parameters that can be set in the PKIXParameters class. In addition, the setMaxPathLength method can be called to place a limit on the maximum number of certificates in a certification path:

    public void setMaxPathLength(int maxPathLength)

The maxPathLength parameter specifies the maximum number of non-self-issued intermediate certificates that may exist in a certification path. A CertPathBuilder instance implementing the PKIX algorithm must not build paths longer than the length specified. If the value is 0, the path can only contain a single certificate. If the value is -1, the path length is unconstrained (i.e., there is no maximum). The default maximum path length, if not specified, is 5. This method is useful to prevent the CertPathBuilder from spending resources and time constructing long paths that may or may not meet the caller's requirements.

If any of the CA certificates in the path contain a Basic Constraints extension, the value of the pathLenConstraint component of the extension overrides the value of the  maxPathLength parameter whenever the result is a certification path of smaller length. There is also a corresponding getMaxPathLength method for retrieving this parameter:

    public int getMaxPathLength()

Also, the setCertStores method (inherited from the PKIXParameters class) is typically used by a PKIX implementation of CertPathBuilder to find Certificates for path construction as well as finding CRLs for path validation. This provides an extensible mechanism for specifying where to locate Certificates and CRLs.

The PKIXCertPathBuilderResult Class

This class (which extends the PKIXCertPathValidatorResult class and implements the CertPathBuilderResult interface) represents the successful result of the PKIX certification path construction algorithm.  Instances of PKIXCertPathBuilderResult are returned by the build method of CertPathBuilder objects implementing the PKIX algorithm.

The getCertPath method of a PKIXCertPathBuilderResult instance always returns a CertPath object validated using the PKIX certification path validation algorithm. The returned CertPath object does not include the most-trusted CA certificate that may have been used to anchor the path. Instead, use the getTrustAnchor method to get the Certificate of the most-trusted CA.

Please refer to the PKIXCertPathBuilderResult API documentation for more detailed information on this class.

Example of Building a Certification Path using the PKIX algorithm

This is an example of of building a certification path validated against the PKIX algorithm. Some details have been left out, such as exception handling, and the creation of the trust anchors and certificates for populating the CertStore.

First, create the CertPathBuilder, as in the following example:

    CertPathBuilder cpb = CertPathBuilder.getInstance("PKIX");

This call creates a CertPathBuilder object that returns paths validated against the PKIX algorithm.

The next step is to create a PKIXBuilderParameters object. This will be used to populate the PKIX parameters used by the CertPathBuilder:

    // Create parameters object, passing it a Set of
    // trust anchors for anchoring the path
    // and a target subject DN.
    X509CertSelector targetConstraints = new X509CertSelector();
    targetConstraints.setSubject("CN=alice,O=xyz,C=us");
    PKIXBuilderParameters params =
    new PKIXBuilderParameters(trustAnchors, targetConstraints);

The next step is to specify the CertStore that the CertPathBuilder will use to look for certificates and CRLs. For this example, we will populate a Collection CertStore with the certificates and CRLs:

    CollectionCertStoreParameters ccsp =
    new CollectionCertStoreParameters(certsAndCrls);
    CertStore store = CertStore.getInstance("Collection", ccsp);
    params.addCertStore(store);

The next step is to build the certification path using the input parameter set we have created:

    try {
    PKIXCertPathBuilderResult result =
    (PKIXCertPathBuilderResult) cpb.build(params);
    CertPath cp = result.getCertPath();
    } catch (CertPathBuilderException cpbe) {
    System.out.println("build failed: " + cpbe.getMessage());
    }

If the CertPathBuilder cannot build a path that meets the supplied parameters it will throw a CertPathBuilderException. Otherwise, the validated certification path can be obtained from the PKIXCertPathBuilderResult using the getCertPath method.




The PKIXCertPathChecker Class



This section
describes a powerful class that allows a user to extend a PKIX
CertPathValidator or CertPathBuilder
implementation. This is an advanced feature that most users will not
need to understand. However, anyone implementing a PKIX service
provider should read this section.


The
PKIXCertPathChecker class is an abstract class that executes
one or more checks on an X.509 certificate. Developers should create
concrete implementations of the PKIXCertPathChecker class
when it is necessary to dynamically extend a PKIX CertPathValidator
or CertPathBuilder implementation at runtime. The following
are a few examples of when a PKIXCertPathChecker
implementation is useful:




The
setCertPathCheckers method of the PKIXParameters
class allows a user to pass a List
of PKIXCertPathChecker objects to a PKIX CertPathValidator
or CertPathBuilder implementation. Each of the
PKIXCertPathChecker objects will be called in turn, for each
certificate processed by the PKIX CertPathValidator or
CertPathBuilder implementation.



Creating and using a PKIXCertPathChecker Object



The
PKIXCertPathChecker class does not have a public
constructor. This is intentional, since creating an instance of
PKIXCertPathChecker is an implementation-specific issue. For
example, the constructor for a PKIXCertPathChecker
implementation that uses OCSP to check a certificate's revocation
status may require the hostname and port of the OCSP server:

    PKIXCertPathChecker checker = new OCSPChecker("ocsp.sun.com", 1321);




Once the checker
has been instantiated, it can be added as a parameter using the
addCertPathChecker method of the PKIXParameters
class:


    params.addCertPathChecker(checker);




Alternatively, a
List of checkers can be added using the setCertPathCheckers
method of the PKIXParameters class.


 Implementing a PKIXCertPathChecker Object



The
PKIXCertPathChecker class is abstract. It has four methods
(check, getSupportedExtensions, init, and
isForwardCheckingSupported) that all concrete subclasses
must implement.



Implementing a
PKIXCertPathChecker may be trivial or complex. A
PKIXCertPathChecker implementation can be stateless or
stateful. A stateless implementation does not maintain state between
successive calls of the check method. For example, a
PKIXCertPathChecker that checks that each certificate
contains a particular policy qualifier is stateless. In contrast, a
stateful implementation does maintain state between successive calls
of the check method. The check method of a stateful
implementation usually depends on the contents of prior certificates
in the certification path. For example, a PKIXCertPathChecker
that processes the NameConstraints extension is stateful.


Also, the order
in which the certificates processed by a service provider
implementation are presented (passed) to a PKIXCertPathChecker
is very important, especially if the implementation is stateful.
Depending on the algorithm used by the service provider, the
certificates may be presented in reverse or forward
order. A reverse ordering means that the certificates are ordered
from the most trusted CA (if present) to the target subject, whereas
a forward ordering means that the certificates are ordered from the
target subject to the most trusted CA. The order must be made known
to the PKIXCertPathChecker implementation, so that it knows
how to process consecutive certificates.


Initializing a
PKIXCertPathChecker Object



The init
method initializes the internal state of the checker:

    public abstract void init(boolean forward)




All stateful
implementations should clear or initialize any internal state in the
checker. This prevents a service provider implementation from calling
a checker that is in an uninitialized state. It also allows stateful
checkers to be reused in subsequent operations without
reinstantiating them. The forward parameter indicates the
order of the certificates presented to the PKIXCertPathChecker.
If forward is true, the certificates are presented
from target to trust anchor; if false, from trust anchor to
target.


Forward
Checking



The
isForwardCheckingSupported method returns a boolean
that indicates if the PKIXCertPathChecker supports forward
checking:

    public abstract boolean isForwardCheckingSupported()




All
PKIXCertPathChecker implementations must
support reverse checking. A PKIXCertPathChecker
implementation may
support forward checking.


Supporting forward checking improves the efficiency of
CertPathBuilders that build forward, since it allows
paths to be checked as they are built. However, some stateful
PKIXCertPathCheckers may find it difficult or impossible
to support forward checking.

Supported
Extensions



The
getSupportedExtensions method returns an immutable Set
of OID Strings for the X.509 extensions that the
PKIXCertPathChecker implementation supports (i.e.,
recognizes, is able to process):

    public abstract Set getSupportedExtensions()




The method
should return null if no extensions are processed. All
implementations should return the Set of OID Strings
that the check method may process.


A CertPathBuilder can use this information to
identify certificates with unrecognized critical extensions, even
when performing a forward build with a PKIXCertPathChecker
that does not support forward checking.

Executing the
Check



The following
method executes a check on the certificate:


    public abstract void
    check(Certificate cert, Collection unresolvedCritExts)
    throws CertPathValidatorException




The
unresolvedCritExts parameter contains a collection of OIDs
as Strings. These OIDs represent the set of critical
extensions in the certificate that have not yet been resolved by the
certification path validation algorithm. Concrete implementations of
the check method should remove any critical extensions that
it processes from the unresolvedCritExts parameter.



If the
certificate does not pass the check(s), a CertPathValidatorException
should be thrown.


Cloning a
PKIXCertPathChecker



The
PKIXCertPathChecker class implements the Cloneable
interface. All stateful PKIXCertPathChecker implementations
must override the clone method if necessary. The default
implementation of the clone method calls the Object.clone
method, which performs a simple clone by copying all fields of the
original object to the new object. A stateless implementation should
not override the clone method. However, all stateful
implementations must ensure that the default clone method is
correct, and override it if necessary. For example, a
PKIXCertPathChecker that stores state in an array must
override the clone method to make a copy of the array,
rather than just a reference to the array.



The reason that
PKIXCertPathChecker objects are Cloneable is to
allow a PKIX CertPathBuilder implementation to efficiently
backtrack and try another path when a potential certification path
reaches a dead end or point of failure. In this case, the
implementation is able to restore prior path validation states by
restoring the cloned objects.



Example



This is an
example of a stateless PKIXCertPathChecker implementation.
It checks if a private extension exists in a certificate and
processes it according to some rules.


    import java.security.cert.Certificate;
    import java.security.cert.X509Certificate;
    import java.util.Collection;
    import java.util.Collections;
    import java.util.Set;
    import java.security.cert.PKIXCertPathChecker;
    import java.security.cert.CertPathValidatorException;

    public class MyChecker extends PKIXCertPathChecker {
    private static Set supportedExtensions =
    Collections.singleton("2.16.840.1.113730.1.1");

    /*
  * Initialize checker
 */
    public void init(boolean forward)
    throws CertPathValidatorException {
    // nothing to initialize
    }

    public Set getSupportedExtensions() {
    return supportedExtensions;
    }

    public boolean isForwardCheckingSupported() {
    return true;
    }

    /*
 * Check certificate for presence of Netscape's
 * private extension
 * with OID "2.16.840.1.113730.1.1"
 */
    public void check(Certificate cert,
      Collection unresolvedCritExts)
    throws CertPathValidatorException
    {
    X509Certificate xcert = (X509Certificate) cert;
    byte[] ext =
    xcert.getExtensionValue("2.16.840.1.113730.1.1");
    if (ext == null)
    return;

    //
  // process private extension according to some
    // rules - if check fails, throw a
    // CertPathValidatorException ...
    // {insert code here}

    // remove extension from collection of unresolved
    // extensions (if it exists)
    if (unresolvedCritExts != null)
    unresolvedCritExts.remove("2.16.840.1.113730.1.1");
    }
    }





 How a PKIX Service Provider implementation should use a PKIXCertPathChecker



Each PKIXCertPathChecker object must be initialized by a service provider implementation before commencing the build or validation algorithm, for example:


    List checkers = params.getCertPathCheckers();
    ListIterator li = checkers.listIterator();
    while (li.hasNext()) {
    PKIXCertPathChecker checker = (PKIXCertPathChecker) li.next();
    checker.init(false);
    }




For each
certificate that it validates, the service provider implementation
must call the check method of each PKIXCertPathChecker
object in turn, passing it the certificate and any remaining
unresolved critical extensions:

    ListIterator li = checkers.listIterator();
    while (li.hasNext()) {
    PKIXCertPathChecker checker = (PKIXCertPathChecker) li.next();
    checker.check(cert, unresolvedCritExts);
    }




If any of the
checks throw a CertPathValidatorException, a
CertPathValidator implementation should terminate the validation
procedure. However, a CertPathBuilder implementation may
simply log the failure and continue to search for other potential
paths. If all of the checks are successful, the service
provider implementation should check that all critical extensions
have been resolved and if not, consider the validation to have failed.
For example:

    if (unresolvedCritExts != null &&
    !unresolvedCritExts.isEmpty())
    {
    // note that a CertPathBuilder may have an enclosing
    // try block to catch the exception below and continue on error
    throw new CertPathValidatorException
    ("Unrecognized Critical Extension");
    }





As discussed in
the previous section, a CertPathBuilder implementation may
need to backtrack when a potential certification path reaches a dead
end or point of failure. Backtracking in this context implies
returning to the previous certificate in the path and checking for
other potential paths. If the CertPathBuilder implementation
is validating the path as it is building it, it will need to restore
the previous state of each PKIXCertPathChecker.
It can do this by making clones of the PKIXCertPathChecker
objects before each certificate is processed, for example:

    /* clone checkers */
    List newList = new ArrayList(checkers);
    ListIterator li = newList.listIterator();
    while (li.hasNext()) {
    PKIXCertPathChecker checker = (PKIXCertPathChecker) li.next();
    li.set(checker.clone());
    }





Implementing a Service Provider



This section is intended for
    experienced programmers wishing to create their own provider
    packages supplying certification path service implementations. This
    section assumes you have read the document: How
    to Implement a Provider for the Java Cryptography Architecture.



The following engine classes are
    defined in the Java Certification Path API:





In addition, the pre-existing
    CertificateFactory engine
    class has been enhanced in the J2SDK, v 1.4 to support generation of
    certification paths.



The application interfaces supplied
    by an engine class are implemented in terms of a "Service
    Provider Interface" (SPI). The name of each SPI class is the
    same as that of the corresponding engine class, followed by "Spi".
    For example, the SPI class corresponding to the CertPathValidator
    engine class is the CertPathValidatorSpi class. Each SPI
    class is abstract. To supply the implementation of a particular type
    of service, for a specific algorithm or type, a provider must subclass the
    corresponding SPI class and provide implementations for all the
    abstract methods. For example, the CertStore class provides
    access to the functionality of retrieving certificates and CRLs from
    a repository. The actual implementation supplied in a CertStoreSpi
    subclass would be that for a specific type of certificate
    repository, such as LDAP.



Steps to Implement and Integrate a Provider



Developers should follow the
    required steps
    listed in the How To Implement A Provider for the Java
    Cryptography Architecture document.
    Here are some additional rules to follow for certain steps:





Service Interdependencies



Here are some common types of
    algorithm interdependencies in certification path service
    implementations:





Certification Path Parameter Specification Interfaces



The Certification Path API contains
    two interfaces representing transparent specifications of
    parameters, the CertPathParameters and CertStoreParameters
    interfaces.



Two implementations of the
    CertPathParameters interface are included, the
    PKIXParameters and PKIXBuilderParameters classes.
    If you are working with PKIX certification path validation and
    algorithm parameters, you can utilize these classes. If you need
    parameters for a different algorithm, you will need to supply your
    own CertPathParameters implementation for that algorithm.



Two implementations of the
    CertStoreParameters interface are included, the
    LDAPCertStoreParameters and the
    CollectionCertStoreParameters classes. These classes are to
    be used with LDAP and Collection CertStore implementations,
    respectively. If you need parameters for a different repository
    type, you will need to supply your own CertStoreParameters
    implementation for that type.


The CertPathParameters and
    CertStoreParameters interfaces each define a
    clone method that implementations should override. A
    typical implementation will perform a "deep" copy of the object,
    such that subsequent changes to the copy will not affect the original
    (and vice versa). However, this is not an absolute requirement for
    implementations of CertStoreParameters. A shallow copy
    implementation of clone is more appropriate for
    applications that need to hold a reference to a parameter contained
    in the CertStoreParameters. For example, since
    CertStore.getInstance makes a clone of the specified
    CertStoreParamters, a shallow copy clone
    allows an application to hold a reference to and later release the
    resources of a particular CertStore initialization
    parameter, rather than waiting for the garbage collection mechanism.
    This should be done with the utmost care, since the
    CertStore may still be in use by other threads.



Certification Path Result Specification Interfaces



The Certification Path API contains
    two interfaces representing transparent specifications of
    results, the CertPathValidatorResult and
    CertPathBuilderResult interfaces.



One implementation for each of the
    interfaces is included: the PKIXCertPathValidatorResult and
    PKIXCertPathBuilderResult classes. If you are implementing
    PKIX certification path service providers, you can utilize these
    classes. If you need certification path results for a different
    algorithm, you will need to supply your own CertPathValidatorResult
    or CertPathBuilderResult implementation for that algorithm.



A PKIX implementation of a
    CertPathValidator or a CertPathBuilder may find it
    useful to store additional information in the
    PKIXCertPathValidatorResult or PKIXCertPathBuilderResult,
    such as debugging traces. In these cases, the implementation should
    implement a subclass of the appropriate result class with methods to
    retrieve the relevant information. These classes must be shipped
    with the provider classes, for example, as part of the provider JAR
    file.



Certification Path Exception Classes


    The Certification Path API contains a set of exception classes for handling errors. CertPathValidatorException, CertPathBuilderException, and CertStoreException are subclasses of GeneralSecurityException.



You may
    need to extend these classes in your service provider
    implementation. For example, a CertPathBuilder
    implementation may provide additional information such as debugging
    traces when a CertPathBuilderException is thrown. The
    implementation may throw a subclass of CertPathBuilderException
    that holds this information. Likewise, a CertStore
    implementation can provide additional information when a failure
    occurs by throwing a subclass of CertStoreException. Also,
    you may want to implement a subclass of CertPathValidatorException
    to describe a particular failure mode of your CertPathValidator
    implementation.



In each case, the new exception classes must
    be shipped with the provider classes, for example, as part of the
    provider JAR file. Each provider should document the exception
    subclasses.


TrustAnchor  Class




    As previously mentioned, a PKIX CertPathValidator or
    CertPathBuilder is not required to support the
    nameConstraints parameter of the TrustAnchor
    class. Implementations should throw an
    InvalidAlgorithmParameterException if this parameter
    is not supported.




Appendix A: Standard Names



The Java Certification Path API
requires and utilizes a set of standard names for certification path
validation algorithms, encodings and certificate storage types. It
supplements the list of standard names defined in Appendix
A in the Java Cryptography Architecture API Specification and
Reference. Note that algorithm names are treated as
case-insensitive (for comparison).


Please note that a service provider may choose to define a new name for
a proprietary or non-standard algorithm not mentioned below. However, to
prevent name collisions, it is recommended that the name be prefixed with
the reverse Internet domain name of the provider's organization (for example: com.sun.MyCertPathValidator).



 CertPathValidator Algorithms



The algorithm
names in this section can be specified when generating an instance of
CertPathValidator.




PKIX: The
PKIX certification path validation algorithm as defined in the ValidationAlgorithm
service attribute.



 CertPathBuilder Algorithms



The algorithm
names in this section can be specified when generating an instance of
CertPathBuilder.



PKIX: The
PKIX certification path validation algorithm as defined in the ValidationAlgorithm
service attribute.
The output of CertPathBuilder instances
implementing this algorithm is a certification path validated against
the PKIX validation algorithm.



 CertStore Types



The following
types can be specified when generating an instance of CertStore:




LDAP: A
CertStore implementation that fetches certificates and CRLs
from an LDAP directory using the schema defined in the LDAPSchema
service attribute.


Collection:
A CertStore implementation that retrieves certificates and
CRLs from a Collection. This type of CertStore is
particularly useful in applications where certificates or CRLs are received
in a bag or some sort of attachment, such as with a signed email message
or in an SSL negotiation.



CertPath Encodings




The following encodings may be passed to the getEncoded
method of CertPath or the generateCertPath(InputStream
inStream, String encoding) method of CertificateFactory.

PKCS7: A PKCS#7 SignedData
object, with the only significant field being certificates. In
particular, the signature and the contents are ignored. If no
certificates are present, a zero-length CertPath is assumed.
Warning: PKCS#7 does not maintain the order of
certificates in a certification path. This means that if a
CertPath is converted to PKCS#7 encoded bytes and then
converted back, the order of the certificates may change, potentially
rendering the CertPath invalid. Users should be aware of
this behavior.




PkiPath: an ASN.1 DER encoded sequence of certificates, defined as
follows:


PkiPath ::=    SEQUENCE OF Certificate



Within the sequence, the order of certificates is such that the subject of
the first certificate is the issuer of the second certificate, etc. Each
certificate in PkiPath shall be unique. No certificate may appear
more than once in a value of Certificate in PkiPath.
The PkiPath format is defined in defect report 279 against
X.509 (2000) and is incorporated into Draft Technical Corrigenda 2 for the
fourth edition (2000) of X.509
at ftp://ftp.bull.com/pub/OSIdirectory/DefectResolution/DraftTechnicalCorrigenda/8-DTC2%284th%29.pdf.





 Service Attributes




ValidationAlgorithm:
The name of the specification that defines the certification path
validation algorithm that an implementation of CertPathBuilder or
CertPathValidator supports. RFCs should be specified as "RFC#"
(ex: "RFC2459") and Internet Drafts as the name of the draft
(ex: "draft-ietf-pkix-rfc2560bis-01.txt"). Values for this attribute
that are specified as selection criteria to the
Security.getProviders method will be compared using
the String.equalsIgnoreCase method.
All PKIX implementations of
CertPathBuilder and CertPathValidator
should provide a value for this attribute.




LDAPSchema:
The name of the specification that defines the LDAP schema
that an implementation of an LDAP CertStore uses to retrieve
certificates and CRLs. The format and semantics of this attribute is
the same as described for the ValidationAlgorithm attribute.
All LDAP implementations of CertStore
should provide a value for this attribute.





Appendix B: The "SUN" Provider


The "SUN" provider which is supplied with J2SDK has been enhanced for
version 1.4 to support the following standard algorithms, types and encodings:



Each of these service provider interface implementations is discussed in
more detail below.


CertificateFactory


The "SUN" provider for the CertificateFactory
engine class has been enhanced to support generation of X.509
CertPath objects. The PKCS7 and PkiPath encodings are supported.
The PKCS#7 implementation supports a subset of
RFC 2315 (only the
SignedData ContentInfo type is supported).
The certificates in the CertPath are ordered in the forward
direction (from target to trust anchor). Each certificate in the
CertPath is of type
java.security.cert.X509Certificate, and versions
1, 2 and 3 are supported.


CertPathValidator


The "SUN" provider supplies a PKIX implementation of the
CertPathValidator engine class. The implementation validates
CertPaths of type X.509 and
implements the certification path validation algorithm defined in

RFC 3280: PKIX Certificate and CRL Profile.
Currently the implementation sets the
ValidationAlgorithm service
attribute to "draft-ietf-pkix-new-part-08.txt".
(Note that RFC 3280 supercedes RFC 2459.)





The PKIX Certificate and CRL Profile has many optional features.
The "SUN" provider implements support for the policy mapping extension and the
reason code CRL entry extension. It does not implement support for
the CRL distribution point, Freshest CRL, Authority Information
Access, or Subject Information Access certificate extensions. It
also does not include support for the Freshest CRL, Delta CRL,
and Issuing Distribution Point CRL extensions and the Certificate
Issuer, Invalidity Date, and Hold Instruction Code CRL entry
extensions.


The implementation supports a CRL revocation checking mechanism that
conforms to section 6.3 of the PKIX Certificate and CRL Profile. An
application must specify one or more CertStores containing
CRLs in a PKIXParameters object. For each certificate in
the CertPath, the CertPathValidator searches the
specified CertStores for applicable CRLs. OCSP
(RFC 2560) is not
currently supported as a built in revocation checking mechanism.


The implementation does not support the nameConstraints
parameter of the TrustAnchor class and the validate
method throws an InvalidAlgorithmParameterException if it is
specified.


CertPathBuilder


The "SUN" provider supplies a PKIX implementation of the
CertPathBuilder engine class. The implementation builds
CertPaths of type X.509. Each CertPath
is validated according to the PKIX algorithm defined in

RFC 3280: PKIX Certificate and CRL Profile.
Currently the implementation sets the
ValidationAlgorithm service
attribute to "draft-ietf-pkix-new-part-08.txt".
(Note that RFC 3280 supercedes RFC 2459.)





The implementation requires that the targetConstraints
parameter of a PKIXBuilderParameters object is an instance
of X509CertSelector and the subject criterion is set to
 a non-null value. Otherwise the build method
throws an InvalidAlgorithmParameterException.


The implementation builds CertPath objects in a forward
direction using a depth-first algorithm. It backtracks to previous
states and tries alternate paths when a potential path is determined to
be invalid or exceeds the PKIXBuilderParameters
maxPathLength parameter.


Validation of the path is performed in the same manner as the
CertPathValidator implementation. The implementation
validates most of the path as it is being built, in order to eliminate
invalid paths earlier in the process. Validation checks that cannot
be executed on certificates ordered in a forward direction are delayed
and executed on the path after it has been constructed (but before it
is returned to the application).


When two or more potential certificates are discovered that may
lead to finding a path that meets the specified constraints, the
implementation uses the following criteria to prioritize the certificates
(in the examples below, assume a TrustAnchor distinguished name
of "ou=D,ou=C,o=B,c=A" is specified):




  1. The issuer DN of the certificate matches the DN of one of the specified TrustAnchors (ex: issuerDN = "ou=D,ou=C,o=B,c=A").

  2. The issuer DN of the certificate is a descendant of the DN of one of the TrustAnchors, ordered by proximity to the anchor (ex: issuerDN = "ou=E,ou=D,ou=C,o=B,c=A").

  3. The issuer DN of the certificate is an ancestor of the DN of one of the TrustAnchors, ordered by proximity to the anchor (ex: issuerDN = "ou=C,o=B,c=A".

  4. The issuer DN of the certificate is in the same namespace of one of the TrustAnchors, ordered by proximity to the anchor (ex: issuerDN = "ou=G,ou=C,o=B,c=A").


  5. The issuer DN of the certificate is an ancestor of the subject DN of the certificate, ordered by proximity to the subject.


These are followed by certificates which don't meet any of the above
criteria.


This implementation has been tested with the LDAP and Collection
CertStore implementations included in this release of the
"SUN" provider.


Debugging support can be enabled by setting the
java.security.debug property to certpath. For
example:

    java -Djava.security.debug=certpath BuildCertPath




This will print additional debugging information to standard error.


CertStore


The "SUN" provider supports two implementations of the CertStore
engine class: Collection and LDAP.



Collection CertStore


The Collection CertStore implementation can hold any objects
that are an instance of java.security.cert.Certificate
or java.security.cert.CRL.


The certificates and CRLs are not returned in any particular order
and will not contain duplicates.


LDAP CertStore


The LDAP CertStore implementation retrieves certificates
and CRLs from an LDAP directory using the LDAP schema defined in
RFC 2587. The
LDAPSchema service attribute is set to "RFC2587".


The implementation fetches certificates from different
locations, depending on the values of the subject, issuer, and
basicConstraints selection criteria specified in the
X509CertSelector. It performs as many of the following
operations as possible:




  1. Subject non-null, basicConstraints <= -1


    Looks for certificates in the subject DN's "userCertificate" attribute.



  2. Subject non-null, basicConstraints >= -1


    Looks for certificates in the forward element of the subject DN's
"crossCertificatePair" attribute AND in the subject's
"caCertificate" attribute.



  3. Issuer non-null, basicConstraints >= -1


    Looks for certificates in the reverse element of the issuer DN's
"crossCertificatePair" attribute AND in the issuer DN's "caCertificate"
attribute.




In each case, certificates are checked using
X509CertSelector.match() before adding them to the resulting
collection.


If none of the conditions specified above applies, then an exception is
thrown to indicate that it was impossible to fetch certificates using
the criteria supplied. Note that even if one or more of the conditions
apply, the Collection returned may still be empty if there are no
certificates in the directory.


The implementation fetches CRLs from the issuer DNs specified
in the setCertificateChecking, addIssuerName or
setIssuerNames methods of the X509CRLSelector class.
If no issuer DNs have been specified using one of these methods, the
implementation throws an exception indicating it was impossible to
fetch CRLs using the criteria supplied. Otherwise, the CRLs are searched as
follows:


The implementation first creates a list of issuer names. If a certificate
was specified in the setCertificateChecking method, it uses the
issuer of that certificate. Otherwise, it uses the issuer names specified
using the addIssuerName or setIssuerNames methods.


Next, the implementation iterates through the list of issuer names.
For each issuer name, it searches first in the issuer's
"authorityRevocationList" attribute and then, if no matching CRL was found
there, in the issuer's "certificateRevocationList" attribute.
One exception to the above is that if the issuer name was obtained from
the certificate specified in the setCertificateChecking method,
it only checks the issuer's "authorityRevocationList" attribute if the
specified certificate is a CA certificate.


All CRLs are checked using X509CRLSelector.match() before
adding them to the resulting collection.


If no CRLs satisfying the selection criteria can be found, an empty
Collection is returned.

















   4150 Network Circle
   Santa Clara, California 95054
