100 concurrent users caching the product display page only
In this test, we enabled the DynaCache full page caching of the product display page. Since the page contains a header bar, footer bar, and a mini shopping cart, all realized as JSP fragments, we also had to enable fragment caching in cachespec.xml.
To get the benefit from product display page caching, we fully populated the cache prior to the formal test by running a browsing-only scenario and using the cache monitor to get information about the state of the cache.
Table | -5 and Table | -6, and Figure | -4 summarize the results of the test.
Table 9-5
| CPU usage | Minimum JVM heap usage | Hard disk usage increase | |
|---|---|---|---|
| Commerce server 1 | 85.98% | 350MB | |
| Commerce server 2 | 86.13% | 350MB | |
| Database server | 36.12% | 40MB | |
| Web server | 4.72% |
Resource usage in the test with 100 users and caching of product display page
Comparing Table | -5 with Table | -3, we can observe that the CPU usage on the database server has dropped to 36.12% from 100%, while the CPU usage on both WebSphere Commerce servers has increased. The database server is thus no longer the bottleneck.
Table 9-6
| Web action | Average response time (second) | Count | Total time (second) |
|---|---|---|---|
| Overall | 1.625 | 210,572 | 342179.5 |
| Select shipping address | 0.595 | 2,623 | 1560.685 |
| Add shipping address | 0.336 | 1,890 | 635.04 |
| Display category | 2.946 | 95,236 | 280565.256 |
| Log off | 0.34 | 4,924 | 1674.16 |
| Log on | 0.589 | 2,654 | 1563.206 |
| Go to log on page | 0.465 | 2,654 | 1234.11 |
| Add item to cart | 1.694 | 6,514 | 11034.716 |
| View billing address | 1.558 | 5,380 | 8382.04 |
| Process order | 2.022 | 595 | 1203.09 |
| View order summary | 3.404 | 1,179 | 4013.316 |
| Add payment info | 1.795 | 595 | 1068.025 |
| Display product | 0.135 | 31,714 | 4281.39 |
| View shipping method | 0.807 | 5,376 | 4338.432 |
| Display top category | 0.484 | 31,769 | 15376.196 |
| Visit store front | 0.182 | 12,377 | 2252.614 |
| Register user | 0.758 | 2,546 | 1929.868 |
| Go to register page | 0.43 | 2,546 | 1094.78 |
Response times in the test with 100 users and caching of product display page
As we can see from Table | -6, the response time for the product display page is now only 0.135 seconds, down considerably from 35.338. Because of this dramatic drop, the total number of pages visited in 3 hours has increased from 35,459 to 210,572, marking a six-fold increase in throughput. This is typical of many implementations of DynaCache.

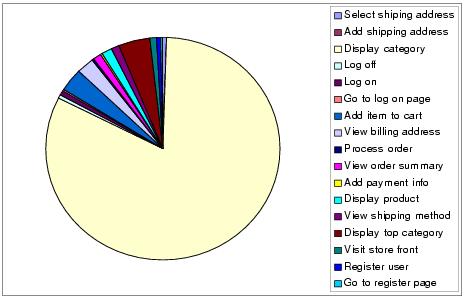

Figure 9-4 Total time for URL actions in the test with 100 users and caching of product display page
