(Business processes) Process backorders

Process: Process backorders

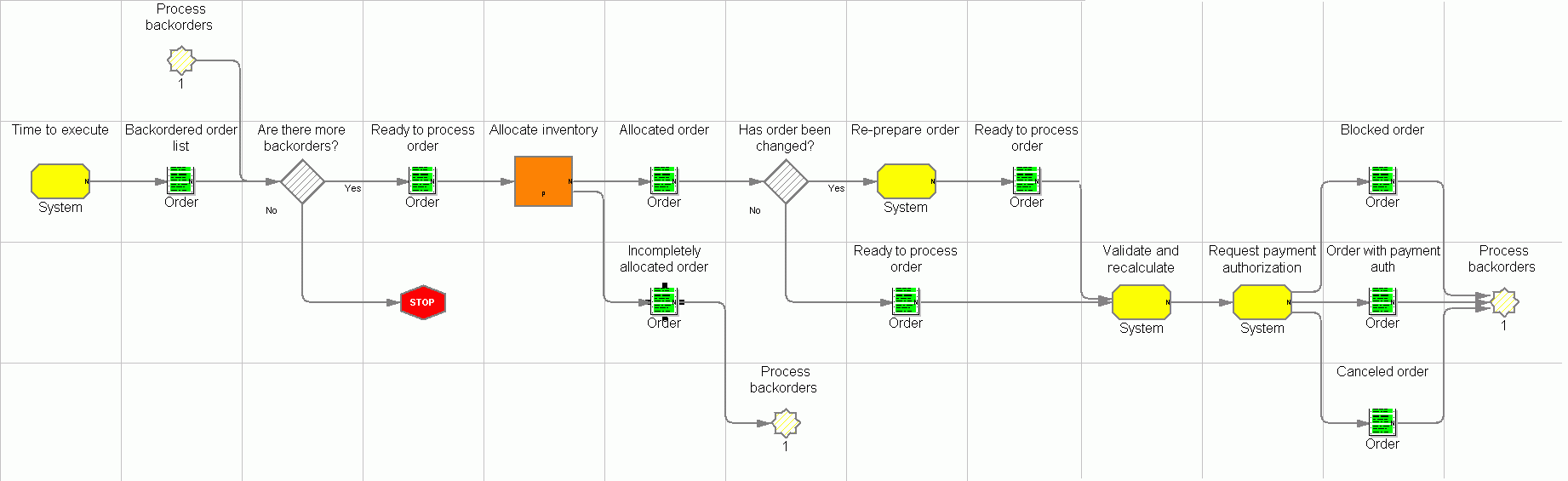

Flow

Legend

Objective

Process the current backlog of backorders by attempting to allocate available inventory and, if successful, processing the order.

Description

This process is for ATP inventory only. This process is invoked by the WebSphere Commerce scheduler. It attempts to allocate inventory to backordered items for a given store.

Get a list of orders which contain the backorder items.
If there are, then for each backorder determine the order line items that require inventory allocation and allocate them (see the Allocate inventory process description).
If allocation of inventory to the order changed it (that is, an item that was backordered is now allocated), the order is reprepared to recalculate shipping and taxes.
After the inventory is allocated, the order is processed to get it ready to be fulfilled.

Features

Order life cycle
Backorder processing
Order processing

Customization

Invoke the process manually by administrator
Allow administrators to process specific high-priority backorders

Edition

Professional, Enterprise

Subprocesses

Allocate inventory

Tasks

Task Description Role

Re-prepare order
Recalculate shipping charges and taxes, and lock the order. A locked order means that it has been prepared and is used to indicate whether or not an order has changed.
System

Request payment authorization
Request a payment authorization. It perform the tasks necessary to obtain payment authorization for an order being processed. Depending on the payment type and the business policy for the payment type, varying actions will be performed.

Input to the process is an order requiring payment authorization. If successful, output is an order with the payment authorized.

If payment authorization has already been requested (this will be the case for processing a backorder or and order for which remote fulfillment failed), then check the existing payment status and update the order appropriately.

If the payment AVS address verification failed, the order will be blocked.
System

Time to execute
This process is initiated as a scheduled task. A scheduled task starts asynchronously when the scheduler has determined that it is time to execute.
System

Validate and recalculate
It will do the following:

1. It validates the address. It checks to see if the billing address is allowed in the contract.

2. It may recalculate the price if the price is expired.

3. It will allocate the inventory if the inventory is not allocated.

4. If the purchase order number is used for the order, the spending limits will be checked and updated. The spending limits will also be updated if it is specified in the contract.
System

Business artifacts

Allocated order
Backordered order list
Blocked order
Canceled order
Incompletely allocated order
Order with payment auth
Ready to process order
