WAS v8.5 > Tune performance > Obtain advice from the advisors

Use the Performance and Diagnostic Advisor

The advisors analyze the Performance Monitoring Infrastructure (PMI) data of WebSphere Application Server using general performance principles, best practices, and WAS-specific rules for tuning.

The Performance and Diagnostic Advisor provides advice to help tune systems for optimal performance and is configured using the dmgr console or wsadmin. The Advisor uses PMI data to provide recommendations for performance tuning. Running in the JVM of the application server, this advisor periodically checks for inefficient settings, and issues recommendations as standard product warning messages. View these recommendations by clicking...

Enabling the Performance and Diagnostic Advisor has minimal system performance impact.

  1. Ensure that PMI is enabled, which is the default.

    The advisor enables the appropriate monitoring counter levels for all enabled advice when PMI is enabled.

  2. Go to...

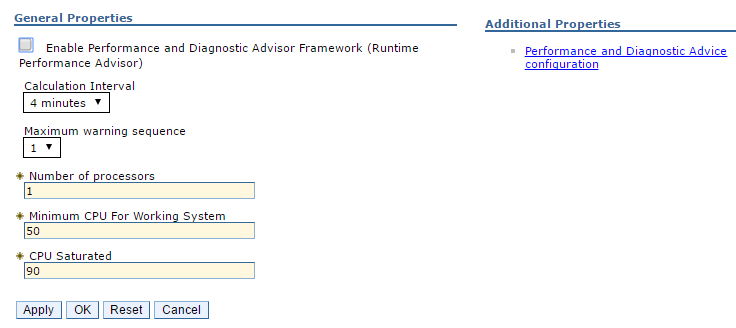

      Servers | Application servers | server_name | Performance and Diagnostic Advisor Configuration

  3. Specify the number of processors on the server...

    This setting is critical to ensure accurate advice for the specific configuration of the system.

  4. Select the Calculation Interval.

    PMI data is taken over time and averaged to provide advice. The calculation interval specifies the length of time over which data is taken for this advice. Therefore, details within the advice messages display as averages over this interval.

  5. Select the Maximum Warning Sequence

    Maximum warning sequence refers to the number of consecutive warnings issued before the threshold is updated. For example, if the maximum warning sequence is set to 3, then the advisor sends only three warnings, to indicate the prepared statement cache is overflowing. After three warnings, a new alert is issued only if the rate of discards exceeds the new threshold setting.

  6. Specify Minimum CPU for Working System.

    Minimum central processing unit (CPU) for a working system refers to the CPU level that indicates an application server is under production load. Or, to tune the application server for peak production loads that range from 50-90% CPU utilization, set this value to 50. If the CPU is below this value, some diagnostic and performance advice are still issued. For example, regardless of the CPU level if you are discarding prepared statements at a high rate, you are notified.

  7. Specify CPU Saturated.

    The CPU saturated level indicates at what level the CPU is considered fully utilized. The level determines when concurrency rules no longer increase thread pools or other resources, even if they are fully utilized.

  8. Click...

      Apply | Save | server_name | Performance and Diagnostic Advisor Configuration | Runtime tab | Restart

    Select Restart on the Runtime tab to reinitialize the advisor using the last configuration information that is saved to disk.

    This action also resets the state of the advisor. For example, the current warning count is reset to zero (0) for each message.

  9. Simulate a production level load.

    If we use the advisor in a test environment, do any other tuning for performance, or simulate a realistic production load for the application. The application must run this load without errors. This simulation includes numbers of concurrent users typical of peak periods, and drives system resources, for example, CPU and memory, to the levels that are expected in production. The advisor provides advice when CPU utilization exceeds a sufficiently high level only. For a list of IBM business partners that provide tools to drive this type of load, see the performance: resource for learning information.

  10. Select the check box to enable the Performance and Diagnostic Advisor.

    To achieve the best results for performance tuning, enable the advisor when a stable production-level load is applied.

  11. Click OK.

  12. Select Runtime Warnings in the dmgr console under the Runtime Messages in the Status panel or look in the SystemOut.log file, located in the following directory:

    Some messages are not issued immediately.

  13. Update the product configuration for improved performance, based on advice.

    Although the performance advisors attempt to distinguish between loaded and idle conditions, misleading advice might be issued if the advisor is enabled while the system is ramping up or down. This result is especially likely when running short tests. Although the advice helps in most configurations, there might be situations where the advice hinders performance. Because of these conditions, advice is not guaranteed. Therefore, test the environment with the updated configuration to ensure that it functions and performs better than the previous configuration.

    Over time, the advisor might issue differing advice. The differing advice is due to load fluctuations and the runtime state. When differing advice is received, you need to look at all advice and the time period over which it is issued. Advice is taken during the time that most closely represents the peak production load.

    Performance tuning is an iterative process. After applying advice, simulate a production load, update the configuration based on the advice, and retest for improved performance. This procedure is continued until optimal performance is achieved.

We can enable and disable advice in the Advice Configuration panel. Some advice applies only to certain configurations, and can be enabled only for those configurations. For example, unbounded Object Request Broker (ORB) service thread pool advice is only relevant when the ORB service thread pool is unbounded, and can only be enabled when the ORB thread pool is unbounded.

IBM recommends using the HPEL log and trace infrastructure. With HPEL, one views logs using the LogViewer command-line tool in PROFILE/bin.
