Pass message payload by reference: Usage scenarios and example code for forwarding applications
A JMS forwarder application receives a message (through a connection factory, or if it is a message-driven bean through an activation specification), then sends the message object on to another destination. Explore the different usage scenarios, then code the JMS forwarding applications so that we can safely pass message payloads by reference when forwarding messages from one queue to another within a single server.
When large object messages or bytes messages are sent, the cost in memory and processor use of serializing, deserializing, and copying the message payload can be significant. If we enable the pass message payload by reference properties on a connection factory or activation specification, you tell the default messaging provider to override the JMS 1.1 specification and potentially reduce or bypass this data copying.

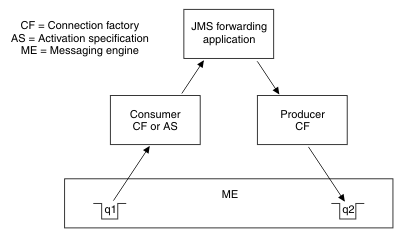

In the following figure, messages pass from queue1 on a messaging engine, through a consumer activation specification or connection factory, to a JMS forwarding application. They are then forwarded through a producer connection factory to queue2 on the same messaging engine.
CAUTION:
The parts of the JMS Specification that are bypassed by these properties are defined to ensure message data integrity. Any of the JMS applications that use these properties must strictly follow the rules described or you risk losing data integrity.
Figure 1. Forwarding messages
To understand the usage scenarios and associated example code given in this topic, you must note these important characteristics of a JMS forwarding application:
- A forwarding application does not replace the message object. This is useful if the application is just logging or otherwise recording (for example, printing out) the message before forwarding it, and also means that the forwarded message retains some useful message properties such as the JMSCorrelationID, JMSReplyTo and JMSType properties.
- A forwarding application can modify or replace the message payload. If it replaces the payload, it sets the new payload in the message object and changes the payload reference to point to the new message payload.
- For a forwarding application, the forwarded message is "created" and configured by the consumer connection factory or activation specification. The producer connection factory is used solely to route the forwarded message and has no effect upon the contents of the forwarded message.
The following table describes the four forwarding application usage scenarios that affect how set the "pass message payload by reference" properties. Note that, because the producer connection factory has no effect upon the contents of the forwarded message, you set both the consumer properties and the producer/forwarder properties on the consumer connection factory or activation specification.
payload by reference" property settings on the forwarding application usage scenarios. The first column of the table lists the four forwarding application usage scenarios. The second column indicates the consumer property setting for the scenarios. The third column indicates the connection or the activation specification property
Forwarding application usage scenario consumerDoesNotModify
PayloadAfterGet property settingproducerDoesNotModify
PayloadAfterSet (for connection factories) orforwarderDoesNotModify
PayloadAfterSet (for activation specifications) property settingScenario 1: The application receives a message, looks at the payload but does not modify it, and forwards the message on without modifying or replacing the payload. Enabled Not required, but can be enabled Scenario 2: The application receives a message, looks at the payload but does not modify it, replaces the payload in the message with a new payload and forwards the message on without modifying the payload after the call to set it into the message. Enabled Enabled Scenario 3: The application receives a message, looks at and modifies the payload, then sets the modified payload or some other data back into the message and forwards the message on without further modifying the payload after the call to set it into the message. NOT enabled Enabled Scenario 4: The application receives a message, looks at and modifies the payload, then sets the modified payload or some other data back into the message, then further modifies the payload after the call to set it into the message. NOT enabled NOT enabled For scenarios 1, 2 and 3 we can enable one or more of the "pass message payload by reference" properties, provided that the forwarding application can guarantee to behave as described in the scenario. To help you achieve this, here is some example code that we can adapt for use in the applications.
Forwarding application: scenario 1
The application receives a message, looks at the payload but does not modify it, and forwards the message on without modifying or replacing the payload.
public void onMessage (Message message) { ObjectMessage oMessage = (ObjectMessage) message; DataObject data = oMessage.getObject(); System.out.print(data.getXXX()); System.out.print(data.getYYY()); // get a session to forward on the received message producer.send(message); session.close(); }
Forwarding application: scenario 2
The application receives a message, looks at the payload but does not modify it, replaces the payload in the message with a new payload and forwards the message on without modifying the payload after the call to set it into the message.
public void onMessage (Message message) { ObjectMessage oMessage = (ObjectMessage) message; DataObject data = oMessage.getObject(); System.out.print(data.getXXX()); System.out.print(data.getYYY()); // get a session to forward on the received message message.setObject(newData); producer.send(message); session.close(); }For bytes messages, the application must also guarantee to write only a single full byte array into the message.byte [] data = myByteData; BytesMessage message = session.createBytesMessage(); message.writeBytes(data); data = null; producer.send(message);
Forwarding application: scenario 3
The application receives a message, looks at and modifies the payload, then sets the modified payload or some other data back into the message and forwards the message on without further modifying the payload after the call to set it into the message.
public void onMessage (Message message) { ObjectMessage oMessage = (ObjectMessage) message; DataObject data = oMessage.getObject(); System.out.print(data.getXXX()); System.out.print(data.getYYY()); // get a session to forward on the received message data.setXXX(xxx); data.setYYY(yyy); message.setObject(data); producer.send(message); session.close(); }For bytes messages, the application must also guarantee to write only a single full byte array into the message.byte [] data = myByteData; BytesMessage message = session.createBytesMessage(); message.writeBytes(data); data = null; producer.send(message);
