Configure core group communication using a proxy peer access point

Use this task to configure communication between two core groups when they cannot communicate with each other directly through peer ports.

Configure a proxy peer access point to communicate with a core group if we cannot use peer ports. Use a core group that has configured a peer access point with peer ports to the core group to communicate with. Before completing this task, make sure that we have access to a core group that can communicate with the core group that we cannot communicate with directly.

Use a proxy peer to communicate with a core group that we cannot access directly. This task describes how to configure a proxy peer with three core groups that are each in different cells. The core_group_x and core_group_y core groups can communicate directly with each other through peer ports. The core_group_y and core_group_z core groups can also communicate with each other though peer ports. However, the core_group_x core group cannot communicate with the core_group_z core group. To establish that communication, the core_group_x core group has a peer access point that is a proxy peer. The proxy peer is the peer access point to the core_group_y core group.

Complete the following actions to configure core group communication using a proxy peer access point.

1. Configure the core_group_x and core_group_y core groups to communicate with each other by creating an access point group.

2. Configure the core_group_y and core_group_z core groups to communicate with each other by creating another access point group.

   When you do this step, create a second access point group in cell 2. The core_group_2 core group communicates with both the cell_x and cell_z cells over two different networks.

3. Configure a peer access point that has a proxy peer. Create a new peer access point in the access point group created between the core_group_x and core_group_y core groups.

   1. In the console, click Servers > Core Groups > Core group bridge settings > Access point groups > access_point_group_name > Peer access points. Create a new peer access point, or select an existing access point.

   2. Enter a unique name for the peer access point. For the other cell, core group, and core group access point values, use the properties of thecore_group_z core group.

   3. Click Use a proxy peer access point. Select the proxy peer access point that is the peer access point created in the cell_x cell that refers to the core group access point in the cell_y cell.

Results

The core_group_x core group can communicate with the core_group_z core group by using a proxy peer.

Example

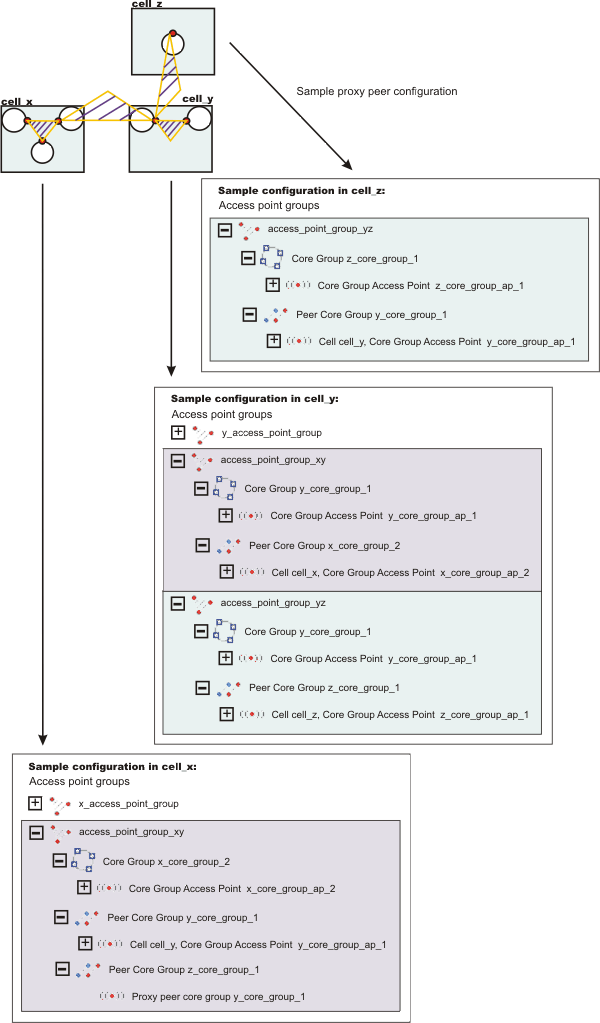

The following example shows the configurations in each cell when you configure communication between the cell_x and cell_z cells using a proxy peer access point:

Figure 1. Example proxy peer configuration

What to do next

By completing this task, you enabled one-way communication between the core_group_x and core_group_z core groups. To configure communication both ways, you must repeat these steps, configuring a peer access point in the core_group_z core group containing a proxy peer.
