Server cluster settings
To set the configuration of a server cluster instance, and to view the local topology of a server cluster instance.
To change the configuration and local topology of a server cluster, in the admin console click...
Servers | Clusters | Clusters >mycluster

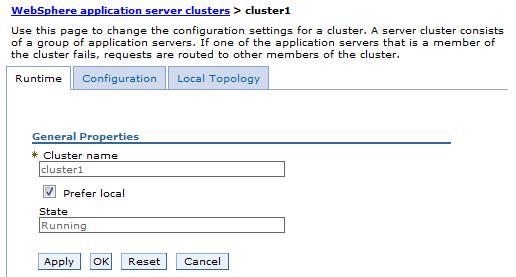

To view runtime information, such as the state of the server cluster, click...
Servers | Clusters | WebSphere application server clusters | cluster_name | Runtime tab
To display the topology of a specific cluster, click...
Servers | Clusters | WebSphere application server clusters | cluster_name | Local Topology tab
Static route table notes
If the high availability infrastructure is disabled and you require IIOP routing capabilities, enable static routing for the cluster to create a static route table.
Because the information contained in the static route table does not account for server runtime state, you should only use this option if the high availability infrastructure is disabled.
Use of a static route table preempts the use of the dynamic routing table contained in cluster members. After the static file is transferred to a node, whenever a cluster member residing in that node starts, that cluster member uses the static table instead of the dynamic table to handle IIOP routing. If a cluster member is running when you create the static route table, then restart that cluster member to give that cluster member access to the static route table information, because the table content is loaded at run time.
After the table is created, an informational message, similar to the following message, is issued that indicates the name of the file that contains the table and where that file is located:
The route table for cluster MyCluster was exported to file /home/myInstall/was/server/profiles/dmgrProfile/config/cells/MyCell/clusters/Myfile.wsrttbl
As this message indicates, the file containing the static route table is placed in the config directory of the dmgr for this cluster. Keep a record of this location so that we can delete this file when we are ready to start using dynamic routing again.
If we set up a static route table, then statically set the ORB_LISTENER_ADDRESS port on each of the cluster members because the route table is static, and the cluster members do not communicate during state changes. If this port is not assigned, then the cluster members restart on different ports, and the static routing information is not able to route requests to the cluster members.
Cluster Settings
- Cluster name
- Logical name for the cluster. The name must be unique among clusters within the containing cell.
- Short name
- Short name for this cluster. This field displays only if we are running on z/OS.
The short name is used as the WLM APPLENV name for all servers that are part of this cluster.
If we specify a short name for a cluster member, the name:
- Must be one to eight characters in length
- Must contain only uppercase alphanumeric characters
- Cannot start with a number
- Must be unique in the cell
If we do not specify a short name, then the system assigns a default short name that is automatically unique within the cell. We can change the generated short name to conform with the naming conventions.
- Bounding node group name
- Node group that forms the boundaries for this cluster. All appservers that are members of a cluster must be on nodes that are members of the same node group.
A node group is a collection of appserver nodes. A node is a logical grouping of managed servers, usually on a system that has a distinct IP host address. All appservers that are members of a cluster must be on nodes that are members of the same node group. Nodes that are organized into a node group need enough capabilities in common to ensure that clusters formed across the nodes in the node group can host the same application in each cluster member. A node must be a member of at least one node group and can be a member of more than one node group.
Create and manage node groups by clicking...
System administration | Node groups
- Prefer local
-
The host scoped routing optimization is enabled or disabled. The default is enabled, which means that, when possible, enterprise bean requests are routed to the client host. Enabling this setting improves performance because client requests are sent to local enterprise beans.
Data type Boolean Default true - Enable failover of transaction log recovery
- For the transaction service component, failover of the transaction log for recovery purposes is enabled or disabled. The default is disabled.
When this setting is enabled, and the transaction service properties required for peer recovery of failed appservers in a cluster are properly configured, failover recovery of the transaction log occurs if the server processing the transaction log fails. If the transaction services properties required for peer recovery of failed appservers in a cluster are not properly configured, then this setting is ignored.
- wlcID
- Currently registered workload controller (WLC) identifier for the cluster. This setting might not display for all configurations.
Data type String - State
- Whether the cluster is stopped, starting, or running.
If all cluster members are stopped, the cluster state is stopped. After you request to start a cluster, the cluster state briefly changes to starting and each server that is a member of that cluster launches, if it is not already running. When the first member launches, the state changes to websphere.cluster.partial.start. The state remains partially started until all cluster members are running, then the state changes to running. Similarly, when stopping a cluster, the state changes to partially stopped as the first member stops and changes to stopped when all members are not running.
Valid values starting, partially started, running, partially stopped, or stopped.
