Run a self diagnostic on a Diagnostic Provider



+

Search Tips   |   Advanced Search



Overview

You can check the status of server runtime components with predefined tests that can be associated with a Diagnostic Provider. Use the console to access these functions.

You must have sufficient authority to execute the action.

You can access a list of predefined diagnostic tests that you can use to check the status of a server runtime component. Runtime components that have associated diagnostic providers can include their DPID) in their log entries. If you know the DPID, you can enter it directly in the quick link text box. Otherwise, navigate to the desired process by using the tree view displayed at the bottom of the panel.



Procedure

  1. Start the administration console and select...

    Troubleshooting | Diagnostic Provider | Tests

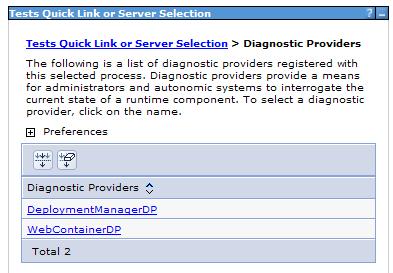

  2. Either directly enter a Diagnostic Provider ID in the Quick link using diagnostic provider ID text box, or select a process (cluster / node / server) from the available processes displayed in the Server selection topology section.

  3. Select the desired self diagnostic test. For example...

  4. Read the output messages from the self diagnostic test.

  5. Select a self diagnostic test message by clicking on it. The console displays a panel with the attributes related to the message you chose.





Tests Quick Link or Server Selection
Test selection
Test Results
Test result details



Related information


Diagnostic Providers (selection)
