Log and trace settings
To set log and trace settings, in the console, click...

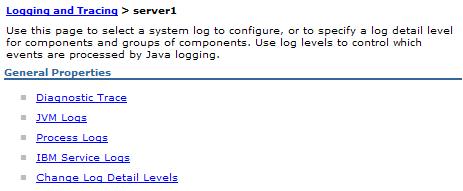

Troubleshooting | Logs and Trace | server_name
...where...
- Diagnostic Trace
- The diagnostic trace configuration settings for a server process determine the initial trace state for a server process. The configuration settings are read at server startup and used to configure the trace service. You can also change many of the trace service properties or settings while the server process is running.
- JVM Logs
- The JVM logs are created by redirecting the System.out and System.err streams of the JVM to independent log files. WAS writes formatted messages to the System.out stream. In addition, applications and other code can write to these streams using the print() and println() methods defined by the streams.
- Process Logs
- WAS processes contain two output streams that are accessible to native code running in the process. These streams are the stdout and stderr streams. Native code, JVMs, might write data to these process streams. In addition, JVM provided System.out and System.err streams can be configured to write their data to these streams also.
- IBM Service Logs
The IBM service log contains both the WAS messages that are written to the System.out stream and some special messages that contain extended service information that is normally not of interest, but can be important when analyzing problems. There is one service log for all WAS JVMs on a node, including all appservers. The IBM Service log is maintained in a binary format and requires a special tool to view. This viewer, the Log and Trace Analyzer, provides additional diagnostic capabilities. In addition, the binary format provides capabilities that are utilized by IBM support organizations.
- Change Log Level Details
- Enter a log detail level that specifies the components, packages, or groups to trace. The log detail level string must conform to the specific grammar described in this topic. You can enter the log detail level string directly, or generate it using the graphical trace interface.
