Defining a link station



  1. From the Communications Server for Linux main menu, click Services —> Connectivity —> New link station. The following window opens.

  2. Set Link station to to MQPORT.

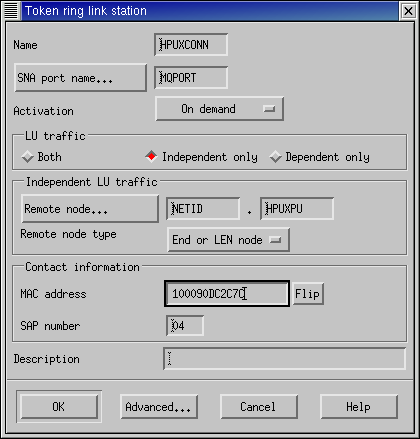

  3. Click OK. The "Token ring link station" window opens.

  4. In the Name field, type the name of the link station (12).

  5. Set Activation to On demand.

  6. Select the Independent only check box.

  7. Click Remote node, select the network qualified name of the control point at the remote node (13.14) from the list that is displayed, and click OK.

  8. Set Remote node type to End or LEN node.

  9. In the MAC address field, type the MAC address (19) of the network adapter card at the remote node.

  10. Click Advanced. The "Token ring link station parameters" window opens.

  11. Select the Request CP-CP sessions check box.

  12. Select the Reactivate link station after failure check box.

  13. Click OK to exit the "Token ring link station parameters" window.

  14. Click OK to exit the "Token ring link station" window.
