Defining a link station



  1. From the main SNAP-IX menu, click Connectivity and dependent LUs.

  2. Click the MQPORT port.

  3. Click Add. The following panel is displayed:

  4. Select the Add link station to port MQPORT check box.

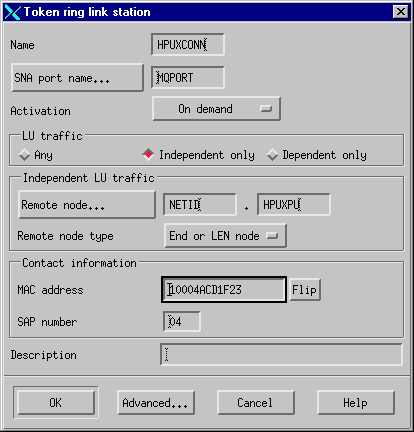

  5. Click OK. The following panel is displayed:

  6. Type the Name of the link station (12).

  7. Set the value of Activation to “On demand”.

  8. Select the Independent only check box.

  9. Click Remote node and select the value of the remote node (14).

  10. Click OK.

  11. Set the value of Remote node type to “End or LEN node”.

  12. Type the value for MAC address (19) and click Advanced. The following panel is displayed:

  13. Select the Request CP-CP sessions. check box

  14. Select the Reactivate link station after failure. check box

  15. Click OK to exit the Advanced panel.

  16. Click OK again.
