Configure the local node



To configure the local node, follow these steps:

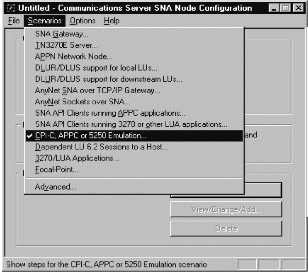

1. From the Scenarios pull-down of the Communications Server SNA Node Configuration window, select the CPI-C, APPC or 5250 Emulation scenario.



   The CPI-C, APPC or 5250 Emulation scenario window is displayed.

2. Click on Configure Node, then click on New. The Define the Node property sheet is displayed.



3. In the Fully qualified CP name field on the Basic page, enter the unique ID of the network to which you are connected (2) and the control point name (3). Click on OK to continue.

4. From the SNA Node Configuration window, click on Configure Local LU 6.2, then click on New. The Define a Local LU 6.2 window is displayed.



5. In the Local LU name field on the Basic page, enter the name of the LU on your workstation (5). In the Local LU alias field, enter the name by which your local LU will be known to your applications (6). Click on OK to continue.



Parent topic:

Establishing an LU 6.2 connection
