Tips for using Page Detailer

Here are a few helpful tips to analyze the performance data shown by Page Detailer. A sample analysis, with comments, is shown in Figure 17-28.

Figure 17-28 Page Detailer Sample Analysis A summary of above information and the meaning of each icon and color can be obtained by using the menu View -> Legend. This displays the window shown in Figure 17-29.

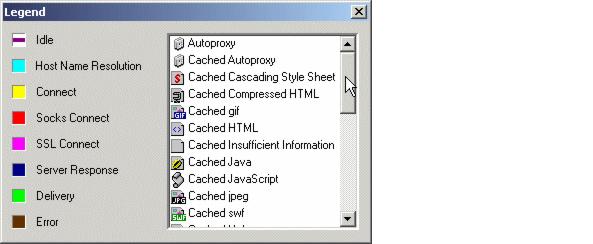

Figure 17-29 Page Detailer Legend Use a separate browser instance to collect data from related Web pages in one file. This allows for easy retrieval of performance data of related Web pages for comparison. Please note that you can save your work only in the Pro version of the Page Detailer. You can select the columns to display in the Details view from the context menu (obtained by right-clicking). You can also choose to display the column as a graph if it contains a numerical value. You can move the vertical bar and make room to add new columns on the left hand side of the window as shown in the Figure 17-30 and Figure 17-31.

Figure 17-30 Moving the separator and adding a new column

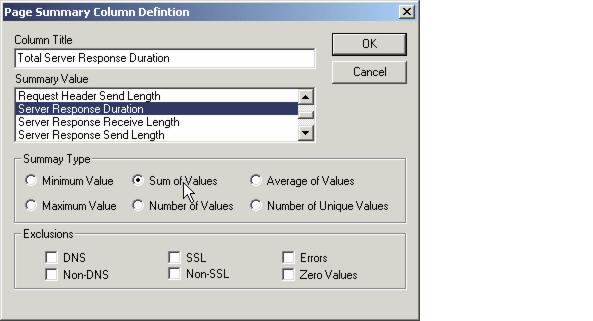

Figure 17-31 Column Definition
