Refresh to see all settings



For the QCF, TCF and MDB's methods, the required settings will only appear in the viewer once they have been used at least once. Take a look at the example in Figure 15-27. This is part of a screen that shows the available monitors panel within Tivoli Performance Viewer.

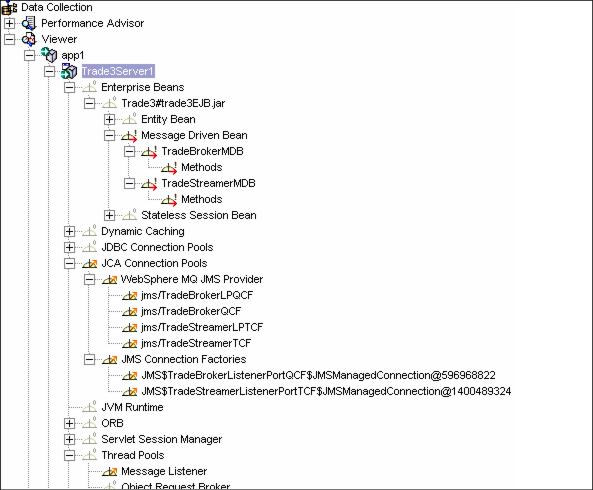

Figure 15-27 The settings prior to refreshing

This is using the Trade3 example again. Upon startup of the appserver the monitors were initialized. Tivoli Performance Viewer was opened but some of the information does not appear to be available. For example, the methods under TradeBrokerMDB are empty. This is because at the stage when the monitors were last updated for this Tivoli Performance Viewer session, no methods had been run on that EJB. To start seeing this information, run the code that will launch the MDB, so in this case use the PingServletToMDBQueue Servlet. Refresh the view.

If you now right-click the methods tag underneath TradeBrokerMDB, the methods will appear, as is shown in Figure 15-28.

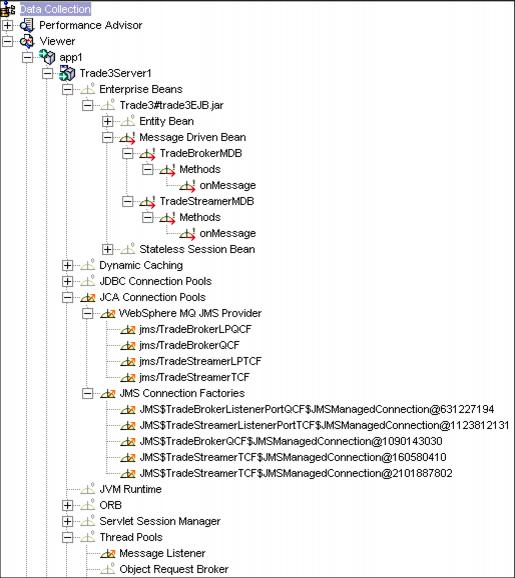

Figure 15-28 The view after execution of the code and a refresh of the monitors
