Defining the client-connection channel on the server
Having defined the server-connection channel, you now define the corresponding client-connection channel.
Before starting
Define the server-connection channel.Procedure
-

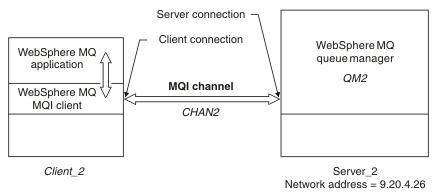

Define a channel with the same name as the server-connection channel, but a channel type of client-connection. We must state the connection name (CONNAME). For TCP/IP, the connection name is the network address or host name of the server machine. It is also advisable to specify the queue manager name (QMNAME) to which we want the IBM MQ application, running in the client environment, to connect. By varying the queue manager name, we can define a set of channels to connect to different queue managers.
DEFINE CHANNEL(CHAN2) CHLTYPE(CLNTCONN) TRPTYPE(TCP) + CONNAME(9.20.4.26) QMNAME(QM2) DESCR('Client-connection to Server_2') -
Use the following command to allow the inbound connect access to your queue manager:
SET CHLAUTH(CHAN2) TYPE(ADDRESSMAP) ADDRESS('IP-address') MCAUSER('userid')- Where SET CHLAUTH uses the name of the channel defined in the previous step.
- Where 'IP address' is the IP address of the client.
- Where 'userid' is the ID we want to provide to the channel for access control to the target queues. This field is case-sensitive.
We can choose to identify your inbound connection using a number of different attributes. The example uses IP address. Alternative attributes include client user ID and TLS Subject Distinguished Name. For more information, see Channel authentication records
Results
On Multiplatforms, this channel definition is stored in a file called the client channel definition table (CCDT), which is associated with the queue manager. The client channel definition table can contain more than one client-connection channel definition. For more information about the client channel definition table, and for the corresponding information about how client-connection channel definitions are stored on z/OS, see Configure a binary format CCDT.
