Endpoint Lookup mediation primitive
Use the Endpoint Lookup mediation primitive to dynamically route messages to appropriate service endpoints. The Endpoint Lookup searches for service information in a WSRR registry.
You can use the Endpoint Lookup mediation primitive to retrieve service endpoint information from a WSRR registry that can be local or remote. The service endpoint information can relate directly to web services, or to SCA module exports, or to manually defined MQ, JMS and HTTP services.
In order to use the Endpoint Lookup mediation primitive you need to add service endpoint information to your WSRR registry.
- If you want to extract service endpoint information about web services, your WSRR registry must contain either the appropriate WSDL documents, or SCA modules that contain exports using web service bindings.
- If you want to extract service endpoint information about exports that use the other SCA bindings, your WSRR registry must contain the appropriate SCA modules.
- If you want to extract service endpoint information about services that are accessed using MQ, JMS or HTTP but are not defined in a SCA module, your WSRR registry must contain an appropriate "Manual JMS/HTTP/MQ endpoint with associated Interface" Business Object with the endpoint information and associated interface correctly set.
The Endpoint Lookup mediation primitive lets you retrieve service endpoint information that relates to the following:
- Web services using SOAP/HTTP.
- Web services using SOAP/JMS.
- SCA module exports with web service bindings, using SOAP/HTTP.
- SCA module exports with web service bindings, using SOAP/JMS.
- SCA module exports with the default SCA binding.
- SCA module exports with the MQ binding.
- SCA module exports with the MQ JMS binding.
- SCA module exports with the JMS binding.
- SCA module exports with the Generic JMS binding.
- SCA module exports with the HTTP binding.
- Manually defined MQ endpoints with associated interfaces.
- Manually defined JMS endpoints with associated interfaces.
- Manually defined HTTP endpoints with associated interfaces.
When the Endpoint Lookup mediation primitive receives a message it sends a search query to the registry. The search query is constructed using the Endpoint Lookup properties that you specify and the query might return nothing, or it might return one or more service endpoints.
The Endpoint Lookup primitive will update the target structure in the SMO header with the first service endpoint. The Endpoint Lookup primitive will then update the alternative target list with the remaining service endpoints.
Example scenario
Figure 1. Endpoint Lookup within a mediation flow

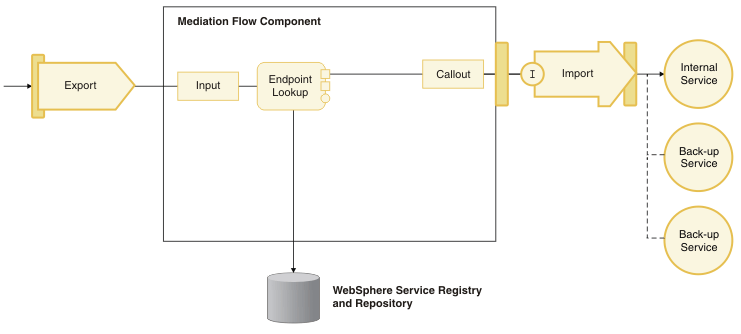

The fictional company Personal Holidays is making an internal service available to external clients using a mediation flow. If the server that runs the internal service fails, one or more back up servers which are also hosting the internal service are called instead, as shown in Figure 1.
The scenario is implemented by registering the service endpoints of the main server and the back up servers in WSRR. Personal Holidays then use the Endpoint Lookup Primitive to retrieve all of the endpoints from WSRR. Figure 2 shows the Endpoint Lookup mediation primitive's properties.
Figure 2. Endpoint Lookup mediation primitive properties

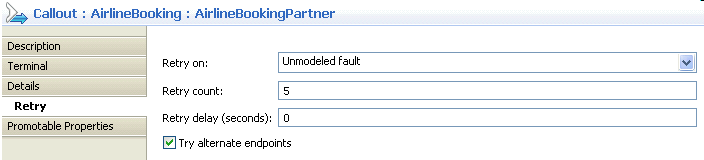

Personal Holidays also set the Try alternate endpoints property on the Callout node to try the main server endpoint first. If that fails, the Callout node will retry the call using the service endpoint information for the back up servers. The Callout node properties are shown in Figure 3 .
Figure 3. Try alternate endpoint property of the Callout node
By storing the service endpoints in WSRR, Personal Holidays can update their back up services at any time, without needing to modify the mediation flow component.
