SSL: AnIntroduction

Secure Sockets Layer (SSL) provides secure connections by allowing two applications connecting over a network connection to authenticate the other's identity and by encrypting the data exchanged between the applications. Authentication allows a server and optionally a client to verify the identity of the application on the other end of a network connection. Encryption makes data transmitted over the network intelligible only to the intended recipient.
SSL in WebLogic Server is an implementation of the SSL 3.0 and Transport Layer Security (TLS) 1.0 specifications.
WebLogic Server supports SSL on a dedicated listen port which defaults to 7002. To establish an SSL connection, a Web browser connects to WebLogic Server by supplying the SSL listen port and the HTTPs schema in the connection URL, for example, https://myserver:7002.
Using SSL is computationally intensive and adds overhead to a connection. Avoid using SSL in development environments when it is not necessary. However, always use SSL in a production environment.

Private Keys, Digital Certificates, and Trusted Certificate Authorities

Private keys, digital certificates, and trusted certificate authorities establish and verify server identity.
SSL uses public key encryption technology for authentication. With public key encryption, a public key and a private key are generated for a server. The keys are related such that data encrypted with the public key can only be decrypted using the corresponding private key and vice versa. The private key is carefully protected so that only the owner can decrypt messages that were encrypted using the public key.
The public key is embedded into a digital certificate with additional information describing the owner of the public key, such as name, street address, and e-mail address. A private key and digital certificate provide identity for the server.
The data embedded in a digital certificate is verified by a certificate authority and digitally signed with the certificate authority's digital certificate. Well-know certificate authorities include Verisign and Entrust.net. The trusted certificate authority (CA) certificate establishes trust for a certificate.
An application participating in an SSL connection is authenticated when the other party evaluates and accepts the application's digital certificate. Web browsers, servers, and other SSL-enabled applications generally accept as genuine any digital certificate that is signed by a trusted certificate authority and is otherwise valid. For example, a digital certificate can be invalidated because it has expired or the digital certificate of the certificate authority used to sign it expired. A server certificate can be invalidated if the host name in the digital certificate of the server does not match the URL specified by the client.

One-Way an and Two-Way SSL

SSL can be configured one-way or two-way:

With one-way SSL, the server is required to present a certificate to the client but the client is not required to present a certificate to the server. To successfully negotiate an SSL connection, the client must authenticate the server but the server will accept any client into the connection. One-way SSL is common on the Internet where customers want to create secure connections before they share personal data. Often, clients will also use SSL to log on so that the server can authenticate them.
With two-way SSL, the server presents a certificate to the client and the client presents a certificate to the server. WebLogic Server can be configured to require clients to submit valid and trusted certificates before completing the SSL connection.

Setting Up SSL: Main Steps

To set up SSL:

Obtain an identity (private key and digital certificates) and trust (certificates of trusted certificate authorities) for WebLogic Server. Use the digital certificates, private keys, and trusted CA certificates provided by the WebLogic Server kit, the Cert Gen utility, Sun Microsystem's keytool utility, or a reputable vendor such as Entrust or Verisign to perform this step.
Store the private keys, digital certificates, and trusted CA certificates. Private keys and trusted CA certificates are stored in a keystore.

Note: This release of WebLogic Server supports private keys and trusted CA certificates stored in files, or in the WebLogic Keystore provider for the purpose of backward compatibility only.

Configure the Identity and Trust keystores for WebLogic Server in the WebLogic Server Administration Console.
Set SSL attributes for the private key alias and password in the WebLogic Server Administration Console. Optionally, set attributes that require the presentation of client certificates (for two-way SSL).

See also:

Obtaining Private Keys, Digital Certificates, and Trusted Certificate Authorities
Storing Private Keys, Digital Certificates, and Trusted Certificate Authorities
Configure Keystores
Configure SSL
Configure Two-Way SSL

Obtaining Private Keys, Digital Certificates, and Trusted Certificate Authorities

To use SSL, the server needs a private key, a digital certificate containing the matching public key, and a certificate for at least one trusted certificate authority. WebLogic Server supports private keys, digital certificates, and trusted CA certificates from the following sources:

The demonstration digital certificates, private keys, and trusted CA certificates in the WL_HOME\server\lib directory.
The demonstration digital certificates, private keys, and trusted CA certificates should be used in a development environment only.
Sun Microsystem's keytool utility can also be used to generate a private key, a self-signed digital certificate for WebLogic Server, and a Certificate Signing Request (CSR). Submit the CSR to a certificate authority to obtain a digital certificate for WebLogic Server. Use keytool to update the self-signed digital certificate with a new digital certificate. Use the keytool utility to obtain trust and identity when using WebLogic Server in a production environment.
Note: WebLogic Server does not support the use of the Digital Signature Algorithm (DSA). When using the keytool utility, the default key pair generation algorithm is DSA. Specify another key pair generation and signature algorithm when using WebLogic Server.
The Cert Gen utility generates digital certificates and private keys that should be used only for demonstration or testing purposes and not in a production environment. Use the Cert Gen utility if you want to set an expiration date in the digital certificate or specify a correct host name in the digital certificate so that you can use host name verification. (The demonstration digital certificate provided by WebLogic Server uses the machine's default host name as the host name.)
Note that the Certificate Request Generator servlet is deprecated in this release of WebLogic Server. Use the keytool utility from Sun Microsystems in place of the Certificate Request Generator servlet.
When using the deprecated file-based private keys, digital certificates, and trusted CA, WebLogic Server can use digital certificates in either privacy-enhanced mail (PEM) or distinguished encoding rules (DER) format.
A .pem format file begins with this line:
----BEGIN CERTIFICATE----
and ends with this line:
----END CERTIFICATE----
A .pem format file supports multiple digital certificates (for example, a certificate chain can be included). The order is important (include the files in the order of trust). The server digital certificate should be the first digital certificate in the file. The issuer of that digital certificate should be the next file and so on until you get to the self-signed root certificate authority certificate.
A .der format file contains binary data. A .der file can be used only for a single certificate, while a .pem file can be used for multiple certificates.
Microsoft is often used as a certificate authority. Microsoft issues trusted CA certificates in p7b format. The trusted CA certificates must be converted to PEM before they can be used with WebLogic Server.
Private key files (meaning private keys not stored in a keystore) must be in PKCS#5/PKCS#8 PEM format.

Using the Cert Gen Utility
Note that the Cert Gen utility generates digital certificates and private keys that should only be used for demonstration or testing purposes and not in a production environment.
The CertGen utility creates a private key and digital certificate signed by the demonstration certificate authority (CertGenCAB). The digital certificates generated by the Cert Gen utility have the host name of the machine on which they were generated as the common name. Therefore, if you use host name verification, generate a digital certificate for every machine on which you wish to use SSL.
The CertGen utility generates two .pem files and two .der files. View the .der files in a Web browser to view the details of the generated digital certificate. Use the .pem files when you boot WebLogic Server or use the digital certificates with a client.
To generate a certificate:

Copy the following files to the directory in which you run the CertGen utility:

$WL_HOME/server/lib\CertgenCA.der - The digital certificate for a certificate authority trusted by WebLogic Server.
$WL_HOME/server/lib\CertGenCAKey.der - The private key for a certificate authority trusted by WebLogic Server.

Enter the following command at a command prompt:
prompt> java utils.CertGen password certfile keyfile [export] [hostname] [genCA]
where

password is the password for the private key.
certfile is the name of the digital certificate file. The file is put in the working directory.
keyfile is the name of the generated private key file. The file is put in the working directory.
hostname is the name of the machine for which you are obtaining a digital certificate. This option allows you to use host name verification.
genCA create a trusted CA for demonstration purposes only.

Use theImportPrivateKey utility load the digital certificate and private key into a keystore.
By default, the CertGen tool generates domestic strength certificates. Specify the [export] option if you want the tool to generate export strength certificates. If you want to export domestic strength digital certificates that use a host name, specify [domestic].

The CertGen tool uses the JDK version 1.3 InetAddress.getLocalHost().getHostname() method to get the hostname it puts in the Subject common name. The getHostName() method works differently on different platforms. It returns a fully qualified domain name (FQDN) on some platforms (for example, Solaris) and a short host name on other platforms (for example, Windows NT). If WebLogic Server is acting as a client (and by default hostname verification is enabled), you need to ensure the hostname specified in the URL matches the Subject common name in the certificate. Otherwise, your connection fails because the host names do not match.
On Solaris, when you type hostname on the command line the server looks at the /etc/hosts file and gets a short host name. When you invoke java.net.InetAddress.getHostName(), the host goes to the /etc/nsswitch.conf file and depending on how the host is configured returns a FQDN or a short host name.
If the host entry is configured as:
hosts: dns nis [NOTFOUND=return]
The host performs a name service look up first and uses the information /etc/hosts file only if DNS is not available. In this case, a FQDN is returned.
If the host entry is configured as:
hosts: files dns nis [NOTFOUND=return]
The host goes to the /etc/hosts file first and then goes to DNS. In this case, a short hostname is returned.

Using Certificate Chains (Deprecated)
Note that the use of file-based certificate chains is deprecated in this release of WebLogic Server. Now the whole certificate chain is imported into a keystore. The steps in this section are provided for the purpose of backward compatibility only.
To use certificate chains with WebLogic Server:

Ensure that all the digital certificates are in PEM format. If they are in DER format, you can convert them using the utils.der2pem utility. If you are using a digital certificate issued by Microsoft, see Converting a Microsoft p7b Format to PEM Format. You can use the steps in "Converting a Microsoft p7b Format to PEM Format to convert other types of digital certificates. Save the digital certificate in Base 64 format.
Open a text editor and include all the digital certificate files into a single file. The order is important. The server digital certificate should be the first digital certificate in the file. The issuer of that digital certificate should be the next file and so on until you get to the self-signed root certificate authority certificate. This digital certificate should be the last certificate in the file.
You cannot have blank lines between digital certificates.
Specify the file in the Server Certificate File Name attribute in the SSL Configuration portion of the Keystores and SSL tab in the WebLogic Server Administration Console.

Listing 7-1 shows a sample certificate chain.
Listing 7-1 Sample File with Certificate Chain
-----BEGIN CERTIFICATE-----
MIICyzCCAjSgAwIBAgIBLDANBgkqhkiG9w0BAQQFADCBtjELMAkGA1UEBhMCVVMxEzARBgNVBAgTCkNhbGlmb3JuaWExFjAUBgNVBAcTDVNhbiBGcmFuY2lzY28xFTATBgNVBAoTDEJFQSBXZWJMb2dpYzERMA8GA1UECxMIU2VjdXJpdHkxLzAtBgNVBAMTJkRlbW8gQ2VydGlmaWNhdGUgQXV0aG9yaXR5IENvbnN0cmFpbnRzMR8wHQYJKoZIhvcNAQkBFhBzZWN1cml0eUBiZWEuY29tMB4XDTAyMTEwMTIwMDIxMloXDTA2MTAxNTIwMDIxMlowgZ8xCzAJBgNVBAYTAlVTMRMwEQYDVQQIEwpDYWxpZm9ybmlhMRYwFAYDVQQHEw1TYW4gRnJhbmNpc2NvMRUwEwYDVQQKEwxCRUEgV2ViTG9naWMxETAPBgNVBAsTCFNlY3VyaXR5MRkwFwYDVQQDExB3ZWJsb2dpYy5iZWEuY29tMR4wHAYJKoZIhvcNAQkBFg9zdXBwb3J0QGJlYS5jb20wgZ8wDQYJKoZIhvcNAQEBBQADgY0AMIGJAoGBAMJX8nKUgsFej8pEu/1IVcHUkwY0c2JbBzOryu3sce4QjX+rGxiCjoPm2MY=yts2BvonuJ6CztdZf8B/LBEWCz+qRrtdFn9mKSZWGvrAkmMPz2RhXEOThpoRo5kZz2FQ9XF/PxIJXTYCM7yooRBwXoKYjquRwiZNtUiU9kYi6Z3prAgMBAAEwDQYJKoZIhvcNAQEEBQADgYEAh3eqQGxEMUnNTwEUD
0tBq+7YuAkjecEocGXvi2G4YSoWVLgnVzJoJuds3c35KE6sxBe1luJQuQkE9SzALG/6lDIJ5ctPsHFmZzZxY7scLl6hWj5ON8oN2YTh5Jo/ryqjvnZvqiNIWe/gqr2GLIkajC0mz4un1LiYORPig3fBMH0=
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
MIIC+jCCAmOgAwIBAgIBADANBgkqhkiG9w0BAQQFADCBtjELMAkGA1UEBhMCVVMxEzARBgNVBAgTCkNhbGlmb3JuaWExFjAUBgNVBAcTDVNhbiBGcmFuY2lzY28xFTATBgNVBAoTDEJFQSBXZWJMb2dpYzERMA8GA1UECxMIU2VjdXJpdHkxLzAtBgNVBAMTJkRlbW8gQ2VydGlmaWNhdGUgQXV0aG9yaXR5IENvbnN0cmFpbnRzMR8wHQYJKoZIhvcNAQkBFhBzZWN1cml0eUBiZWEuY29tMB4XDTAyMTEwMTIwMDIxMVoXDTA2MTAxNjIwMDIxMVowgbYxCzAJBgNVBAYTAlVTMRMwEQYDVQQIEwpDYWxpZm9ybmlhMRYwFAYDVQQHEw1TYW4gRnJhbmNpc2NvMRUwEwYDVQQKEwxCRUEgV2ViTG9naWMxETAPBgNVBAsTCFNlY3VyaXR5MS8wLQYDVQQDEyZEZW1vIENlcnRpZmljYXRlIEF1dGhvcml0eSBDb25zdHJhaW50czEfMB0GCSqGSIb3DQEJARYQc2VjdXJpdHlAYmVhLmNvbTCBnzANBgkqhkiG9w0BAQEFAAOBjQAwgYkCgYEA3ynD8l5JfLob4g6d94dNtI0Eep6QNl9bblmswnrjIYz1BVjjRjNVal9fRs+8jvm85kIWlerKzIMJgiNsj50WlXzNX6orszggSsW15pqV0aYE9Re9K
CNNnORlsLjmRhuVxg9rJFEtjHMjrSYr2IDFhcdwPgIt0meWEVnKNObSFYcCAwEAAaMWMBQwEgYDVR0TAQH/BAgwBgEB/wIBATANBgkqhkiG9w0BAQQFAAOBgQBS+0oqWxGyqbZO028zf9tQT2RKojfuwywrDoGW96Un5IqpFnBHIu5atliJo3OUpiH18KkwLN8DVP/3t3K3O3kXdIuLbqAL0i5xyBlAhr7gE5eVhIyeMg7ETBPLyGO2BF13Y24LlsO+MX9jW7fxMraPN608QeJXkZw0E0cGwrw2AQ==
-----END CERTIFICATE-----

Converting a Microsoft p7b Format to PEM Format

Microsoft is often used as a certificate authority. The digital certificates issued by Microsoft are in a format (p7b) that cannot be used by WebLogic Server. To convert a digital certificate in p7b format to PEM format:

In Windows Explorer on Windows 2000, select the file (filename.p7b) you want to convert.
A Certificates window appears.
In the left pane of the Certificates window, expand the file you want to convert.
Select the Certificates option.
A list of certificates in the p7b file appear.
Select the certificate to convert to PEM format.
The Certificate Export wizard appears.
Click Next.
Select the Base64 Encoded Cert option (exports PEM formats).
Click Next.
Enter a name for the converted digital certificate.
Click Finish.

Note: For p7b certificate files that contain certificate chains, you need to concatenate the issuer PEM digital certificates to the certificate file. The resulting certificate file can be used by WebLogic Server.

Using Your Own Certificate Authority

Many companies act as their own certificate authority. To use those trusted CA certificates with WebLogic Server:

Ensure the trusted CA certificates are in PEM format.

If the trusted CA certificate is in DER format, use the utils.der2pem utility to convert them.
If the trusted CA certificate was issued by Microsoft, see Converting a Microsoft p7b Format to PEM Format.
If the trusted CA certificate has a custom file type, use the steps in Converting a Microsoft p7b Format to PEM Format to convert the trusted CA certificate to PEM format.

Create a Trust keystore.
Store the trusted CA certificate in the Trust keystore.
Configure WebLogic Server to use the Trust keystore.

Getting a Digital Certificate for a Web Browser

Low-security browser certificates are easy to acquire and can be done from within the Web browser, usually by selecting the Security menu item in Options or Preferences. Go to the Personal Certificates item and ask to obtain a new digital certificate. You will be asked for some information about yourself.
The digital certificate you receive contains public information, including your name and public key, and additional information you would like authenticated by a third party, such as your email address. Later you will present the digital certificate when authentication is requested.
As part of the process of acquiring a digital certificate, the Web browser generates a public-private key pair. The private key should remain secret. It is stored on the local file system and should never leave the Web browser's machine, to ensure that the process of acquiring a digital certificate is itself safe. With some browsers, the private key can be encrypted using a password, which is not stored. When you encrypt your private key, you will be asked by the Web browser for your password at least once per session.
Note: Digital certificates obtained from Web browsers do not work with other types of Web browsers or on different versions of the same Web browser.

StoringPrivate Keys, Digital Certificates, and Trusted Certificate Authorities

Once you have obtained private keys, digital certificates, and trusted CA certificates, you need to store them so that WebLogic Server can use them to find and verify identity. Private keys, their associated digital certificates, and trusted CA certificates are stored in keystores. The keystores can be configured through the WebLogic Server Administration Console or specified on the command-line. Use the Keystore Configuration section of the Keystores and SSL page of the WebLogic Server Administration Console to configure Identity and Trust keystores for WebLogic Server.
For the purpose of backward compatibility, private keys and trusted CA certificates can be stored in a file or in a JKS keystore accessed via the WebLogic Keystore provider. In addition, trusted CA certificates can be stored in a JKS keystore. Use the SSL Configuration section of the Keystores and SSL page of the WebLogic Server Administration Console to specify identity and trust attributes when using a file or a JKS keystore accessed via the WebLogic Keystore provider.

Configure Keystores
Configure SSL

Creating a Keystore and Loading Private Keys and Trusted Certificate Authorities into the Keystore

A keystore is a mechanism designed to create and manage private keys/digital certificate pairs and trusted CA certificates. Use the following mechanisms to create a keystore and load private keys and trusted CA certificates into the keystore:

The WebLogic ImportPrivateKey utility. The ImportPrivateKey utility allows you to take private key and digital certificate files and load them into a keystore.
Sun Microsystem's keytool utility. Use the keytool utility to generate a private key/digital certificate pair and then import the signed private key into the keystore. While you can use the keytool utility to generate new private keys and digital certificates and add them to a keystore, the utility does not allow you to take an existing private key from a file and import it into the keystore. Instead, use the WebLogic ImportPrivateKey utility. Note that the keytool utility does allow you to import trusted CA certificates in a file into a keystore.
Custom utilities. This release of WebLogic Server can use keystores created with custom tools or utilites. How to create and use these utilities is outside the scope of this document.

BEA recommends creating one keystore for identity (private key/digital certificate pairs) and another keystore for trust (trusted CA certificates). However, one keystore can be used for both identity and trust.
By default, WebLogic Server looks for an Identity keystore named DemoIdentity.jks in the WL_HOME\server\lib directory and Trust keystores named DemoTrust.jks in the WL_HOME\server\lib directory and cacerts in the JAVA_HOME\jre\lib\security directory.
All private key entries in a keystore are accessed by WebLogic Server via unique aliases. You specify the alias when loading the private key into the keystore. Aliases are case-insensitive; the aliases Hugo and hugo would refer to the same keystore entry. Aliases for private keys are specified in the Private Key Alias attribute when configuring SSL.
All certificate authorities in a keystore identified as trusted by WebLogic Server are trusted. Although WebLogic Server does not use the alias to access trusted CA certificates, the keystore does require an alias when loading a trusted CA certificate into the keystore.

Common Keytool Commands

Table 7-1 the keytool commands when creating and using JKS keystores with WebLogic Server. Note that the keytool utility is a product of Sun Microsytems. Therefore, BEA Systems does not provide complete documentation on the utility.

Command

Description
keytool -genkey -keystore keystorename -storepass keystorepassword Generates a new private key entry and self-signed digital certificate in a keystore. If the keystore does not exist, it is created.
keytool -import -alias aliasforprivatekey
-file privatekeyfilename.pem
-keypass privatekeypassword
-keystore keystorename -storepass keystorepassword Updates the self-signed digital certificate with one signed by a trusted CA.
keytool -import -alias aliasfortrustedca -trustcacerts -file trustedcafilename.pem -keystore keystorename -storepass keystorepassword Loads a trusted CA certificate into a keystore. If the keystore does not exist, it is created.
-certreq -alias alias
-sigalg sigalg
-file certreq_file
-keypass privatekeypassword
-storetype keystoretype
-keystore keystorename
-storepass keystorepassword Generates a CSR, using the PKCS#10 format.Sent the CSR to be sent to a trusted CA. The trusted CA authenticates the certificate requestor and returns a digital certificate to replace the existing self-signed digital certificate in the keystore.
keytool -list -keystore keystorename Displays what is in the keystore.
keytool -delete -keystore keystorename -storepass keystorepassword -alias privatekeyalias Delete a private key/digital certifcate pair for the specified alias from the keystore.
keytool -help Provides online help for keytool.

How WebLogic Server Locates Trust

WebLogic Server uses the following algorithm when it loads its trusted CA certificates:

If the keystore is specified by the -Dweblogic.security.SSL.trustedCAkeystore command-line argument, load the trusted CA certificates from that keystore.
Else if the keystore is specified in the configuration file (config.xml), load trusted CA certificates from the specified keystore. If the server is configured with DemoTrust, trusted CA certificates will be loaded from the $WL_HOME/server/lib\DemoTrust.jks and the JDK cacerts keystores.
Else if the trusted CA file is specified in the configuration file (config.xml), load trusted CA certificates from that file (this is only for compatibility with 6.x SSL configurations).
Else load trusted CA certificates from $WL_HOME/server/lib\cacerts keystore.

Configure Keystores

By default, WebLogic Server is configured with two keystores:

DemoIdentity.jks - Contains a demonstration private key for WebLogic Server. This keystore contains the identity for WebLogic Server.
DemoTrust.jks - Contains the trusted certificate authorities from the $WL_HOME/server/lib\DemoTrust.jks and the JDK cacerts keystores. This keystore establishes trust for WebLogic Server.

These keystores are located in the WL_HOME\server\lib directory. For testing and development purposes, the keystore configuration is complete. However, the demonstration keystores should not be used in a production environment. All the digital certificates and trusted CA certificates in the keystores are signed by a WebLogic Server demonstration certificate authority. Therefore, all WebLogic Server installations trust each other. This will leave your SSL connections wide open to a number of security attack.
Use the steps in this section to configure Identity and Trust keystores for production use.
Before you perform the steps in this section, you need to:

Obtain private keys and digital certificates from a reputable certificate authority such as Verisign, Inc. or Entrust.net.
Create Identity and Trust keystores.
Load the private keys and trusted CAs into the Identity and Trust keystores.

To configure Identity and Trust keystores for WebLogic Server:

Expand the Servers node.
Select the name of the server for which you want to configure keystores (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
The information about the demonstration keystores is displayed in the Keystore Configuration.
Click the Change... link in the Keystore Configuration to configure new keystores.
Choose the type of keystore configuration being used. The following options are available:

Demo Identity and Demo Trust - The demonstration Identity and Trust keystores located in the $WL_HOME/server/lib directory and configured by default and the cacerts file in the JAVA_HOME\jre\lib\security directory.
Custom Identity and Java Standard Trust - An Identity keystore you create and the trusted CAs defined in the cacerts file in the JAVA_HOME\jre\lib\security directory.
Custom Identity and Custom Trust - Identity and Trust keystores you create.
Custom Identity and Command-Line Trust - An Identity keystore you create and command-line arguments that specify the location of the Trust keystore. Use this option in a production environment when the Administration port is enabled and Managed servers are started on the command-line instread of by the Node Manager.

Click Continue.
Define attributes for the Identity keystore.

Custom Identity Keystore File Name - The fully qualified path to the Identity keystore.
Custom Identity Keystore Type - The type of the keystore. Generally, this attribute is jks. If this attribute is not specified, the default keystore type defined in the security policy file for the JDK is used.
Custom Identity Keystore PassPhrase - The password defined when creating the keystore. This attribute is optional or required depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. Some keystores do not require the passphrase to read from the keystore. Whether or not you define this property depends on the requirements of the keystore. For example, WebLogic Server only reads from the keystore so a passphrase is not required, however, WebLogic Integration writes to keystores and therefore requires a passphrase. Confirm the password. Note that the passphrase for the Demo Identity keystore is DemoIdentityKeystorePassPhrase.

Define attributes for the Trust keystore.
If you choose Java Standard Trust, specify the password defined when creating the keystore. Confirm the password.
If you choose Custom Trust, define the following attributes:

Custom Trust Keystore File Name - The fully qualified path to the trust keystore.
Custom Trust Keystore Type - The type of the keystore. Generally, this attribute is jks. If this attribute is not specified, the default keystore type defined in the security policy file for the JDK is used.
Custom Trust Keystore PassPhrase - The password defined when creating the keystore. This attribute is optional or required depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. Some keystores do not require the passphrase to read from the keystore. Whether or not you define this property depends on the requirements of the keystore. For example, WebLogic Server only reads from the keystore so a passphrase is not required, however, WebLogic Integration writes to keystores and therefore requires a passphrase. Confirm the password.

Click Continue.
Click Finish.
Optionally, configure the SSL attributes for WebLogic Server. You do not have to perform this step if you are using keystores for the purpose of digital signing.
Reboot WebLogic Server.

Configure SSL

By default, SSL is enabled and configured to use the demonstration Identity and Trust keystores. For testing and development purposes, the SSL configuration is complete. Use the steps in this section to configure SSL for production use.
To configure SSL:

Expand the Servers node.
Select the name of the server for which you want to configure keystores (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
Information about the demonstration Identity and Trust keystores is displayed in the Keystore Configuration.
Configure new Identity and Trust keystores for WebLogic Server.

Note: For the purpose of backward compatibility, private keys and trusted CA certificates can be stored in a file or in a JKS keystore accessed via the WebLogic Keystore provider. If you migrated from a previous version of WebLogic Server, WebLogic Server uses the existing security configuration and sets the Files or Key Store Providers option. In this circumstance, step 4 can be skipped.

Click the Change... link in the SSL Configuration to configure attributes for SSL.
The Configure SSL page appears.
Specify how the identity and trust for WebLogic Server is stored. The following options are available:

Key Stores - Use this option if you created Identity and Trust keystores for WebLogic Server. If you choose this option, go to step 8.
Files or Key Store Providers - Use this option if you stored private keys and trusted CA certificates in a file or in a JKS keystore accessed via the WebLogic Keystore provider (as supported in previous releases of WebLogic Server). If you choose this option, go to step 9. This option is available for the purpose of backward compatibility only and it automatcally set with security information from a previous release of WebLogic Server.

Click Continue.
Specify the alias used to load the private key into the keystore in the Private Key Alias and the password used to retrieve the private key from the keystore in the Passphrase attibute. You may have specified this information when creating the Identity keystore; however, for the purpose of SSL configuration specify the information again. Skip to step 10.

Note: You do not have to specify this information for the Trust keystore because trusted CA certificates are not individually identified to WebLogic Server with aliases. All trusted CA certificates in a keystore identified as trusted by WebLogic Server are trusted. Therefore, WebLogic Server does not require an alias when retrieving a trusted CA certificate from the keystore.

Specify information about the location of identity and trust for WebLogic Server.
Note: This step only applies if the Files or Key Store Providers option is specified.

Private Key File Name - The directory location of the private key for WebLogic Server. Specify a value for this attribute only if you stored the private key for WebLogic Server in a file (versus a WebLogic Keystore provider).
Private Key Alias - The alias specified when loading the private key for WebLogic Server from the keystore. Specify a value for this field only if you stored the private key for WebLogic Server in a keystore accessed by the WebLogic Keystore provider.
Passphrase - The password specified when loading the private key for WebLogic Server into the keystore. Specify a value for this field only if you stored the private key for WebLogic Server in a keystore accesssed by the WebLogic Keystore provider. Confirm the password. If you protected the private key file with a password, specify the weblogic.management.pkpassword command-line argument when starting the server.
Server Certificate File Name - The directory location of the digital certificate for WebLogic Server. If you are using a certificate chain that is deeper than two certificates, you to need to include the entire chain in PEM format in the certificate file.
Trusted CA File Name - The name of the file containing the PEM-encoded trusted certificate authorities.

Click Continue.
Click Finish.
Reboot WebLogic Server.

Configure Two-Way SSL

By default, WebLogic Server is configured to use one-way SSL (the server passes its identity to the client). For a more secure SSL connection, use two-way SSL. In a two-way SSL connection, the client verifies the identity and trust of the server and then passes its identity to the server. The server then validates the identity and trust of the client before completing the SSL connection. The server determines whether or not two-way SSL is used.
Before configuring two-way SSL, ensure the Trust key store for the server includes the certificate for the trusted certificate authority that signed the certificate for the client.
To enable two-way SSL:

Configure one-way SSL as described in Configure SSL.
Expand the Servers node.
Select the name of the server for which you want to configure two-way SSL (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
Click the Show link under Advanced Options.
Go to the Server attributes section of the window.
Set the Two Way Client Cert Behavior attribute. The following options are available:

Client Certs Not Requested - The default (meaning one-way SSL).
Client Certs Requested But Not Enforced - Requires a client to present a certificate. If a certificate is not presented, the SSL connection continues.
Client Certs Requested And Enforced - Requires a client to present a certificate. If a certificate is not presented or if the certificate is not trusted, the SSL connection is terminated.

Click Apply.
Reboot WebLogic Server.

Disabling the SSL Port

You may encounter a circumstance where you need to disable the SSL port. For example, the Administration Port uses SSL internally to protect communications between the Administration Server, Managed Servers, and the Node Manager. When using the Administration Port, you might want to disable the SSL port.
To disable the SSL port:

Expand the Server node.
Select the General tab.
Uncheck the SSL Port Enabled option.
Click Apply to save your changes.
Reboot WebLogic Server.

Using Host Name Verification

A host name verifier ensures the host name in the URL to which the client connects matches the host name in the digital certificate that the server sends back as part of the SSL connection. A host name verifier is useful when an SSL client or an SSL server acting as a client connects to an application server on a remote host. It helps to prevent man-in-the-middle attacks.
By default, WebLogic Server has host name verification enabled. As a function of the SSL handshake, WebLogic Server compares the common name in the SubjectDN in the SSL server's digital certificate with the host name of the SSL server used to initiate the SSL connection. If these names do not match, the SSL connection is dropped. The SSL client is the actual party that drops the SSL connection if the names do not match.
In this release of WebLogic Server, the host name verification feature is updated so that if the host name in the certificate matches the local machine's host name, host name verification passes if the URL specifies localhost, 127.0.01 or the default IP address of the local machine.
To verify that host name verification is enabled for your WebLogic Server deployment, perform the following steps for each server in your domain. Note that the following steps only apply when a WebLogic Server instance is acting as an SSL client. Java clients acting as SSL clients specifiy the use of host name verification via command-line arguments.

Expand the Servers node.
Select the name of the server (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
Click the Show link under Advanced Options.
Go to the Client attributes section of the window.
Verify that the the Hostname Verification field is set to BEA Hostname Verifier.

If anything other than the default behavior is desired, either turn off host name verification or configure a custom host name verifier. Turning off host name verification leaves WebLogic Server vulnerable to man-in-the-middle attacks. BEA recommends leaving host name verification on in production environments.
Turn off host name verification in one of the following ways:

On the command line of the SSL client, enter the following argument:
-Dweblogic.security.SSL.ignoreHostnameVerification=true
When using Java clients, host name verification must be set on the command-line.
In the WebLogic Server Administration Console:

Expand the Servers node.
Select the name of the server (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
Click the Show link under Advanced Options.
Go to the Client attributes section of the window.
Set the Hostname Verification field to None.
Reboot WebLogic Server.

You can also write a custom host name verifier. If you write a custom host name verifier, the name of the class that implements the host name verifier must be specified in the CLASSPATH of WebLogic Server (when acting as an SSL client) or a Java client acting as an SSL client.
To configure a custom host name verifier:

Expand the Servers node.
Select the name of the server (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
Click the Show link under Advanced Options.
Go to the Client attributes section of the window.
Set the Hostname Verification field to Custom Hostname Verifier.
Enter the name of the implementation of the weblogic.security.SSL.HostnameVerifier interface in the Custom Hostname Verifier field.
Reboot WebLogic Server.

When using Java clients, a custom host name verifier must be specified on the command-line using the following argument:
-Dweblogic.security.SSL.HostnameVerifier=classname
where classname specifies the implementation of the weblogic.security.SSL.HostnameVerifier interface.

EnablingSSL Debugging

SSL debugging provides more detailed information about the SSL events that occurred during an SSL handshake. The SSL debug trace displays information about:

Trusted certificate authorities
SSL server configuration information
Server identity (private key and digital certificate)
The strength that is allowed by the license in use
Enabled ciphers
SSL records that were passed during the SSL handshake
SSL failures detected by WebLogic Server (for example, trust and validity checks and the default host name verifier)
I/O related information

Use the command-line properties to enable SSL debugging:
-Dssl.debug=true -Dweblogic.StdoutDebugEnabled=true
The SSL debugging properties can be included in the start script of the SSL server, the SSL client, and the Node Manager. For a Managed Server started by the Node Manager, specify this command-line argument on the Remote Start tab for the Managed Server.
SSL debugging dumps a stack trace whenever an ALERT is created in the SSL process. The types and severity of the ALERTS are defined by the TLS specification.
The stack trace dumps information into the log file where the ALERT originated. Therefore, when tracking an SSL problem, you made need to enable debugging on both sides of the SSL connection (on both the SSL client or the SSL server). The log file contains detailed information about where the failure occurred. To determine where the ALERT occurred, confirm whether there is a trace message after the ALERT. An ALERT received after the trace message indicates the failure occurred on the peer. To determine the problem, you need to enable SSL debugging on the peer in the SSL connection.
When tracking an SSL problem, review the information in the log file to ensure:

The correct config.xml file was loaded
The license (domestic or export) is correct
The trusted certificate authority was valid and correct for this server.
The host name check was successful
The certificate validation was successful

Note: Sev 1 type 0 is a normal close ALERT, not a problem.

SSLSession Behavior

WebLogic Server allows SSL sessions to be cached. Those sessions live for the life of the server. This behavior change in this release of WebLogic Server. The weblogic.security.SSL.sessionCache.size and weblogic.security.SSL.sessionCache.ttl command-line arguments are ignored.
By default, clients that use HTTPS URLs get a new SSL session for each URL because each URL uses a different SSL context and therefore SSL sessions can not be shared or reused. The SSL session can be retrieved using the weblogic.net.http.HttpsClient class or the weblogic.net.http.HttpsURLConnection class. Clients can also resume URLs by sharing a SSLSocket Factory between them.
Clients that use SSL sockets directly can control the SSL session cache behavior. The SSL session cache is specific to each SSL context. All SSL sockets created by SSL socket factory instances returned by a particular SSL context can share the SSL sessions.
Clients default to resuming sessions at the same IP address and port. Multiple SSL sockets use the same host and port share SSL sessions by default assuming the SSL sockets are using the same underlying SSL context.
Clients that don't want SSL sessions to be used at all need to explicitly call setEnableSessionCreation(false) on the SSL socket to ensure that no SSL sessions are cached. This setting only controls whether an SSL session is added to the cache, it does not stop an SSL socket from finding an SSL session that was already cached (for example, SSL socket 1 caches the session, SSL socket 2 sets setEnableSessionCreation to false but it can still reuse the SSL session but can still reuse the SSL session from SSL socket 1 since that session was put in the cache.)
SSL sessions exist for the lifetime of the SSL context; they are not controlled by the lifetime of the SSL socket. Therefore, creating a new SSL socket and connecting to the same host and port can resume a previous session as long as the SSL socket is created using an SSL socket factory from the SSL context that has the SSL session in its cache.
In WebLogic Server 6.x, one SSL session is cached in the thread of execution. In this release of WebLogic Server, session caching is maintained by the SSL context which can be shared by threads. A single thread has access to the entire session cache not just one SSL session so multiple SSL sessions can be used and shared in a single (or multiple) thread.

Configure SSL for the Node Manager

The Node Manager uses two-way SSL to protect communications with Administration and Managed Servers. The configuration of SSL involves obtaining identity and trust for the Node Manager and each Administration and Managed Server with which the Node Manager will be communicating and then configuring the Node Manager, the Administration Server, and any Managed Servers with the proper identity and trust. In addition, the use of the Administration port must be taken into consideration. The following sections describe SSL requirements for the Node Manager and describes two scenarios: using the demonstration identity and trust provided by WebLogic Server and using production-quality identity and trust.
SSL Requirements for Administration Servers
SSL Requirements for Managed Servers
SSL Requirements for the Node Manager
Host Name Verification Requirements
Host Name Verification Requirements
Node Manager SSL Production Configuration: Main Steps
Node Manager SSL Production Configuration: Main Steps
Using Files and the WebLogic Keystore Provider

SSL Requirements for Administration Servers

To use SSL, Administration Servers require:

Identity - Administration Servers use private keys and digital certificates stored in keystores. The digital certificate must specify a host name rather than an IP address. The location of the Identity keystore is specified in the WebLogic Server Administration Console.
By default, Administration Servers are configured to use the demonstration Identity keystore (DemoIdentity.jks). For testing and development purposes the Identity keystore configuration is complete.
Trust - Administration Servers use trusted CA certificates stored in a keystore. The location of the Trust keystore is specified in the WebLogic Server Administration Console.
By default, Administration Servers are configured to use the demonstration Trust keystore (DemoTrust.jks) and the Java Standard Trust keystore (JAVA_HOME\jre\lib\security\cacerts). For testing and development purposes the Trust keystore configuration is complete.
In a production environment, a custom Trust keystore (a keystore you create) or the Java Standard Trust keystore can be used with the Administration Server. The Administration Server needs to trust the certificate authorities for all Node Managers running on machines in this domain and any Managed Servers (meaning those trusted CA certificates must be in the Trust keystore of the Administration Server). This requirement applies only if the Administration port is being used.
Host name verification - By default, host name verification is enabled on Administration Servers.
Administration port - The use of the Administration port is optional when configuring SSL. The Administration port uses SSL internally to protect all Administration communications. By default, there is no Administration port enabled.
BEA recommends using the Administration port in a production environment. All Administration Servers, Managed Servers, and Node Managers on the same machine must use unique numbers for the Listen port.

SSL Requirements for Managed Servers

To use SSL, Managed Servers require:

Identity - Managed Servers use private keys and digital certificates stored in keystores. The digital certificate must specify a host name rather than an IP address. The location of the Identity keystore is specified in the WebLogic Server Administration Console.
By default, Managed Servers are configured to use the demonstration Identity keystore (DemoIdentity.jks). For testing and development purposes the Identity keystore configuration is complete. However, the demonstration keystore should not be used in a production environment.
Trust - Managed Servers use trusted CA certificates stored in a keystore. The location of the Trust keystore is specified in the WebLogic Server Administration Console.
By default, Managed Servers are configured to use the demonstration Trust keystore (DemoTrust.jks) and the Java Standard Trust keystore (JAVA_HOME\jre\lib\security\cacerts). For testing and development purposes the Trust keystore configuration is complete.
In a production environment, a custom Trust keystore (a keystore you create) or the Java Standard Trust keystore can be used with a Managed Server. A Managed Server needs to trust the certificate authorities for all Node Managers running on machines in this domain and the Administration Server (meaning those trusted CA certificates must be in the trust keystore of the Managed Server). This requirement applies only if the Administration port is being used.
Host name verification - By default, host name verification is enabled on Managed Servers.
Administration port - The use of the Administration port is optional when configuring SSL. The Administration port uses SSL internally to protect all Administration communications. By default, there is no Administration port enabled.
BEA recommends using the Administration port in a production environment. All Administration Servers, Managed Servers, and Node Managers on the same machine must use unique numbers for the Administration port.

SSL Requirements for the Node Manager

To use SSL, the Node Manager requires:

Keystores - Specify the type of keystore configuration to be used by the Node Manager. By default, the Node Manager is configured to use DemoIdentityandDemoTrust as the keystore congfiguration.
The keystore configuration is specified in the nodemanager.properties file by the following properties:
Keystores=CustomIdentityandCustomTrust
Keystores=CustomIdentityandJavaStandardTrust

Identity - The Node Manager uses private keys and digital certificates stored in keystores. The digital certificate must specify a host name rather than an IP address.
By default, the Node Manager is configured to use the demonstration Identity keystore (DemoIdentity.jks). For testing and development purposes the Identity keystore configuration is complete. However, this demonstration Identity keystore should not be used in a production environment.
The Identity keystore is specified in the nodemanager.properties file by the following properties:
CustomIdentityKeystoreType
CustomIdentityAlias
CustomIdentityKeystoreFileName
CustomIdentityKeystorePassPhrase
CustomIdentityPrivateKeyPassPhrase

Trust - The Node Manager uses trusted CA certificates stored in a keystore. You can either use a keystore you create (custom) or the keystore in the JDK (Java Standard).
By default, the Node Manager is configured to use the demonstration Trust keystore (DemoTrust.jks) and the Java Standard Trust keystore (JAVA_HOME\jre\lib\security\cacerts). For testing and development purposes the Trust keystore configuration is complete.
The Trust keystore is specified in the nodemanager.properties file by the following properties:
Custom Trust keystore:
CustomTrustKeystoreType
CustomTrustKeystoreFileName
CustomTrustKeystorePassPhrase
Java Standard Trust keystore:
JavaStandardTrustKeystorePassphrase

In a production environment, the Node Manager must also trust the certificate authorities used by the Administration Server and any Managed Servers running on its machine (meaning those trusted CA certificates must be in the Trust keystore of the Node Manager).
Trusted Hosts - The Node Manager accepts commands only from Administration Servers that reside on a trusted hosts. The trusted hosts for a Node Manager process are identified by IP address or DNS name in a file. By default, the file is named nodemanager.hosts and installed in the WL_HOME\common\nodemanager\config directory.
There is one Node Manager per machine, however, domains managed by the Node Manager can have multiple machines. Make sure the nodemanager.hosts file lists the machines (hosts) for the Administration Servers for any domain you want to run from this machine. By default, the nodemanger.hosts file always defaults to localhost.
The hosts may be specified by IP address or name. If you want to use host names, specify the ReverseDNSEnabled property in the nodemanager.properties file.

Host Name Verification Requirements

In previous releases of WebLogic Server, you had to enable host name verification. In this release of WebLogic Server, host name verification is enabled by default. BEA recommends using host name verification to ensure the host you are connecting to is the intended host. To avoid errors when using host name verification, check the following:

All digital certificates have host names rather than IP addresses.
All digital certificates have the correct host name.
All URLs use host names rather than IP addresses.
The Listen Address defined for the Node Manager, Administration Server, and any Managed Servers matches the host name in the digital certificate.
Host name verification is enabled on the Node Manager, the Administration Server, and any Managed Servers.

Identity and Trust: Demonstration Versus Production

By default, the Node Manager, the Administration Server, and any Managed Servers, are configured to use the demonstration Identity keystore (DemoIdentity.jks), the demonstration Trust keystore (DemoTrust.jks), and the Java Standard Trust keystore (JAVA_HOME\jre\lib\security\cacerts). For testing and development purposes the Identity and Trust keystore configuration is complete.
However, the demonstration keystores should not be used in a production environment. All the digital certificates and trusted CA certificates in the keystores are signed by a WebLogic Server demonstration certificate authority. Therefore, all WebLogic Server installations trust each other. This will leave your SSL connections wide open to a number of security attack.
Keystores are configured on a per machine basis. You can share keystores and identity and trust for Administration Servers, Managed Servers, and Node Managers that run on the same machine.
:Perform the following steps to configure identity and trust for a production environment:

Obtain private keys and digital certificates for the Node Manager, Administration Servers, and Managed Servers from a reputable certificate authority.
Ensure Identity and Trust keystores for the Node Manager, Administration Server, and any Managed Servers exist. In previous releases, WebLogic Server only supported JKS keystores. In this release, WebLogic Server can access private keys and trusted CA certificates from any type of keystore. When you configure the keystore in the WebLogic Server Administration Console, you optionally specify its type.
In a production environment, you can also use the Java Standard Trust keystore (JAVA_HOME\jre\lib\security\cacerts)as the Trust keystore for the Node Manager, the Administration Server, or any Managed Servers.
Load the private keys and certificates into the Identity keystore and trusted CA certificates into the Trust keystore.
Configure the keystore location and passwords for the Administration Server and Managed Server in the WebLogic Server Administration Console.
Edit the nodemanager.properties file to specify the keystore location and passwords for the Node Manager.

Node Manager SSL Demonstration Configuration: Main Steps

Using the demonstration Identity and Trust keystores provided by WebLogic Server to configure SSL for the Node Manager involves verifying the default settings for the keystore attributes and ensuring that the Administration Server and any Managed Servers are listening for SSL communications on different ports.

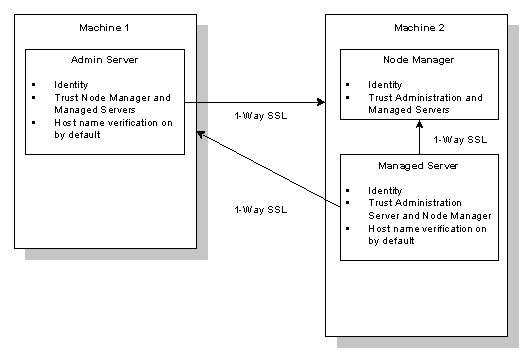

Figure 7-1 illustrates the SSL demonstation configuration for the Node Manager.
Figure 7-1 SSL Demonstration Configuration for the Node Manager

Note that the following procedure assumes the Node Manager, the Administration Server, and all Managed Servers are running on the same machine.
To configure the Node Manager to use SSL and the demonstration Identity and Trust keystores:

Run the Configuration Wizard and create a new WebLogic domain.
Start the Administration Server. Do not enable the Administration port.
On the Server-->Keystores and SSL tab, verify the settings of the following Identity keystore attributes for the Administration Server:

Demo Identity Keystore - DemoIdentity.jks
Type - JKS
Passphrase - DemoIdentityKeyStorePassPhrase

On the Server-->Keystores and SSL tab, verify the settings of the following Trust keystore attributes for the Administration Server:

Demo Trust Keystore - DemoTrust.jks
Type - JKS
Passphrase - DemoTrustKeyStorePassPhrase

On the Server-->Keystores and SSL tab, verify the settings of the following Identity keystore attributes for the Managed Server:

Demo Identity Keystore - DemoIdentity.jks
Type - JKS
Passphrase - DemoIdentityKeyStorePassPhrase

On the Server-->Keystores and SSL tab, verify the settings of the following Trust keystore attributes for the Managed Server:

Demo Trust Keystore - DemoTrust.jks
Type - JKS
Passphrase - DemoTrustKeyStorePassPhrase

Note: No changes to the nodemanager.properties file are required. The Node Manager will automatically default to the demonstration Identity and Trust keystores.

Node Manager SSL Production Configuration: Main Steps

Figure 7-2 illustrates the SSL production configuration for the Node Manager.
Figure 7-2 SSL Production Configuration for the Node Manager

Note that the following procedure assumes the Node Manager, the Administration Server, and all Managed Servers are running on the same machine.
Warning: When you configure keystores through the WebLogic Administration Servers, passwords are available in clear text during the configuration process. The passwords will be encrypted automatically when the configuration is complete and the Node Manager is started. For a more secure deployment, BEA recommends taking the machine on which you are configuring the Node Manager off the Internet or ensure the machine is protected behind a firewall so that passwords can not be snooped.
To configure SSL for the Node Manager:

Obtain identity and trust for the Node Manager, the Administration Server, and any Managed Servers.

Note: When obtaining identity and trust for the Administration Server, any Managed Server(s), and the Node Manager, ensure the digital certificates include the machine's host name (so that the digitial certificate matches the URL).

Create Identity keystores for the Node Manager, the Administration Server, and any Managed Servers. If the Node Manager, the Administration Server, and the Managed Servers run on the same machine, they can share the Identity keystore.
Load the private keys into the Identity keystores.
Create Trust keystores for the Node Manager, Administration Server, and any Managed Servers. If the Node Manager, the Administration Server, and the Managed Servers run on the same machine, they can share the Trust keystore.
Load the trusted CA certificates into the Trust keystore.
Run the Configuration Wizard and create a new WebLogic domain.
Start the Administration Server.
Enable the Administration port for the WebLogic domain.
Set the Listen Address for the Administration Server. The Listen Address is the host name of the machine on which the Administration Server runs. This host name should match the host name in the CN field of the digital certificate for the Administration Server. If you don't set the Listen Address correctly, you may encounter host name verification errors.
Use the following command to determine the host name specified in the CN field of the digital certificate:
keytool -list -v -keystore fulldirectorypathtokeystore\keystorename
Configure the Identity keystore for the Administration Server.
Configure the Trust keystore for the Administration Server.
If you have multiple servers running on the same machine, ensure the Administration Port for each server is unique. Use the Local Administration Port Override attribute on the Server-->General tab to override the Administration Port number. Specify a port number other than the Administration port number used by the Administration Server.
Set the Listen Address for the Managed Server to the host name of the machine on which the Managed Server runs. This host name should match the host name in the digital certificate for the Managed Server.
Configure the Identity keystore for the Managed Server.
Configure the Trust keystore for the Managed Server.
Create a machine for the Node Manager.

Set the Listen Address of the Node Manager to the host name of the machine on which the Node Manager runs. This host name should match the host name in the digital certificate for the Node Manager.
Set the Listen Port for the Node Manager. Ensure that this port number is different from the Listen port number, the SSL port number, and the Administration port number of all the servers that run on this machine.
Add any Managed Servers to the machine.

Edit the nodemanager.properties file for the Node Manager. Edit the nodemanager.properties file.

Specify the keystore configuration to be used:
Keystores=CustomIdentityandCustomTrust
Keystores=CustomIdentityandJavaStandardTrust
Specify information about the Identity keystore:
CustomIdentityKeystoreType
CustomIdentityAlias
CustomIdentityKeystoreFileName
CustomIdentityKeystorePassPhrase
The CustomIdentityKeystoreType attribute is optional and defaults to the keystore type defined in the security policy file for the JDK.
The CustomIdentityKeystorePassPhrase attribute is optional depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. Some keystores do not require the passphrase to read from the keystore. Whether or not you define this property depends on the requirements of the keystore. For example, WebLogic Server only reads from the keystore so a passphrase is not required, however, WebLogic Integration writes to keystores and therefore requires a passphrase.
CustomIdentityPrivateKeyPassPhrase
Specify information about the Trust keystore.
If you use a custom Trust keystore, specify:
CustomTrustKeystoreType
CustomTrustKeystoreFileName
CustomTrustKeystorePassPhrase
The CustomTrustKeystoreType attribute is optional and defaults to the keystore type defined in the security policy file for the JDK.
The CustomTrustKeystorePassPhrase attribute is optional depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. Some keystores do not require the passphrase to read from the keystore. Whether or not you define this property depends on the requirements of the keystore. For example, WebLogic Server only reads from the keystore so a passphrase is not required, however, WebLogic Integration writes to keystores and therefore requires a passphrase.
If you use the Java Standard Trust keystore, specify:
Keystores=CustomIdentityandJavaStandardTrust
JavaStandardTrustKeystorePassPhrase
The JavaStandardTrustKeystorePassPhrase attribute is optional depending on the type of keystore. All keystores require the passphrase in order to write to the keystore. Some keystores do not require the passphrase to read from the keystore. Whether or not you define this property depends on the requirements of the keystore. For example, WebLogic Server only reads from the keystore so a passphrase is not required; however, WebLogic Integration writes to keystores and therefore requires a passphrase.
Specify a Listen Address and Listen Port for the Node Manager:
ListenAddress
ListenPort
Use the same host name as specified when creating the machine in step 16.
If you want use host names rather than IP addresses, specify:
ReverseDnsEnabled

Note: When adding properties to the nodemanager.properties file, use forward slashes or double backslashes in file and directory names.
Edit the nodemanager.hosts file located in WL_HOME\common\nodemanager\config to list the machines on which the Administration Servers that communicate with the Node Manager run. The Administration Servers are specified by IP address or host name if Reverse DNS is used.
Ensure that each machine in a domain has an updated nodemanager.hosts file. By default, the nodemanger.hosts file defaults to localhost.
Start the Node Manager.
Stop the Administration Server.
Start the Administration Server.

Using Files and the WebLogic Keystore Provider

For backward compatibility, WebLogic Server supports using files and the WebLogic Keystore provider as a way to store identity and trust when configuring the Node Manager to use SSL. However, both of these methods are deprecated in this release. Also, private keys stored in files may or may not be password protected. Private keys that are not password protected can be vulnerable to security attacks. BEA recommends upgrading to keystores as a way to store identity and trust for the Node Manager, the Administration Server, and any Managed Servers.
The SSL requirements for identity and trust are as follows:

Administration Servers and Managed Servers use private keys stored in JKS keystores accessed through the WebLogic Keystore provider or in a file.
The digital certificate for an Administration Server and a Managed Server must be stored in a file.
Administration Servers and Managed Servers can use trusted CA certificates stored:

In a JKS keystore specified by the -Dweblogic.security.SSL.trustedCAkeystore command-line in the start script for the Administration Server or Managed Server.
In a JKS keystore accessed by the WebLogic Keystore provider
A file containing the PEM-encoded trusted certificate authorities.

If no trusted CA certificate is located in either of these storage mechanisms, WebLogic Server assumes anyAdministration Server and Managed Servers trust all the certificate authorities in the cacerts files in the WL_HOME\server\lib.
The Node Manager can only use digital certificates and private keys stored in files. Identity is specified by the command-line arguments for the Node Manager.
The Node Manager uses trusted CA certificates stored in a JKS keystore for trust. The Trust keystore is specified by the command-line arguments for the Node Manager

Note: Perform the following steps on the Administration Server and each Managed Server you plan to use.
To use files or the WebLogic Keystore provider to store identity and trust for an Administration Server or a Managed Server:

Expand the Servers node.
Select the name of the server for which you want to configure identity and trust (for example, exampleserver).
Select the Configuration-->Keystores and SSL tab.
Information about the demonstration Identity and Trust keystores is displayed.
Click the Change... link in the SSL Configuration portion of the tab.
The Configure SSL page appears.
Choose the Files or Keystore Providers option.
Click Continue.
Specify information about the location of identity and trust for WebLogic Server.

Private Key File Name - The directory location of the private key for WebLogic Server. Specify a value for this attribute only if you stored the private key for WebLogic Server in a file (versus a WebLogic Keystore provider).
Private Key Alias - The alias specified when loading the private key for WebLogic Server from the keystore. Specify a value for this field only if you stored the private key for WebLogic Server in a keystore accessed by the WebLogic Keystore provider.
Passphrase - The password specified when loading the private key for WebLogic Server into the keystore. Specify a value for this field only if you stored the private key for WebLogic Server in a keystore accesssed by the WebLogic Keystore provider. Confirm the password. If you protected the private key file with a password, specify the weblogic.management.pkpassword command-line argument when starting the server.
Server Certificate File Name - The directory location of the digital certificate for WebLogic Server. If you are using a certificate chain that is deeper than two certificates, you to need to include the entire chain in PEM format in the certificate file.

Click Continue.
Click Finish.
Reboot WebLogic Server.
When starting the Administration Server, use the following command-line argument to specify the location of the Trust keystore:
-Dweblogic.security.SSL.trustedCAkeystore=path_to_keystore
Specify the location of the Trust keystore for the Managed Server on the Servers-->Configuration-->Remote Start tab as follows:
weblogic.security.SSL.trustedCAKeyStore

To use files or a JKS keystore to store identity and trust for the Node Manager, specify the following command-line arguments when starting the Node Manager:

Use weblogic.nodemanager.keyFile=filename to specify the location of the private key file.
If you password protected the private key file, use weblogic.nodemanager.keyPassword=password to specify the password.
Use weblogic.nodemanager.certificateFile=filename to specify the location of the digital certificate for the Node Manager.
Use weblogic.security.SSL.trustedCAkeystore=keystorename to specify the location of the JKS trusted keystore.

Configuring RMI over IIOP with SSL

Use SSL to protect IIOP connections to RMI remote objects. SSL secures connections through authentication and encrypts the data exchanged between objects.
To use SSL to protect RMI over IIOP connections, do the following:

Configure WebLogic Server to use SSL.
Configure the client Object Request Broker (ORB) to use SSL. Refer to the product documentation for your client ORB for information about configuring SSL.
Use the host2ior utility to print the WebLogic Server IOR to the console. The host2ior utility prints two versions of the interoperable object reference (IOR), one for SSL connections and one for non-SSL connections. The header of the IOR specifies whether or not the IOR can be used for SSL connections.
Use the SSL IOR when obtaining the initial reference to the CosNaming service that accesses the WebLogic Server JNDI tree.

SSL Certificate Validation

In previous releases, WebLogic Server did not ensure each certificate in a certificate chain was issued by a certificate authority. This problem meant anyone could get a personal certificate from a trusted certificate authority, use that certificate to issue other certificates, and WebLogic Server would not detect the invalid certificates. Now all X509 V3 CA certificates used with WebLogic Server must have the Basic Constraint extension defined as CA, thus ensuring all certificates in a certificate chain were issued by a certificate authority. By default, any certificates for certificate authorities not meeting this criteria are rejected. This section describes the command-line argument that controls the level of certificate validation.
If WebLogic Server is booted with a certificate chains that will not pass the certificate validation, an information message is logged noting that clients could reject it.

Controlling the Level of Certificate Validation

By default WebLogic Server rejects any certificates in a certificate chain that do not have the Basic Constraint extension defined as CA. However, you may be using certificates that do not meet this requirement or you may want to increase the level of security to conform to the IETF RFC 2459 standard. Use the following command-line argument to control the level of certificate validation performed by WebLogic Server:
-Dweblogic.security.SSL.enforceConstraints=option
Table 7-2 describes the options for the command-line argument.

Option

Description
strong or true Use this option to check that the Basic Constraints extension on the CA certificate is defined as CA. For example:-Dweblogic.security.SSL.enforceConstraints=strongor-Dweblogic.security.SSL.enforceConstraints=trueBy default, WebLogic Server performs this level of certificate validation.
strict Use this option to check the Basic Constraints extension on the CA certificate is defined as CA and set to critical. This option enforces the IETF RFC 2459 standard.For example:-Dweblogic.security.SSL.enforceConstraints=strictThis option is not the default because a number of commerically available CA certificates do not conform to the IETF RFC 2459 standard.
off Use this option to disable certificate validation. Use this option carefully. For example, if you purchased CA certificates from a reputable commerical certificate authority and the certificates do not pass the new validation, use this option. However, CA certificates from most commerical certificate authorities should work with the default strong option.For example:-Dweblogic.security.SSL.enforceConstraints=offBEA does not recommend use of this option in production environment. Instead, purchase new CA certificates that comply with the IETF RFC 2459 standard.

Checking Certificate Chains

WebLogic Server provides a ValidateCertChain command-line utility to check whether or not an existing certificate chain will be rejected by WebLogic Server. The utility uses certificate chains from PEM files, PKCS-12 files, PKCS-12 keystores, and JKS keystores. A complete certificate chain must be used with the utility. The following is the syntax for the ValidateCertChain command-line utility:
java utils.ValidateCertChain -file pemcertificatefilename



java utils.ValidateCertChain -pem pemcertificatefilename



java utils.ValidateCertChain -pkcs12store pkcs12storefilename



java utils.ValidateCertChain -pkcs12file pkcs12filename password



java utils.ValidateCertChain -jks alias storefilename [storePass]
Example of valid certificate chain:
java utils.ValidateCertChain -pem zippychain.pem







Cert[0]: CN=zippy,OU=FOR TESTING



ONLY,O=MyOrganization,L=MyTown,ST=MyState,C=US







Cert[1]: CN=CertGenCAB,OU=FOR TESTING



ONLY,O=MyOrganization,L=MyTown,ST=MyState,C=US
Certificate chain appears valid
Example of invalid certificate chain:
java utils.ValidateCertChain -jks mykey mykeystore







Cert[0]: CN=corba1,OU=FOR TESTING ONLY, O=MyOrganization,L=MyTown,ST=MyState,C=US
CA cert not marked with critical BasicConstraint indicating it is a CA



Cert[1]: CN=CACERT,OU=FOR TESTING ONLY, O=MyOrganization,L=MyTown,ST=MyState,C=US







Certificate chain is invalid
Troubleshooting Problems with Certificates

If SSL communications were working properly in a previous release of WebLogic Server and start failing unexpectedly, the problem is mostly likely because the certificate chain used by WebLogic Server is failing the validation.
Determine where the certificate chain is being rejected, and decide whether to update the certificate chain with one that will be accepted or change the setting of the -Dweblogic.security.SSL.enforceConstraints command-line argument.
To troubleshoot problems with certificates, use one of the following methods:

If you know where the certificate chains for the processes using SSL communication are located, use the ValidateCertChain command-line utility to check whether the certificate chains will be accepted.
Turn on SSL debug tracing on the processes using SSL communication. The syntax for SSL debug tracing is:
-Dssl.debug=true -Dweblogic.StdoutDebugEnabled=true
The following message indicates the SSL failure is due to problems in the certificate chain:
<CA certificate rejected. The basic constraints for a CA certificate were not marked for being a CA, or were not marked as critical>
When using one-way SSL, look for this error in the client log. When using two-way SSL, look for this error in the client and server logs.

Using the nCipher JCE Provider with WebLogic Server

Note: JCE providers are written using the application programming interfaces (APIs) in the Java Cryptography Extension (JCE) available in JDK 1.4. This type of provider is different from the providers written using the WebLogic Security Service Provider Interfaces (SSPIs). WebLogic Server does not provide a JCE provider by default.
SSL is a key component in the protection of resources available in Web servers. However, heavy SSL traffic can cause bottlenecks that impact the performance of Web servers. JCE providers offload SSL processing from Web servers freeing the servers to process more transactions. They also provide strong encryption and cryptographic process to preserve the integrity and secrecy of keys.
WebLogic Server supports the use of the following JCE providers:

The JDK JCE provider (SunJCE) in the JDK 1.4.1.
By default, the JCE provider in the JDK 1.4.1 has export strength jurisdiction policy files. After filling out the appropriate forms, the domestic strength jurisdiction policy files are downloadable from Sun Microsystem at http://java.sun.com/products/jce/index-14.html#UnlimitedDownload.
The BEA license will continue to control the strength of the cryptography used by the WebLogic Server Application Programming Interfaces (APIs). Client code without the appropriate domestic strength cryptography license will only be able to use the J2SE export strengtth default cryptography. On the server, there will always be a BEA license that will enable either export or domestic strength cryptography.
The nCipher JCE provider.

To install the nCipher JCE provider:

Install and configure the hardware for the nCipher JCE provider per the product's documentation.
Install the files for the nCipher JCE provider. The following files are required:

JCE 1.2.1 framework JAR
Jurisdiction policy files
JCE provider
Certificate that signed the JAR file
Note: This step may have been performed as part of installing the hardware for nCipher JCE provider. In that case, verify that the files are correctly installed.

The files are installed in one of the following ways:

As an installed extension. Copy the files to
$JAVA_HOME/your_jre/lib/ext

Edit the Java security properties file (java.security) to add the nCipher JCE provider to the list of approved JCE providers for WebLogic Server. The Java security properties file is located in:
Windows NT
%JAVA_HOME%\jre\lib\security\java.security
UNIX
$JAVA_HOME/jre/lib/security/java.security
Specify the nCipher JCE provider as:
security.provider.n=com.ncipher.provider.km.mCipherKM
where
n specifies the preference order which determines the order in which providers are searched for requested algorithms when no specific provider is requested. The order is 1-based; 1 is the most preferred, followed by 2, and so on.
The nCipher JCE provider must follow the RSA JCA provider in the security properties file. For example:
security.provider.1=sun.security.provider.Sun
security.provider.2=com.sun.rsajca.Provider
security.provider.3=com.ncipher.provider.km.mCipherKM
Boot WebLogic Server.
To ensure the nCipher JCE provider is working properly, enable debugging per the nCipher product documentation.

Specifying the Version of the SSL Protocol

WebLogic Server supports both the SSL V3.0 and TLS V1.0 protocols. By default, Weblogic Server uses the SSL V3.0 protocol. While in most cases the SSL V3.0 protocol is acceptable there are circumstances (compatibility, SSL performance, and environments with maximum security requirements) where the TLS V1.0 protocol is desired. The weblogic.security.SSL.protocolVersion command-line argument allows you to specify what protocol is used for SSL connections.
When WebLogic Server acts as a client, the SSL handshake starts with an SSL V2.0 hello from WebLogic Server. The peer must respond with an SSL V3.0 or TLS V1.0 message or the SSL connection is dropped. This behavior is the default. Note that the SSL V3.0 and TLS V1.0 protocols can not be interchanged. Only use the TLS V1.0 protocol if you are certain all desired SSL clients are capable of using the protocol.
The following command-line argument can be specified so that WebLogic Server supports only SSL V3.0 or TLS V1.0 connections:

-Dweblogic.security.SSL.protocolVersion=SSL3 - Only SSL V3.0 messages are sent and accepted.
-Dweblogic.security.SSL.protocolVersion=TLS1 - Only TLS V1.0 messages are sent and accepted.
-Dweblogic.security.SSL.protocolVersion=ALL - This is the default behavior.

Using the SSL Protocol to Connect to WebLogic Server from weblogic.Admin

Using the SSL protocol to connect to WebLogic Server from weblogic.Admin requires you to disable two-way SSL on the server, use a secure server port in the URL for the client, specify trust for the client, and configure how the client uses host name verification. The following sections describe these steps in detail.

Ensure Two-Way SSL Is Disabled on the SSL Server

There is no way to specify identity when using weblogic.Admin. Identity (private key and digital certificate or certificate chain) is required when the SSL server is configured for two-way SSL. Therefore, two-way SSL cannot be enabled when using weblogic.Admin. Before establishing an SSL connection from weblogic.Admin to an SSL server, ensure that the SSL server is not configured to use two-way SSL. If two-way SSL is enabled on the SSL server, the SSL connection will fail.
To disable two-way SSL when using WebLogic Server:

Expand the Servers node.
Select the server that will be acting as the SSL server.
Select the Configuration-->Keystores and SSL tab.
Click the Show link in the Advanced Options section.
Set the Two Way Client Cert Behavior attribute to Client Certs Not Requested or Client Certs Requested But Not Enforced.
Click Apply.
Reboot WebLogic Server.

Use a Secure Port in the URL

To use the SSL protocol to make a connection, specify a secure protocol and port in the URL for weblogic.Admin. For example:
weblogic.Admin -url t3s://localhost:9002

Specify Trust for weblogic.Admin

All SSL clients need to specify trust. Trust is a set of CA certificates that specify which trusted certificate authorities are trusted by the client. In order to establish an SSL connection the client needs to trust the certificate authorities that issued the server's digitial certificates.
When using weblogic.Admin, the trusted CA certificates must be stored in a keystore. By default, all the trusted certificate authorities available from the JDK (...\jre\lib\security\cacerts) are trusted by weblogic.Admin. Optionally, use the following command-line argument to specify a password for the JDK cacerts trust keystore:
-Dweblogic.security.JavaStandardTrustKeystorePassPhrase=password
where password is the password for the Java Standard Trust keystore. This password is defined when the keystore is created.
You also have the option of specifying the one of the following types of trust:

Demo Trust - The trusted CA certificates in the demonstration Trust keystore (DemoTrust.jks) located in the $WL_HOME/server/lib directory. In addition, the trusted CAs in the JDK cacerts keystore are trusted. To use the Demo Trust, specify the following command-line argument:
-Dweblogic.security.TrustKeyStore=DemoTrust
Optionally, use the following command-line argument to specify a password for the JDK cacerts trust keystore:
-Dweblogic.security.JavaStandardTrustKeystorePassPhrase=password
where password is the password for the Java Standard Trust keystore. This password is defined when the keystore is created.
Custom Trust - A trust keystore you create. To use Custom Trust, specify the following command-line arguments:

weblogic.security.CustomTrustKeyStoreFileName=filename
This required command-line argument specifies the fully qualified path to the trust keystore
weblogic.security.TrustKeystoreType=CustomTrust
This optional command-line argument specifies the type of the keystore. Generally, this value for type is jks.
weblogic.security.CustomTrustKeystorePassPhrase=password
This optional command-line argument specifies the password defined when creating the keystore.

Specify Host Name Verification for weblogic.Admin

By default, weblogic.Admin performs a host name verification check. It compares the CN field in the digital certificate received from the server with the server name in the URL the client used to connect to the server. The CN field and the server name must match to pass the host name verification check. This check is performed to prevent man-in-the-middle attacks. In this release of WebLogic Server, the default host name verifier handles the case where the URL contains localhost or an IP address and the CN field of the digital certificate matches the name of the local host.
It is possible to disable the check by specifying the following command-line argument:
-Dweblogic.security.SSL.ignoreHostnameVerification=true
Note: If the SSL server specified an IP address in its URL, disable the host name verification check.
Use the following command-line argument to specify a custom host name verifier:
-Dweblogic.security.SSL.hostnameVerifier=classname
where classname specifies the implementation of the weblogic.security.SSL.HostnameVerifier interface.

Command	Description
keytool -genkey -keystore keystorename -storepass keystorepassword	Generates a new private key entry and self-signed digital certificate in a keystore. If the keystore does not exist, it is created.
keytool -import -alias aliasforprivatekey -file privatekeyfilename.pem -keypass privatekeypassword -keystore keystorename -storepass keystorepassword	Updates the self-signed digital certificate with one signed by a trusted CA.
keytool -import -alias aliasfortrustedca -trustcacerts -file trustedcafilename.pem -keystore keystorename -storepass keystorepassword	Loads a trusted CA certificate into a keystore. If the keystore does not exist, it is created.
-certreq -alias alias -sigalg sigalg -file certreq_file -keypass privatekeypassword -storetype keystoretype -keystore keystorename -storepass keystorepassword	Generates a CSR, using the PKCS#10 format.Sent the CSR to be sent to a trusted CA. The trusted CA authenticates the certificate requestor and returns a digital certificate to replace the existing self-signed digital certificate in the keystore.
keytool -list -keystore keystorename	Displays what is in the keystore.
keytool -delete -keystore keystorename -storepass keystorepassword -alias privatekeyalias	Delete a private key/digital certifcate pair for the specified alias from the keystore.
keytool -help	Provides online help for keytool.

Option	Description
strong or true	Use this option to check that the Basic Constraints extension on the CA certificate is defined as CA. For example:-Dweblogic.security.SSL.enforceConstraints=strongor-Dweblogic.security.SSL.enforceConstraints=trueBy default, WebLogic Server performs this level of certificate validation.
strict	Use this option to check the Basic Constraints extension on the CA certificate is defined as CA and set to critical. This option enforces the IETF RFC 2459 standard.For example:-Dweblogic.security.SSL.enforceConstraints=strictThis option is not the default because a number of commerically available CA certificates do not conform to the IETF RFC 2459 standard.
off	Use this option to disable certificate validation. Use this option carefully. For example, if you purchased CA certificates from a reputable commerical certificate authority and the certificates do not pass the new validation, use this option. However, CA certificates from most commerical certificate authorities should work with the default strong option.For example:-Dweblogic.security.SSL.enforceConstraints=offBEA does not recommend use of this option in production environment. Instead, purchase new CA certificates that comply with the IETF RFC 2459 standard.
