Testing the new function by mocking the Sterling Order Management message

We can integrate Sterling Order Management with WebSphere Commerce, by deploying the customized code.


Task info

The customized code you created in the previous steps needs to be deployed to a product server, and communicate with Sterling Order Management through the Service Definition Framework.

We can also hard code the Sterling Order Management API to check if whether the end-to-end flow is working properly.

Note: How to customize the Sterling Order Management API and UI to have real support of the additional parameter to the GetEntitledPrice engine, is out of the scope of this example. For more information, see the Sterling Order Management Information Center.

To integrate Sterling Order Management with WebSphere Commerce:


Procedure

  1. Deploy the WebSphereCommerceServerExtensionsLogic project and com.ibm.commerce.price-ext to a product server. For more information about how to deploy the project to a product server, go to the WebSphere Commerce Information Center and search for Customized WebSphere Commerce Enterprise Application (EAR) assets.

  2. Restart the runtime server.

  3. Insert the hard-coded class into the Sterling Order Management server.

    Note: The Service Definition Framework and WebSphere Commerce product server was already configured in the Customizing the Service Definition Framework to transform the request message from Sterling Order Management to WebSphere Commerce tutorial. Now the customized configuration is ready on WebSphere Commerce and the Service Definition Framework.

  4. Insert the modified Sterling Order Management API into the Sterling Order Management server.

    1. To install the sample code, we must patch the ypmbe.jar ($YFS_RT/jar/smcfs/9.2.0/ypmbe.jar). The file to update in the ypmbe.jar is com/yantra/ypm/business/ue/impl/YPMGetItemPriceUEWCIntegrationImpl.class. The YPMGetItemPriceUEWCIntegrationImpl.class is attached: YPMGetItemPriceUEWCIntegrationImpl.zip.

      When the ypmbe.jar is updated, rebuild the EAR and redeploy the EAR into WebSphere Commerce.

    2. Go to <INSTALL_DIR>/bin, where <INSTALL_DIR> is the location where Sterling Order Management is installed. For example, opt/Sterling/Foundation/bin.

    3. Run ./buildear.sh -Dappserver=websphere -Dearfile=smcfs.ear -Dsupportmultiwar=false -Dwarfiles=smcfs,sma,sbc -Dnowebservice=true -Ddevmode=true create-ear.

    4. Open the WAS Admin Console>Applications>WebSphere Enterprise Applications.

    5. Click the Sterling Application. Click Update.

    6. Click Replace the entire application. Click Remote file system. Browse to the smcfs.ear createdd in step 1.

    7. Click Next. Accept all defaults to update the application.

    8. Restart server1. Restart service.

      Note: The sample code is hard-coded to add 40 as the value for the ValuePoints attribute for each LineItem in the getItemPrice request. An example message sent from the Service Definition Framework from Sterling Order Management:

        <Se:smo ...>
...
	<body xsi:type="ex:getItemPriceRequestMsg">
		<input:ItemPrice Currency="USD" EnterpriseCode="AuroraBase"
IsQuantityTierRequested="N" OrganizationCodej="AuroraBase">
		<LineItems>
			<LineItem ItemID="FULO-0101" LineID="1" Quantity="1"
UnitOfMeasure="EACH" ValuePoints="40"/>
		</LineItems>
		</input:ItemPrice>
	</body>
</Se:smo>

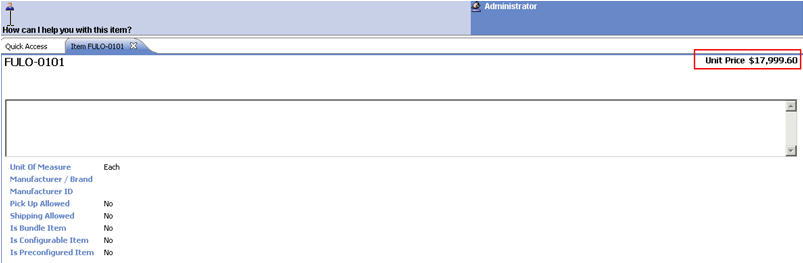

    9. Start Sterling Call Center. Search FULO-0101. We can find that the price is 40 times more than the original one, unless you also applied an additional price rule.
