Configure CBR using the GUI

Follow the steps below:

  1. Use the GUI and follow the instructions for NAT forwarding setup.

  2. Only when adding ports, set the forwarding method to content-based routing

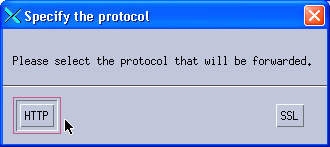

  3. After clicking OK, if Content-based Routing is selected, another dialog box is displayed for choosing the protocol to be forwarded

  4. Click HTTP when adding port 80, and SSL when adding port 443. Also choose SSL for WebSphere Commerce administrative ports such as 8000, 8002, and so on.

  5. After this, continue with the setup as described for the NAT forwarding method.

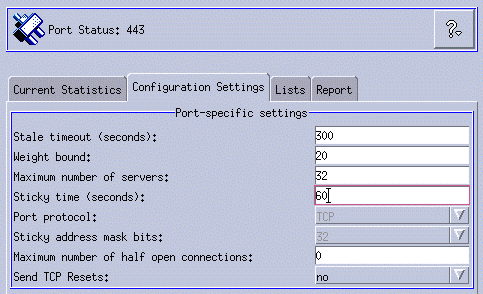

  6. SSL session ID affinity is activated by setting the sticky time for the HTTPS port. Expand the tree view on the left until you see the ports, then click Port: 443, and in the right pane click Configuration settings.

  7. Change the Sticky time (seconds) field to your desired sticky time. Note that there is no field for cross-port affinity when using CBR forwarding.

  8. Click Update Configuration at the bottom to activate the change.
