Web Services Addressing and the service integration bus


If using the Web Services Addressing (WS-Addressing) support, the presence of a service integration bus can affect the routing of messages. If also using a firewall, we might have to perform some additional configuration.

In the following scenarios, the client must conform to the WS-Addressing specification.



One-way messaging scenario

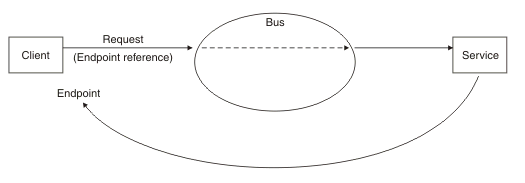

The path taken by one-way messages is as follows:

  1. The client sends a request, containing an endpoint reference specifying the endpoint to which replies are sent, to the service integration bus. This request is a one way request, so the client does not wait for a response.

  2. The bus passes the message intact to the Web service.

  3. The Web service sends a response directly to the endpoint specified in the request.

This scenario works if messages can flow directly from the Web service to the endpoint. If we have a configuration that does not support direct message flow, for example if we have a firewall, create handlers that can redirect the message as required.



Request-response messaging scenario

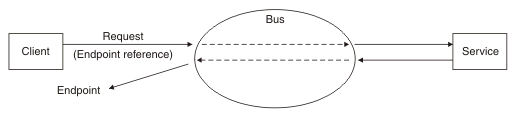

For request-response scenarios, the messages take the following path:

  1. The client sends a request, containing an endpoint reference specifying the endpoint to which replies are sent, to the service integration bus.

  2. The bus passes the message intact to the Web service, as a synchronous request. As the message leaves the bus, the endpoint reference is replaced with the anonymous URI listed in the WS-Addressing specification. This step ensures that the Web service does not send a response directly to the endpoint.

  3. The Web service sends a response back to the bus, as part of the synchronous interaction.

  4. As the message leaves the bus, the anonymous URI is replaced with the original endpoint reference, enabling the bus to pass the message to the endpoint.
