Personal certificates settings



+

Search Tips   |   Advanced Search

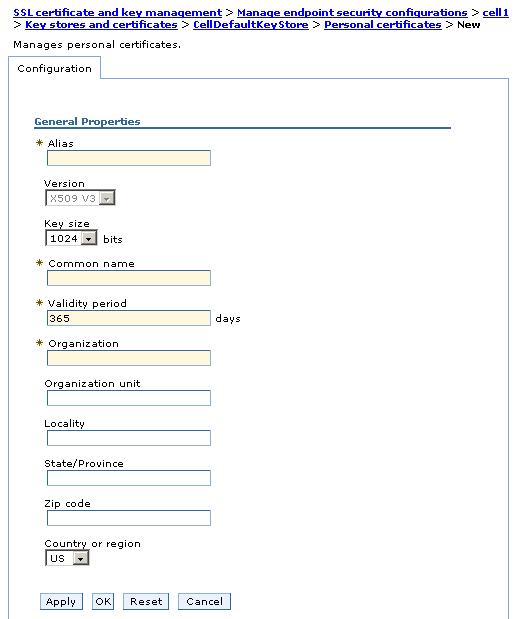

Use this page to create new personal certificates.

To view this console page, click...

Security | SSL certificate and key management | Manage endpoint security configurations | Inbound | Outbound | SSL_configuration_name | Related items | Key stores and certificates | key store | Additional Properties | Personal certificates | Create a self-signed certificate

This same help file is available when you create a new certificate or modify an existing certificate. The fields in this file are marked according to when they show on the console.



Configuration tab

Alias

Specify the alias for the personal certificate in the key store.

This field displays when you create a new certificate. This field is read-only when you view an existing certificate.

Data type:

Text

V

Specify the version of the personal certificate. Valid versions include X509 V3, X509 V2, or X509 V1. IBM recommends to use X509 V3 certificates.

This field is read-only when you create or view a certificate.

Data type:	Text
Default:	X509 V3
Range:

Key size

Specify the key size of the private key that is used by the personal certificate.

This field displays when you create or view a certificate.

Data type:	Integer
Default:	1024

Common name

Specify the common name portion of the distinguished name (DN). IBM recommends that this name be the host name of the machine on which the certificate resides. In some cases, the common name is used to login during Secure Socket Layer (SSL) certificate authentication; therefore, in some cases, this name might be used as a user ID for a local operating system registry.

This field displays when you create a new certificate, but does not display when you view an existing certificate.

Data type:

Text

Serial number

Specify the certificate serial number that is generated by the issuer of the certificate.

This field displays only when you view an existing certificate.

Validity period

Length in days during which the certificate is valid. The default is 365 days.

This field displays when you create or view a certificate.

Data type:

Text

Organization

Specify the organization portion of the distinguished name.

This field displays only when you create a new certificate.

Data type:

Text

Organization unit

Specify the organization unit portion of the distinguished name. This field is optional.

This field displays only when you create a new certificate.

Data type:

Text

Locality

Locality portion of the distinguished name. This field is optional.

This field displays only when you create a new certificate.

Data type:

Text

State/Province

State portion of the distinguished name. This field is optional.

This field displays only when you create a new certificate.

Data type:

Text

Zip code

Specify the zip code portion of the distinguished name. This field is optional.

This field displays only when you create a new certificate.

Data type:

Integer

Country or region

Specify the country portion of the distinguished name.

This field displays only when you create a new certificate.

Data type:	Text
Default:	(none)

Refer to http://www.iso.org/iso/en/prods-services/iso3166ma/02iso-3166-code-lists/list-en1.html for a list of ISO 3166 country codes.

Validity period

Length, in days, when the certificate is valid. The default is 365 days.

This read-only field displays only when you view an existing certificate.

Issued to

Specify the distinguished name of the entity to which the certificate was issued.

This read-only field displays only when you view an existing certificate.

Issued by

Specify the distinguished name of the entity that issued the certificate. When the personal certificate is self-signed, this name is identical to the Issued to distinguished name.

This read-only field displays only when you view an existing certificate.

Fingerprint (SHA Digest)

Specify the Secure Hash Algorithm (SHA hash) of the certificate, which can be used to verify the certificate's hash at another location, such as the client side of a connection.

This read-only field displays only when you view an existing certificate.

Signature algorithm

Specify the algorithm used to sign the certificate.

This read-only field displays only when you view an existing certificate.

---
