Password synchronization architecture and workflow
The Security Directory Integrator password synchronizer architecture consists of four layers, which we can combine to build the required password synchronization solutions.
There are several layers in the SDI Password

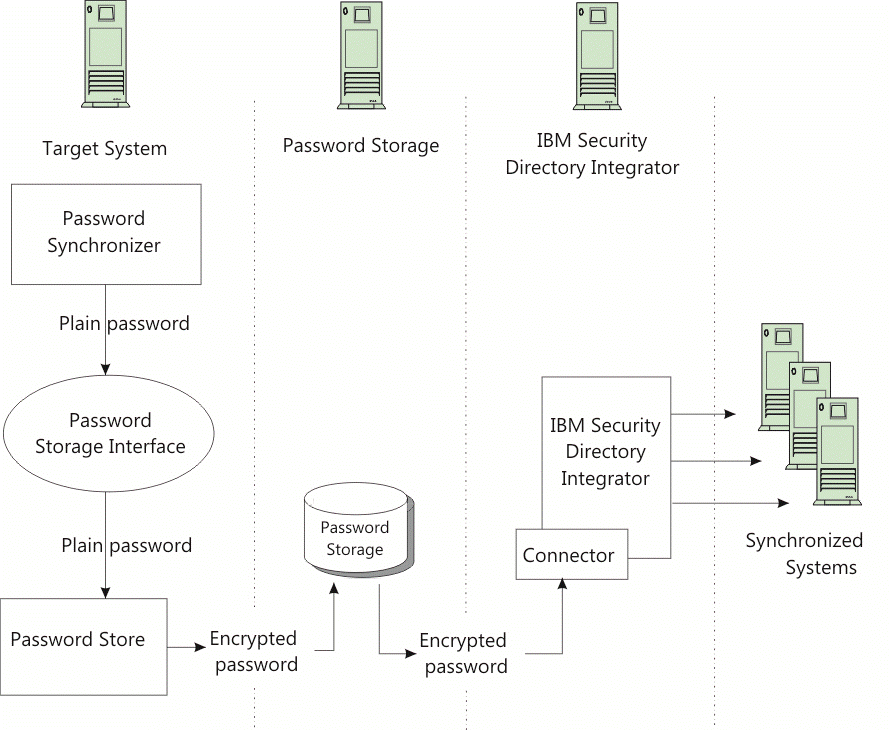

Synchronizer architecture as shown in the following picture.
The Target System in the diagram depicts the software
system where you want to intercept password changes. The Password
Synchronizer component hooks into the Target System with
custom interfaces provided by the Target System. The Password
Synchronizer component intercepts password changes as they occur
in the Target System and before the password is hashed irreversibly.
The Java Proxy component
is a proxy, which receives passwords from the server plug-in and redirects
them to the Password Storage component. The proxy acts as
a container for the Password Storage component. This component
manages the lifecycle of the Password Storage component and
handles inter-process communication with the SDI plug-ins.
The Java Proxy logs errors,
if any, in the configured log file. If an initialization error is
raised, the Java Proxy fails
to load it. If a run time error occurs, the error is logged for later
investigation. However, the server continues to run and thus provides
high availability in a temporary environment change or failure.
The Password Storage component is deployed on the Target
System. When the Password Synchronizer intercepts a password
change, it sends the password to the Password Store by using
the Java Proxy process. The Password
Store encrypts the password and sends it to a Password Storage.
The Password Storage component is the second layer in
the architecture. It represents a persistent storage system, for example,
an LDAP directory, or the IBM WebSphere® MQ Everyplace®.
In the storage system, the intercepted and the encrypted passwords
are stored in a form and location that are accessible from SDI. We can have the Password Storage on
the Target System or on another network system.
The SDI, the third layer of the
architecture, uses a Connector component to connect to the Password
Storage and retrieves the stored passwords. In the SDI, the passwords are decrypted and
made available to the AssemblyLine. The AssemblyLine synchronizes
passwords with other systems. We can deploy the SDI on a system different from the Target
System and thePassword Storage systems.
The systems where passwords are synchronized with the Target
System represent the next layer in the architecture, in the data
flow direction. The password synchronization AssemblyLine is responsible
to connect to these systems and to update the passwords.
Java Proxy receives
passwords from the Password Synchronizers and redirects them to the
Password Store component. The Java Proxy
manages lifecycle of the Password Storage component and handles the
inter-process communication with SDI plug-ins.
Password Store is the place where Java Proxy stores the received passwords.
We can build a password synchronization solution to intercept
password changes on several Target Systems by using a layered
password synchronization architecture.
We can use the public-private key infrastructure to provide
secure transport and intermediate storage of password data.
Functions for preventing and dealing with possible password
de-synchronization is built into the password synchronization workflow.
