Profiles to control queue sharing group or queue manager level security
If subsystem security checking is required, IBM MQ checks whether security checking is required at queue sharing group or queue manager level.
When IBM MQ has determined that security checking is required, it then determines whether checking is required at queue sharing group or queue manager level, or both. These checks are not performed if your queue manager is not a member of a queue sharing group.

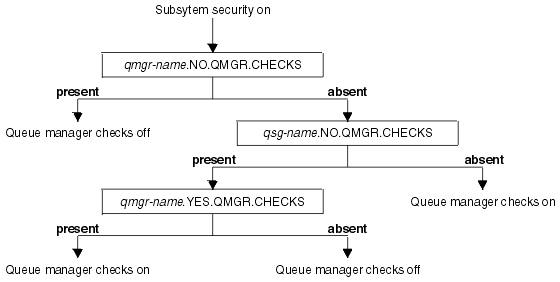

The following switch profiles are checked to determine the level required. Figure 1 and Figure 2 show the order in which they are checked.
| Switch profile name | Type of resource or checking that is controlled |
|---|---|
| qmgr-name.NO.QMGR.CHECKS | No queue manager level checks for this queue manager |
| qsg-name.NO.QMGR.CHECKS | No queue manager level checks for this queue sharing group |
| qmgr-name.YES.QMGR.CHECKS | Queue manager level checks override for this queue manager |
| qmgr-name.NO.QSG.CHECKS | No queue sharing group level checks for this queue manager |
| qsg-name.NO.QSG.CHECKS | No queue sharing group level checks for this queue sharing group |
| qmgr-name.YES.QSG.CHECKS | Queue sharing group level checks override for this queue manager |
If subsystem security is active, we cannot switch off both queue sharing group and queue manager level security. If you try to do so, IBM MQ sets security checking on at both levels.
- Valid combinations of security switches
Only certain combinations of switches are valid. If we use a combination of switch settings that is not valid, message CSQH026I is issued and security checking is set on at both queue sharing group and queue manager level.
Parent topic: Switch profiles
