Configure business object properties and data handlers

When you select a data type that contains business objects, you must specify properties for those business objects. However, this step does not add child business object to the email parent object. Rather, they tell the adapter how to process particular types of business objects. Data handlers perform the conversions between a business object and a particular MIME format.

You must have created a data binding before specifying business object properties and data handlers for the module. Also, you must have predefined business objects using IBM Integration Designer Business Object Editor. If you stop the wizard here to create business objects, you must start the wizard steps from the beginning.

Data handlers can be configured before running the external service wizard using IBM Integration Designer. To do this configuration, select New > Configure Binding Resource in IBM Integration Designer and complete the data handler windows described in this documentation.

You must define business object properties and data handlers if you have selected the generic email, email with business graph, or user-defined type as the data type. The simple alert email data type does not have properties that need to be configured. To specify business object properties and data handlers, follow this procedure.


Procedure

  1. If you chose the email with business object or email with business graph data types, click Add to add the business object types to the data binding description in the Add/Edit properties window.

    For the user-defined type, the following warning message is displayed if you click Add in this window. The User cannot add new row to the table. Adapter has parsed your Input type and filled the table. This warning appears because the adapter has determined which business objects the data binding must know about and pre-filled the table. To provide values for the rest of the properties, select individual rows and click Edit.

    If you are repeating these steps to configure a child data binding for the user-defined data type, note that you cannot select between data handler and data binding when you click Edit. The binding type option (to select between data binding and data handler) does not function correctly for the EmailFixedStructuredDataBinding data binding. To configure a child data binding for EmailFixedStructuredDataBinding, click the Binding type field and select DataBinding.

  2. In the Add/Edit properties window, ensure that DataHandler is selected in the Binding type field.

  3. In the Business object type field, click Browse for existing business objects or New to create a business object. Selecting business objects here does not physically add child business objects. Adding business objects at this stage in the wizard tells the adapter that you are going to use certain business object types with your module. It enables the adapter to know what data binding to apply to any child business objects it processes.

    1. If you selected Browse for the Business object type field, select a data type from the Data Type Selection window and click OK.

    2. If you selected New for the Business object type field.

      Figure 1. Specifying business object properties for the module

    3. Select the Module. If the correct module is not shown, Browse for it or click New to create a module.

    4. Optional: Type a Folder name or Browse for the folder on your local drive where business object schema files (XSD files) generated by the external service wizard are stored.
    5. Type a Name for the business object.

    6. If you do not want to populate the business object with fields from one or more existing business objects, click Finish.

    7. If you want to populate the business object with fields from one or more existing business objects, click Next.

      Figure 2. Deriving business object fields from an existing business object

    8. Select the correct business object and click Finish. The Business object type in the Add/Edit properties window is populated.

  4. In the Add/Edit properties window, select a Mime type such as text/xml for your business object. The mime type corresponds to the data handler that is used by the adapter to perform data transformation from one format to another. This step enables the adapter to decide which format it has to convert the content to when it encounters the business object.

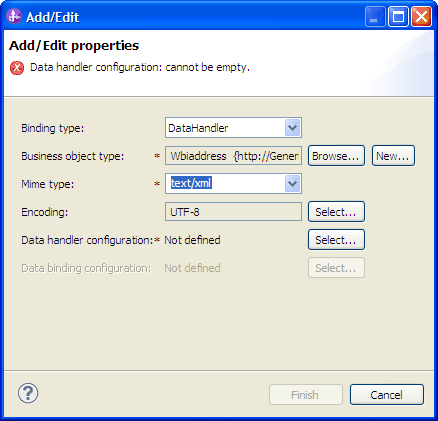

    Figure 3. Adding or editing business object data binding properties

  5. In the Encoding field, click Select if you want to choose a different encoding value.

  6. In the Data handler configuration field, click Select. Complete the following steps to create and configure a data handler.

    1. From the Use existing data format transformation from the list option, select the XML data handler. Click Next.

      Figure 4. Creating a data handler

    2. In the Specify the Data Transformation Properties window, select an Encoding value. Click Next.

    3. In the Configure a New Data Transformation window, select the module. If the correct module is not displayed, click New to create a new one.

    4. Optional: Type a Folder name to specify a folder for the artifacts.
    5. Leave the default data handler Name or type a new one.

      Figure 5. Creating a data handler

    6. Click Finish.

  7. In the Add/Edit properties window, click Finish.


Results

Business object properties and their data handlers are created.


What to do next

Specify interaction specification properties and generate artifacts for the module.
