Synchronizing a subflow instance and implementation

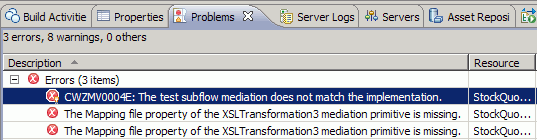

When you change the implementation of a mediation subflow, you may see this error in the subflow instance in the parent mediation flow: "CWZMV0004E: The test subflow mediation does not match the implementation". Use the Quick fix action to synchronize the subflow instance with the implementation.

To synchronize the subflow instance with the implementation:


Procedure

  1. Switch to the Problems view.

  2. Select the error.

  3. Right-click, and select Quick fix.

  4. The Quick fix window opens, showing all the subflow instances that do not match the subflow implementation.
  5. Ensure that all the subflow instances are selected, and click Finish. This action will synchronize all of the subflow instances with the subflow implementation.
