Common Base Events for BPEL processes

Common Base Events are emitted for BPEL processes if monitoring is requested for the BPEL process in IBM Integration Designer. A list of all the events that can be emitted by a BPEL process can be found here. These events are also written to the audit log.

State transitions and process events

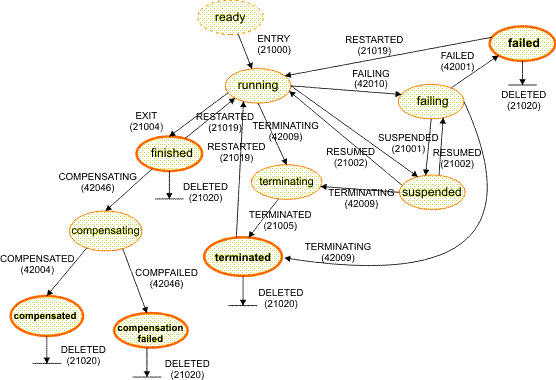

The following diagram shows the state transitions that can occur for a BPEL process and the events that are emitted when these state changes take place. The link between each state indicates the nature of the event and the event code of the event that is emitted for the state transitions.
Figure 1. State transitions and process events

Process events

The columns in the following table contain:

Code

Contains the number of the event. For Business Monitor 6.0.2 format events, the value is written to the Common Base Event as an extended data element with the name BPCEventCode. For Business Monitor 6.1 format events, the value is written to the xs:any slot of the Common Base Event.

Event name and extension name

This column contains two values. The name of the event and the value that is set in the extensionName attribute of the Common Base Event. The extension name identifies which event specific information is contained in the Common Base Event, and it is also the name of the XML element that provides additional data about the event.

Situation

Refers to the situation name of the BPEL process event.

Event nature

A pointer to the event situation for a BPEL process element in the EventNature parameter, as they are displayed in IBM Integration Designer.

Some process events are emitted without a state change. The following table describes all process events.

Process events
Code Event name and extension name Situation Event nature Description
21000
PROCESS_STARTED

BPC.BFM.PROCESS.START
Start ENTRY Process started
21001
PROCESS_SUSPENDED

BPC.BFM.PROCESS.STATUS
Report SUSPENDED Process suspended. To suspend process instances, use Business Process Choreographer Explorer.
21002
PROCESS_RESUMED

BPC.BFM.PROCESS.STATUS
Report RESUMED Process resumed. Only suspended processes can be resumed. To resume process instances, use Business Process Choreographer Explorer.
21004
PROCESS_COMPLETED

BPC.BFM.PROCESS.STATUS
Stop EXIT Process completed
21005
PROCESS_TERMINATED

BPC.BFM.PROCESS.STATUS
Stop TERMINATED Process terminated. To terminate process instances, use Business Process Choreographer Explorer.
21019
PROCESS_RESTARTED

BPC.BFM.PROCESS.START
Report RESTARTED Process restarted. A process is restarted on request, for example, by using Business Process Choreographer Explorer.
21020
PROCESS_DELETED

BPC.BFM.PROCESS.STATUS
Destroy DELETED Process deleted
42001
PROCESS_FAILED

BPC.BFM.PROCESS. FAILURE
Fail FAILED Process failed
42003
PROCESS_COMPENSATING

BPC.BFM.PROCESS.STATUS
Report COMPENSATING Process compensating. Only child processes can be compensated. The compensation of a child process is triggered by a fault handler or compensation handler associated with the parent process.
42004
PROCESS_COMPENSATED

BPC.BFM.PROCESS.STATUS
Stop COMPENSATED Process compensated
42006
PROCESS_INSTALLED
Report INSTALLED These are process instance events, which are only emitted in the audit trail. They are not emitted as common base events, and are included here for completeness.
42007
PROCESS_UNINSTALLED
Report UNINSTALLED These are process instance events, which are only emitted in the audit trail. They are not emitted as common base events, and are included here for completeness.
42009
PROCESS_TERMINATING

BPC.BFM.PROCESS.STATUS
Report TERMINATING Process terminating
42010
PROCESS_FAILING

BPC.BFM.PROCESS.STATUS
Report FAILING Process failing
42027
PROCESS_CORRELATION_
SET_INITIALIZED

BPC.BFM.PROCESS.CORREL
Report CORRELATION This event is emitted when a new correlation set for the process instance is initialized, for example, when a receive activity with an initiating correlation set receives a message.
This event is not associated with a state change.
42041
PROCESS_WORKITEM_
DELETED

BPC.BFM.PROCESS.
WISTATUS
Report WI_DELETED Process work item deleted. This event is emitted only when a work item is explicitly deleted by an API request. If the work item is deleted because the corresponding process instance is deleted, an event is not emitted.
This event is not associated with a state change.
42042
PROCESS_WORKITEM_
CREATED

BPC.BFM.PROCESS.
WISTATUS
Report WI_CREATED Process work item created. This event is emitted when an additional work item is created for the process, for example, by an API request.
This event is not associated with a state change.
42046
PROCESS_COMPENSATION_FAILED

BPC.BFM.PROCESS.STATUS
Fail COMPFAILED Process compensation failed
42047
PROCESS_EVENT_RECEIVED

BPC.BFM.PROCESS.EVENT
Report EV_RECEIVED Process event received. The event is emitted when an event handler that is associated with a process is activated.
This event is not associated with a state change.
42049
PROCESS_EVENT_ESCALATED

BPC.BFM.PROCESS.ESCALATED
Report EV_ESCALATED Process event escalated. This event is emitted when an inline invocation task is escalated that is associated with an onEvent event handler for the process.
This event is not associated with a state change.
42056
PROCESS_WORKITEM_
TRANSFERRED

BPC.BFM.PROCESS.
WITRANSFER
Report WI_ TRANSFERRED Process work item transferred.
This event is not associated with a state change.
42058
PROCESS_PARTNER_CHANGED

BPC.BFM.PROCESS.PARTNER
Report PA_CHANGE Process partner changed. This event is emitted when a new endpoint reference is assigned to a partner link.
This event is not associated with a state change.
42059
PROCESS_CUSTOMPROPERTY_SET

BPC.BFM.PROCESS.
CUSTOMPROPERTYSET
Report CP_SET Process custom property set. This event is emitted when a custom property of a process instance is changed.
This event is not associated with a state change.
42071
PROCESS_OWNER_TRANSFERRED

BPC.BFM.PROCESS.OWNERTRANSFER
Report OWNER_ TRANSFERRED This event is emitted when the ownership of a process is transferred from one user to another.
This event is not associated with a state change.
42077
PROCESS_CORRELATION_SET_SET

BPC.BFM.PROCESS.CORREL
Report CORRELATION This event is emitted when the value of a correlation set for the process instance is set.
This event is not associated with a state change.
42078
PROCESS_CORRELATION_SET_UNSET

BPC.BFM.PROCESS.CORREL
Report CORRELATION This event is emitted when the value of a correlation set for the process instance is deleted or unset.
This event is not associated with a state change.
42079
PROCESS_MIGRATED

BPC.BFM.PROCESS.MIGRATED
Report MIGRATED This event is emitted when a process is migrated to use a new template.
This event is not associated with a state change.
42080
PROCESS_MIGRATION_TRIGGERED

BPC.BFM.PROCESS.
MIGRATIONTRIGGERED
Report MIGRATION_ TRIGGERED This event is emitted when the migration of process instances to use a new template is started.
This event is not associated with a state change.

For process events, the following event correlation sphere identifiers have the following content:

The ECSCurrentID provides the ID of the process instance.
The ECSParentID provides the value of the ECSCurrentID before the process instance start event of the current process.

Business process events

Related reference:
Event data specific to BPEL processes
Situations in BPEL process events
Extension names for BPEL process events
