How the store-and-forward feature works

To enable the store-and-forward feature, you set the store-and-forward qualifier on the component that will be invoked asynchronously. If that component then calls a service that is unavailable, a failed event is created and a service unavailable exception is generated. Once a failed event triggers the store function, all subsequent asynchronous requests intended for the component are stopped and stored. When the service becomes available again, you can resubmit the failed events that triggered the store and set the Store and Foward widget to forward stored events for processing.

You set the store-and-forward qualifier in Integration Designer. This qualifier can be specified on an import, a SCA export, or a component. It can be specified for all interfaces of the component, a specific interface, or a specific operation. The exception part of the qualifier can apply to any of these different levels. However, the state (store or forward), applies at the component level only.

When an application with a store-and-forward qualifier is deployed to the server, and runtime validation is enabled, a runtime validator confirms that the qualifier is specified correctly.

If there are any errors during validation, the installation of the application is stopped. If there are any warnings, they are displayed in the log file and the installation of the application is allowed to continue. The rules for validation of this qualifier are specified at Store-and-forward runtime validator.


Component calling a web service

Suppose you have a component that calls a web service, as in the following illustration:

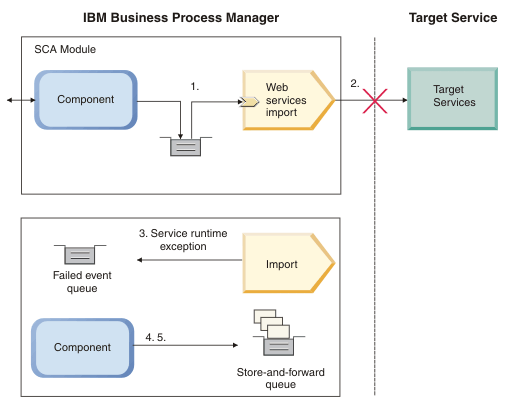

Figure 1. Flow of asynchronous request processing from an SCA module to an target service when the store-and-forward feature is used

The items in the following list correspond to the numbers in Figure 1.

  1. A component calls the target web service by way of the web service import.

    Because this is an asynchronous call, requests are put on the queue by the calling component, where they are picked up by the import.

  2. The import detects that the service is down and retries the operation.

    As shown in Figure 1, the destination queue cannot be reached and, therefore, the service cannot pick up the asynchronous requests for processing.

  3. If the service is unavailable, a failed event is created. If subsequent retries fail, the import generates a service unavailable exception.

    When the service unavailable exception is generated, a failed event is created and the recovery service checks the configured policy to determine whether this exception means that the service is down.

  4. If it is determined that the service is down, the asynchronous requests are placed in the store-and-forward queue.

  5. Additional asynchronous requests intended for the service are stopped before they can reach the import and are stored until the service becomes available.

    Storing the asynchronous requests prevents additional failures from occurring.

    The size of the queue is configurable. Make sure you specify a size that is large enough to accommodate the asynchronous requests. If the queue is not large enough, the event store will overflow, causing failed events to be generated.

    When configuring the size of the queue, estimate how long the service might be down and consider the rate of arrival of asynchronous requests.

Important:

Once the service becomes available again, you will have failed events in the failed event manager that need to be resubmitted for processing. This does not happen automatically. Use the failed event manager to resubmit the events that triggered storing in the first place. These events will be tagged with an Activated Store event qualifier. Then, open the widget in Business Space, locate the service control point that triggered the store, and select Forward.

If event sequencing and store-and-forward processing are specified on the same operation or interface, the failed event that triggered the store must be resubmitted before any sequenced failed events behind it can be forwarded.


SCA module calling multiple target services

The same sequence of steps occurs when multiple target services are called from a single SCA module, but with one notable exception - if one of the target services called by the component becomes unavailable, all asynchronous requests are stopped before they reach an import and stored for future processing. The store-and-forward qualifier is specified on the component's interface.

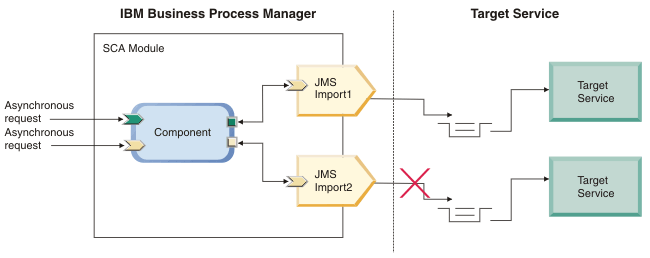

Figure 2.shows two asynchronous requests flowing from one SCA module to multiple target services. One of the target services is unavailable, but the other is available. Subsequent asynchronous requests intended for both the first target service and the second are stopped before they reach the import and stored for future processing.

Figure 2. Flow of asynchronous request processing from one SCA module to multiple target services when the store-and-forward feature is used


Unsupported scenario - Long-running process calling a target service synchronously

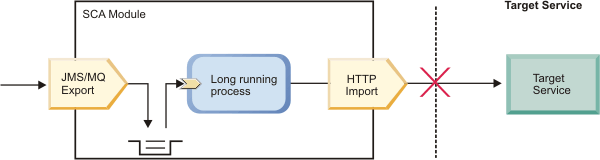

Figure 3.shows a long running process calling a target service synchronously. Even if a store-and-forward qualifier is enabled a long running process' interface, store-and-forward qualifier will not take effect.

Figure 3. Long running process calling a target service is not a supported store-and-forward scenario
