sysLib.connectionService

The system function sysLib.connectionService provides two benefits:

When you use sysLib.connectionService to create a new connection from a Java program, specify the isolation level by setting the system variable sysVar.sqlIsolationLevel.

sysLib.connectionService is for use only in programs migrated from VisualAge Generator and EGL 5.0. The function is supported (at development time) if the EGL preference VisualAge Generator compatibility is selected or (at generation time) if the build descriptor option VAGCompatibility is set to yes.

For new programs, use these system functions instead:

sysLib.connectionService does not return a value.

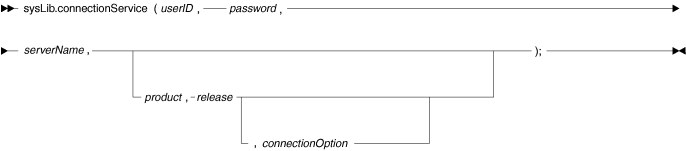

sysLib.connectionService syntax diagram

userID

UserID used to access the database. The argument must be an item of type CHAR and length 8; a literal is not valid. The argument is required. For background information, see Database authorization and table names.

password

Password used to access the database. The argument must be an item of type CHAR and length 8; a literal is not valid. The argument is required.

serverName

Specifies a connection and uses that connection to assign values to the arguments product and release, if those arguments are included in the invocation of sysLib.connectionService.

The argument serverName is required and must be an item of type CHAR and length 18. Any of the following values are valid:

blanks (no content)

If a connection is in place, sysLib.connectionService maintains that connection. If a connection is not in place, the result (other than to assign values) is to return to the connection status that is in effect at the beginning of a run unit, as described in Default database.

RESET

RESET reconnects to the default database; but if the default database is not available, the connection status remains unchanged.

For further details, see Default database.

serverName

Identifies a database:

  • The physical database name is found by looking up the property vgj.jdbc.database.server, where server is the name of the server specified on the sysLib.connectionService call. If this property is not defined, the server name that is specified on the sysLib.connectionService call is used as is.

  • The format of the database name is different for J2EE connections as compared with non-J2EE connections:

    • If you generated the program for a J2EE environment, use the name to which the datasource is bound in the JNDI registry; for example, jdbc/MyDB. This situation occurs if build descriptor option J2EE was set to YES.

    • If you generated the program for a non-J2EE JDBC environment, use a connection URL; for example, jdbc:db2:MyDB. This situation occurs if option J2EE was set to NO.

product

Receives the database product name. The argument, if any, must be an item of type CHAR and length 8.

To determine the string that will be received when your code connects to a particular database, review the product documentation for the database or driver; or run your code in a test environment and write the received value to a file.

release

Receives the database release level. The argument, if any, must be an item of type CHAR and length 8.

To determine the string that will be received when your code connects to a particular database, review the product documentation for the database or driver; or run your code in a test environment and write the received value to a file.

connectionOption

Valid values are as follows:

D1E

D1E is the default. The 1 in the option name indicates that only a one-phase commit is supported, and the E indicates that any disconnect must be explicit. In this case, a commit or rollback has no effect on an existing connection.

A connection to a database does not close cursors, release locks, or end an existing connection. If the run unit is already connected to the same database, however, the effect is equivalent to specifying DISC then D1E.

You can use multiple connections to read from multiple databases, but you should update only one database in a unit of work because only a one-phase commit is available.

D1A

The 1 in the option name indicates that only a one-phase commit is supported, and the A indicates that any disconnect is automatic. Characteristics of this option are as follows:

  • You can connect to only one database at a time

  • A commit, rollback, or connection to a database ends an existing connection

DISC

Disconnect from the specified database. Disconnecting from a database causes a rollback and releases locks, but only for that database.

DCURRENT

Disconnect from the currently connected database. Disconnecting from a database causes a rollback and releases locks, but only for that database.

DALL

Disconnect from all connected databases. Disconnecting from all databases causes a rollback in those database, but not in other recoverable resources.

SET

Set a connection current. (By default, the connection most recently made in the run unit is current.)

The following values are supported for compatibility with VisualAge Generator, but are equivalent to D1E: R, D1C, D2A, D2C, D2E.

Definition considerations

sysLib.connectionService sets the following system variables:

  • sysVar.sqlerrd

  • sysVar.sqlca

  • sysVar.sqlcode

  • sysVar.sqlwarn
